Asset Export: Single Asset export not including all graphics in asset

  • February 5, 2021
  • 2 replies
  • 835 views

Hello all,

I have an group of paths (2 words (broken out to outlines), 1 icon) forming a logo.

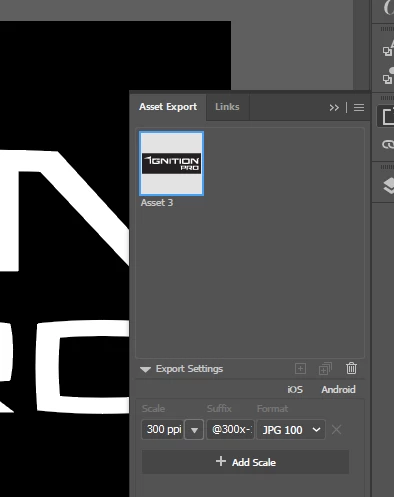

When I either Group them and drag them into the Asset Export Panel, or Right click and export as Single Asset, the thumbnail looks great in the panel.  (white logo, black background).

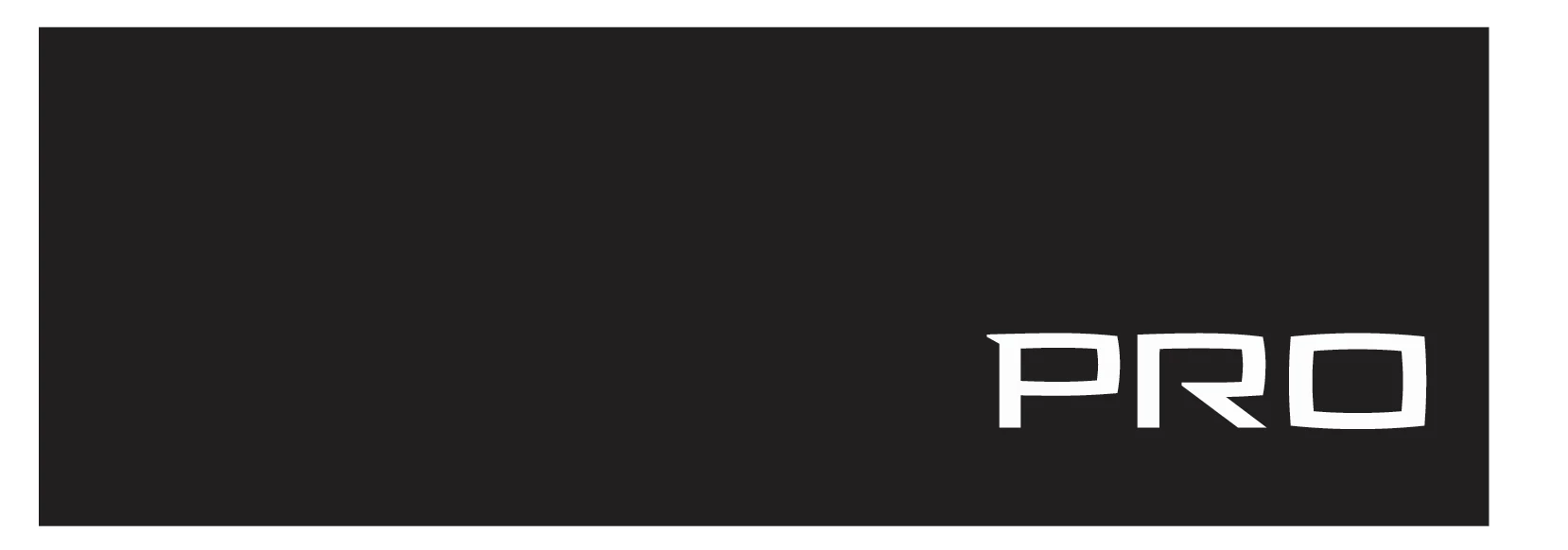

When I export as a JPG or PNG,  It exports the black ground, but with only 3 of the 14 paths visable....    (files attached).     (I don't know if it's deleting the missing elements, or simply re-ordering them behind the black box).



When I export the same Single Asset as a PDF...  it works...



Asset Export works in other files, so there is something about this set of assets that is making it do it...   but what???



thanks!

This topic has been closed for replies.

2 replies

Ton Frederiks
Community Expert
Ton FrederiksCommunity Expert
Community Expert
February 5, 2021

Can you check (with the disappearing objects selected) in the Attributes panel if Overprint is active?

    Scott BNDDBL07
    Scott BNDDBL07Author
    Participant
    February 5, 2021

    Thanks for the reply.      Overprint Fill is selected.       (and there is a ! beside it....)   (I don't know what that means, but am I to guess that this is bad)      Tested and yes... bad. 🙂     When I turn it off,  It works!     (I will do more research to learn what that means... but for now, we are good!    Thanks so much to you and Larry.

      Ton Frederiks
      Community Expert
      Ton FrederiksCommunity Expert
      Community Expert
      February 5, 2021

      In case of white (paper color) it is bad.

      If you want to know more about Overprint:

      https://helpx.adobe.com/illustrator/using/overprinting.html

      and white overprint:

      https://helpx.adobe.com/illustrator/using/white-overprint.html

        Larry G. Schneider
        Community Expert
        Larry G. SchneiderCommunity Expert
        Community Expert
        February 5, 2021

        Is the first word a Compound Path? Does it change if you make lt one?

        Scott BNDDBL07
        Scott BNDDBL07Author
        Participant
        February 5, 2021

        Good call!   The visable word (PRO) are Compound Paths.  The rest are just Paths.    I created PRO using the Create Outlines feature.   Can't remember how I did the rest... but now I will take a look at that..      Thanks!  (I did a test with a new word converted the same way and it shows up too.  So we are on the right path.... or is it compound path... 😄



        thanks!
