Isometric tyre

Question

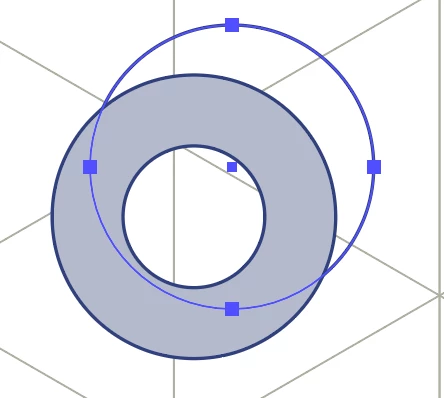

I'm drawing an isometric truck but can't work out the best way to get the thickness for the tyre. The steps taken so far are: before applying an Action to create an isometric version, begin with an elipse 50 x 50px, copy-drag and offset it above and behind the front elipse to create the thickness.

I've tried duplicating the front elipse, minus stroke, and combining it with the offset elipse using the Pathfinder >Unite and ended up adjusting the connecting anchor points. Or, maybe, adding lines between the 2 circles and connecting them but this seemed very hit and miss even with smart guides... Does anyone have a better suggestion?

Appreciate any help with this.

Jacob Bugge · Accepted Answer

Michael,

If you are working with a simplified appearance as it seems, where the tyre appears cylindrical, you can create the isometric version of the front (the grey one) and then create a copy behind and move it up at 30 degrees (or at other angle) by the amount that corresponds to the width of the tread.

Keep a backup of the original paths.

Then you can use the free Common Tangent script here,

http://shspage.com/aijs/en/

And then you can use the Shape Builder to make the paths that form the different visible parts, and then colour them, using a gradient on the tread at the right angle; see about Shape Builder here,

https://helpx.adobe.com/search-results.html?q=shape+builder+illustrator&scope=%5B%22helpx%22%5D&subscope=%5B%5D&limit=10&start_index=0&sort_orderby=relevancy&sort_order=desc&post_facet_filters=%7B%22applicable_products%22%3A%5B%5D%7D

You can use the first (or any) of the links, this is the search page you can use for Help.

The following is an empty search you can Bookmark and then just insert search terms into,

https://helpx.adobe.com/search-results.html?q=&scope=%5B%22helpx%22%5D&subscope=%5B%5D&limit=10&start_index=0&sort_orderby=relevancy&sort_order=desc&post_facet_filters=%7B%22applicable_products%22%3A%5B%5D%7D

Mylenium · Answer

Yeah, as Jacob already said you have to create this in the perspective, not before the SSR action. If you want to be efficient, you could create only a half-donut and re-used that over and over, though the open paths and edges may cause issues later. If you need treads, create a custom brush or use a blend with a circular spine.

Mylenium
