graphic line

Forum|Forum|2 years ago
May 4, 2023
3 replies
1036 views

Dear all,

How to draw a graphic line above a specific text frame in Adobe InDesign using scripting

Thanks in advance

This topic has been closed for replies.

Correct answer rob day

Hi @John_devs , Select a text frame and try this:

app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;
var tf = app.documents[0].selection[0];
var b = tf.geometricBounds;
var p = tf.parentPage;
var g = 5;//gap above frame in points
p.graphicLines.add({geometricBounds: [b[0]-g, b[1], b[0]-g, b[3]], strokeColor:"Black", strokeWeight:1});

app.scriptPreferences.measurementUnit = AutoEnum.AUTO_VALUE;

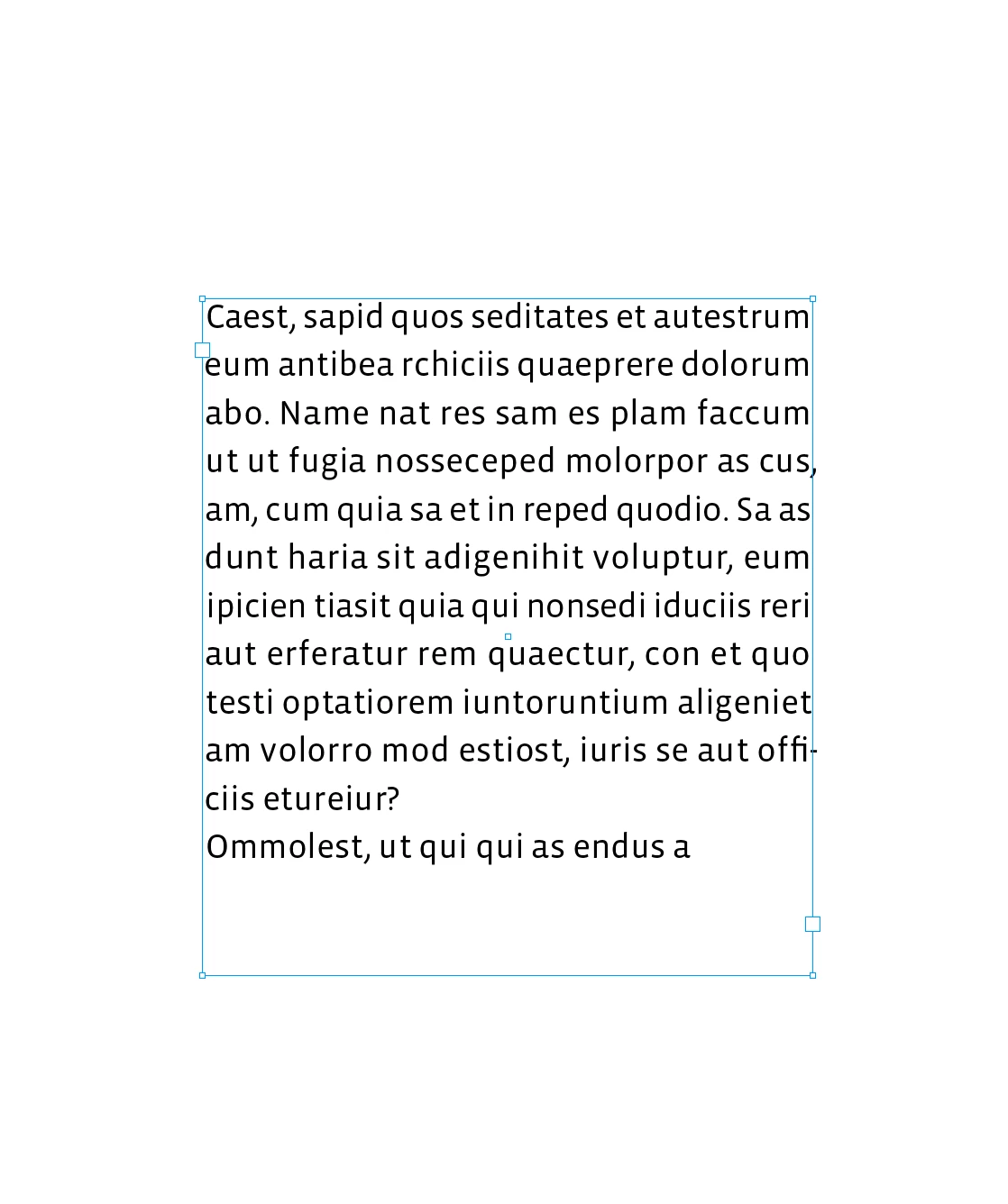

Before:

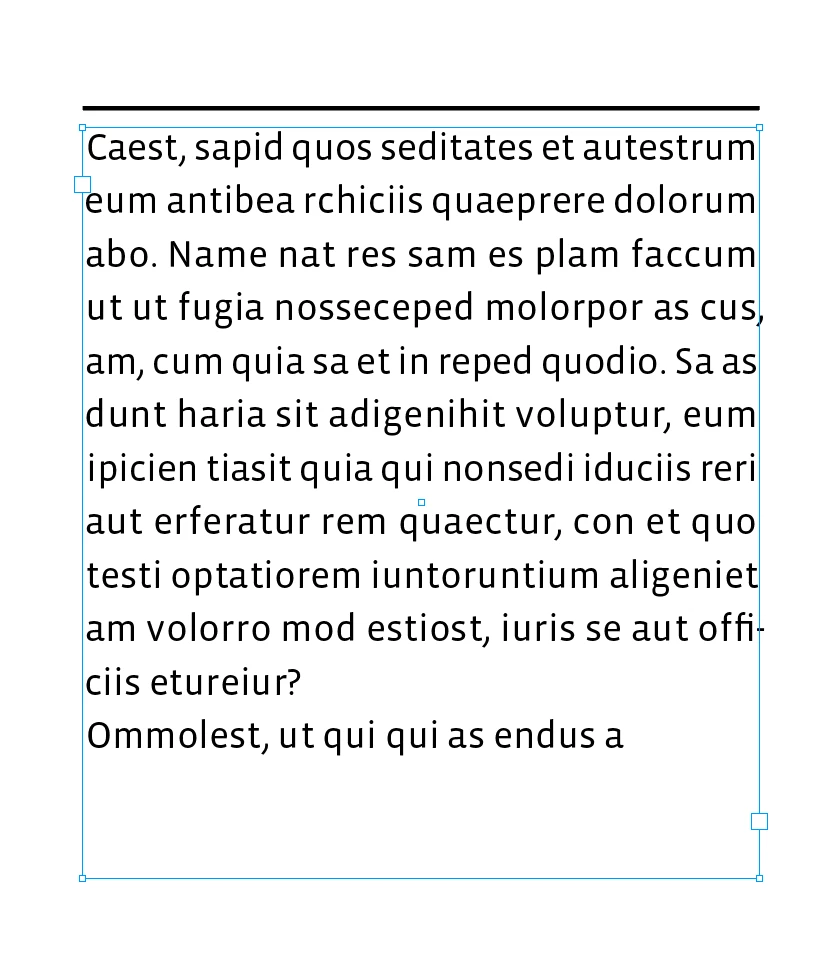

After:

Willi Adelberger

Community Expert

Why do you want to script it, use paragraph styles.

Loic.Aigon

Legend

or script those but indeed.

rob day

Correct answer

Community Expert

Hi @John_devs , Select a text frame and try this:

app.scriptPreferences.measurementUnit = MeasurementUnits.POINTS;
var tf = app.documents[0].selection[0];
var b = tf.geometricBounds;
var p = tf.parentPage;
var g = 5;//gap above frame in points
p.graphicLines.add({geometricBounds: [b[0]-g, b[1], b[0]-g, b[3]], strokeColor:"Black", strokeWeight:1});

app.scriptPreferences.measurementUnit = AutoEnum.AUTO_VALUE;

Before:

After:
