Select Color From Gradient as a New Color Swatch

  • May 16, 2019
  • 3 replies
  • 1657 views

Hi, I'm wondering if there's a way to use the eyedropper tool to pick up a color from within a gradient that I've created to make a new color swatch. Thanks!

    This topic has been closed for replies.

    3 replies

    vinny38
    Legend
    May 16, 2019

    If I understand the question correctly, my answer would be no, not with eyedropper.

    But, yes, through color picker.

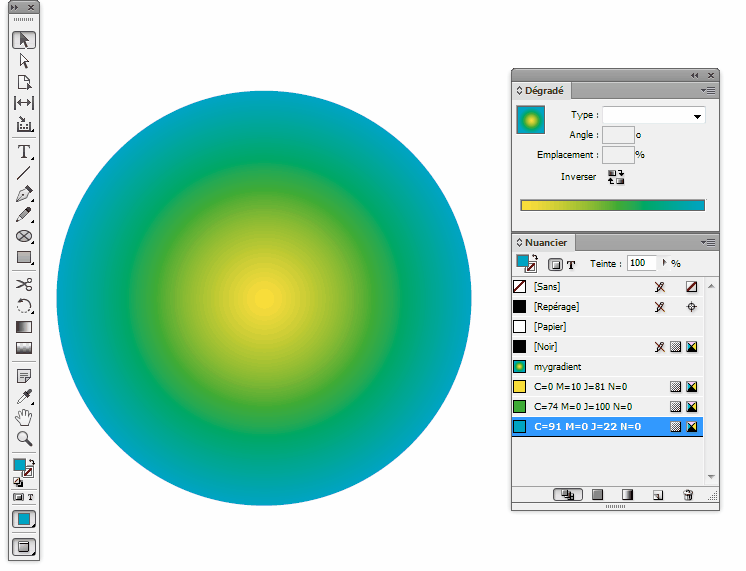

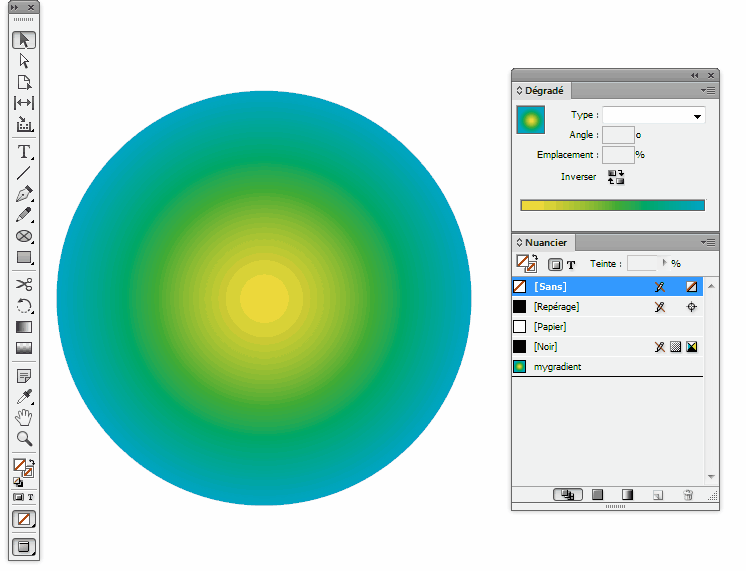

    With no object selected, select your gradient in the swatches panel.

    In the gradient panel, select the color stop you want to retrieve in the gradient ramp.

    Then open the color picker and click on "Add CMYK Swatch" (or RGB if relevant). Please note that if button reads "Add RGB Swatch" and that you want it CMYK, just place tour cursor in any CMYK value in order to be able to save as CMYK.

    Now, that you have added the colors to the swatch panel, you must be aware that they are not "linked" to your gradient.

    Meaning that if you change the value of a color, gradient will not change.

    If you want to go further, you can open the gradient options by double clicking on the gradient swatch.

    Then, for each color stop, assign the relevant color swatch.

    You can now change your color values and your gradient will change accordingly.

    Hope that helps

    (hope I understood your question really)

    Vinny

    rob day
    Community Expert
    Community Expert
    May 16, 2019

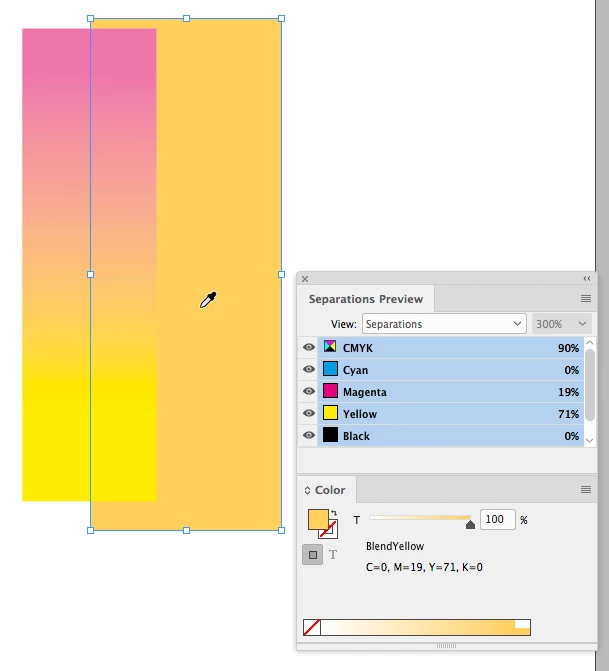

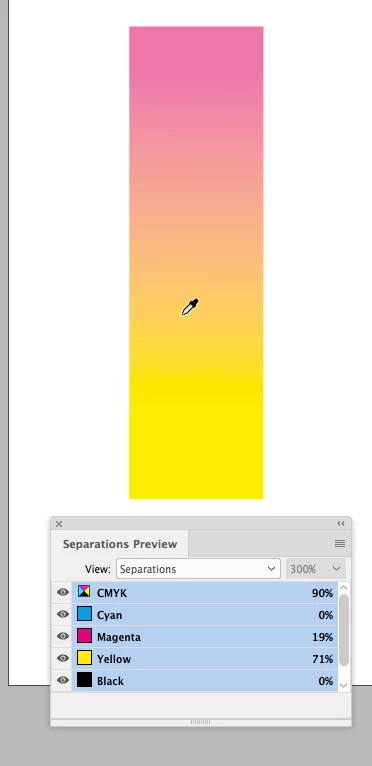

    You can't generate a swatch, but you can read CMYK output values via Separation Preview and make one. So if you are looking for document CMYK values this would work:

    Mike Witherell
    Community Expert
    Community Expert
    May 16, 2019

    No, the Eyedropper tool in InDesign reads colors and tints and overprints.

    Mike Witherell
