Importing between Photoshop & Illustrator pixellating issue

  • December 28, 2016
  • 2 replies
  • 460 views

Hi,

I am a print designer and use photoshop and illustrator in order to create these prints - I have had no issues before however since using creative cloud I am coming up with some really annoying issues.

1. If I 'draw' a design on illustrator then open it in photoshop to colour in it becomes blurred, I need crystal clear designs and even something 2-3 colours or just black text is blurred to the point of it being more colours than needed which means I have to zoom in and recolour the additional coloured pixels which obviously adds to my workload. Is there a way to prevent this as I never had this issue on older versions?

2.  - Even working on a shape created on photoshop then when I rotate or change the size in any way (still on photoshop) it becomes blurred. I have clicked nearest neighbour on but still have this issue and is preventing me from doing repeat prints due to this. Any help with this?

3. Opening a photoshop print into illustrator  in order to use the pattern making tool - again pixellated ruining the print.

If anyone could help me with this I will be eternally grateful as I'm coming to the end of my tether and its really affecting my workload as I find I have to go back and redo things to clear up the pixellation issue

Thanks

Mark

This topic has been closed for replies.

2 replies

barbara_a7746676
Community Expert
barbara_a7746676Community Expert
Community Expert
December 28, 2016

1. Have you tried placing the Illustrator drawing as a Smart Object and making a separate layer in Photoshop for the coloring?

2. Have you tried converting the Photoshop layer to a Smart Object before rotating?

3. Not sure what would be causing pixelization when making a Photoshop file into a pattern in Illustrator. I usually use Photoshop itself to make patterns when I have a Photoshop file. The technique is different than in Illustrator. I use Filter > Other > Offset, touch up the edges, run Offset again, and repeat the process until I have a seamless pattern.

Markus6019
Markus6019Author
Participant
December 29, 2016

Hi barbara - thank you for your replies

1. When designing a print id need dozens of layers if this is the case which would then become confusing and time consuming when i am cutting out the elements to place into a print?

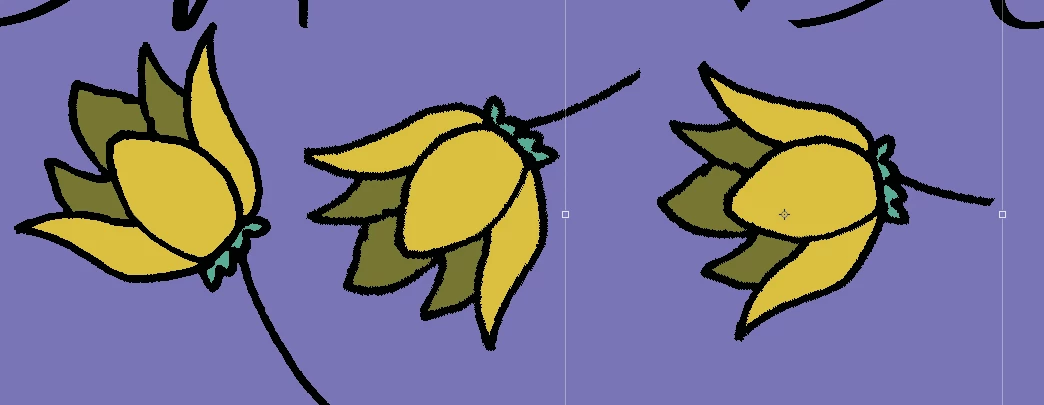

2. I have just tried this on this simple flower - see image - the first one it the original, second layer copy just rotated slightly and third layer copy converted to smart rotated. As you can see the pixellation is really bad just from rotating I haven't edited at all.

3. I just find it easier using illustrator to create a pattern tile using the elements previously drawn or edited in photoshop. I used to run perfectly but now the elements have a blur about them and aren't as sharp as they should be?

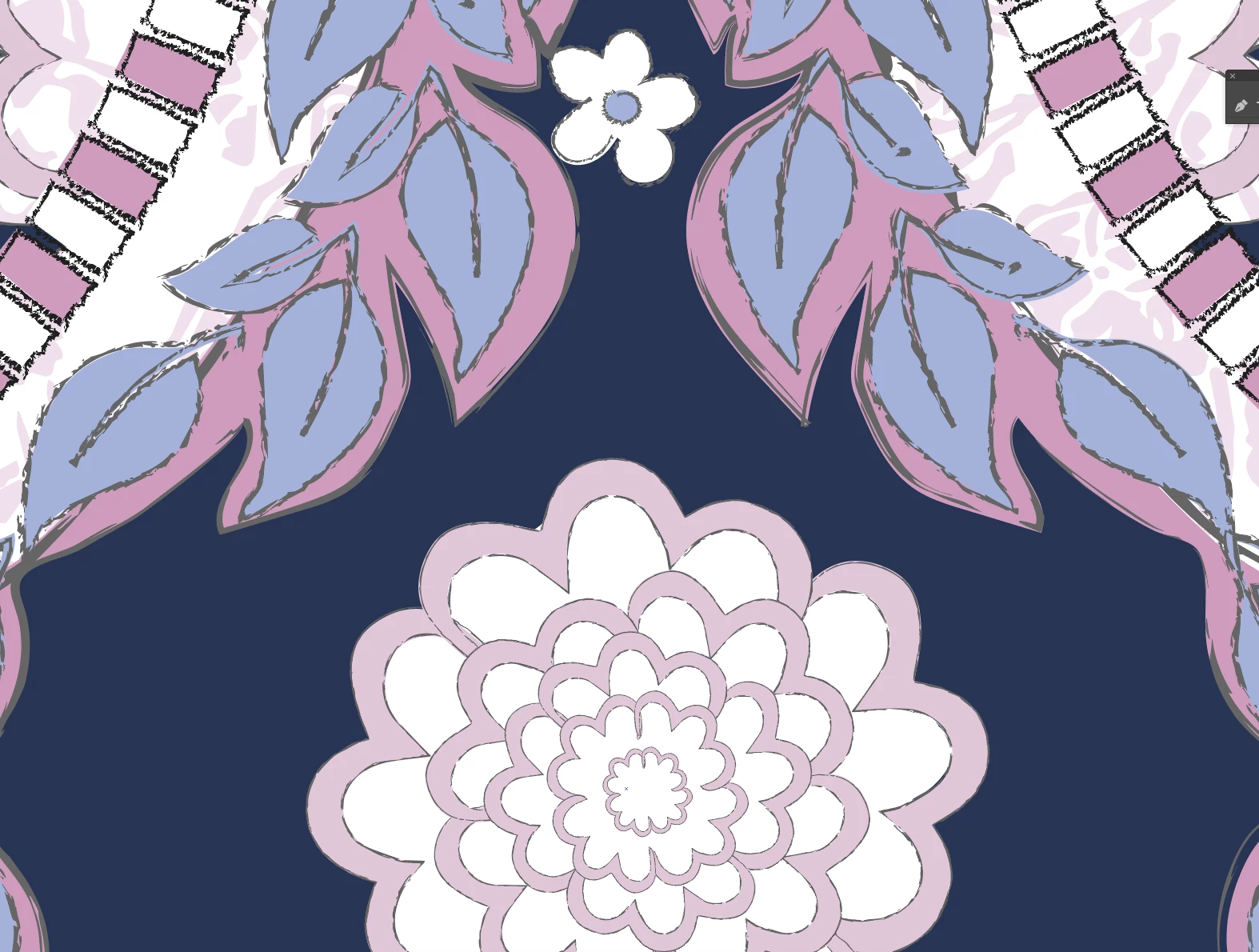

4. Another example: I created this pattern in illustrator - due to needing to use the illustrator brushes. see image 1. zoomed in on illustrator

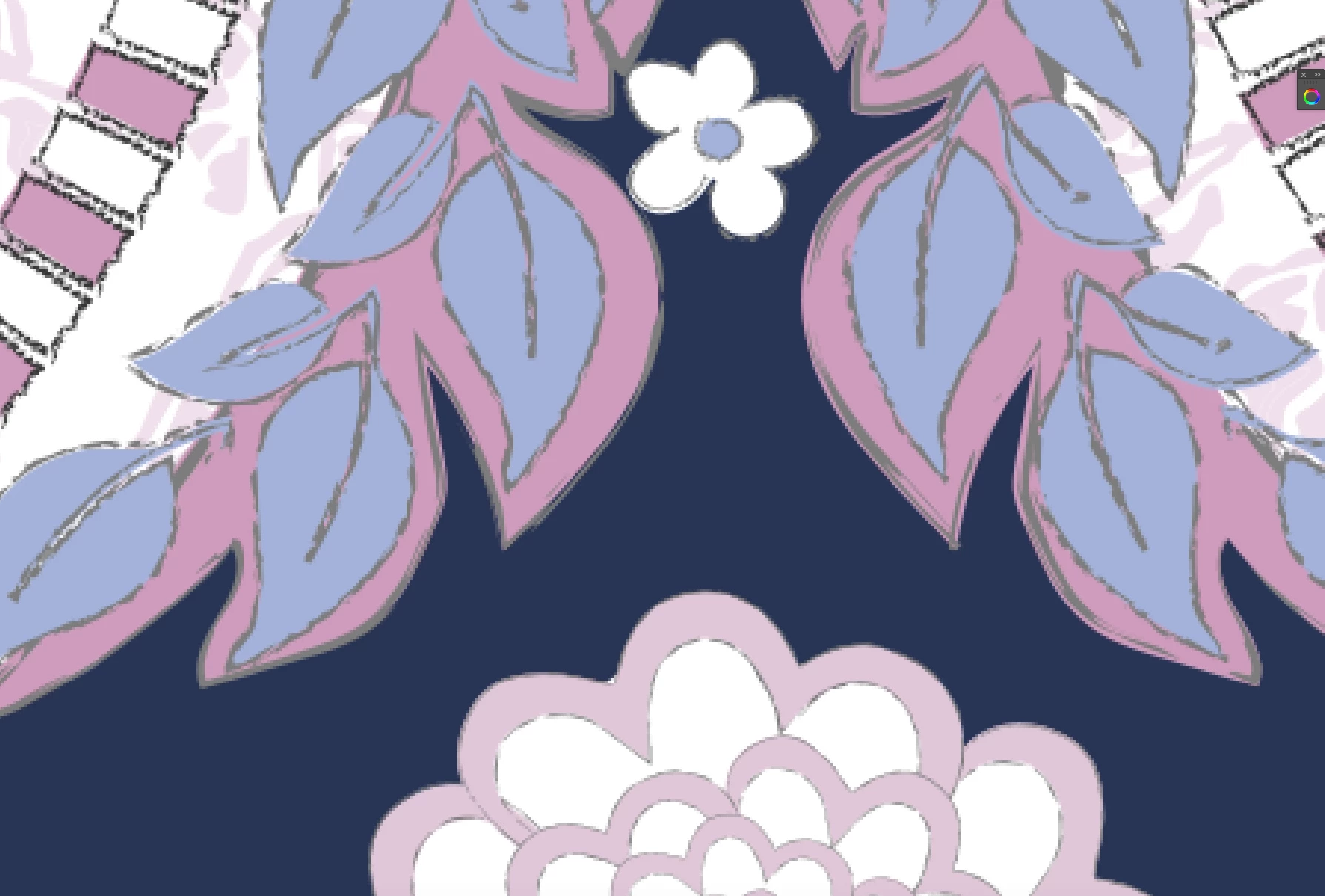

I then opened up the file in photoshop to recolour as it would be easier to just select colour groups and recolour and i was also thinking about putting an effect on the print. Just opening the print in Photoshop you can see the difference in quality.

This is a print that would be 32cm x 32cm so needs to be clean as it is large. Impossible to recolour as so pixellated and more than one colour in the lines alone

Any suggestions on whats causing this?

Thanks

Mark

D Fosse
Community Expert
D FosseCommunity Expert
Community Expert
December 29, 2016

Photoshop is pixel-based. It doesn't care about physical dimensions, only number of pixels.

Illustrator is vector-based (mathematical formulae). It doesn't care about pixels.

IOW, you need to make sure the Photoshop document has enough pixels to fully resolve the vector paths.

kglad
Community Expert
kgladCommunity Expert
Community Expert
December 28, 2016

[moved from Adobe Creative Cloud to Photoshop General Discussion]
