Screen renders a colour incorrectly

  • October 21, 2018
  • 2 replies
  • 632 views

I have been taking photos of birds. A few of the photos are Red Bishops.These birds  are in breeding plumage and they are predominately red but with a slight orange tint,. When viewed on my screen they are rendered as a bright orange.  This is true both when using Windows Photo Viewer and my Elements 2018.

How do I rectify the image so that it is a true representation of the bird?

I have used Spyder to calibrate my Monitor using a calibrated print.

    This topic has been closed for replies.
    Correct answer hatstead

    ligennroc  wrote

      This is true both when using Windows Photo Viewer and my Elements 2018.

    How do I rectify the image so that it is a true representation of the bird?

    I have used Spyder to calibrate my Monitor using a calibrated print.

    It is possible that the white point setting in your camera needs attention.

    ligennroc  wrote

    How do I rectify the image so that it is a true representation of the bird?

    1. Make a selection of the plumage with one of the selection tools, e.g. lasso or selection brush
    2. Place the selection on its own layer (CTRL+J)
    3. Open a Hue/saturation adjustment layer above the layer created in step #2, and clip the layers (CTRL+G)
    4. In the H/S dialog that opens, check "Colorize" and work the 3 sliders to best advantage.

    2 replies

    M
    Mark_Sand
    Inspiring
    October 22, 2018

    I found this Red Bishop on Google images.

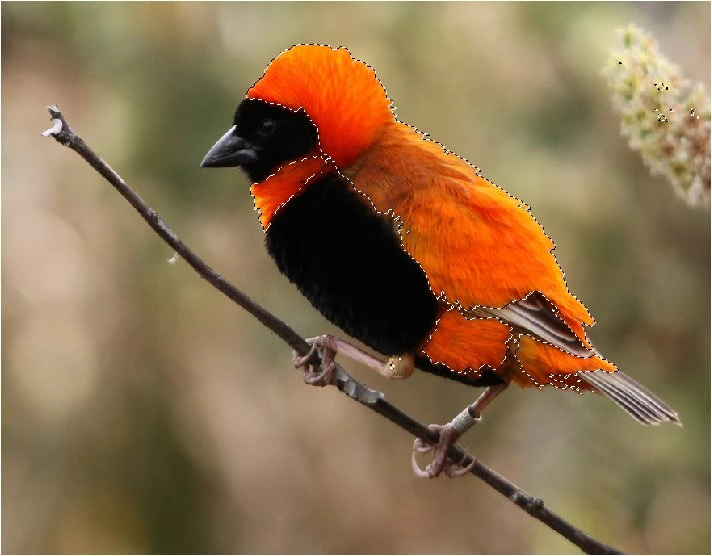

    I selected the orange using the Magic Wand with a Tolerance of 150 and the Contiguous option unchecked. I clicked on the bird's head to get this selection:

    It didn't quite select all the orange so I used the Lasso tool to select the rest:

    Then added a Hue/Saturation adjustment layer and moved the Hue slider to -18.

    Note that you will might have to try different Tolerance values and/or click on different parts of orange to select as much orange as possible, and then use the Lasso or other selection tool to add or subtract from the selection.

    hatstead
    hatsteadCorrect answer
    Inspiring
    October 21, 2018

    ligennroc  wrote

      This is true both when using Windows Photo Viewer and my Elements 2018.

    How do I rectify the image so that it is a true representation of the bird?

    I have used Spyder to calibrate my Monitor using a calibrated print.

    It is possible that the white point setting in your camera needs attention.

    ligennroc  wrote

    How do I rectify the image so that it is a true representation of the bird?

    1. Make a selection of the plumage with one of the selection tools, e.g. lasso or selection brush
    2. Place the selection on its own layer (CTRL+J)
    3. Open a Hue/saturation adjustment layer above the layer created in step #2, and clip the layers (CTRL+G)
    4. In the H/S dialog that opens, check "Colorize" and work the 3 sliders to best advantage.
    L
    ligennrocAuthor
    Inspiring
    October 22, 2018

    Thanks,

    I will try this evening.

    I have already tried a similar technique  wirhout being able to bring out the red sufficiently.

    But I did not try colorize.

    I am a little wary of it, it has given me peculiar results in the past!
