How to Match PMS uncoated to a PMS coated color

[Caldwell_Marcom]

I am looking for help on how to match a PMS uncoated color to closely match a PMS coated color.  I know this may sound counter intuitive but here is the situation.

I work for a company that has a corporate color of PMS 285.  Their product comes in uncoated kraft cardboard boxes and when we switched the color to the PMS 285 U they freaked out with the color change.  A bit too pastel and hard to read.  They want a color (PMS 285C) that matches what they get on nice shiny, coated marketing collateral.  How can I closely match a color that will be printed on an uncoated material to an ideal coated PMS color?

Hope this makes since.  Thank you for your help.

Shannon

[Printer_Rick]

There is a trick I use in Photoshop sometimes. Click on the Color Picker in the Tools. In Color Libraries, go to Solid Coated 285. Then change the Library to Solid Uncoated.

The result is PMS 300 U. It is not a great match by any means, but it is probably the closest match Solid Uncoated has to offer.

Uncoated paper has a tremendous effect on ink appearance, that is why the 285U is so washed out compared to 285C.

Every Pantone color has a Lab definition, which you can see in the Photoshop libraries. What Photoshop is doing is seeing what color in the Uncoated library has the closest Lab equivalent to 285C. 285C is L46, a-4, b-58. 300 U is L43, a-8, b-49.

The L values is fairly close, but the other values present problems. A in Lab moves from green(-) to magenta (+), with 0 being neutral (neither green nor magenta). Because a in 300U is -8, and in 285C the a is -4, 300U is moving just a little more towards green (not a lot, but a little)

The b value is a bigger problem. B in Lab goes from blue(-) to yellow(+), with 0 being neutral. The b value in 285C is -58, while the b in 300U is -49. This means that 300U is significantly "grayer" (less colorful) than 285C. But again, 300U may be your best bet on uncoated paper.

Your other option is to look through an Pantone Uncoated swatch book and choose a color that you think is best for your purposes.

Hope this helps.

[dedwardc]

Similarly, but with a slightly different result, to Printer_Rick's way of doing it, you could use Illustrator. You would create a shape with Solid Coated 285 as the fill. Then go to Edit > Edit Colors > Recolor Artwork > Color Books > PANTONE+ Solid Uncoated. It gives the close approximation as PANTONE 3005 U. Both Photoshop's result and Illustrator's result are very close to the original Solid Coated 285, but Photoshop's result of 300 U is a little darker than the original 285 C and Illustrator's result of 3005 U is a little lighter than the original 285 C. It's almost as if the original 285 C color is smack dab in the middle of the two colors as far as brightness. So, maybe you should use both methods and pick which you prefer -- the lighter or darker one -- for your needs, depending on the background color.

[brenchleya]

Your explanation sounds fairly easy to follow. However, I am fairly untrained in Illustrator and am missing some options that you mention. Specifically, I do not see Color Books and I can't find a way to view Pantone colors. Is there some sort of add-on I have to upload, or an integration to facilitate? I'm entirely new to the world of color and printing. Thanks in advance!

[fabrizios87897235]

Hey Matt,

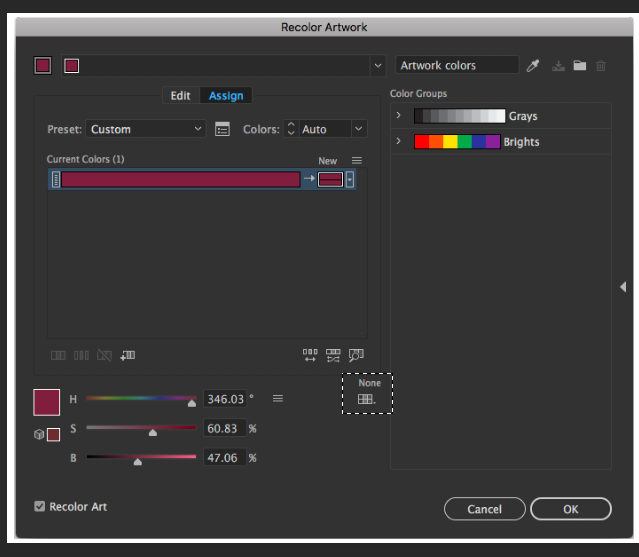

You'll find the color books option once you click on the tine box below None. Choose Pantone Solid Coated and then hit OK.

[brenchleya]

Thank you!

[jdanek]

Part of the problem is you are printing on cardboard which soaks up the ink leaving not much reflectance ( that's why it is dull ).  In order for the ink to pop, you may have to print with a White underprint and a varnish overprint. Pantone swatches are printed on White paper, coated and uncoated and matte.  It's almost impossible to achieve the reflectance of ink on White paper with shipping containers ( brown cardboard ).  Even a Pantone 300 option will have the same problem.  Just not as bad.
