Checkbox in List (Source code included)

Report · Dec 15, 2011

Hi,

Code below displays a checkbox control in Spark lists:

Instructions for use:

Create a Spark list and add the ChecBoxIconItemRenderer as itemRenderer.
Use the checkBoxField or checkBoxFunction properties to select/unselect checkboxes from list data.
Capture the checkBoxIconItemRendererChanged event to be notified when users click on a checkbox.

Example of use:

===============================================

<s:List width="100%" height="100%" id="my_list">

<s:itemRenderer>

<fx:Component>

<controls:CheckBoxIconItemRenderer

labelField="<...>"

checkBoxField="selected"

checkBoxIconItemRendererChanged="onCheckBoxIconItemRendererChangedHandler(event)">

<fx:Script>

<![CDATA[

protected function onCheckBoxIconItemRendererChangedHandler(event:Event):void

{

data.selected=CheckBoxIconItemRenderer(event.target).checkBox.selected;

}

]]>

</fx:Script>

</controls:CheckBoxIconItemRenderer>

</fx:Component>

</s:itemRenderer>

</s:List>

===============================================

Source code:

CheckBoxIconItemRenderer.mxml

===============================================

<?xml version="1.0" encoding="utf-8"?>

<s:IconItemRenderer xmlns:fx="http://ns.adobe.com/mxml/2009"

xmlns:s="library://ns.adobe.com/flex/spark">

<fx:Metadata>

[Event(name="checkBoxIconItemRendererChanged", type="flash.events.Event")]

</fx:Metadata>

<fx:Script>

<![CDATA[

import spark.components.CheckBox;

public var checkBox:CheckBox;

private var checkBoxChanged:Boolean;

private var _checkBoxField:String;

private var _checkBoxFunction:Function;

public function get checkBoxFunction():Function{

return _checkBoxFunction;

}

public function get checkBoxField():String{

return _checkBoxField;

}

public function set checkBoxFunction(value:Function):void{

if(_checkBoxFunction==value){

return;

}

_checkBoxFunction=value;

checkBoxChanged=true;

invalidateProperties();

}

public function set checkBoxField(value:String):void{

if(_checkBoxField==value){

return;

}

checkBoxChanged=true;

_checkBoxField=value;

invalidateProperties();

}

override public function set data(value:Object):void

{

checkBoxChanged=true;

super.data = value; //->invalidateProperties();

}

override protected function createChildren():void

{

super.createChildren();

checkBox = new CheckBox();

checkBox.width=32;

checkBox.height=32;

checkBox.scaleY=.5;

checkBox.scaleX=.5;

addChild(checkBox);

checkBox.addEventListener(MouseEvent.CLICK, function(event:MouseEvent):void{

dispatchEvent(new Event("checkBoxIconItemRendererChanged"));

});

}

override protected function measure():void

{

super.measure();

measuredWidth+=getStyle("horizontalGap")+checkBox.width*checkBox.scaleY;

measuredHeight=Math.max(measuredHeight, checkBox.height*checkBox.scaleY);

}

override protected function layoutContents(unscaledWidth:Number, unscaledHeight:Number):void

{

var paddingLeft:Number = getStyle("paddingLeft");

var paddingRight:Number = getStyle("paddingRight");

var paddingTop:Number = getStyle("paddingTop");

var paddingBottom:Number = getStyle("paddingBottom");

var horizontalGap:Number = getStyle("horizontalGap");

var verticalAlign:String = getStyle("verticalAlign");

setStyle("paddingLeft",paddingLeft+checkBox.width*checkBox.scaleX+horizontalGap);

super.layoutContents(unscaledWidth, unscaledHeight);

setStyle("paddingLeft",paddingLeft);

var vAlign:Number;

if (verticalAlign == "top")

vAlign = 0;

else if (verticalAlign == "bottom")

vAlign = 1;

else // if (verticalAlign == "middle")

vAlign = 0.5;

var viewHeight:Number = unscaledHeight - paddingTop - paddingBottom;

var checkBoxDisplayY:Number = Math.round(vAlign * (viewHeight - checkBox.height*checkBox.scaleY)) + paddingTop;

checkBox.x=paddingLeft;

checkBox.y=checkBoxDisplayY;

}

override protected function commitProperties():void

{

super.commitProperties();

if(checkBoxChanged){

checkBoxChanged=false;

if (checkBoxFunction != null)

{

checkBox.selected=checkBoxFunction(data);

}

else if (checkBoxField)

{

try

{

if (checkBoxField in data && data[checkBoxField] != null)

checkBox.selected=data[checkBoxField];

}

catch(e:Error)

{

trace(e.message);

}

]]>

</fx:Script>

</s:IconItemRenderer>

===============================================

Hope it helps.

Pablo.

Report · Dec 16, 2011

Hi,

I've added a new checBoxAlignment property to place the checkbox at the left or right (default is left).

New source code 0.1 version: CheckBoxIconItemRenderer.mxlm

=============================================

<?xml version="1.0" encoding="utf-8"?>

<s:IconItemRenderer xmlns:fx="http://ns.adobe.com/mxml/2009"

xmlns:s="library://ns.adobe.com/flex/spark">

<fx:Metadata>

[Event(name="checkBoxIconItemRendererChanged", type="flash.events.Event")]

</fx:Metadata>

<fx:Script>

<![CDATA[

import spark.components.CheckBox;

public var checkBox:CheckBox;

private var checkBoxChanged:Boolean;

private var _checkBoxField:String;

private var _checkBoxFunction:Function;

private var _checkBoxAlignment:String;

[Inspectable(category="General", enumeration="left,right", defaultValue="left")]

public function set checkBoxAlignment(value:String):void{

if(_checkBoxAlignment==value){

return;

}

_checkBoxAlignment=value;

checkBoxChanged;

invalidateProperties();

}

public function get checkBoxAlignment():String{

return _checkBoxAlignment;

}

public function get checkBoxFunction():Function{

return _checkBoxFunction;

}

public function get checkBoxField():String{

return _checkBoxField;

}

public function set checkBoxFunction(value:Function):void{

if(_checkBoxFunction==value){

return;

}

_checkBoxFunction=value;

checkBoxChanged=true;

invalidateProperties();

}

public function set checkBoxField(value:String):void{

if(_checkBoxField==value){

return;

}

checkBoxChanged=true;

_checkBoxField=value;

invalidateProperties();

}

override public function set data(value:Object):void

{

checkBoxChanged=true;

super.data = value; //->invalidateProperties();

}

override protected function createChildren():void

{

super.createChildren();

checkBox = new CheckBox();

checkBox.width=32;

checkBox.height=32;

checkBox.scaleY=.5;

checkBox.scaleX=.5;

addChild(checkBox);

checkBox.addEventListener(MouseEvent.CLICK, function(event:MouseEvent):void{

dispatchEvent(new Event("checkBoxIconItemRendererChanged"));

});

}

override protected function measure():void

{

super.measure();

measuredWidth+=getStyle("horizontalGap")+checkBox.width*checkBox.scaleY;

measuredHeight=Math.max(measuredHeight, checkBox.height*checkBox.scaleY);

}

override protected function layoutContents(unscaledWidth:Number, unscaledHeight:Number):void

{

var paddingLeft:Number = getStyle("paddingLeft");

var paddingRight:Number = getStyle("paddingRight");

var paddingTop:Number = getStyle("paddingTop");

var paddingBottom:Number = getStyle("paddingBottom");

var horizontalGap:Number = getStyle("horizontalGap");

var verticalAlign:String = getStyle("verticalAlign");

switch(_checkBoxAlignment){

case "right":

var myWidth:Number=paddingRight+checkBox.width*checkBox.scaleX

super.layoutContents(unscaledWidth-myWidth, unscaledHeight);

checkBox.x=unscaledWidth-myWidth;

break;

default :

setStyle("paddingLeft",paddingLeft+checkBox.width*checkBox.scaleX+horizontalGap);

super.layoutContents(unscaledWidth, unscaledHeight);

setStyle("paddingLeft",paddingLeft);

checkBox.x=paddingLeft;

break;

}

var vAlign:Number;

if (verticalAlign == "top")

vAlign = 0;

else if (verticalAlign == "bottom")

vAlign = 1;

else // if (verticalAlign == "middle")

vAlign = 0.5;

var viewHeight:Number = unscaledHeight - paddingTop - paddingBottom;

var checkBoxDisplayY:Number = Math.round(vAlign * (viewHeight - checkBox.height*checkBox.scaleY)) + paddingTop;

checkBox.y=checkBoxDisplayY;

}

override protected function commitProperties():void

{

super.commitProperties();

if(checkBoxChanged){

checkBoxChanged=false;

if (checkBoxFunction != null)

{

checkBox.selected=checkBoxFunction(data);

}

else if (checkBoxField)

{

try

{

if (checkBoxField in data && data[checkBoxField] != null)

checkBox.selected=data[checkBoxField];

}

catch(e:Error)

{

trace(e.message);

}

invalidateSize();

invalidateDisplayList();

}

]]>

</fx:Script>

<fx:Declarations>

</fx:Declarations>

</s:IconItemRenderer>

=============================================

Report · Dec 16, 2011

very useful indeed , thx for sharing with us!!

Report · Dec 17, 2011

A small but useful improvement:

I've added a call to the stopInmediatePorpagation() method when the CheckBox control receives a MouseEvent.CLIK event. Thus, the IconItemRenderer parent control doesn't receives click events when the checkbox control is selected/unselected (you have to listen for checkBoxIconItemRendererChanged events instead).

CheckBoxIconItemRenderer.mxml v.0.1.1:

===================================

<?xml version="1.0" encoding="utf-8"?>

<s:IconItemRenderer xmlns:fx="http://ns.adobe.com/mxml/2009"

xmlns:s="library://ns.adobe.com/flex/spark">

<fx:Metadata>

[Event(name="checkBoxIconItemRendererChanged", type="flash.events.Event")]

</fx:Metadata>

<fx:Script>

<![CDATA[

import spark.components.CheckBox;

public var checkBox:CheckBox;

private var checkBoxChanged:Boolean;

private var _checkBoxField:String;

private var _checkBoxFunction:Function;

private var _checkBoxAlignment:String;

[Inspectable(category="General", enumeration="left,right", defaultValue="left")]

public function set checkBoxAlignment(value:String):void{

if(_checkBoxAlignment==value){

return;

}

_checkBoxAlignment=value;

checkBoxChanged;

invalidateProperties();

}

public function get checkBoxAlignment():String{

return _checkBoxAlignment;

}

public function get checkBoxFunction():Function{

return _checkBoxFunction;

}

public function get checkBoxField():String{

return _checkBoxField;

}

public function set checkBoxFunction(value:Function):void{

if(_checkBoxFunction==value){

return;

}

_checkBoxFunction=value;

checkBoxChanged=true;

invalidateProperties();

}

public function set checkBoxField(value:String):void{

if(_checkBoxField==value){

return;

}

checkBoxChanged=true;

_checkBoxField=value;

invalidateProperties();

}

override public function set data(value:Object):void

{

checkBoxChanged=true;

super.data = value; //->invalidateProperties();

}

override protected function createChildren():void

{

super.createChildren();

checkBox = new CheckBox();

checkBox.width=32;

checkBox.height=32;

checkBox.scaleY=.5;

checkBox.scaleX=.5;

addChild(checkBox);

checkBox.addEventListener(MouseEvent.CLICK, function(event:MouseEvent):void{

event.stopImmediatePropagation();

dispatchEvent(new Event("checkBoxIconItemRendererChanged"));

});

}

override protected function measure():void

{

super.measure();

measuredWidth+=getStyle("horizontalGap")+checkBox.width*checkBox.scaleY;

measuredHeight=Math.max(measuredHeight, checkBox.height*checkBox.scaleY);

}

override protected function layoutContents(unscaledWidth:Number, unscaledHeight:Number):void

{

var paddingLeft:Number = getStyle("paddingLeft");

var paddingRight:Number = getStyle("paddingRight");

var paddingTop:Number = getStyle("paddingTop");

var paddingBottom:Number = getStyle("paddingBottom");

var horizontalGap:Number = getStyle("horizontalGap");

var verticalAlign:String = getStyle("verticalAlign");

switch(_checkBoxAlignment){

case "right":

var myWidth:Number=paddingRight+checkBox.width*checkBox.scaleX

super.layoutContents(unscaledWidth-myWidth, unscaledHeight);

checkBox.x=unscaledWidth-myWidth;

break;

default :

setStyle("paddingLeft",paddingLeft+checkBox.width*checkBox.scaleX+horizontalGap);

super.layoutContents(unscaledWidth, unscaledHeight);

setStyle("paddingLeft",paddingLeft);

checkBox.x=paddingLeft;

break;

}

var vAlign:Number;

if (verticalAlign == "top")

vAlign = 0;

else if (verticalAlign == "bottom")

vAlign = 1;

else // if (verticalAlign == "middle")

vAlign = 0.5;

var viewHeight:Number = unscaledHeight - paddingTop - paddingBottom;

var checkBoxDisplayY:Number = Math.round(vAlign * (viewHeight - checkBox.height*checkBox.scaleY)) + paddingTop;

checkBox.y=checkBoxDisplayY;

}

override protected function commitProperties():void

{

super.commitProperties();

if(checkBoxChanged){

checkBoxChanged=false;

if (checkBoxFunction != null)

{

checkBox.selected=checkBoxFunction(data);

}

else if (checkBoxField)

{

try

{

if (checkBoxField in data && data[checkBoxField] != null)

checkBox.selected=data[checkBoxField];

}

catch(e:Error)

{

trace(e.message);

}

invalidateSize();

invalidateDisplayList();

}

]]>

</fx:Script>

<fx:Declarations>

</fx:Declarations>

</s:IconItemRenderer>

===================================

I think above is the most frequent use case.

Report · Dec 20, 2011

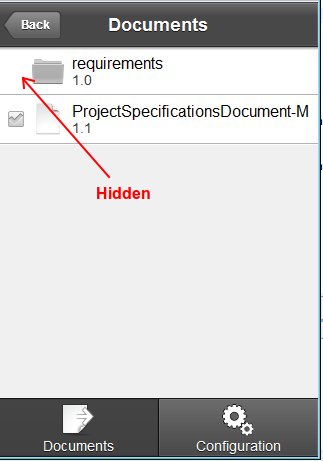

A new improvement: checkbox can be hidden depending on data value.

Two new properties added:

checkBoxIncludeInLayoutFunction
checkBoxVisibleFunction

Required functions receive data object and must return a Boolean value. Example:

function isFile(item:Object):Boolean{

return item.type=="file";

}

You also have to pass the function as parameter value:

checkBoxVisibleFunction="isFile"

Usually, you might want to include it in layout when checkBox is left aligned and not when it's right aligned.

Source code for version 0.2:

==================================

<?xml version="1.0" encoding="utf-8"?>

<s:IconItemRenderer xmlns:fx="http://ns.adobe.com/mxml/2009"

xmlns:s="library://ns.adobe.com/flex/spark">

<fx:Metadata>

[Event(name="checkBoxIconItemRendererChanged", type="flash.events.Event")]

</fx:Metadata>

<fx:Script>

<![CDATA[

import spark.components.CheckBox;

public var checkBox:CheckBox;

private var checkBoxChanged:Boolean;

private var _checkBoxField:String;

private var _checkBoxFunction:Function;

private var _checkBoxIncludeInLayoutFunction:Function;

private var _checkBoxVisibleFunction:Function;

private var _checkBoxAlignment:String;

[Inspectable(category="General", enumeration="left,right", defaultValue="left")]

public function set checkBoxAlignment(value:String):void{

if(_checkBoxAlignment==value){

return;

}

_checkBoxAlignment=value;

checkBoxChanged;

invalidateProperties();

}

public function get checkBoxAlignment():String{

return _checkBoxAlignment;

}

public function get checkBoxFunction():Function{

return _checkBoxFunction;

}

public function get checkBoxField():String{

return _checkBoxField;

}

public function set checkBoxFunction(value:Function):void{

if(_checkBoxFunction==value){

return;

}

_checkBoxFunction=value;

checkBoxChanged=true;

invalidateProperties();

}

public function set checkBoxIncludeInLayoutFunction(value:Function):void{

if(_checkBoxIncludeInLayoutFunction==value){

return;

}

_checkBoxIncludeInLayoutFunction=value;

checkBoxChanged=true;

invalidateProperties();

}

public function get checkBoxIncludeInLayoutFunction():Function{

return _checkBoxIncludeInLayoutFunction;

}

public function set checkBoxVisibleFunction(value:Function):void{

if(_checkBoxVisibleFunction==value){

return;

}

checkBoxChanged=true;

_checkBoxVisibleFunction=value;

invalidateProperties();

}

public function get checkBoxVisibleFunction():Function{

return _checkBoxVisibleFunction;

}

public function set checkBoxField(value:String):void{

if(_checkBoxField==value){

return;

}

checkBoxChanged=true;

_checkBoxField=value;

invalidateProperties();

}

override public function set data(value:Object):void

{

checkBoxChanged=true;

super.data = value; //->invalidateProperties();

}

override protected function createChildren():void

{

super.createChildren();

checkBox = new CheckBox();

checkBox.width=32;

checkBox.height=32;

checkBox.scaleY=.5;

checkBox.scaleX=.5;

addChild(checkBox);

checkBox.addEventListener(MouseEvent.CLICK, function(event:MouseEvent):void{

event.stopImmediatePropagation();

dispatchEvent(new Event("checkBoxIconItemRendererChanged"));

});

}

override protected function measure():void

{

super.measure();

if(checkBox.includeInLayout){

measuredWidth+=getStyle("horizontalGap")+checkBox.width*checkBox.scaleY;

measuredHeight=Math.max(measuredHeight, checkBox.height*checkBox.scaleY);

}

override protected function layoutContents(unscaledWidth:Number, unscaledHeight:Number):void

{

if(!checkBox.includeInLayout){

super.layoutContents(unscaledWidth, unscaledHeight);

return;

}

var paddingLeft:Number = getStyle("paddingLeft");

var paddingRight:Number = getStyle("paddingRight");

var paddingTop:Number = getStyle("paddingTop");

var paddingBottom:Number = getStyle("paddingBottom");

var horizontalGap:Number = getStyle("horizontalGap");

var verticalAlign:String = getStyle("verticalAlign");

switch(_checkBoxAlignment){

case "right":

var myWidth:Number=paddingRight+checkBox.width*checkBox.scaleX

super.layoutContents(unscaledWidth-myWidth, unscaledHeight);

checkBox.x=unscaledWidth-myWidth;

break;

default :

setStyle("paddingLeft",paddingLeft+checkBox.width*checkBox.scaleX+horizontalGap);

super.layoutContents(unscaledWidth, unscaledHeight);

setStyle("paddingLeft",paddingLeft);

checkBox.x=paddingLeft;

break;

}

var vAlign:Number;

if (verticalAlign == "top")

vAlign = 0;

else if (verticalAlign == "bottom")

vAlign = 1;

else // if (verticalAlign == "middle")

vAlign = 0.5;

var viewHeight:Number = unscaledHeight - paddingTop - paddingBottom;

var checkBoxDisplayY:Number = Math.round(vAlign * (viewHeight - checkBox.height*checkBox.scaleY)) + paddingTop;

checkBox.y=checkBoxDisplayY;

}

override protected function commitProperties():void

{

super.commitProperties();

if(checkBoxChanged){

checkBoxChanged=false;

if(checkBoxIncludeInLayoutFunction!=null){

checkBox.includeInLayout = checkBoxIncludeInLayoutFunction(data);

}

if(checkBoxVisibleFunction!=null){

checkBox.visible=checkBoxVisibleFunction(data);

}

if(checkBox.includeInLayout){

if (checkBoxFunction != null)

{

checkBox.selected=checkBoxFunction(data);

}

else if (checkBoxField)

{

try

{

if (checkBoxField in data && data[checkBoxField] != null)

checkBox.selected=data[checkBoxField];

}

catch(e:Error)

{

trace(e.message);

}

invalidateSize();

invalidateDisplayList();

}

]]>

</fx:Script>

<fx:Declarations>

</fx:Declarations>

</s:IconItemRenderer>

==================================

Report · Feb 24, 2012

Thanks for the code. Do you know how to add persistence to each checkbox as i am trying to use in a multi view app. I have tried some code but its not working.

override protected function createChildren():void
            {
                super.createChildren();
                checkBox = new CheckBox();
                checkBox.width=45;
                checkBox.height=45;
                checkBox.scaleY=1.0;
                checkBox.scaleX=1.0;
                addChild(checkBox);
                checkBox.addEventListener(MouseEvent.CLICK, function(event:MouseEvent):void{
                    var saveManager:PersistenceManager = new PersistenceManager();
                    saveManager.setProperty("selected", checkBox.selected);
                    event.stopImmediatePropagation();
                    dispatchEvent(new Event("checkBoxIconItemRendererChanged"));
                });
            }
            protected function addHandler(event:FlexEvent):void
            {
                var loadManager:PersistenceManager = new PersistenceManager();
                if (loadManager.load())
                {
                    var savedData:Object = loadManager.getProperty("selected");
                    if(savedData)
                        checkBox.selected = savedData.valueOf();
                }
            }

It works on all checkboxes as a whole, but not individually

Report · Feb 24, 2012

It's much easier than that. The checked/unchecked state works like the rest of Flex controls, it means it's data based. No source code modifications are needed to get it.

The "checkBoxIconItemRendererChanged" have to be captured in order to persist the state.

Look at this part of the code:

=============================================

checkBox.addEventListener(MouseEvent.CLICK, function(event:MouseEvent):void{

event.stopImmediatePropagation();

dispatchEvent(new Event("checkBoxIconItemRendererChanged"));

});

=============================================

When the internal checkbox control state changes, the event is captured and the control fires a new "checkBoxIconItemRendererChanged" event. As the event is dispatched by the CheckBoxIconItemRenderer control, you can get the internal checbox control (public variable) to get the selected value:

Your code

===================

addEventListener("checkBoxIconItemRendererChanged", function(event:Event):void{

var myControl:CheckBoxIconItemRenderer=CheckBoxIconItemRenderer(event.currentTarget);

myControl.selectedItem.<the property name used to check/unckeck>=myControl.checkBox.selected;

});

===================

For example, if you are displaying Person objects:

class Person{

public var firstName:String;

public var lastName:String;

public var sex:String; //"Man" or "Female"

}

then you have to declare a fuction to indicate the checkbox state:

function isMale(item:Object):Boolean{

return (Person(item).sex=="Male"); //Check boxes will be selected for males only.

}

.....

myControl.checkBoxFunction="isMale"

....

addEventListener("checkBoxIconItemRendererChanged", function(event:Event):void{

var myControl:CheckBoxIconItemRenderer=CheckBoxIconItemRenderer(event.currentTarget);

var selectedtPerson=Person(myControl.selectedItem);

//The following will persints the sate:

if(myControl.checkBox.selected){

selectedPerson.sex="Male";

}else{

selectedPerson.sex="Female";

}

});

Hope this helps.

Pablo

Report · Feb 24, 2012

Thanks for your help but i am new to flex and dont know how to apply this to my situation. I have used the exact setup in your first post but under itemRenderer I have a dataprovider. I want each checkbox to be selectable and correspond to each object. So if a user selects the checkbox next to "1" it will stay selected. Is this possible?

</s:itemRenderer>
<s:dataProvider>
<s:ArrayList>
<fx:Object id="1" label="1"...
<fx:Object id="2" label="2"...
<fx:Object id="3" label="3"...
<fx:Object id="4" label="4"...
<fx:Object id="5" label="5"...
<fx:Object id="6" label="6"...
...
</s:ArrayList>
</s:dataProvider>
</s:List>

Report · Feb 27, 2012

Please can anyone help, im really stuck.

Report · Dec 14, 2014

Hello,
Thank you for your example codes. It’s really handy. But there is a problem. When I mark an item in the list and then scroll down the screen, some other items automatically marked although I do not want to.

How can I fix this?

Kind Regards,

Report · Dec 14, 2014

I added an event listener for the dataChange:

this.addEventListener(FlexEvent.DATA_CHANGE, onDataChange);

The issue has been resolved.

Building a Mobile ItemRenderer in Flex
