Illustrator: Trying to remove many small pieces like the attached

Community Beginner ,
Oct 23, 2018 Oct 23, 2018

Trying to remove small pieces of this object can do one by one want to know a quicker method for doing this. Thanks

Screen Shot 2018-10-24 at 08.55.22.png

6.5K
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Engaged , Oct 23, 2018 Oct 23, 2018

OK. I would select one of the small pieces you want to delete (they look like black fill/no stroke, but I can't be certain). Go to the select menu and choose 'Same/ Fill and stroke' this should select all the black dross but possibly also the large black circle/s, if so, then shift select them to deselect and then hit delete

Translate
Adobe
Engaged ,
Oct 23, 2018 Oct 23, 2018

Lock the large objects that you don't want to select, then use the lasso tool (Q) and drag to define a shape around the small objects and delete

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Oct 23, 2018 Oct 23, 2018

I have many of these to do is there a quicker way?

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Engaged ,
Oct 23, 2018 Oct 23, 2018

Without seeing the whole picture it's hard to say. But if it's relatively easy to select the objects that you don't want to delete then do that and then 'select inverse' (from the select menu) and hit delete

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Oct 23, 2018 Oct 23, 2018

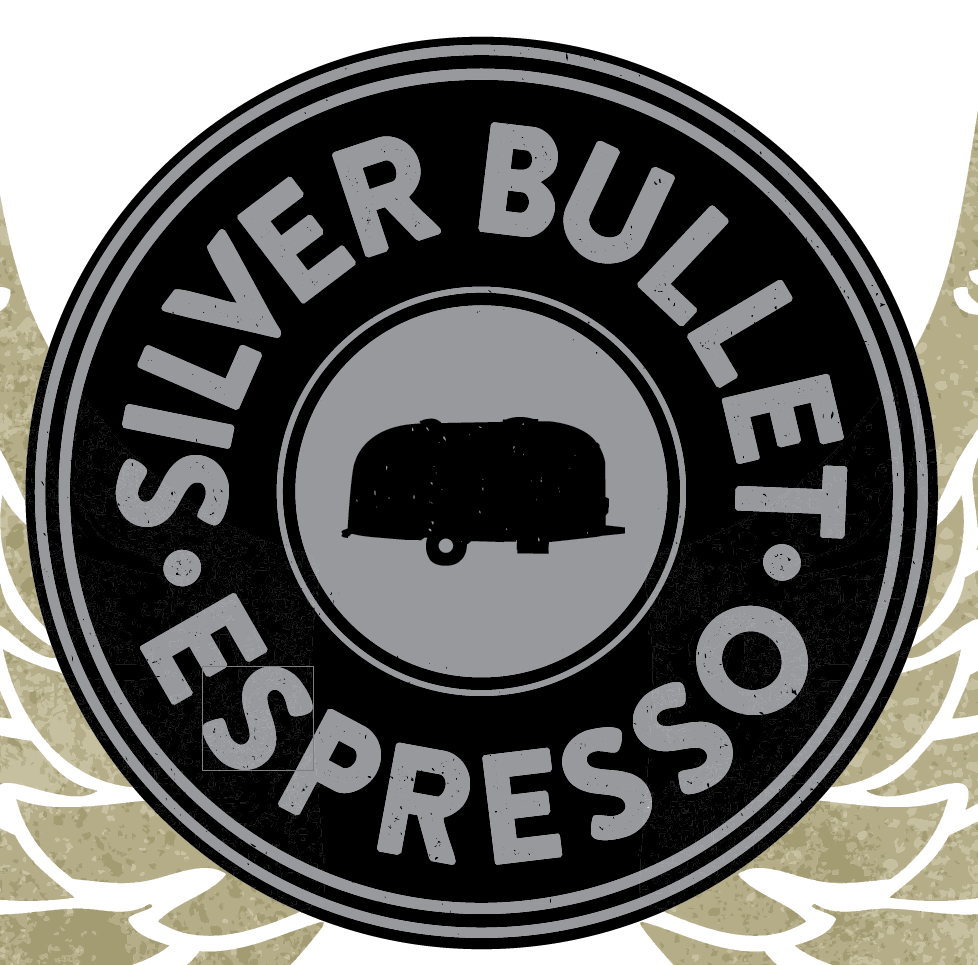

Here is the whole picture

Screen Shot 2018-10-24 at 09.46.41.png

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Engaged ,
Oct 23, 2018 Oct 23, 2018

OK. I would select one of the small pieces you want to delete (they look like black fill/no stroke, but I can't be certain). Go to the select menu and choose 'Same/ Fill and stroke' this should select all the black dross but possibly also the large black circle/s, if so, then shift select them to deselect and then hit delete

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Oct 23, 2018 Oct 23, 2018

Ok I shall try that - thanks

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Oct 24, 2018 Oct 24, 2018

THat is type converted to outlines? So it's a compound path?

In that case what you could try is release the compound path and then use "Unite" from the pathfinder panel (top left button). Will only work for letters that don't have a hole in them.

For the other letters you could try and release the compound path, then color the former "hole" differently. Then select all the parts that belong to the letter and use the button "Merge". Then delete the differently colored "hole"

It would be best to move all the letters to a new layer first and lock all other layers.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Beginner ,
Feb 26, 2025 Feb 26, 2025
LATEST

If I might add, there is also a script that selects paths by size, called fittingly "SelectPathsBySize"
https://github.com/johnwun/js4ai/blob/master/SelectPathsBySize.jsx
