Create a shape with the same size as the stroke of a text layer using the script

Report · Jan 16, 2024

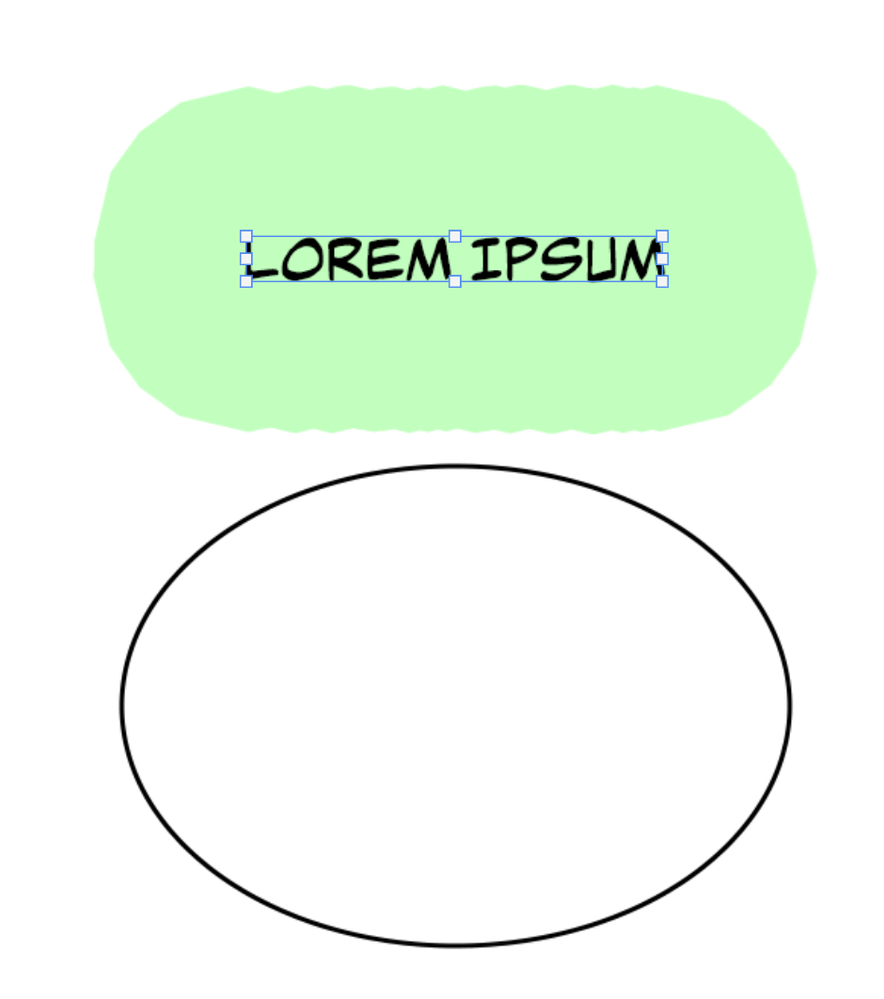

I want to create a script that can create a shape (circle, ellipse, or square) that is the same size as the text layer's stroke (e.g. 100px). Runs only on the current file.
I have combined a script to fill layer with canvas and some actions. But still have to open a new file to get the exact size. Does anyone have any better ideas?

Report · Jan 16, 2024

What »new file« gives you what »exact size«?

Could you please post screenshots with the pertinent Panels (Toolbar, Layers, Options Bar, …) visible?

If you need the bounds with and/or without the Layer Style you can get that directly.

// based on code by michael l hale;
// 2024, use it at your own risk;
if (app.documents.length > 0) {
var ref = new ActionReference();
ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var layerDesc = executeActionGet(ref);
var b1 = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
var b2 = layerDesc.getObjectValue(stringIDToTypeID("boundsNoEffects"));
checkDesc2 (b1);
checkDesc2 (b2);
};
////// based on code by michael l hale //////
function checkDesc2 (theDesc) {
var c = theDesc.count;
var str = '';
for(var i=0;i<c;i++){ //enumerate descriptor's keys
	str = str + 'Key '+i+' = '+typeIDToStringID(theDesc.getKey(i))+': '+theDesc.getType(theDesc.getKey(i))+'\n'+getValues (theDesc, i)+'\n';
	};
alert("desc\n\n"+str);
};
////// check //////
function getValues (theDesc, theNumber) {
switch (theDesc.getType(theDesc.getKey(theNumber))) {
case DescValueType.ALIASTYPE:
return theDesc.getPath(theDesc.getKey(theNumber));
break;
case DescValueType.BOOLEANTYPE:
return theDesc.getBoolean(theDesc.getKey(theNumber));
break;
case DescValueType.CLASSTYPE:
return theDesc.getClass(theDesc.getKey(theNumber));
break;
case DescValueType.DOUBLETYPE:
return theDesc.getDouble(theDesc.getKey(theNumber));
break;
case DescValueType.ENUMERATEDTYPE:
return (typeIDToStringID(theDesc.getEnumerationValue(theDesc.getKey(theNumber)))+"_"+typeIDToStringID(theDesc.getEnumerationType(theDesc.getKey(theNumber))));
break;
case DescValueType.INTEGERTYPE:
return theDesc.getInteger(theDesc.getKey(theNumber));
break;
case DescValueType.LISTTYPE:
return theDesc.getList(theDesc.getKey(theNumber));
break;
case DescValueType.OBJECTTYPE:
return (theDesc.getObjectValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getObjectType(theDesc.getKey(theNumber))));
break;
case DescValueType.RAWTYPE:
return theDesc.getReference(theDesc.getData(theNumber));
break;
case DescValueType.REFERENCETYPE:
return theDesc.getReference(theDesc.getKey(theNumber));
break;
case DescValueType.STRINGTYPE:
return theDesc.getString(theDesc.getKey(theNumber));
break;
case DescValueType.UNITDOUBLE:
return (theDesc.getUnitDoubleValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getUnitDoubleType(theDesc.getKey(theNumber))));
break;
default:
break;
};
};

Report · Jan 16, 2024

I will convert the stroke of the text layer to a layer -> copy it to a new document (this document will have the correct size) -> create a shape and use the script to resize it to the same size as the canvas -> copy the shape and rotate Return to the original file -> align shape and original text layer. That's what I did.

Report · Jan 16, 2024

Please try the code I posted with with a Layer that has a Stroke applied selected.

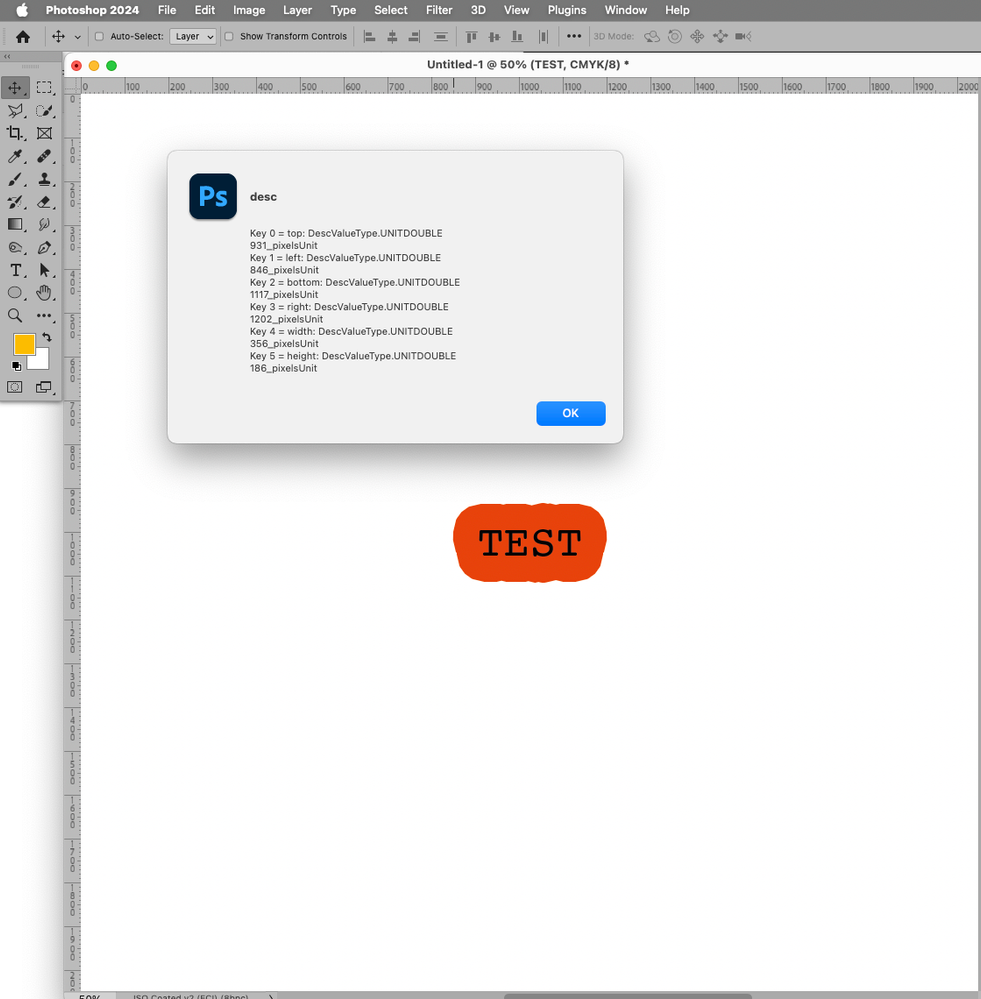

You should get two alerts – one with the bounds of the Layer including the Style, one with the bounds excluding the Style.

Report · Jan 16, 2024

This is the notification I received. I'm not good at using scripts because I'm not a programmer. So... it would be great if you could help me if it doesn't take too long (ಥ﹏ಥ)

Report · Jan 16, 2024

// based on code by michael l hale;
// 2024, use it at your own risk;
if (app.documents.length > 0) {
var originalRulerUnits = app.preferences.rulerUnits;
app.preferences.rulerUnits = Units.PIXELS;
var ref = new ActionReference();
ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var layerDesc = executeActionGet(ref);
var b1 = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
var b2 = layerDesc.getObjectValue(stringIDToTypeID("boundsNoEffects"));
ellipseShapeLayer ([b1.getUnitDoubleValue(stringIDToTypeID("left")), b1.getUnitDoubleValue(stringIDToTypeID("top")), b1.getUnitDoubleValue(stringIDToTypeID("right")), b1.getUnitDoubleValue(stringIDToTypeID("bottom"))], false, 3, [0,0,0]);
app.preferences.rulerUnits = originalRulerUnits;
};
////// based on code by michael l hale //////
function checkDesc2 (theDesc) {
var c = theDesc.count;
var str = '';
for(var i=0;i<c;i++){ //enumerate descriptor's keys
	str = str + 'Key '+i+' = '+typeIDToStringID(theDesc.getKey(i))+': '+theDesc.getType(theDesc.getKey(i))+'\n'+getValues (theDesc, i)+'\n';
	};
alert("desc\n\n"+str);
};
////// check //////
function getValues (theDesc, theNumber) {
switch (theDesc.getType(theDesc.getKey(theNumber))) {
case DescValueType.ALIASTYPE:
return theDesc.getPath(theDesc.getKey(theNumber));
break;
case DescValueType.BOOLEANTYPE:
return theDesc.getBoolean(theDesc.getKey(theNumber));
break;
case DescValueType.CLASSTYPE:
return theDesc.getClass(theDesc.getKey(theNumber));
break;
case DescValueType.DOUBLETYPE:
return theDesc.getDouble(theDesc.getKey(theNumber));
break;
case DescValueType.ENUMERATEDTYPE:
return (typeIDToStringID(theDesc.getEnumerationValue(theDesc.getKey(theNumber)))+"_"+typeIDToStringID(theDesc.getEnumerationType(theDesc.getKey(theNumber))));
break;
case DescValueType.INTEGERTYPE:
return theDesc.getInteger(theDesc.getKey(theNumber));
break;
case DescValueType.LISTTYPE:
return theDesc.getList(theDesc.getKey(theNumber));
break;
case DescValueType.OBJECTTYPE:
return (theDesc.getObjectValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getObjectType(theDesc.getKey(theNumber))));
break;
case DescValueType.RAWTYPE:
return theDesc.getReference(theDesc.getData(theNumber));
break;
case DescValueType.REFERENCETYPE:
return theDesc.getReference(theDesc.getKey(theNumber));
break;
case DescValueType.STRINGTYPE:
return theDesc.getString(theDesc.getKey(theNumber));
break;
case DescValueType.UNITDOUBLE:
return (theDesc.getUnitDoubleValue(theDesc.getKey(theNumber))+"_"+typeIDToStringID(theDesc.getUnitDoubleType(theDesc.getKey(theNumber))));
break;
default:
break;
};
};
////// create ellipse shape layer //////
function ellipseShapeLayer (theBounds, theColor, strokeWidth, strokeColor) {
try {
// Make outer oval
var idPxl = charIDToTypeID( "#Pxl" );
var idPnt = charIDToTypeID( "#Pnt" );
var idClr = charIDToTypeID( "Clr " );
var idRd = charIDToTypeID( "Rd  " );
var idGrn = charIDToTypeID( "Grn " );
var idBl = charIDToTypeID( "Bl  " );
var idRGBC = charIDToTypeID( "RGBC" );
var idcontentLayer = stringIDToTypeID( "contentLayer" );
var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
var idstrokeStyle = stringIDToTypeID( "strokeStyle" );
var idstrokeStyleLineAlignment = stringIDToTypeID( "strokeStyleLineAlignment" );
var idstrokeStyleLineJoinType = stringIDToTypeID( "strokeStyleLineJoinType" );
    var desc41 = new ActionDescriptor();
        var ref12 = new ActionReference();
        ref12.putClass( idcontentLayer );
    desc41.putReference( charIDToTypeID( "null" ), ref12 );
        var desc42 = new ActionDescriptor();
            var desc43 = new ActionDescriptor();
            if (theColor != false) {
                var desc44 = new ActionDescriptor();
                desc44.putDouble( idRd, theColor[0] );
                desc44.putDouble( idGrn, theColor[1] );
                desc44.putDouble( idBl, theColor[2] );
            desc43.putObject( idClr, idRGBC, desc44 );
            };
        desc42.putObject( charIDToTypeID( "Type" ), idsolidColorLayer, desc43 );
        var desc45 = new ActionDescriptor();
            desc45.putUnitDouble( charIDToTypeID( "Top " ), idPxl, theBounds[1] );
            desc45.putUnitDouble( charIDToTypeID( "Left" ), idPxl, theBounds[0] );
            desc45.putUnitDouble( charIDToTypeID( "Btom" ), idPxl, theBounds[3] );
            desc45.putUnitDouble( charIDToTypeID( "Rght" ), idPxl, theBounds[2] );
        desc42.putObject( charIDToTypeID( "Shp " ), charIDToTypeID( "Elps" ), desc45 );
            var desc46 = new ActionDescriptor();
            desc46.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 2 );
            if (strokeWidth == 0) {desc46.putBoolean( stringIDToTypeID( "strokeEnabled" ), false )}
            else {desc46.putBoolean( stringIDToTypeID( "strokeEnabled" ), true )};
			if (theColor == false) {desc46.putBoolean( stringIDToTypeID( "fillEnabled" ), false )}
			else {{desc46.putBoolean( stringIDToTypeID( "fillEnabled" ), true )}};
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleLineWidth" ), idPnt, strokeWidth );
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleLineDashOffset" ), idPnt, 0.000000 );
            desc46.putDouble( stringIDToTypeID( "strokeStyleMiterLimit" ), 100.000000 );
            desc46.putEnumerated( stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleButtCap" ), stringIDToTypeID( "strokeStyleButtCap" ) );
            desc46.putEnumerated( idstrokeStyleLineJoinType, idstrokeStyleLineJoinType, stringIDToTypeID( "strokeStyleMiterJoin" ) );
            desc46.putEnumerated( idstrokeStyleLineAlignment, idstrokeStyleLineAlignment, stringIDToTypeID( "strokeStyleAlignCenter" ) );//strokeStyleAlignOutside
            desc46.putBoolean( stringIDToTypeID( "strokeStyleScaleLock" ), false );
            desc46.putBoolean( stringIDToTypeID( "strokeStyleStrokeAdjust" ), false );
                var list3 = new ActionList();
            desc46.putList( stringIDToTypeID( "strokeStyleLineDashSet" ), list3 );
            desc46.putEnumerated( stringIDToTypeID( "strokeStyleBlendMode" ), charIDToTypeID( "BlnM" ), charIDToTypeID( "Nrml" ) );
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleOpacity" ), charIDToTypeID( "#Prc" ), 100.000000 );
                var desc47 = new ActionDescriptor();
                    var desc48 = new ActionDescriptor();
                    desc48.putDouble( idRd, strokeColor[0] );
                    desc48.putDouble( idGrn, strokeColor[1] );
                    desc48.putDouble( idBl, strokeColor[2] );
                desc47.putObject( idClr, idRGBC, desc48 );
            desc46.putObject( stringIDToTypeID( "strokeStyleContent" ), idsolidColorLayer, desc47 );
            desc46.putDouble( stringIDToTypeID( "strokeStyleResolution" ), 300 );
        desc42.putObject( idstrokeStyle, idstrokeStyle, desc46 );
    desc41.putObject( charIDToTypeID( "Usng" ), idcontentLayer, desc42 );
executeAction( charIDToTypeID( "Mk  " ), desc41, DialogModes.NO );
} catch (e) {alert ("fail")}
};

Report · Jan 16, 2024

Oh my gosh, thank you so much, I just have a small question. It seems that the line drawing of the image created by the script is much thicker than the drawing line created by Photoshop. I also cannot add other effects like gradients, color overlays to this dialog. Why does this happen?

Report · Jan 16, 2024

The third argument of the function »ellipseShapeLayer« is the Stroke Width (3 in the code I posted), feel free to change it.

I also cannot add other effects like gradients, color overlays to this dialog.

Please explain what you mean with screenshots.

Report · Jan 16, 2024

What I mean is that the thickness of the shape created by the script is different from the thickness of the shape created by Photoshop even though it has the same parameter of 3px. I think if I change the number in line 103 from 2 to 1 and can use action to handle the rest easily.

And I know this is excessive but can you do this with rectangles and custom shapes (with a certain name)? I don't know how to repay you guys but this script can really change my life (づ￣ ³￣)づ

Regarding "I also can't add other effects like gradients, color overlays to this dialog." My bad, everything still works perfectly using your code xD

Report · Jan 16, 2024

Please post screenshots including the pertinent Panels.

I don’t understand what the problem is.

Is the ellipse offset or is the stroke width the issue?

What is the resolution of the image?

Report · Jan 16, 2024

This is what I want to explain. In the video are 2 actions I did.

I change (line 103) desc46.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 2 ); to desc46.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 1 ); and stroke becomes 12.5px. Then I combined a bit of action and everything worked pretty well.

The next destination is Custom shape, right (ง'̀-'́)ง

Report · Jan 16, 2024

I don’t understand what the problem or the intended workflow is.

As for a Custom Shape via Script.

// place custom shape;
// 2024, use it at your own risk;
placeCustomShape ("Ape", [0,255,255], [0,0,200,334], 10, [0,0,0]);
////// place custom shape //////
function placeCustomShape (theName, theColor, theBounds, strokeWidth, strokeColor) {
var idcolor = stringIDToTypeID( "color" );
var idred = stringIDToTypeID( "red" );
var idgreen = stringIDToTypeID( "grain" );
var idblue = stringIDToTypeID( "blue" );
var idRGBColor = stringIDToTypeID( "RGBColor" );
var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
var idpixelsUnit = stringIDToTypeID( "pixelsUnit" );
var idstrokeStyle = stringIDToTypeID( "strokeStyle" );
var idcontentLayer = stringIDToTypeID( "contentLayer" );
var idmake = stringIDToTypeID( "make" );
    var desc33 = new ActionDescriptor();
    var idnull = stringIDToTypeID( "null" );
        var ref8 = new ActionReference();
        ref8.putClass( idcontentLayer );
    desc33.putReference( idnull, ref8 );
    var idusing = stringIDToTypeID( "using" );
        var desc34 = new ActionDescriptor();
        var idtype = stringIDToTypeID( "type" );
            var desc35 = new ActionDescriptor();
                var desc36 = new ActionDescriptor();
                desc36.putDouble( idred, theColor[0] );
                desc36.putDouble( idgreen, theColor[1] );
                desc36.putDouble( idblue, theColor[2] );
            desc35.putObject( idcolor, idRGBColor, desc36 );
        desc34.putObject( idtype, idsolidColorLayer, desc35 );
        var idshape = stringIDToTypeID( "shape" );
            var desc37 = new ActionDescriptor();
            desc37.putString( stringIDToTypeID( "name" ), theName );
            desc37.putInteger( stringIDToTypeID( "keyOriginType" ), 9 );
            desc37.putUnitDouble( stringIDToTypeID( "top" ), idpixelsUnit, theBounds[1] );
            desc37.putUnitDouble( stringIDToTypeID( "left" ), idpixelsUnit, theBounds[0] );
            desc37.putUnitDouble( stringIDToTypeID( "bottom" ), idpixelsUnit, theBounds[3] );
            desc37.putUnitDouble( stringIDToTypeID( "right" ), idpixelsUnit, theBounds[2] );
        desc34.putObject( idshape, stringIDToTypeID( "customShape" ), desc37 );
            var desc38 = new ActionDescriptor();
            desc38.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 2 );
            desc38.putBoolean( stringIDToTypeID( "strokeEnabled" ), true );
            desc38.putBoolean( stringIDToTypeID( "fillEnabled" ), true );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleLineWidth" ), idpixelsUnit, strokeWidth );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleLineDashOffset" ), stringIDToTypeID( "pointsUnit" ), 0.000000 );
            desc38.putDouble( stringIDToTypeID( "strokeStyleMiterLimit" ), 100.000000 );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleButtCap" ) );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineJoinType" ), stringIDToTypeID( "strokeStyleLineJoinType" ), stringIDToTypeID( "strokeStyleMiterJoin" ) );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineAlignment" ), stringIDToTypeID( "strokeStyleLineAlignment" ), stringIDToTypeID( "strokeStyleAlignCenter" ) );
            var idstrokeStyleScaleLock = stringIDToTypeID( "strokeStyleScaleLock" );
            desc38.putBoolean( idstrokeStyleScaleLock, false );
            desc38.putBoolean( stringIDToTypeID( "strokeStyleStrokeAdjust" ), false );
                var list5 = new ActionList();
            desc38.putList( stringIDToTypeID( "strokeStyleLineDashSet" ), list5 );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleBlendMode" ), stringIDToTypeID( "blendMode" ), stringIDToTypeID( "normal" ) );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleOpacity" ), stringIDToTypeID( "percentUnit" ), 100.000000 );
                var desc39 = new ActionDescriptor();
                    var desc40 = new ActionDescriptor();
                    desc40.putDouble( idred, strokeColor[0] );
                    desc40.putDouble( idgreen, strokeColor[1] );
                    desc40.putDouble( idblue, strokeColor[2] );
                desc39.putObject( idcolor, idRGBColor, desc40 );
            desc38.putObject( stringIDToTypeID( "strokeStyleContent" ), idsolidColorLayer, desc39 );
            desc38.putDouble( stringIDToTypeID( "strokeStyleResolution" ), 300.000000 );
        desc34.putObject( idstrokeStyle, idstrokeStyle, desc38 );
    desc33.putObject( idusing, idcontentLayer, desc34 );
executeAction( idmake, desc33, DialogModes.NO );
};

Report · Jan 17, 2024

First at all, thank you so much for continuing to reply to me~

My work is comic typesets, so these parameters need to be accurate. But, I think the stroke-related problems will stop here because I can handle them with a little action.
As for the Custom Shape, I could combine your code with the previous code for Elipse but it doesn't work ಠ╭╮ಠ
To explain a bit, sometimes we will work with speech bubbles that are not ellipse or rectangle shapes, the image below is an example of Custom shape.

Report · Jan 18, 2024

What does not work out with the Script?

Please post the Script and screenshots to illustrate the error.

Report · Jan 21, 2024

Sorry for the late reply. For the past 2 days I've been trying to find a way to adjust the size of a custom shape to be the same as the stroke size (like with ellipses and rectangles). But it failed...

Report · Jan 21, 2024

Please don’t just talk about code you are having problems with, post it and provide a meaningful description of how it does not do what you want. (In this case please also provide the test file and the custom shape file.)

Report · Jan 21, 2024

// create custom shape layer based on layer bounds including styles;
// 2024, use it at your own risk;
if (app.documents.length > 0) {
var originalRulerUnits = app.preferences.rulerUnits;
app.preferences.rulerUnits = Units.PIXELS;
var ref = new ActionReference();
ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var layerDesc = executeActionGet(ref);
var b1 = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
var b2 = layerDesc.getObjectValue(stringIDToTypeID("boundsNoEffects"));
//ellipseShapeLayer ([b1.getUnitDoubleValue(stringIDToTypeID("left")), b1.getUnitDoubleValue(stringIDToTypeID("top")), b1.getUnitDoubleValue(stringIDToTypeID("right")), b1.getUnitDoubleValue(stringIDToTypeID("bottom"))], false, 3, [0,0,0]);
// create custom shape layer;
placeCustomShape ("Ape", [0,255,255], [b1.getUnitDoubleValue(stringIDToTypeID("left")), b1.getUnitDoubleValue(stringIDToTypeID("top")), b1.getUnitDoubleValue(stringIDToTypeID("right")), b1.getUnitDoubleValue(stringIDToTypeID("bottom"))], 3, [0,0,0]);
app.preferences.rulerUnits = originalRulerUnits;
};
////// create ellipse shape layer //////
function ellipseShapeLayer (theBounds, theColor, strokeWidth, strokeColor) {
try {
// Make outer oval
var idPxl = charIDToTypeID( "#Pxl" );
var idPnt = charIDToTypeID( "#Pnt" );
var idClr = charIDToTypeID( "Clr " );
var idRd = charIDToTypeID( "Rd  " );
var idGrn = charIDToTypeID( "Grn " );
var idBl = charIDToTypeID( "Bl  " );
var idRGBC = charIDToTypeID( "RGBC" );
var idcontentLayer = stringIDToTypeID( "contentLayer" );
var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
var idstrokeStyle = stringIDToTypeID( "strokeStyle" );
var idstrokeStyleLineAlignment = stringIDToTypeID( "strokeStyleLineAlignment" );
var idstrokeStyleLineJoinType = stringIDToTypeID( "strokeStyleLineJoinType" );
    var desc41 = new ActionDescriptor();
        var ref12 = new ActionReference();
        ref12.putClass( idcontentLayer );
    desc41.putReference( charIDToTypeID( "null" ), ref12 );
        var desc42 = new ActionDescriptor();
            var desc43 = new ActionDescriptor();
            if (theColor != false) {
                var desc44 = new ActionDescriptor();
                desc44.putDouble( idRd, theColor[0] );
                desc44.putDouble( idGrn, theColor[1] );
                desc44.putDouble( idBl, theColor[2] );
            desc43.putObject( idClr, idRGBC, desc44 );
            };
        desc42.putObject( charIDToTypeID( "Type" ), idsolidColorLayer, desc43 );
        var desc45 = new ActionDescriptor();
            desc45.putUnitDouble( charIDToTypeID( "Top " ), idPxl, theBounds[1] );
            desc45.putUnitDouble( charIDToTypeID( "Left" ), idPxl, theBounds[0] );
            desc45.putUnitDouble( charIDToTypeID( "Btom" ), idPxl, theBounds[3] );
            desc45.putUnitDouble( charIDToTypeID( "Rght" ), idPxl, theBounds[2] );
        desc42.putObject( charIDToTypeID( "Shp " ), charIDToTypeID( "Elps" ), desc45 );
            var desc46 = new ActionDescriptor();
            desc46.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 2 );
            if (strokeWidth == 0) {desc46.putBoolean( stringIDToTypeID( "strokeEnabled" ), false )}
            else {desc46.putBoolean( stringIDToTypeID( "strokeEnabled" ), true )};
			if (theColor == false) {desc46.putBoolean( stringIDToTypeID( "fillEnabled" ), false )}
			else {{desc46.putBoolean( stringIDToTypeID( "fillEnabled" ), true )}};
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleLineWidth" ), idPnt, strokeWidth );
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleLineDashOffset" ), idPnt, 0.000000 );
            desc46.putDouble( stringIDToTypeID( "strokeStyleMiterLimit" ), 100.000000 );
            desc46.putEnumerated( stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleButtCap" ), stringIDToTypeID( "strokeStyleButtCap" ) );
            desc46.putEnumerated( idstrokeStyleLineJoinType, idstrokeStyleLineJoinType, stringIDToTypeID( "strokeStyleMiterJoin" ) );
            desc46.putEnumerated( idstrokeStyleLineAlignment, idstrokeStyleLineAlignment, stringIDToTypeID( "strokeStyleAlignCenter" ) );//strokeStyleAlignOutside
            desc46.putBoolean( stringIDToTypeID( "strokeStyleScaleLock" ), false );
            desc46.putBoolean( stringIDToTypeID( "strokeStyleStrokeAdjust" ), false );
                var list3 = new ActionList();
            desc46.putList( stringIDToTypeID( "strokeStyleLineDashSet" ), list3 );
            desc46.putEnumerated( stringIDToTypeID( "strokeStyleBlendMode" ), charIDToTypeID( "BlnM" ), charIDToTypeID( "Nrml" ) );
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleOpacity" ), charIDToTypeID( "#Prc" ), 100.000000 );
                var desc47 = new ActionDescriptor();
                    var desc48 = new ActionDescriptor();
                    desc48.putDouble( idRd, strokeColor[0] );
                    desc48.putDouble( idGrn, strokeColor[1] );
                    desc48.putDouble( idBl, strokeColor[2] );
                desc47.putObject( idClr, idRGBC, desc48 );
            desc46.putObject( stringIDToTypeID( "strokeStyleContent" ), idsolidColorLayer, desc47 );
            desc46.putDouble( stringIDToTypeID( "strokeStyleResolution" ), 300 );
        desc42.putObject( idstrokeStyle, idstrokeStyle, desc46 );
    desc41.putObject( charIDToTypeID( "Usng" ), idcontentLayer, desc42 );
executeAction( charIDToTypeID( "Mk  " ), desc41, DialogModes.NO );
} catch (e) {alert ("fail")}
};
////// place custom shape //////
function placeCustomShape (theName, theColor, theBounds, strokeWidth, strokeColor) {
if (theColor == false) {fillOrNot = false;
theColor = [0,0,0]}
else {fillOrNot = true};
if (strokeColor == false) {strokeOrNot = false}
else {strokeOrNot = true};
var idcolor = stringIDToTypeID( "color" );
var idred = stringIDToTypeID( "red" );
var idgreen = stringIDToTypeID( "grain" );
var idblue = stringIDToTypeID( "blue" );
var idRGBColor = stringIDToTypeID( "RGBColor" );
var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
var idpixelsUnit = stringIDToTypeID( "pixelsUnit" );
var idstrokeStyle = stringIDToTypeID( "strokeStyle" );
var idcontentLayer = stringIDToTypeID( "contentLayer" );
var idmake = stringIDToTypeID( "make" );
    var desc33 = new ActionDescriptor();
    var idnull = stringIDToTypeID( "null" );
        var ref8 = new ActionReference();
        ref8.putClass( idcontentLayer );
    desc33.putReference( idnull, ref8 );
    var idusing = stringIDToTypeID( "using" );
        var desc34 = new ActionDescriptor();
        var idtype = stringIDToTypeID( "type" );
                var desc35 = new ActionDescriptor();
                var desc36 = new ActionDescriptor();
                desc36.putDouble( idred, theColor[0] );
                desc36.putDouble( idgreen, theColor[1] );
                desc36.putDouble( idblue, theColor[2] );
            desc35.putObject( idcolor, idRGBColor, desc36 );
        desc34.putObject( idtype, idsolidColorLayer, desc35 );
        var idshape = stringIDToTypeID( "shape" );
            var desc37 = new ActionDescriptor();
            desc37.putString( stringIDToTypeID( "name" ), theName );
            desc37.putInteger( stringIDToTypeID( "keyOriginType" ), 9 );
            desc37.putUnitDouble( stringIDToTypeID( "top" ), idpixelsUnit, theBounds[1] );
            desc37.putUnitDouble( stringIDToTypeID( "left" ), idpixelsUnit, theBounds[0] );
            desc37.putUnitDouble( stringIDToTypeID( "bottom" ), idpixelsUnit, theBounds[3] );
            desc37.putUnitDouble( stringIDToTypeID( "right" ), idpixelsUnit, theBounds[2] );
        desc34.putObject( idshape, stringIDToTypeID( "customShape" ), desc37 );
            var desc38 = new ActionDescriptor();
            desc38.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 2 );
            desc38.putBoolean( stringIDToTypeID( "strokeEnabled" ), strokeOrNot );
            desc38.putBoolean( stringIDToTypeID( "fillEnabled" ), fillOrNot );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleLineWidth" ), idpixelsUnit, strokeWidth );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleLineDashOffset" ), stringIDToTypeID( "pointsUnit" ), 0.000000 );
            desc38.putDouble( stringIDToTypeID( "strokeStyleMiterLimit" ), 100.000000 );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleButtCap" ) );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineJoinType" ), stringIDToTypeID( "strokeStyleLineJoinType" ), stringIDToTypeID( "strokeStyleMiterJoin" ) );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineAlignment" ), stringIDToTypeID( "strokeStyleLineAlignment" ), stringIDToTypeID( "strokeStyleAlignCenter" ) );
            var idstrokeStyleScaleLock = stringIDToTypeID( "strokeStyleScaleLock" );
            desc38.putBoolean( idstrokeStyleScaleLock, false );
            desc38.putBoolean( stringIDToTypeID( "strokeStyleStrokeAdjust" ), false );
                var list5 = new ActionList();
            desc38.putList( stringIDToTypeID( "strokeStyleLineDashSet" ), list5 );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleBlendMode" ), stringIDToTypeID( "blendMode" ), stringIDToTypeID( "normal" ) );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleOpacity" ), stringIDToTypeID( "percentUnit" ), 100.000000 );
                var desc39 = new ActionDescriptor();
                if (strokeOrNot == true) {
                    var desc40 = new ActionDescriptor();
                    desc40.putDouble( idred, strokeColor[0] );
                    desc40.putDouble( idgreen, strokeColor[1] );
                    desc40.putDouble( idblue, strokeColor[2] );
                desc39.putObject( idcolor, idRGBColor, desc40 );
                };
            desc38.putObject( stringIDToTypeID( "strokeStyleContent" ), idsolidColorLayer, desc39 );
            desc38.putDouble( stringIDToTypeID( "strokeStyleResolution" ), 300.000000 );
        desc34.putObject( idstrokeStyle, idstrokeStyle, desc38 );
    desc33.putObject( idusing, idcontentLayer, desc34 );
executeAction( idmake, desc33, DialogModes.NO );
};

Report · Jan 18, 2024

I wonder, though, why you use the Stroke on the Type Layer at all.

Couldn’t you just add/subtract the number to/from the Type Layer’s original Bounds?

Report · Jan 20, 2024

Every publisher we work with requires a "certain amount of space" between the text and the bubble border (maybe, 100px, 80px, 83px,...). So we could just define that distance with the stroke (the green stroke you saw) and started adjusting the size of the speech bubbles to fit them manually over the last year until when I get your help. So I think it's more convenient for the script to work depending on random strokes.

Report · Jan 16, 2024

i don't know why but i can't reply anymore. Thank you so much!

Report · Sep 07, 2024

Your script is very awesome, man! Could you make it run with all text in a group automatically?

Report · Sep 08, 2024

Please provide a sample file.

If it’s about Type Layers why only the ones in a Group (how is the Group identifyable?) and not all Type Layers in the file?

Report · Sep 08, 2024

Edit: This Script would create Shape Layers depending on the Type Layers in the Group in which the active Layer resides (see screenshots).

// create custom shape layer based on layer bounds including styles of type layers in group;
// 2024, use it at your own risk;
if (app.documents.length > 0) {
var originalRulerUnits = app.preferences.rulerUnits;
app.preferences.rulerUnits = Units.PIXELS;
var ref = new ActionReference();
ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var layerDesc = executeActionGet(ref);
var parentID = layerDesc.getInteger(stringIDToTypeID("parentLayerID"));
// collect type layers from parent group;
if (isGroupByID(parentID) == true) {
var theLayers = collectTypeLayersInGroupOfID(parentID);
// process layers;
for (var m = 0; m < theLayers.length; m++) {
var b1 = theLayers[m][3];
var b2 = theLayers[m][4];
selectLayerByID(theLayers[m][2], false);
// create custom shape layer;
placeCustomShape ("Ape", [0,255,255], [b1.getUnitDoubleValue(stringIDToTypeID("left")), b1.getUnitDoubleValue(stringIDToTypeID("top")), b1.getUnitDoubleValue(stringIDToTypeID("right")), b1.getUnitDoubleValue(stringIDToTypeID("bottom"))], 3, [0,0,0]);
}
};
// reset;
app.preferences.rulerUnits = originalRulerUnits;
};
////// create ellipse shape layer //////
function ellipseShapeLayer (theBounds, theColor, strokeWidth, strokeColor) {
try {
// Make outer oval
var idPxl = charIDToTypeID( "#Pxl" );
var idPnt = charIDToTypeID( "#Pnt" );
var idClr = charIDToTypeID( "Clr " );
var idRd = charIDToTypeID( "Rd  " );
var idGrn = charIDToTypeID( "Grn " );
var idBl = charIDToTypeID( "Bl  " );
var idRGBC = charIDToTypeID( "RGBC" );
var idcontentLayer = stringIDToTypeID( "contentLayer" );
var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
var idstrokeStyle = stringIDToTypeID( "strokeStyle" );
var idstrokeStyleLineAlignment = stringIDToTypeID( "strokeStyleLineAlignment" );
var idstrokeStyleLineJoinType = stringIDToTypeID( "strokeStyleLineJoinType" );
    var desc41 = new ActionDescriptor();
        var ref12 = new ActionReference();
        ref12.putClass( idcontentLayer );
    desc41.putReference( charIDToTypeID( "null" ), ref12 );
        var desc42 = new ActionDescriptor();
            var desc43 = new ActionDescriptor();
            if (theColor != false) {
                var desc44 = new ActionDescriptor();
                desc44.putDouble( idRd, theColor[0] );
                desc44.putDouble( idGrn, theColor[1] );
                desc44.putDouble( idBl, theColor[2] );
            desc43.putObject( idClr, idRGBC, desc44 );
            };
        desc42.putObject( charIDToTypeID( "Type" ), idsolidColorLayer, desc43 );
        var desc45 = new ActionDescriptor();
            desc45.putUnitDouble( charIDToTypeID( "Top " ), idPxl, theBounds[1] );
            desc45.putUnitDouble( charIDToTypeID( "Left" ), idPxl, theBounds[0] );
            desc45.putUnitDouble( charIDToTypeID( "Btom" ), idPxl, theBounds[3] );
            desc45.putUnitDouble( charIDToTypeID( "Rght" ), idPxl, theBounds[2] );
        desc42.putObject( charIDToTypeID( "Shp " ), charIDToTypeID( "Elps" ), desc45 );
            var desc46 = new ActionDescriptor();
            desc46.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 2 );
            if (strokeWidth == 0) {desc46.putBoolean( stringIDToTypeID( "strokeEnabled" ), false )}
            else {desc46.putBoolean( stringIDToTypeID( "strokeEnabled" ), true )};
			if (theColor == false) {desc46.putBoolean( stringIDToTypeID( "fillEnabled" ), false )}
			else {{desc46.putBoolean( stringIDToTypeID( "fillEnabled" ), true )}};
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleLineWidth" ), idPnt, strokeWidth );
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleLineDashOffset" ), idPnt, 0.000000 );
            desc46.putDouble( stringIDToTypeID( "strokeStyleMiterLimit" ), 100.000000 );
            desc46.putEnumerated( stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleButtCap" ), stringIDToTypeID( "strokeStyleButtCap" ) );
            desc46.putEnumerated( idstrokeStyleLineJoinType, idstrokeStyleLineJoinType, stringIDToTypeID( "strokeStyleMiterJoin" ) );
            desc46.putEnumerated( idstrokeStyleLineAlignment, idstrokeStyleLineAlignment, stringIDToTypeID( "strokeStyleAlignCenter" ) );//strokeStyleAlignOutside
            desc46.putBoolean( stringIDToTypeID( "strokeStyleScaleLock" ), false );
            desc46.putBoolean( stringIDToTypeID( "strokeStyleStrokeAdjust" ), false );
                var list3 = new ActionList();
            desc46.putList( stringIDToTypeID( "strokeStyleLineDashSet" ), list3 );
            desc46.putEnumerated( stringIDToTypeID( "strokeStyleBlendMode" ), charIDToTypeID( "BlnM" ), charIDToTypeID( "Nrml" ) );
            desc46.putUnitDouble( stringIDToTypeID( "strokeStyleOpacity" ), charIDToTypeID( "#Prc" ), 100.000000 );
                var desc47 = new ActionDescriptor();
                    var desc48 = new ActionDescriptor();
                    desc48.putDouble( idRd, strokeColor[0] );
                    desc48.putDouble( idGrn, strokeColor[1] );
                    desc48.putDouble( idBl, strokeColor[2] );
                desc47.putObject( idClr, idRGBC, desc48 );
            desc46.putObject( stringIDToTypeID( "strokeStyleContent" ), idsolidColorLayer, desc47 );
            desc46.putDouble( stringIDToTypeID( "strokeStyleResolution" ), 300 );
        desc42.putObject( idstrokeStyle, idstrokeStyle, desc46 );
    desc41.putObject( charIDToTypeID( "Usng" ), idcontentLayer, desc42 );
executeAction( charIDToTypeID( "Mk  " ), desc41, DialogModes.NO );
} catch (e) {alert ("fail")}
};
////// place custom shape //////
function placeCustomShape (theName, theColor, theBounds, strokeWidth, strokeColor) {
if (theColor == false) {fillOrNot = false;
theColor = [0,0,0]}
else {fillOrNot = true};
if (strokeColor == false) {strokeOrNot = false}
else {strokeOrNot = true};
var idcolor = stringIDToTypeID( "color" );
var idred = stringIDToTypeID( "red" );
var idgreen = stringIDToTypeID( "grain" );
var idblue = stringIDToTypeID( "blue" );
var idRGBColor = stringIDToTypeID( "RGBColor" );
var idsolidColorLayer = stringIDToTypeID( "solidColorLayer" );
var idpixelsUnit = stringIDToTypeID( "pixelsUnit" );
var idstrokeStyle = stringIDToTypeID( "strokeStyle" );
var idcontentLayer = stringIDToTypeID( "contentLayer" );
var idmake = stringIDToTypeID( "make" );
    var desc33 = new ActionDescriptor();
    var idnull = stringIDToTypeID( "null" );
        var ref8 = new ActionReference();
        ref8.putClass( idcontentLayer );
    desc33.putReference( idnull, ref8 );
    var idusing = stringIDToTypeID( "using" );
        var desc34 = new ActionDescriptor();
        var idtype = stringIDToTypeID( "type" );
                var desc35 = new ActionDescriptor();
                var desc36 = new ActionDescriptor();
                desc36.putDouble( idred, theColor[0] );
                desc36.putDouble( idgreen, theColor[1] );
                desc36.putDouble( idblue, theColor[2] );
            desc35.putObject( idcolor, idRGBColor, desc36 );
        desc34.putObject( idtype, idsolidColorLayer, desc35 );
        var idshape = stringIDToTypeID( "shape" );
            var desc37 = new ActionDescriptor();
            desc37.putString( stringIDToTypeID( "name" ), theName );
            desc37.putInteger( stringIDToTypeID( "keyOriginType" ), 9 );
            desc37.putUnitDouble( stringIDToTypeID( "top" ), idpixelsUnit, theBounds[1] );
            desc37.putUnitDouble( stringIDToTypeID( "left" ), idpixelsUnit, theBounds[0] );
            desc37.putUnitDouble( stringIDToTypeID( "bottom" ), idpixelsUnit, theBounds[3] );
            desc37.putUnitDouble( stringIDToTypeID( "right" ), idpixelsUnit, theBounds[2] );
        desc34.putObject( idshape, stringIDToTypeID( "customShape" ), desc37 );
            var desc38 = new ActionDescriptor();
            desc38.putInteger( stringIDToTypeID( "strokeStyleVersion" ), 2 );
            desc38.putBoolean( stringIDToTypeID( "strokeEnabled" ), strokeOrNot );
            desc38.putBoolean( stringIDToTypeID( "fillEnabled" ), fillOrNot );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleLineWidth" ), idpixelsUnit, strokeWidth );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleLineDashOffset" ), stringIDToTypeID( "pointsUnit" ), 0.000000 );
            desc38.putDouble( stringIDToTypeID( "strokeStyleMiterLimit" ), 100.000000 );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleLineCapType" ), stringIDToTypeID( "strokeStyleButtCap" ) );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineJoinType" ), stringIDToTypeID( "strokeStyleLineJoinType" ), stringIDToTypeID( "strokeStyleMiterJoin" ) );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleLineAlignment" ), stringIDToTypeID( "strokeStyleLineAlignment" ), stringIDToTypeID( "strokeStyleAlignCenter" ) );
            var idstrokeStyleScaleLock = stringIDToTypeID( "strokeStyleScaleLock" );
            desc38.putBoolean( idstrokeStyleScaleLock, false );
            desc38.putBoolean( stringIDToTypeID( "strokeStyleStrokeAdjust" ), false );
                var list5 = new ActionList();
            desc38.putList( stringIDToTypeID( "strokeStyleLineDashSet" ), list5 );
            desc38.putEnumerated( stringIDToTypeID( "strokeStyleBlendMode" ), stringIDToTypeID( "blendMode" ), stringIDToTypeID( "normal" ) );
            desc38.putUnitDouble( stringIDToTypeID( "strokeStyleOpacity" ), stringIDToTypeID( "percentUnit" ), 100.000000 );
                var desc39 = new ActionDescriptor();
                if (strokeOrNot == true) {
                    var desc40 = new ActionDescriptor();
                    desc40.putDouble( idred, strokeColor[0] );
                    desc40.putDouble( idgreen, strokeColor[1] );
                    desc40.putDouble( idblue, strokeColor[2] );
                desc39.putObject( idcolor, idRGBColor, desc40 );
                };
            desc38.putObject( stringIDToTypeID( "strokeStyleContent" ), idsolidColorLayer, desc39 );
            desc38.putDouble( stringIDToTypeID( "strokeStyleResolution" ), 300.000000 );
        desc34.putObject( idstrokeStyle, idstrokeStyle, desc38 );
    desc33.putObject( idusing, idcontentLayer, desc34 );
executeAction( idmake, desc33, DialogModes.NO );
};
////// collect layers in group of name //////
function collectTypeLayersInGroupOfID (theTargetID) {
var theLayers = new Array;
// get number of layers;
var ref = new ActionReference();
ref.putProperty(stringIDToTypeID('property'), stringIDToTypeID('numberOfLayers'));
ref.putEnumerated( charIDToTypeID("Dcmn"), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var applicationDesc = executeActionGet(ref);
var theNumber = applicationDesc.getInteger(stringIDToTypeID("numberOfLayers"));
// process the layers;
for (var m = 0; m <= theNumber; m++) {
try {
var ref = new ActionReference();
ref.putIndex( charIDToTypeID( "Lyr " ), m);
var layerDesc = executeActionGet(ref);
var theName = layerDesc.getString(stringIDToTypeID('name'));
/*var layerSet = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("layerSection")));
var isBackground = layerDesc.getBoolean(stringIDToTypeID("background"));*/
var isTypeLayer = layerDesc.hasKey(stringIDToTypeID("textKey"));
var theParentId = layerDesc.getInteger(stringIDToTypeID('parentLayerID'));
// if type layer in group collect values;
if (isTypeLayer == true && theParentId == theTargetID) {
var theID = layerDesc.getInteger(stringIDToTypeID('layerID'));
var theIndex = layerDesc.getInteger(stringIDToTypeID('itemIndex'));
var b1 = layerDesc.getObjectValue(stringIDToTypeID("bounds"));
var b2 = layerDesc.getObjectValue(stringIDToTypeID("boundsNoEffects"));
theLayers.push([theName, theIndex, theID, b1, b2]);
};
}
catch (e) {};
};
return theLayers
};
//////
function isGroupByID (theID) {
var ref = new ActionReference();
ref.putIdentifier( charIDToTypeID("Lyr "), theID );
//ref.putEnumerated( charIDToTypeID("Lyr "), charIDToTypeID("Ordn"), charIDToTypeID("Trgt") );
var layerDesc = executeActionGet(ref);
var layerSet = typeIDToStringID(layerDesc.getEnumerationValue(stringIDToTypeID("layerSection")));
if (layerSet == "layerSectionStart") {return true}
else {return false}
};
// based on code by mike hale, via paul riggott;
function selectLayerByID(id,add){
add = undefined ? add = false:add
var ref = new ActionReference();
ref.putIdentifier(charIDToTypeID("Lyr "), id);
var desc = new ActionDescriptor();
desc.putReference(charIDToTypeID("null"), ref );
if(add) desc.putEnumerated( stringIDToTypeID( "selectionModifier" ), stringIDToTypeID( "selectionModifierType" ), stringIDToTypeID( "addToSelection" ) );
desc.putBoolean( charIDToTypeID( "MkVs" ), false );
try{
executeAction(charIDToTypeID("slct"), desc, DialogModes.NO );
}catch(e){
alert(e.message);
}
};

Report · Sep 09, 2024

this is exactly what I need! Thank you very very much!!

Report · Jan 16, 2024

I have a video describing the process: https://drive.google.com/file/d/1t56qFBfstzOBdUlqePYwv2Zl4yUxqRIl/view?usp=sharing

Create a shape with the same size as the stroke of a text layer using the script

2 Correct answers

Explore related tutorials & articles
