I have learned Daniel Thiger's lessons recently,but I still couldn't create this pattern in SD.It is really blowing my mind.especially how to make the warping edge.Anybody can give me some idea to figure out this problem?
1 Correct answer
Hi

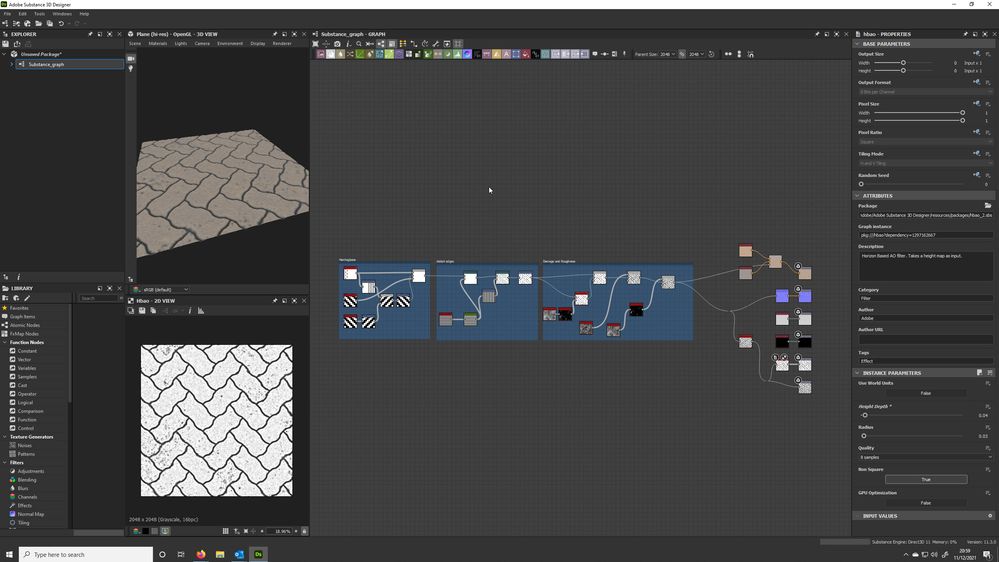

First make the herringbone using a brick generator and tile generator (as a mask) I used a ratio of 4:8 for the brick and tile:
Then distort it horizontally then vertically using Directional Warp driven by a gradient with a tile set to 8 (to match the brick pattern above)
Put together you get this.
You could then go on to add the surface details and damage to the edges with slope blur ...etc
Dave.
2
Replies
Hi
First make the herringbone using a brick generator and tile generator (as a mask) I used a ratio of 4:8 for the brick and tile:
Then distort it horizontally then vertically using Directional Warp driven by a gradient with a tile set to 8 (to match the brick pattern above)
Put together you get this.
You could then go on to add the surface details and damage to the edges with slope blur ...etc
Dave.
