Tile generator issue

Explorer ,
Feb 02, 2023 Feb 02, 2023

Copy link to clipboard

Copied

How can I make my tile have less tiling but count from the center vs scaling the stitches to fill the frame?

I want to remove one stitch on each sides of my texture but If I change the tiling and reduce the number, I just get the stitches bigger..... Must I remove it with a mask?

Thank you.




TOPICS
How to

Views

196

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines

correct answers 1 Correct answer

Adobe Employee , Feb 02, 2023 Feb 02, 2023

Hi Sergio,



Thank you for reaching out to us!



The easiest way to get the controls you want would probably involve using the Tile Sampler node instead, because it offers masking controls that would easily get you what you need.



Using that node, we can use a mask that excludes the left and right borders - a Shape node can produce that easily - and connect it to the Tile Sampler's 'Mask Map Input', as shown below:






I have included the project file for this example to this message. I hope t

...

Votes

Translate

Translate
Adobe Employee ,
Feb 02, 2023 Feb 02, 2023

Copy link to clipboard

Copied

Hi Sergio,



Thank you for reaching out to us!



The easiest way to get the controls you want would probably involve using the Tile Sampler node instead, because it offers masking controls that would easily get you what you need.

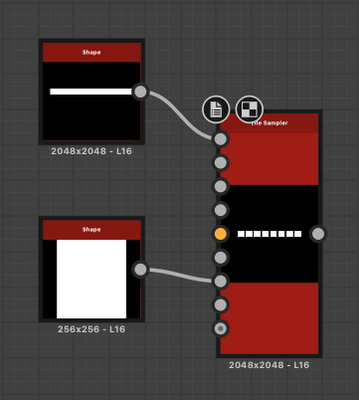

Using that node, we can use a mask that excludes the left and right borders - a Shape node can produce that easily - and connect it to the Tile Sampler's 'Mask Map Input', as shown below:






I have included the project file for this example to this message. I hope this is helpful!



Let me know if you need further guidance.



Best regards.

Luca Giarrizzo | Quality Engineer, 3D & Immersive | Adobe

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Feb 02, 2023 Feb 02, 2023

Copy link to clipboard

Copied

Thanks @Luca Giarrizzo I had done it next with a blend but using  the tile sampler and inserting a maks make the graph simpler I belive. Thank you.

Votes

Translate

Translate

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Adobe Employee ,
Feb 02, 2023 Feb 02, 2023

Copy link to clipboard

Copied

LATEST

I am glad this was helpful! Have fun in Designer!



Luca Giarrizzo | Quality Engineer, 3D & Immersive | Adobe
