Naming convention for Ignore Backface suffix in bake settings

[タイガ25622228cc0r]

In Substance Painter, when baking, you can append suffixes like _low and _high to the mesh names to make them match. However, when I set up the rule for Ignore Backface Suffix (in this case, I used _igno), it seems to be applied to the _low and _high naming convention as well, which results in an error. Am I doing something wrong here, or is this a bug?

The version I’m using is 11.0.3.

[Cyril Dellenbach]

Hi @タイガ25622228cc0r,

thank you for the message and the screenshot.

Can you also share a screenshot of the suffix you have setup, so I'm sure we're not missing anything too obvious? In the meantime, I'm checking on my end where the problem could come from.

[タイガ25622228cc0r]

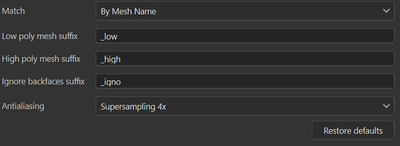

Thank you for your reply. Is this the correct part of the image you’re referring to?

 

 

[タイガ25622228cc0r]

Hello, could you at least let me know whether this is an issue on my side or a problem with the software itself? Otherwise, I can’t decide whether to incorporate it into my workflow.

[Cyril Dellenbach]

Thanks for the reminder.

You still need a low poly to refer to. There should be a Plane_low in your mesh list.

[タイガ25622228cc0r]

I haven’t created a Plane_low, but does this mean that using only the tags set with Ignore Backface Suffix won’t work, and a corresponding mesh is required? In this case, does it mean that even if I remove the _high from the mesh that has _igno added with Ignore Backface Suffix, it still won’t work?

[Cyril Dellenbach]

You can still bake, even with the error, but the plane from the High poly mesh will be considered in the Baking.

If you remove the _high suffix, it will still not work. It's the low poly plane that needs a _low suffix. That being said, if you don't have a low poly mesh plane, why having a high poly mesh plane?

[タイガ25622228cc0r]

When I was looking into how to use Ignore Backface Suffix, I referred to this video (it’s a bit old, though)

[URL]：https://www.youtube.com/watch?v=ihtxIiatqx8

At that time, they demonstrated an example where a slightly raised, bumpy mesh was placed like a decal and then baked, so I tried a simple shape myself just to confirm.

I might have overlooked something, but since I wasn’t able to get the same result, I wanted to confirm whether this error itself might be the cause, which is why I made this post.
