RAM and HD for Video Editing

  • November 30, 2021
  • 6 replies
  • 2904 views

I am new to video editing. I bought a new computer with following specification. I think RAM and HD is not enough for video editing. Please advise me how much RAM & HD I have to add in.



10th Gen Intel Core i7-10700 processor (8-Core, 16M Cache, 2.9GHz to 4.8GHz)



12GB, 8Gx1 + 4Gx1, DDR4, 2933MHz



512GB M.2 PCIe NVMe Solid State Drive

This topic has been closed for replies.
Correct answer RjL190365

Keep in mind that the Dell motherboard has only two DIMM slots, and that both of those slots are occupied (as originally configured). You will have to replace the 4 GB DIMM with your newly ordered 8 GB DIMM, making that PC 16 GB of RAM.



In addition, you cannot use both of the m.2 SSDs in that system at the same time - only one or the other. The Dell motherboard has only one m.2 slot for storage - period. And that slot has already been occupied by your system's originally-shipped 512 GB m.2 SSD.

6 replies

Legend
December 6, 2021

The biggest problem here is that both the amount of RAM and the way the RAM is configured. In the case of your system, it may be that two unequal-sized sticks of RAM may have defaulted the memory controller to single-channel operation regardless of which slots the system builder had put the DIMMs into. Premiere is fairly reliant on memory bandwidth to begin with. With the memory controller in single-channel mode, Premiere Pro will perform worse on your PC than on most PCs that are powered by recent-gen 6-core/12-thread CPUs (whereas your i7-10700 has 8 cores and 16 threads).



And no PC with that outdated Intel UHD Graphics 630 (the very same IGP that debuted with the 8th-Gen Intel CPUs back in late 2017) will perform anywhere near as well in Premiere Pro as even a cheapo PC that's equipped with a 4-core/8-thread CPU but with an added cheapo (but newer-gen) discrete GPU such as a GeForce GTX 1050 Ti.



And looking at the Canadian Dell site, it appears that you could not have ordered that PC with more than 12 GB of RAM. Besides the 12 GB of RAM in that unequal-sized dual-DIMM configuration, the only other option would have been 8 GB of RAM in a single-stick configuration.



And since Dell will not sell you memory modules by themselves from its parts and accessories site, you will have to purchase memory modules (DIMMs) from a third-party reseller. With the RAM-stealing integrated graphics, I would replace both of the DIMMs in your newly-ordered PC with a 2-DIMM (dual-channel) 32 GB kit (two 16 GB DIMMs), and keep the original DIMMs for troubleshooting purposes.



As for storage, then yes. You will need to add a second, larger capacity (1 TB or larger) internal 2.5" SATA SSD such as a Samsung 870 EVO or a Crucial MX500, or an external USB 3.2 Gen 1x1 external storage device, preferably an external SSD. You see, Dell has cut corners on that PC by using a motherboard that's based on the Intel B560 chipset but then omitting most of the performance-oriented features from that motherboard as well as leaving USB 3.2 Gen 2 ports of any kind off of the board (therefore restricting external devices' speed to USB 3.2 Gen 1x1). So, that means that the only advantage of the motherboard's B560 chipset in that Dell motherboard is to run a discrete GPU at its full PCIe 4.0 bandwidth when an 11th-Gen i5 or i7 CPU is installed (which, unfortunately, Dell does not currently offer that PC with at this time). With the older 10th-Gen CPUs that Dell currently offers for that PC, Dell might as well have equipped that motherboard with a B460 chipset instead of a B560 chipset and save itself a few bucks.



And even if you do manage to squeeze in an 11th-Gen i5 or i7 CPU, that Dell motherboard will adhere strictly to the 65W TDP long-term setting, and will drop down all Turbo speeds to conform to the official TDP rating. Most other Intel chipset-based motherboards, including most other B560 motherboards, will run at maximum all-core turbo by default, resulting in the massive increase in the heat output (and therefore power consumption).

MahaB82A
MahaB82AAuthor
Legend
December 8, 2021

What you have writtten is very technical detail. It is going very deep. Profound knowledge is needed to understand it. Anyway, I have placed an order for following RAM & SSD. According to future need I have an intention to increase the RAM.



Dell Memory Upgrade - 8GB - 1Rx16 DDR4 UDIMM 3200MHz
Dell M.2 PCIe NVME Gen 3x4 Class 40 2280 Solid State Drive - 1TB

RjL190365Correct answer
Legend
December 8, 2021

Keep in mind that the Dell motherboard has only two DIMM slots, and that both of those slots are occupied (as originally configured). You will have to replace the 4 GB DIMM with your newly ordered 8 GB DIMM, making that PC 16 GB of RAM.



In addition, you cannot use both of the m.2 SSDs in that system at the same time - only one or the other. The Dell motherboard has only one m.2 slot for storage - period. And that slot has already been occupied by your system's originally-shipped 512 GB m.2 SSD.

Inspiring
December 1, 2021

Are you using Intel's Quick Sync when working with H.264? Your best bet it to check your stats as seen in the video below.

https://www.youtube.com/watch?v=cKBCzCkvBT8

MahaB82A
MahaB82AAuthor
Legend
December 1, 2021

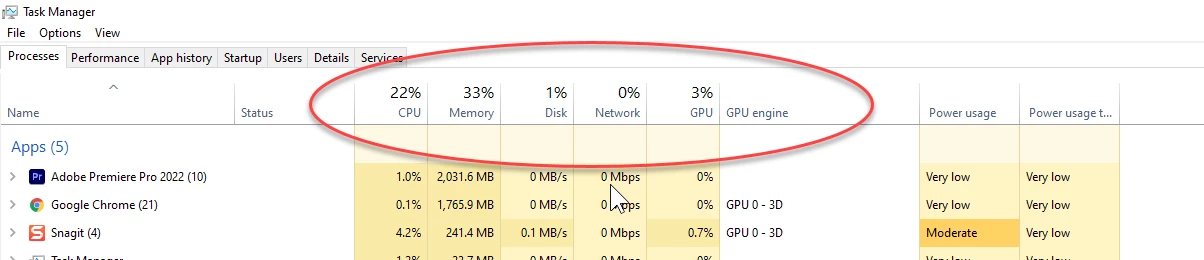

Thanks for the excellent information. I usually go to Task Manager & check Processes only. I am not familier with checking Performance. Detail explanation about above comment is helpful.





Inspiring
December 1, 2021

With the performance graphs you can check the encoding and decoding.

https://www.youtube.com/watch?v=1L-erwmRxAU

John T Smith
Community Expert
Community Expert
November 30, 2021
Peru Bob
Community Expert
Community Expert
November 30, 2021

Moved to the Video Hardware forum.

Ann Bens
Community Expert
Community Expert
November 30, 2021
MahaB82A
MahaB82AAuthor
Legend
November 30, 2021

I think practical experience is more valuable than the recommended things.

Ann Bens
Community Expert
Community Expert
November 30, 2021
quote

I think practical experience is more valuable than the recommended things.


By @MahaB82A

These recommended hardware setups are based on experience.



On a side note: if you are planning on editing highly compressed footage your machine wont cut it.

The RAM setup is odd and the drive is way too small.
