How to get vector image coordinates from PDF files.

6 replies
1018 views
Translate

Hi,

I want to get the vector image coordinates from PDF files. I have try to lot ways but did not take the values.Please give the solutions for this query.

Acrobat SDK and JavaScript

This topic is closed to new replies. Start a new post to keep the conversation going.

Thom Parker

Community Expert

What exactly are you trying to do?

Translate

Thom Parker - Software Developer at PDFScriptingUse the Acrobat JavaScript Reference early and often

K

Karthik G KumarAuthor

Participant

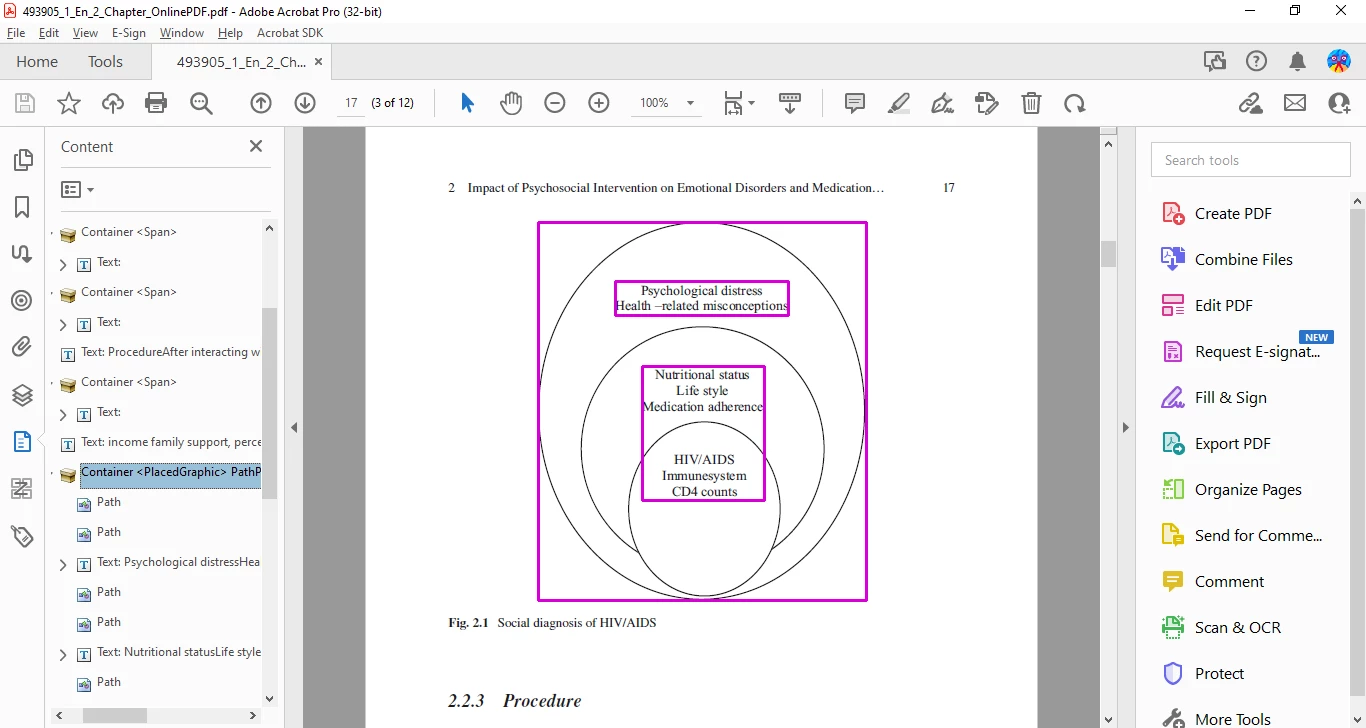

I want to get this vector image coordinates values.

Translate

T

Test Screen Name

Legend

These are either images or they are vectors. They CANNOT be both. You also mark text. This is not image, nor vector. Text is a different kind of thing. The PDFEdit calls in a C++ plug-in can be used to get all the data including

- graphics transformation matrixes (which define position and scale)

- starting position for text run, and characters included

- bezier curves for vectors

You would iterate through all the graphical objects on a page. You see ALL the objects on the page, so you have to write code to pick out the relevant objects, and get their properties. This is not a task for a beginner with C++, or a beginner with the API, or the a beginner with computer graphics. I recommend reading the "text" and "graphics" chapters from the PDF Reference; these few hundred pages of documentation are really necessary preparation for working with the PDFEdit API.
