1:1 MXF OP1a/DNxHR-HQx flagged with 16:9 Display Aspect Ratio metadata

  • July 27, 2017
  • 3 replies
  • 3959 views

Sending render job out of AE to AME.  Comp is 1080x1080 square for Insta.  Have selected DNxHR MXF-Op1a format option, and using the resolution independent flavor of DNxHR-HQx.

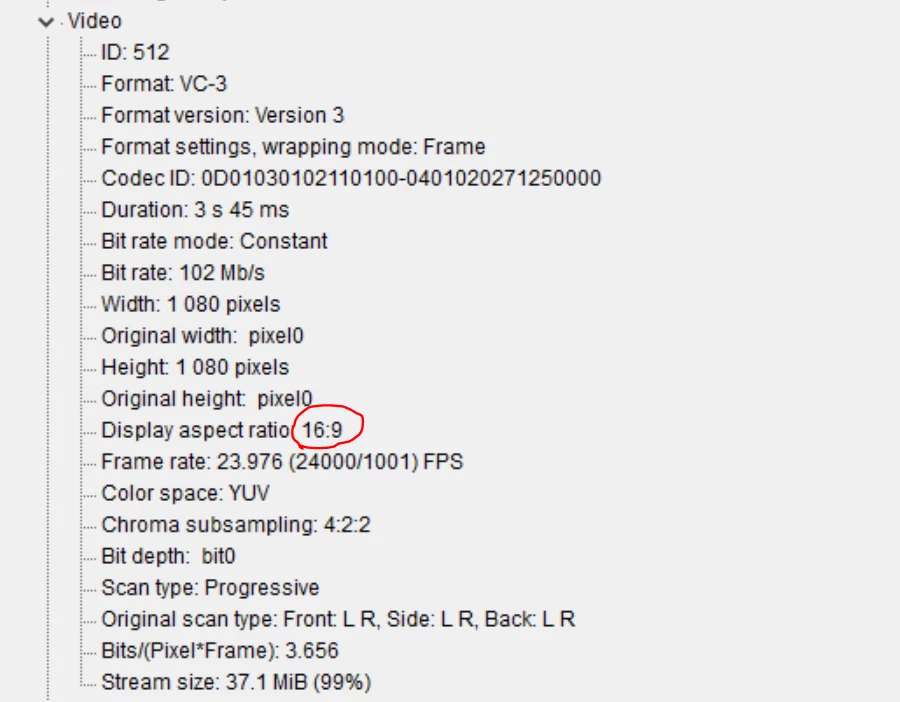

Inspecting the file in MediaInfo.app I can see the metadata says the display aspect ratio of the .mxf is 16:9 (wrong!).

Ingesting the file into various apps for QC yields different, and inconsistent results.  Sometimes it looks correct with 1:1 square aspect ratio, other times it adheres to the 16:9 flag and stretches.  The .xmp file produced by AME at the same time as the .mxf must be in the same folder to have the media interpreted correctly 100% of the time. Presumably the line {xmpDM:videoPixelAspectRatio="1/1"} is what alerts the video players (and/or AME on re-ingest) that the video is to be interpreted as square.

If I export the same comp to Quicktime .mov as DNxHR-HQx I do not encounter the aspect ratio issue.  Its just the .mxf file, which we obviously prefer.

Anything in my AME preset I can adjust to ensure the 1080x1080 media is flagged as square, even if not foldered with the .xmp file?

    This topic has been closed for replies.
    Correct answer Kevin J. Monahan Jr.

    EvanS,

    Please file this bug here: Media Encoder: Hot (156 ideas) – Adobe video & audio apps

    Sorry for the frustration.

    Thanks,
    Kevin

    3 replies

    Kevin J. Monahan Jr.
    Community Manager
    Kevin J. Monahan Jr.Community ManagerCorrect answer
    Community Manager
    August 31, 2018

    EvanS,

    Please file this bug here: Media Encoder: Hot (156 ideas) – Adobe video & audio apps

    Sorry for the frustration.

    Thanks,
    Kevin

    Kevin Monahan - Sr. Community and Engagement Strategist – Adobe Pro Video and Audio
    R
    rikMahieu
    Participant
    August 30, 2018

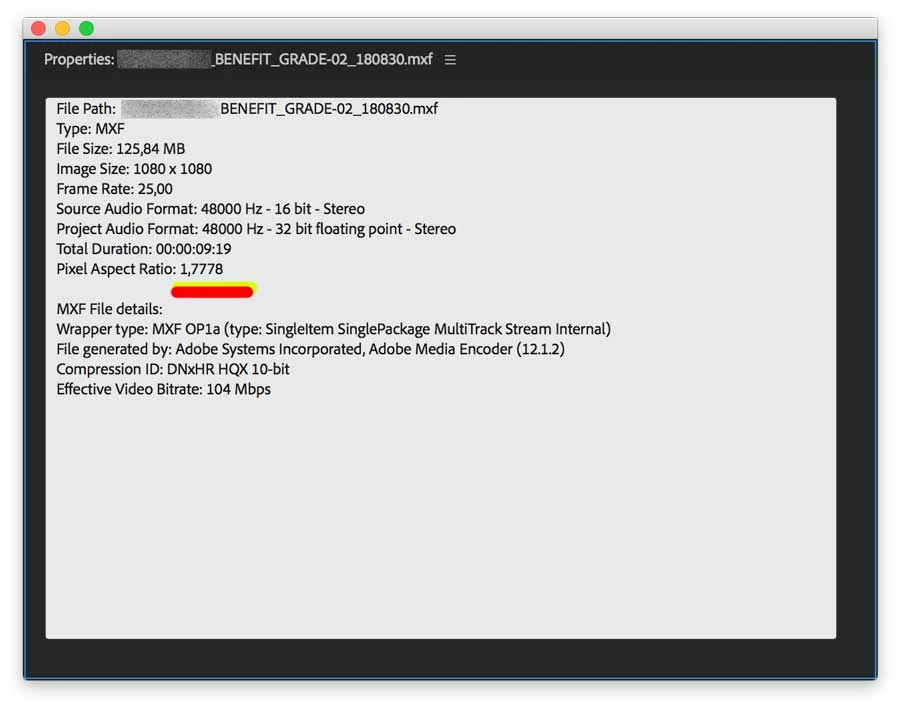

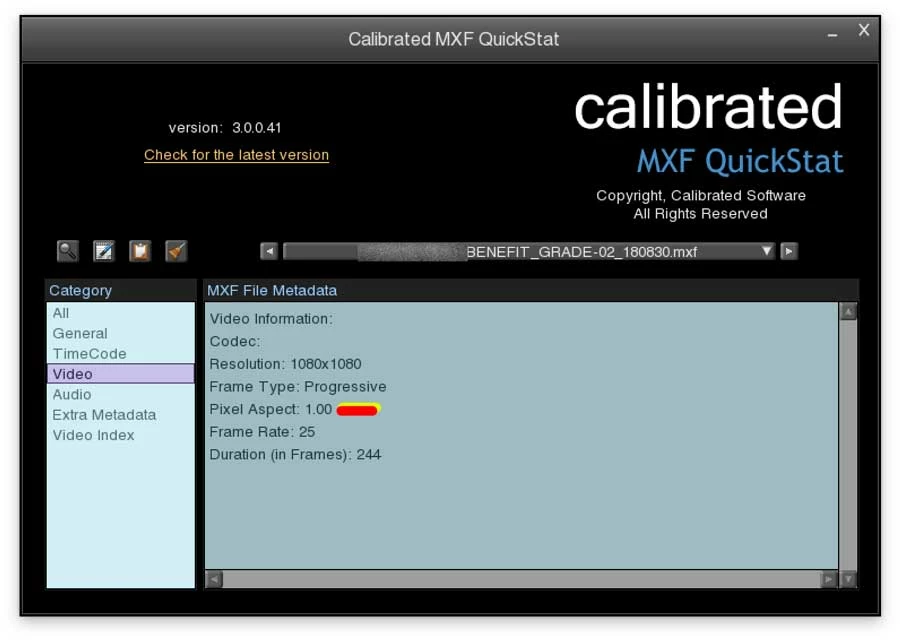

    Same problem with Adobe DNxHR/HD HQX and square PAR/DAR output from Adobe Media Encoder. Metadata in MXF QuickStat (Calibrated Software) is 1:1 (correct). Metadata of Adobe and Interpret Footage in Premiere Pro/After Effects/Adobe Media Encoder is 1:1.78 (16x9). Have to manually set PAR to 1:1 and export as H.264.

    kulpreet singh
    kulpreet singh
    Inspiring
    July 27, 2017

    Hi EvanS,

    Could you please also attach a screenshot of the Export Settings window?

    How_do_I_attach_a_screenshot

    This link might help: Premiere Pro Instagram IOS Settings — Premiere Bro

    Thanks,

    Kulpreet Singh

    evans45721616
    evans45721616Author
    Participant
    July 27, 2017

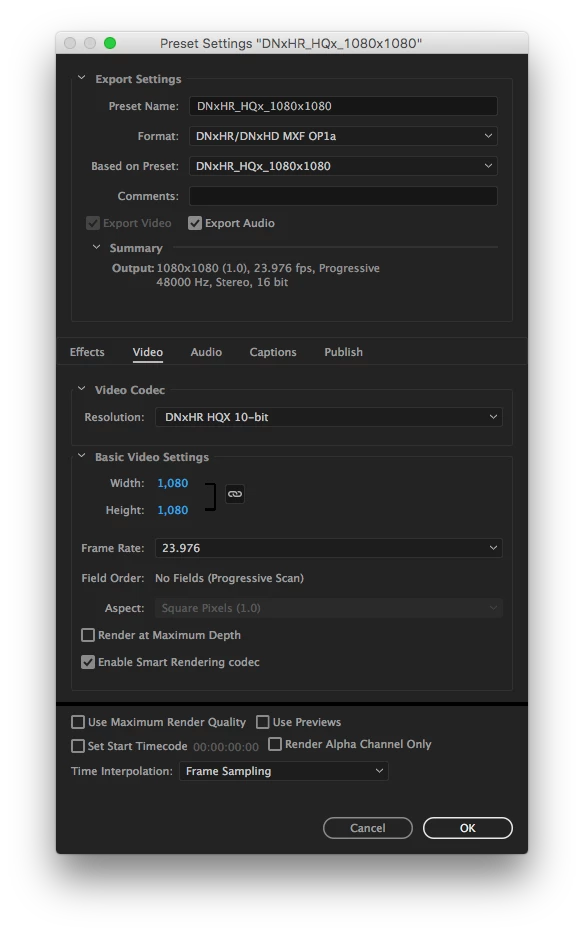

    here is a screen shot.  I can post the raw text output of the .epr file if you like.

    kulpreet singh
    kulpreet singh
    Inspiring
    July 27, 2017

    Thanks for sharing the screenshot, EvanS.

    I am able to reproduce this at my end (on my PC).

    The file seems to be square (1:1) when I am importing it into Premiere Pro.

    I need to further investigate if it is an issue with AME or something by design.

    I will keep you posted here. Thanks for your patience.

    -Kulpreet Singh
