Media Encoder converting audio to drop frame

Forum|Forum|7 years ago
October 30, 2018
3 replies
2452 views

Hello, I'm having an issue where AME is converting audio files to drop frame, which is throwing off my monitor when in the source window. For example, I cut in a 23.98 timeline, go to edit music that I converted into AME in the source window, and it changes my monitor playback to 29.97 or 59.94.

Is there a way to change this setting in AME? Seems like an odd default and hopefully there's an option to set to non-drop or at least native settings.

Thanks!

This topic has been closed for replies.

NYCTY7727943Author

Known Participant

I should be clear that I'm not having a sync issue. It's just that my IO box jumps when it sees the 29.97 drop frame audio timecode since I never edit in that. Just looking for a way to set it to my timeline timecode, usually 23.976, on transcode in AME.

However, the modify clip in Premiere should do the trick. Is there any way to set this as the default upon import?

Thanks again!

R

Rick Gerard

Community Expert

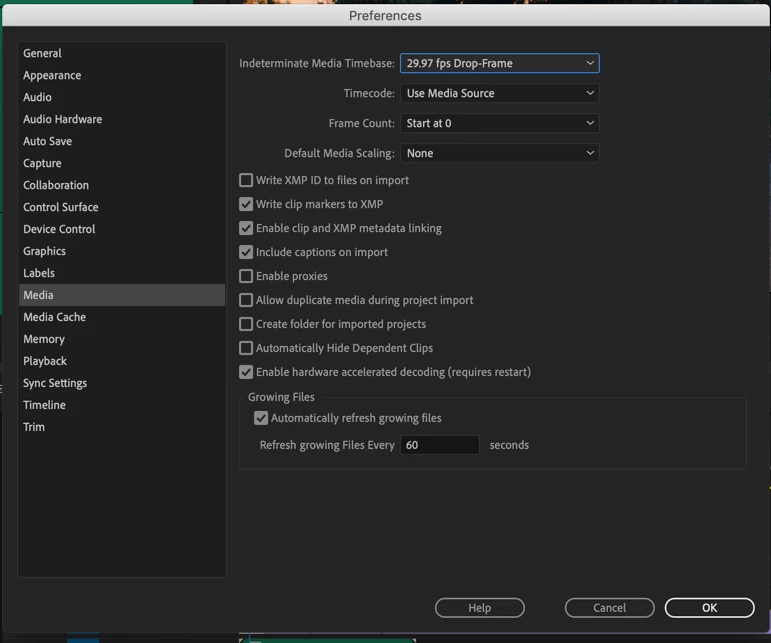

Preferences, where most options lie.

All of this info is available in the PPro help files under Preferences and under timecode. You'll find it in the Premiere Pro Help (F1) link in the User Guide.

Averdahl

Community Expert

Indeterminate Media Timebase is for still images only and will not affect audio. AFAIK, there is no similar setting for audio in the Preferences.

Averdahl

Community Expert

Audio can never have drop frame or non drop frame. One (1) second of audio is just that, one (1) second, no matter the frame rate of the video, if there are any video attached to the file that is.

Please provide more details on how to reproduce the issue.

NYCTY7727943Author

Known Participant

Thank you for the reply.

I'm simply taking an audio file, dragging it into AME, and adding the AIFF 48kHz preset. When I import it into Premiere, it displays drop frame time code in both the source window and media start/end/duration metadata display in the bin. This does not happen if I import a native AIFF or WAV.

No issue when I'm playing in the timeline, but if I match frame to the source window I get the mentioned playback issue. Tried it both AME and Premiere 2017 and 2018.

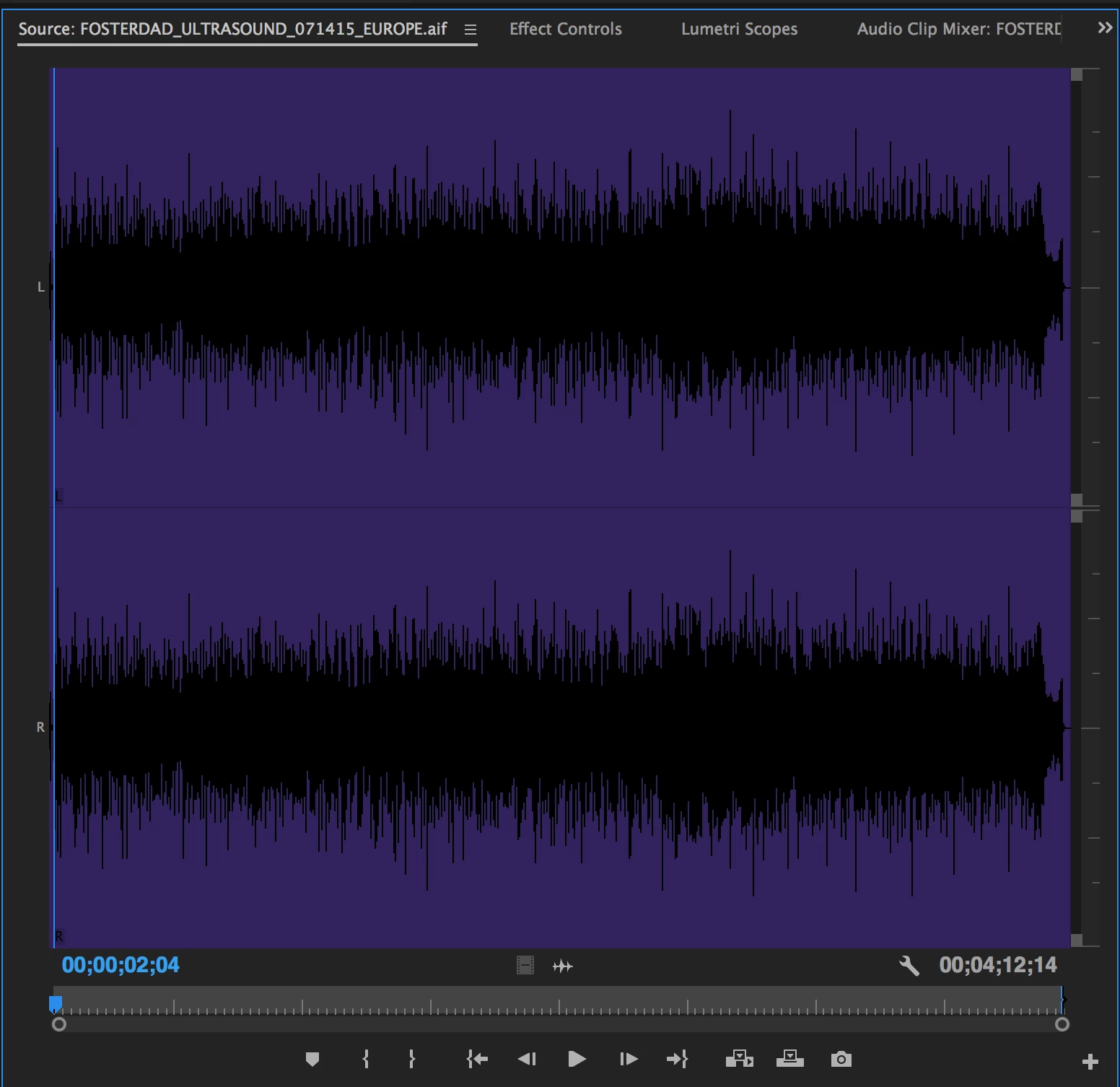

I've attached an image showing the drop frame timecode in the source window.

Averdahl

Community Expert

O.k, i tested it here and get the same result as you. This is very odd imo.

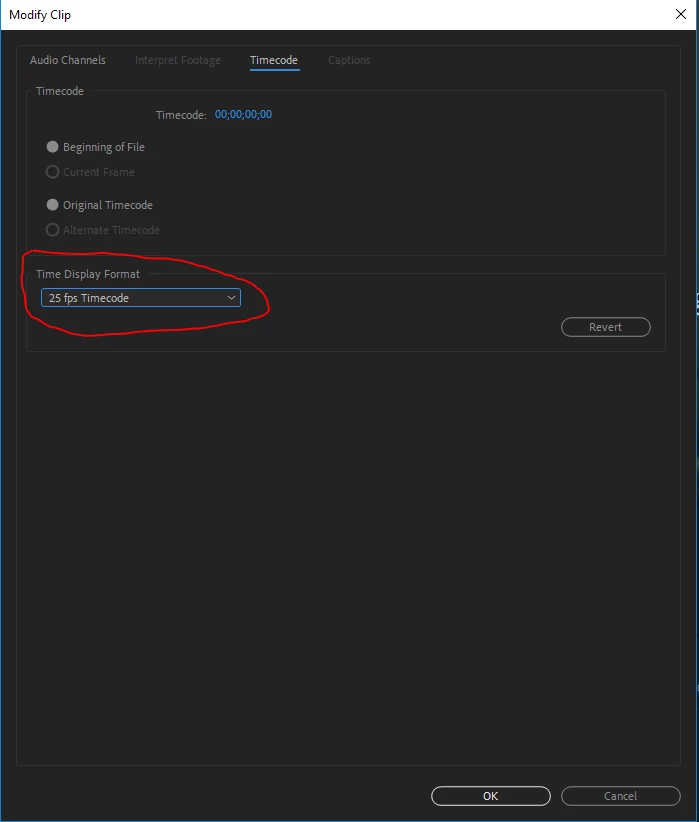

The solutions seems to be to right click on the audio file in the Project panel and choose Modify > Audio Channels and go to the Timecode tab and change the Time Display Format to the desired format.

NYCTY7727943Author

Known Participant

Nothing? Adobe, do you have any suggestions?

Thank you

R

Rick Gerard

Community Expert

I'm not sure I follow you. The time it takes a file to playback depends on the frame rate of that file. You can change the frame rate in interpretation.

A 29.97 fps clip in a 10 fps comp will play back in real time if the footage was originally 29.97 fps. Change the interpretation of the frame rate and the time it takes changes. Change the frame rate interpretation to 60 fps and one second of real or original time will take a half second to playback (rounding the decimal point) but if you change the interpreted frame rate to 15, one second of real time will take 2 seconds to playback.

Are you saying that the AME is changing the timing? You can set the frame rate for renders, and this will not change the timing. A comp that is 10 seconds long at 59.94 fps will be 10 seconds long if you change the frame rate to 29.97, or 15 or 10. You just won't get all of the frames, but the audio should not speed up or slow down because audio is encoded as samples, not frames.

I know of no AME audio encoding problems or bugs.
