Question

Sections of video become black and pixelated during export in Media Encoder

Forum|Forum|4 months ago
January 10, 2026
4 replies
426 views

Hi all,

I’m encountering an issue when exporting a video via Media Encoder, where certain sections of the exported video appear as a black, pixelated outline of the image.

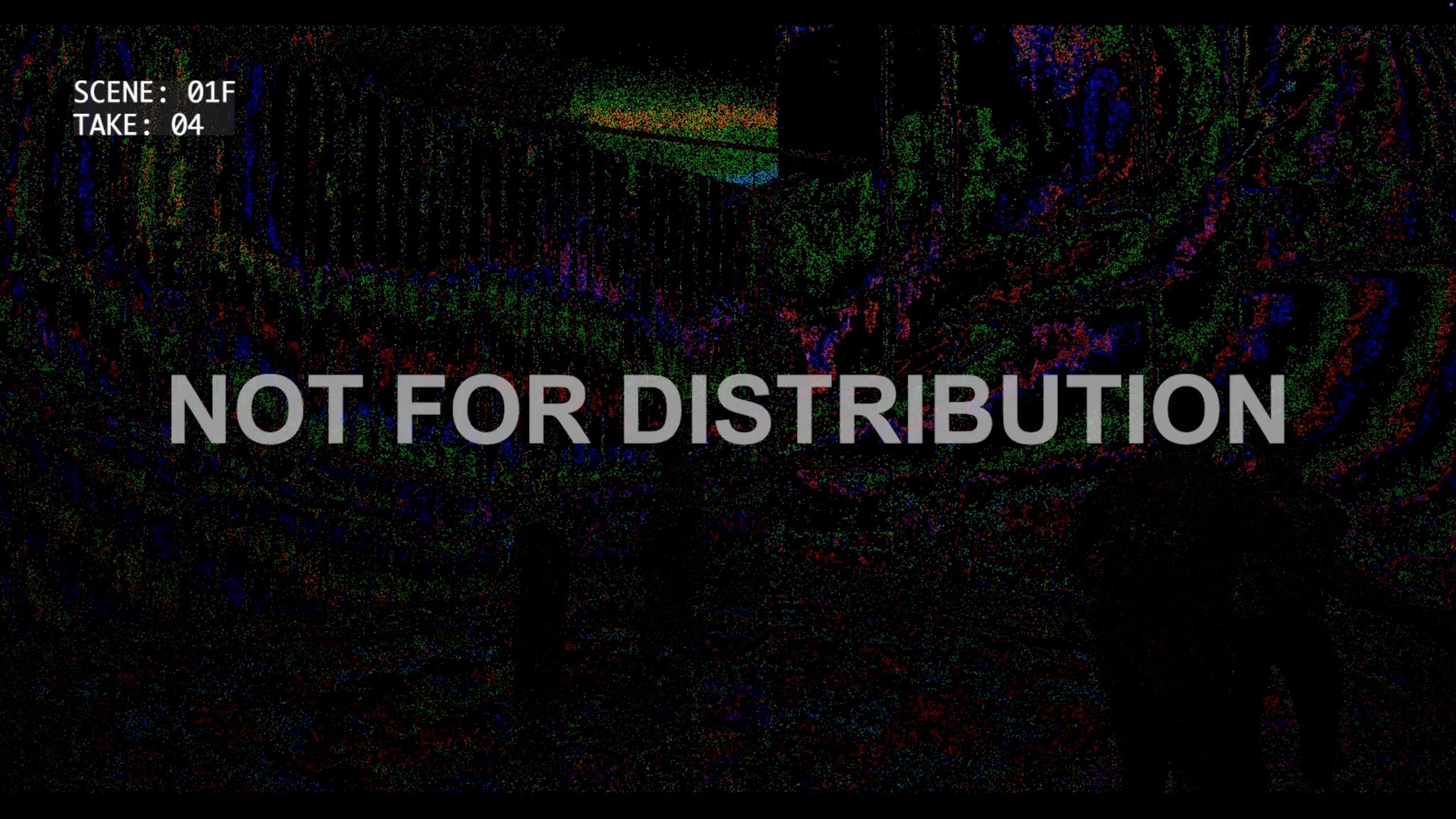

Please see the attached screenshots (Export Issue 01 and Export Issue 02) for reference. The issue is also visible during the render process in Media Encoder itself (screenshot attached).

I’ve completed three exports so far. Each export reproduced the issue, although the affected sections were not exactly the same each time.

I've only seen this problem occur during export in Media Encoder. The clips play correctly in the Premiere timeline and also appear fine when viewed in DaVinci Resolve and REDCINE-X.

Adobe app info

Adobe Premiere Pro: v25.6.3 (Build 2)
Media Encoder: v25.6 (Build 98)

Source media

6K RED RAW (R3D) files
Shot on RED Komodo 6K
Color space: REDWideGamut

System information

Apple Mac Studio (M4 Max)
Memory: 64 GB
macOS: Sequoia 15.7.3
Media Encoder and Premiere Pro apps are saved to the Mac HD

Storage setup

Three x 2TB Samsung T7 SSDs
- 1 drive: project files, cache, autosaves, previews
  2 drives: RAW media

Export settings

Format: HEVC
Resolution: 1080p
Preset: Custom (Render at Maximum Depth enabled)
Export destination: Macintosh HD → Desktop

Additional information and screenshots are attached. Please let me know if you need any further details.

Many thanks for any help, it is much appriciated.

Ben

Bug

S

Serene_mentors8196Author

UPDATE 3

The issue is now present in both HEVC and H.264 versions when exported from PP and ME.

EckiAME

Community Manager

Can you share the project? I can send you the instructions via private message in this forum.

S

Serene_mentors8196Author

UPDATE 2

With further testing, I initally found that with the removal of the text layers the issue did not occur when exporting with either HEVC or H.264 in both PP and ME.

With a computer restart, I have successfully managed to export a HEVC version in ME with active text layers without the issue presenting itself.

S

Serene_mentors8196Author

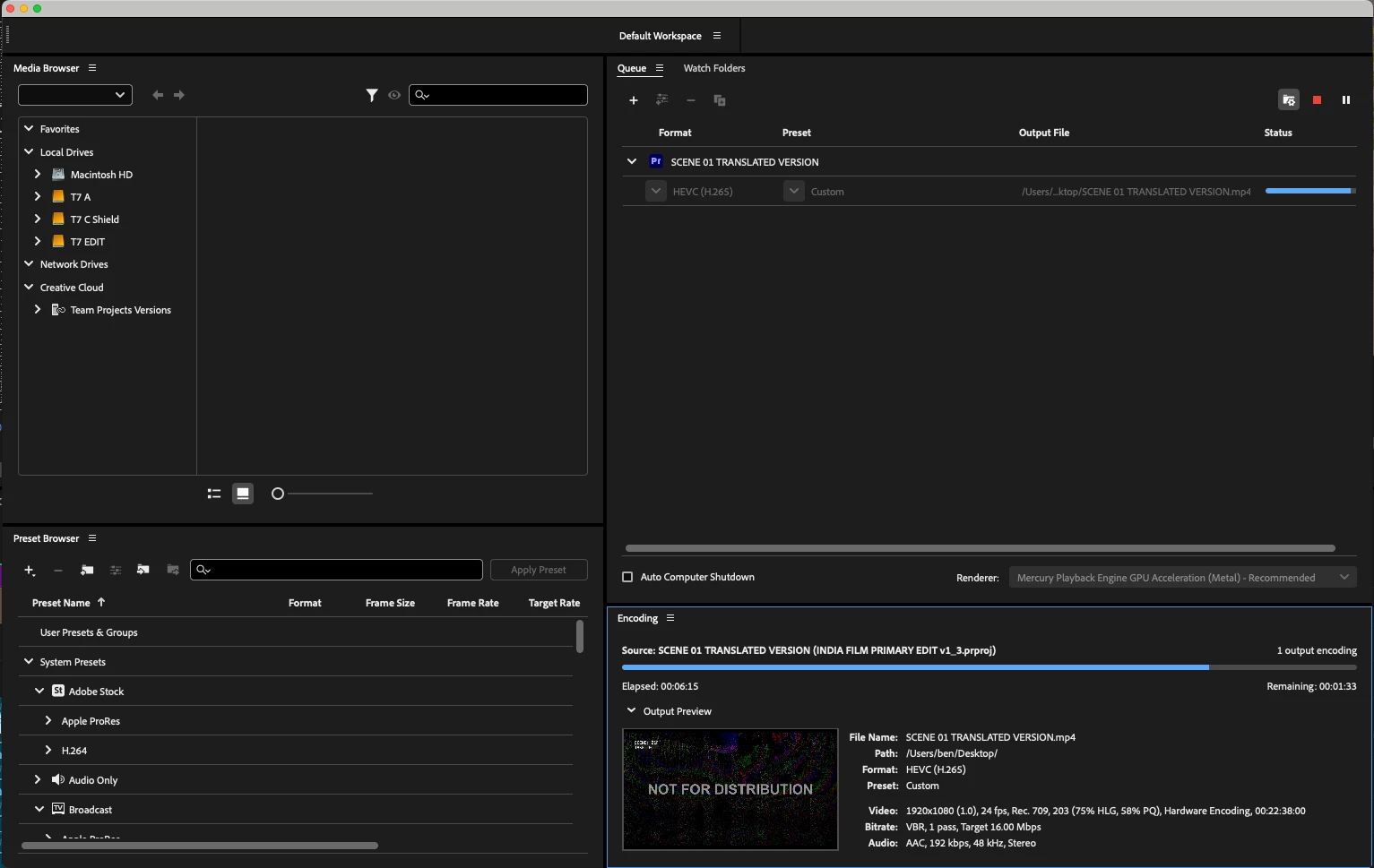

Media Encoder Issue during export render process.png

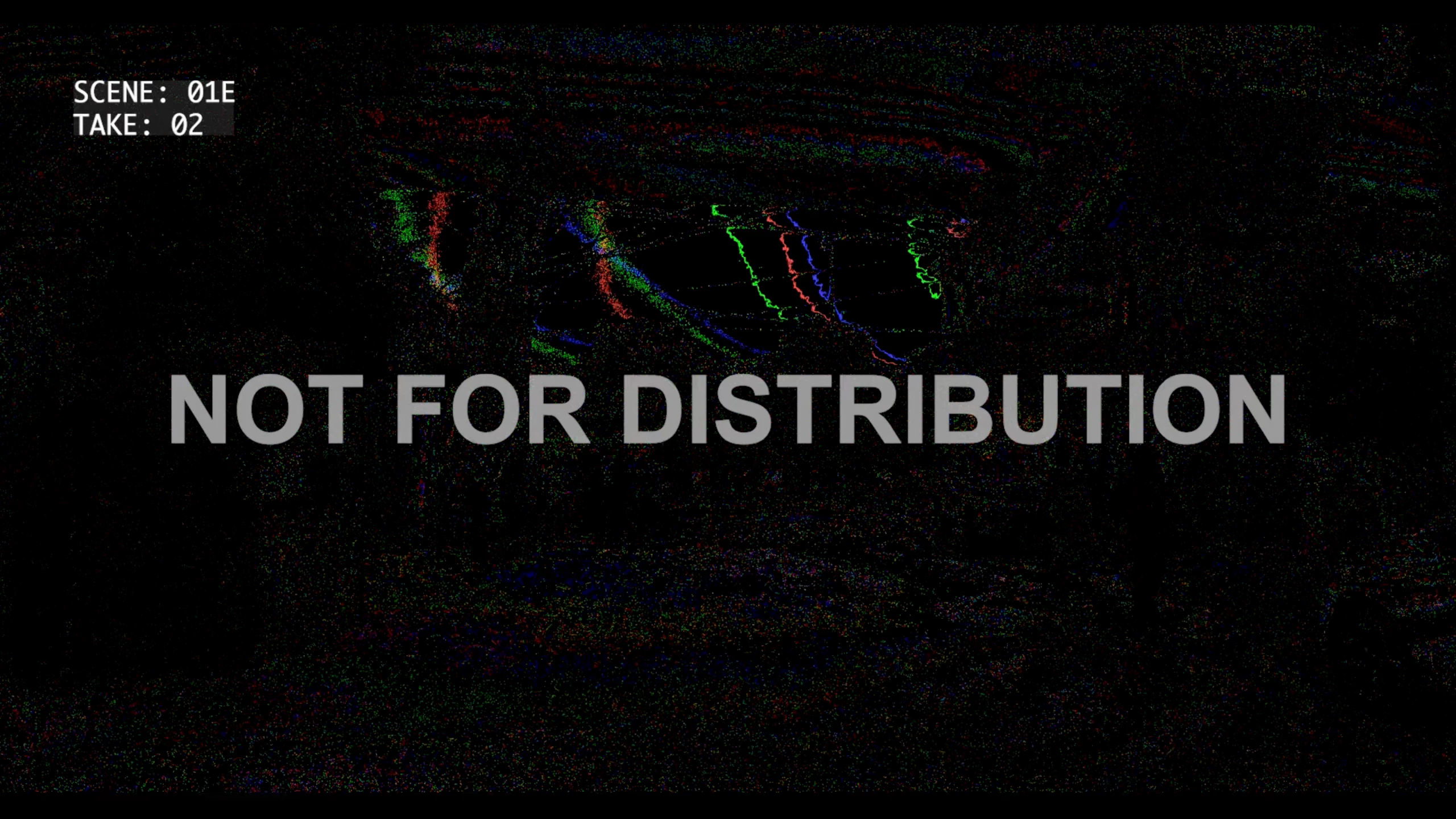

Export Issue 02.png

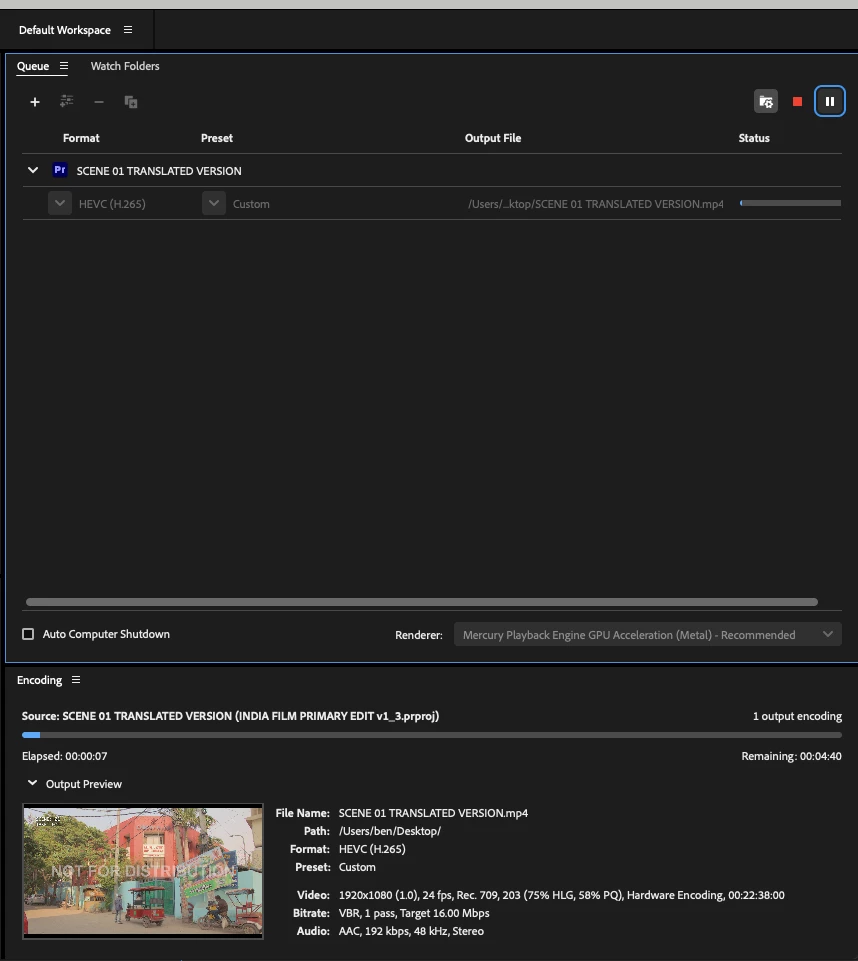

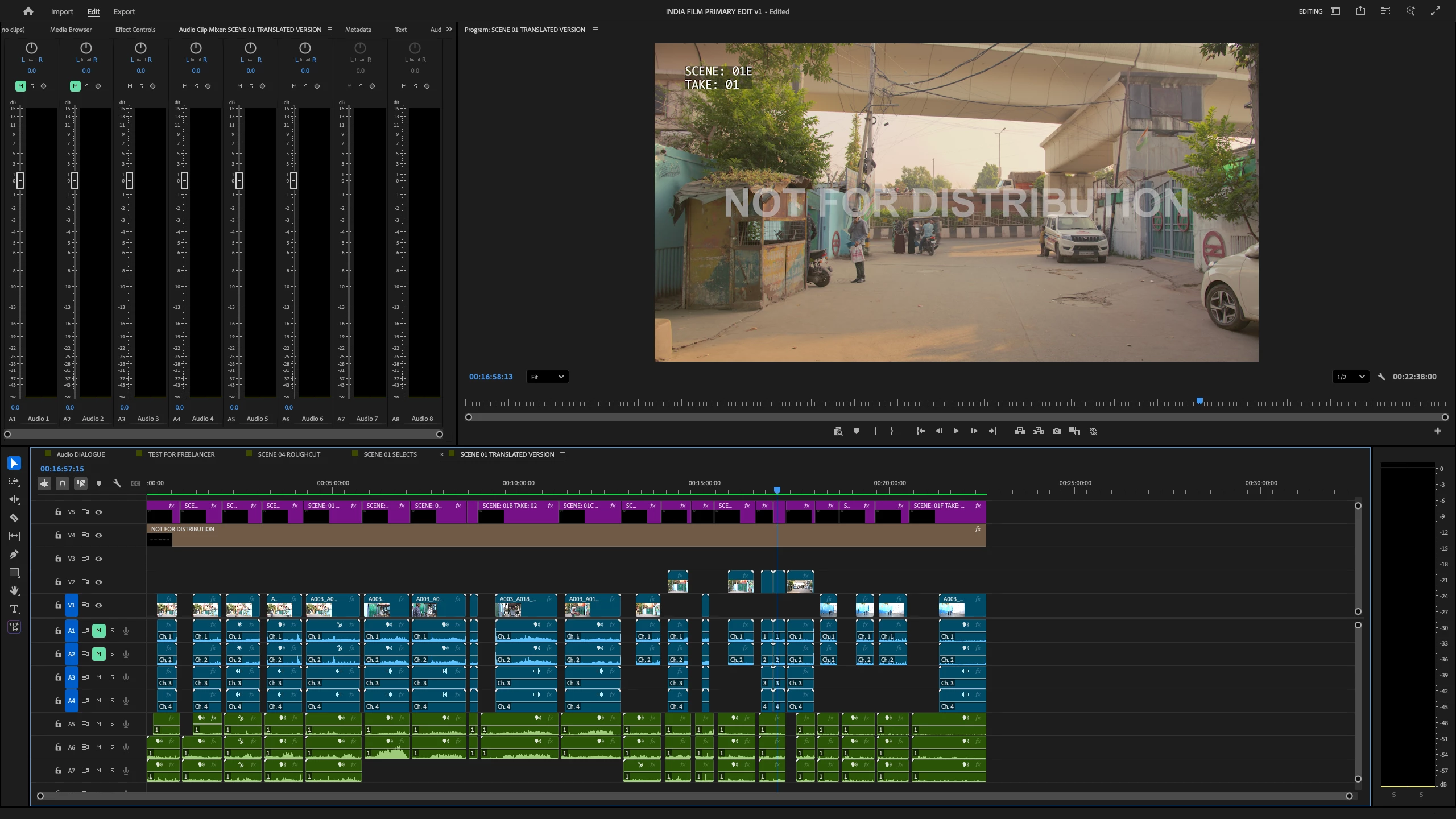

Timeline.pngMedia Encoder 1.png

Updating Media
