"Copy SVG Code" of the a shape and paste. it's rounding the corners of the shape in XD 42.1.

Please see the attached image.

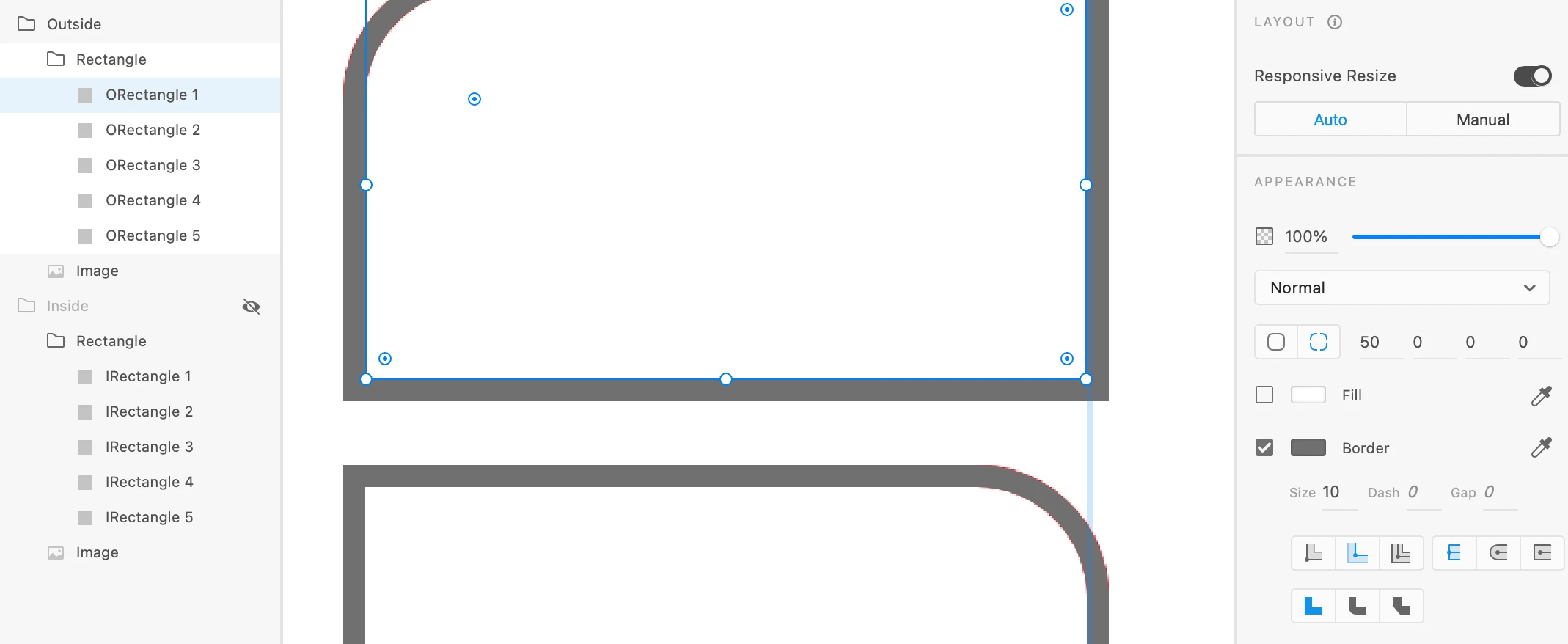

"ORectangle 1" has Border(Outer Stroke) with Size=10 and "Different radius for each corner".

I "Copy SVG Code" the object.

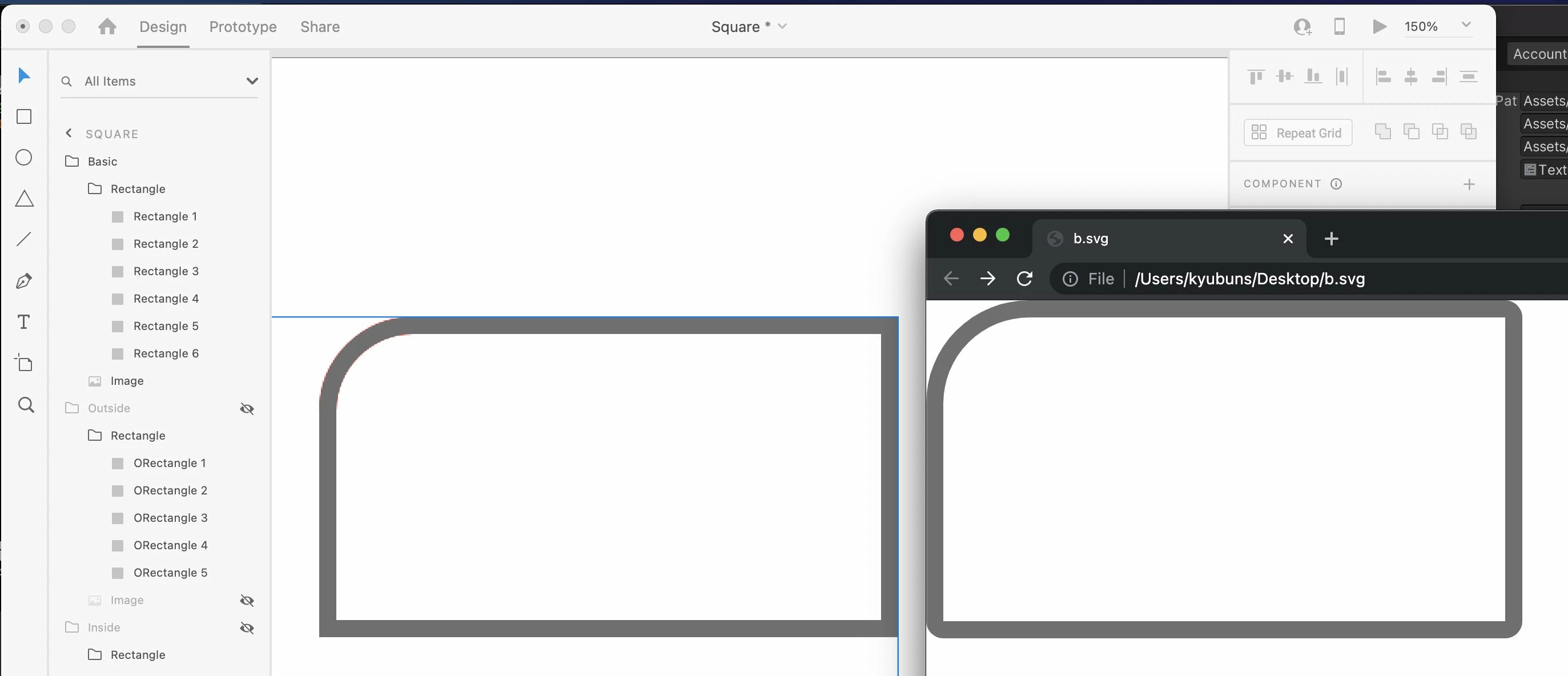

I preview the generated SVG, I will see that the corners with Radius=0 are also rounded.

This problem does not occur with "Center Stroke", but with "Outer Stroke".



macOS BigSur

Adobe XD Version: 42.1.22.4 x64

This topic is closed to new replies. Start a new post to keep the conversation going.
Harshika Verma
Harshika VermaCorrect answer
Community Manager
Aug 13, 2021 3:26 PM UTC

Thanks for sharing the steps. I was able to reproduce the issue at my end and logged a bug with the team for investigation.



I will keep you updated here.



Thanks,

Harshika



<Marking as correct only to highlight>

View reply

8 replies

Harshika Verma
Community Manager
Harshika VermaCommunity Manager
Community Manager
Aug 12, 2021 10:15 PM UTC

Hi there,



We are sorry for the delay in response and thanks for reporting the issue. We would like to know if it's happening with a specific SVG file or any of the SVG file. Have you tried it with any other SVG file? Have you copy pasted it in a new XD file and then check?



We will try our best to investigate the issue.



Thanks,

Harshika





Translate
kyubuns
kyubunsAuthor
Participant
Aug 13, 2021 2:28 AM UTC

Hi! Thanks for the reply.



> We would like to know if it's happening with a specific SVG file or any of the SVG file.

I'm sorry, I think I may have misunderstood something.



This is the only detailed procedure.

1. Create new xd file

2. Draw Rectangle

3. Set "Different radius for each corner" (100, 0, 0, 0)

4. "Copy SVG"

5. Open the svg

6. The rectangle has corners with Radius=0 are also rounded.



This is always reproduced.

The condition of occurrence is"Inner Stroke" or "Outer Stroke".

Translate
    Harshika Verma
    Community Manager
    Harshika VermaCommunity ManagerCorrect answer
    Community Manager
    Aug 13, 2021 3:26 PM UTC

    Thanks for sharing the steps. I was able to reproduce the issue at my end and logged a bug with the team for investigation.



    I will keep you updated here.



    Thanks,

    Harshika



    <Marking as correct only to highlight>
