Shapes loose their ability to adjust border radius

  • July 12, 2021
  • 2 replies
  • 691 views

Hi,

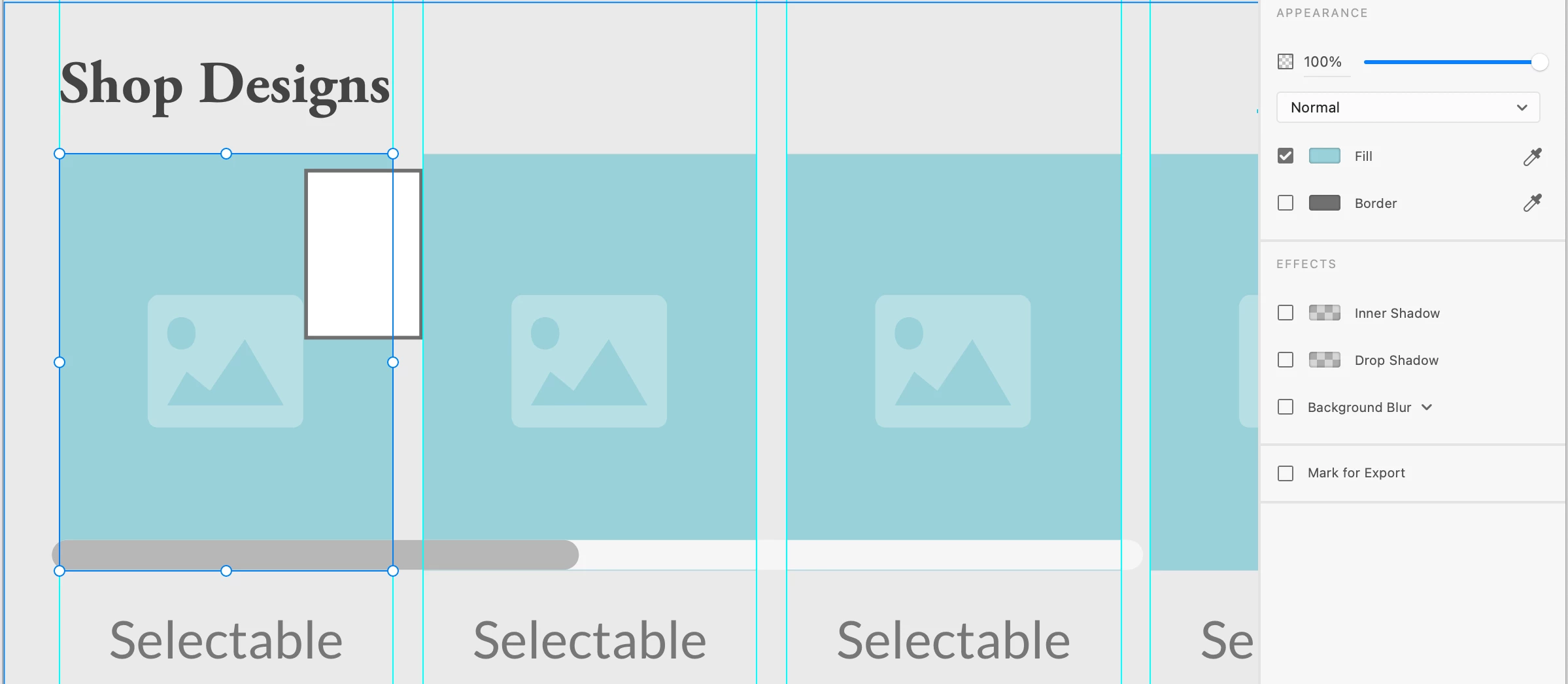

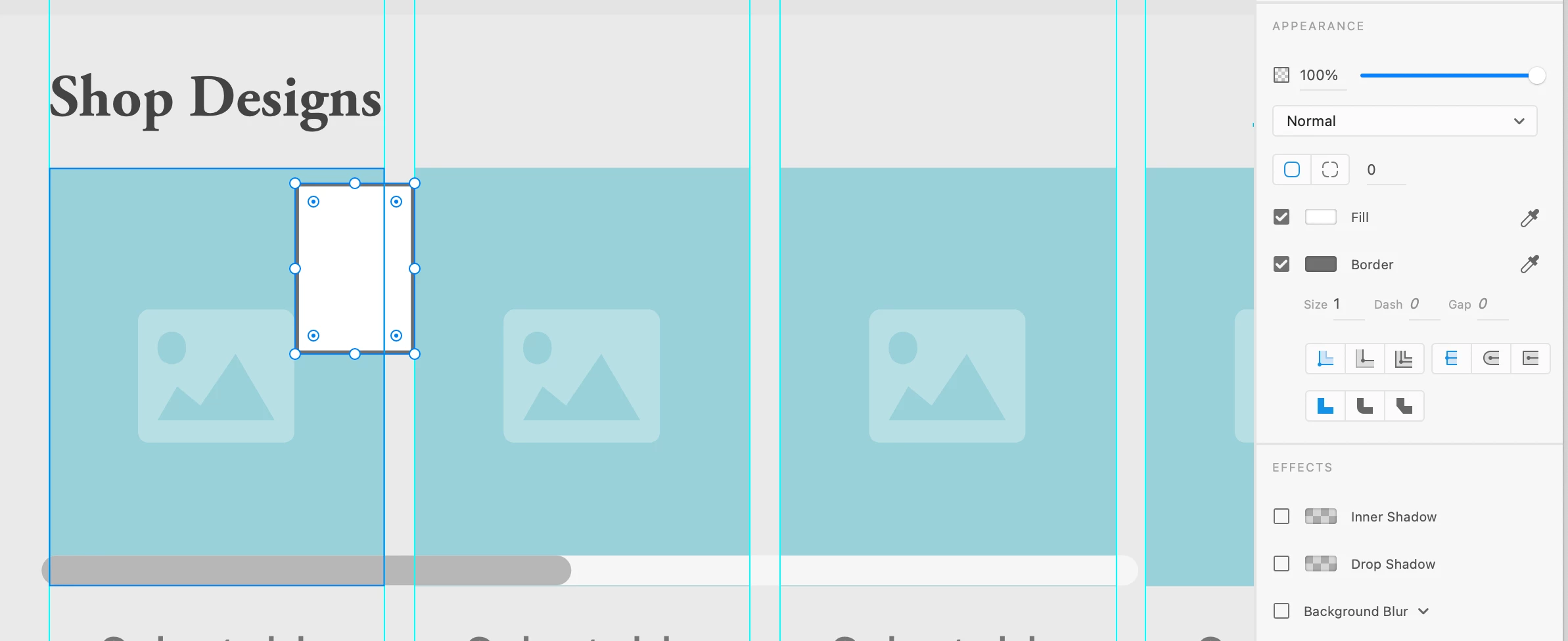

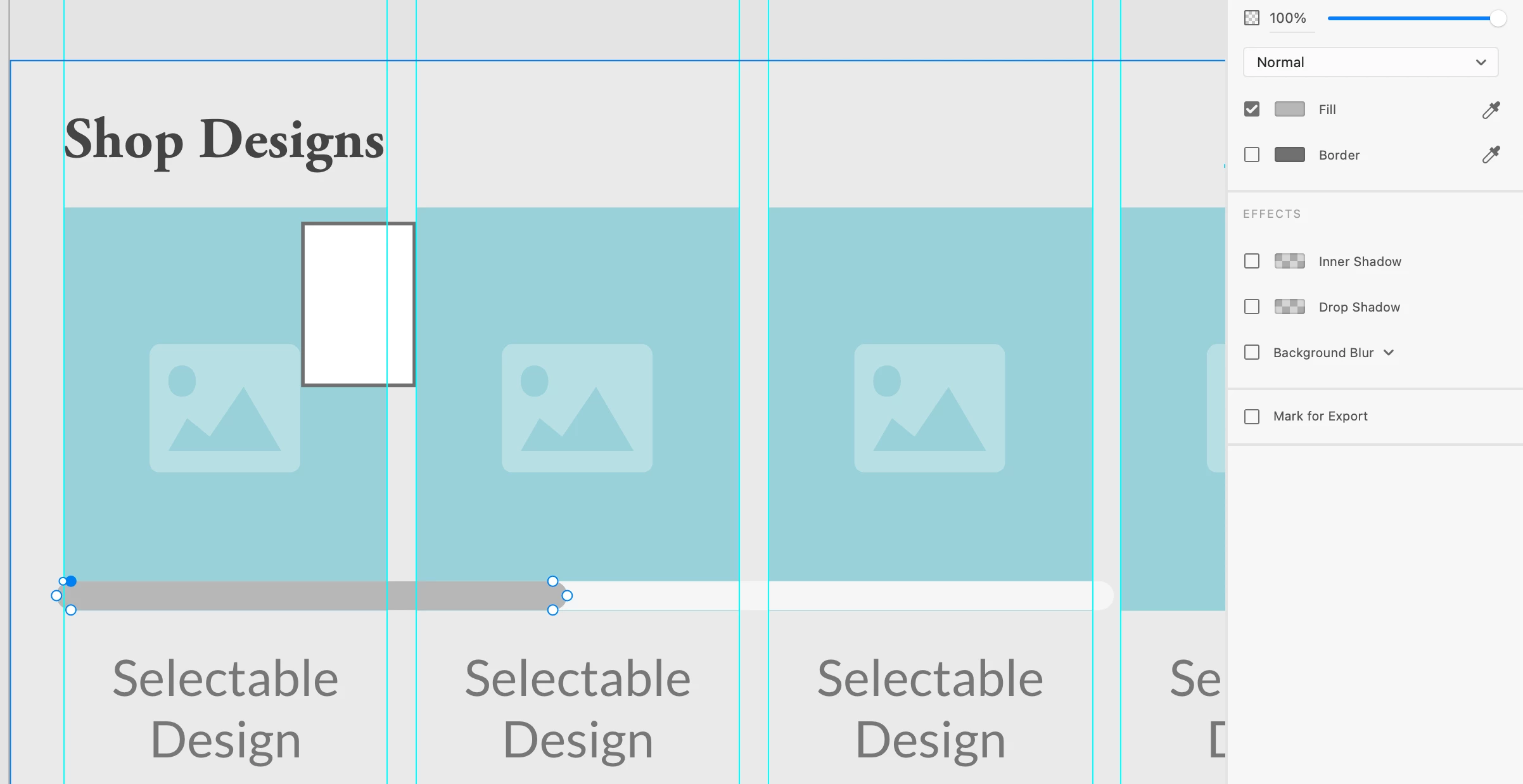

  On my  screenshots the small white rectangle is a freshly created shape, it has the ability to adjust coner/border radius. The background blue shapes I made previously and at some point they lost the option to change the border radius. Why? Can I redo this? I met this issue in the past 2 years several times and I still have no clue what causes it and it is really annoying as I constantly have to re-create shapes in my xd documents because of this. Also the bottom shape has lost it.
I am working on Mac OS

This topic has been closed for replies.

2 replies

Randy Edmunds 2
Adobe Employee
Randy Edmunds 2
Adobe Employee
July 23, 2021

It looks like your Rectangles got converted to Paths. The shortcut to convert a shape to a Path is by double-clicking on it, so I suspect that's what happened by accident. Unfortunately, there's no way to convert them back, so you'll have to delete and recreate them.



Hope this helps,

Randy



V
Viktoria5C7CAuthor
Participating Frequently
July 26, 2021

Hi,

Thank you, now that make sense, I will suggest a feature to undo this if someone hasn't done it already.
Building a wireframe should be as convenient as the UX that we are planning to design in it, but I found that xd's UX is lacking a lot of convenient features that would make the designer's work much faster and easier.

Now I know to pay attention to this glitch I had been doing in almost all of my files. Thank you!

Randy Edmunds 2
Adobe Employee
Randy Edmunds 2
Adobe Employee
July 26, 2021

If you notice a Rectangle being converted to a Path before any edits are made, you can press Esc or deselect shape, and it will automatically be converted back to a Rectangle.



"Convert Path to Rectangle" might be a useful Extension if any Extension Developers are looking for ideas for new Extensions.



Regards,

Randy

Rishabh_Tiwari
Rishabh_Tiwari
Legend
July 22, 2021

Hi there,



We're so sorry to hear about the trouble. We'll need to test this on our end, so will it be possible for you to share the file with us? If yes, please add the file to a shared location like Google Drive or DropBox and share the link with us through DM by clicking on my name. We'll also need the version of XD, we'll try our best to help you with this.



Regards

Rishabh
