Specific Hover Working On the Wrong Component

  • November 16, 2020
  • 2 replies
  • 497 views

As seen in the file attatched, I want the top bar to split into two states on when hovering over the profiles (4 circles on the left).

Since the only way I can make the top bar split is to make it part of the component group with the profiles, it is now activating the hover state when hovering over any part of the bar.

I tried to create a shape a layer above but its still activating the hover state even if its above the created shape.

    This topic has been closed for replies.
    Correct answer A5EB3

    So I figured out how to work around this (in case anyone has this issue in the future)
    To "fix" it, another component needs to be created on top of it but it needs to also have a hover state (the hover state doesn't have to be different than default; there just needs to be a hover state). This means that the original component won't be triggered if the mouse is on an area where that original component and the new invisible one is overlapping.
    I think that it would be much better to have a checkbox of a sort that would make it so that if the mouse is over that object (with the checkbox ticked) then the component beneath it with the hover trigger won't be activated. This would eliminate the need to make the object on top of it also a hover tiggered component for no reason other than to stop the component underneath it from being triggered.



    (maybe name it "Hard Component" or something similar)

    2 replies

    A
    A5EB3AuthorCorrect answer
    Participant
    November 20, 2020

    So I figured out how to work around this (in case anyone has this issue in the future)
    To "fix" it, another component needs to be created on top of it but it needs to also have a hover state (the hover state doesn't have to be different than default; there just needs to be a hover state). This means that the original component won't be triggered if the mouse is on an area where that original component and the new invisible one is overlapping.
    I think that it would be much better to have a checkbox of a sort that would make it so that if the mouse is over that object (with the checkbox ticked) then the component beneath it with the hover trigger won't be activated. This would eliminate the need to make the object on top of it also a hover tiggered component for no reason other than to stop the component underneath it from being triggered.



    (maybe name it "Hard Component" or something similar)

    A
    Community Manager
    Ansubedi03Community Manager
    Community Manager
    November 16, 2020

    Hi,

    It is somewhat confusing to understand what actually you want. If you don't want to activate the hover state, you need to change the hover triggering . Or you can change the state of behind component to other state,where no hover interaction is done. If this isn't helpful. Please ellaborate your need , so I can help in better way.



    Regards,

    Anita Subedi

    A
    A5EB3Author
    Participant
    November 16, 2020

    Sorry for the bad explnatian. I am trying to make it so that the top bar splitting is triggered only when hovering over the profile section (the 4 circles on the left) but currently it is triggered when hovering over any part of the top section.

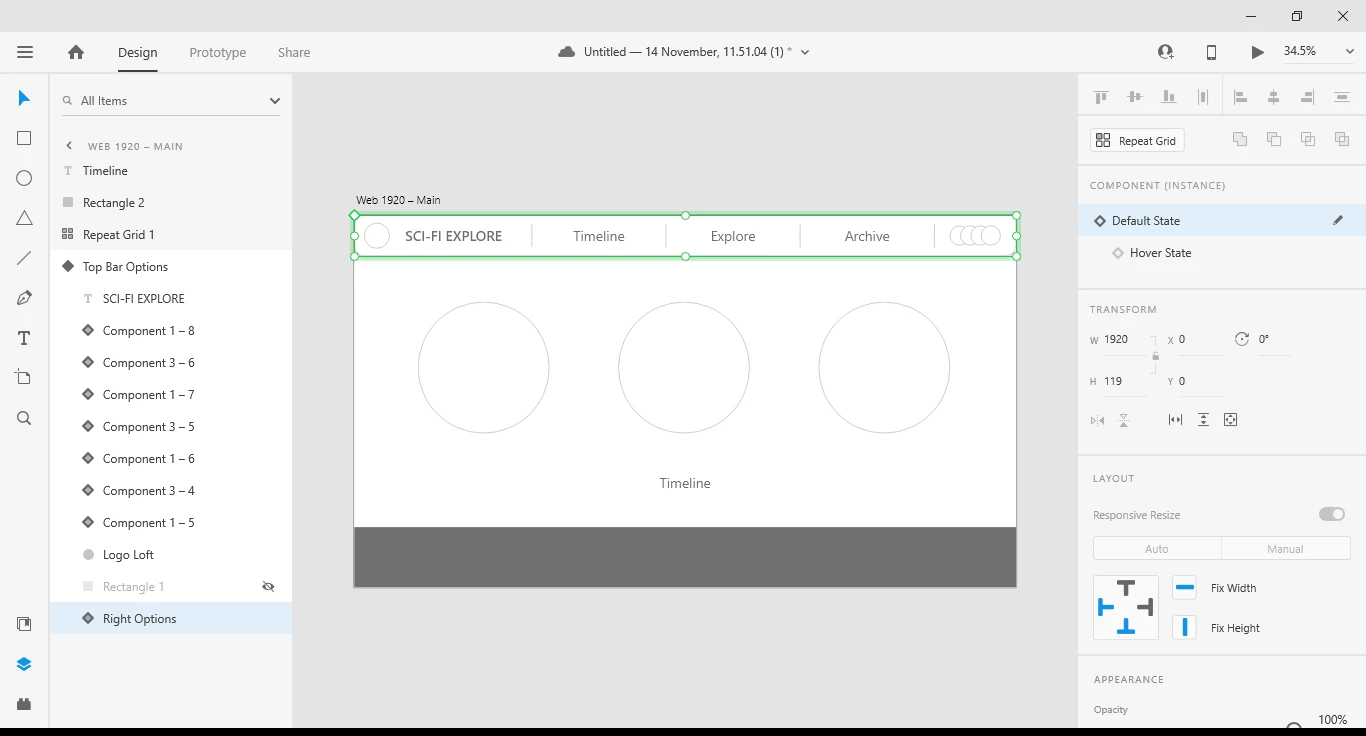

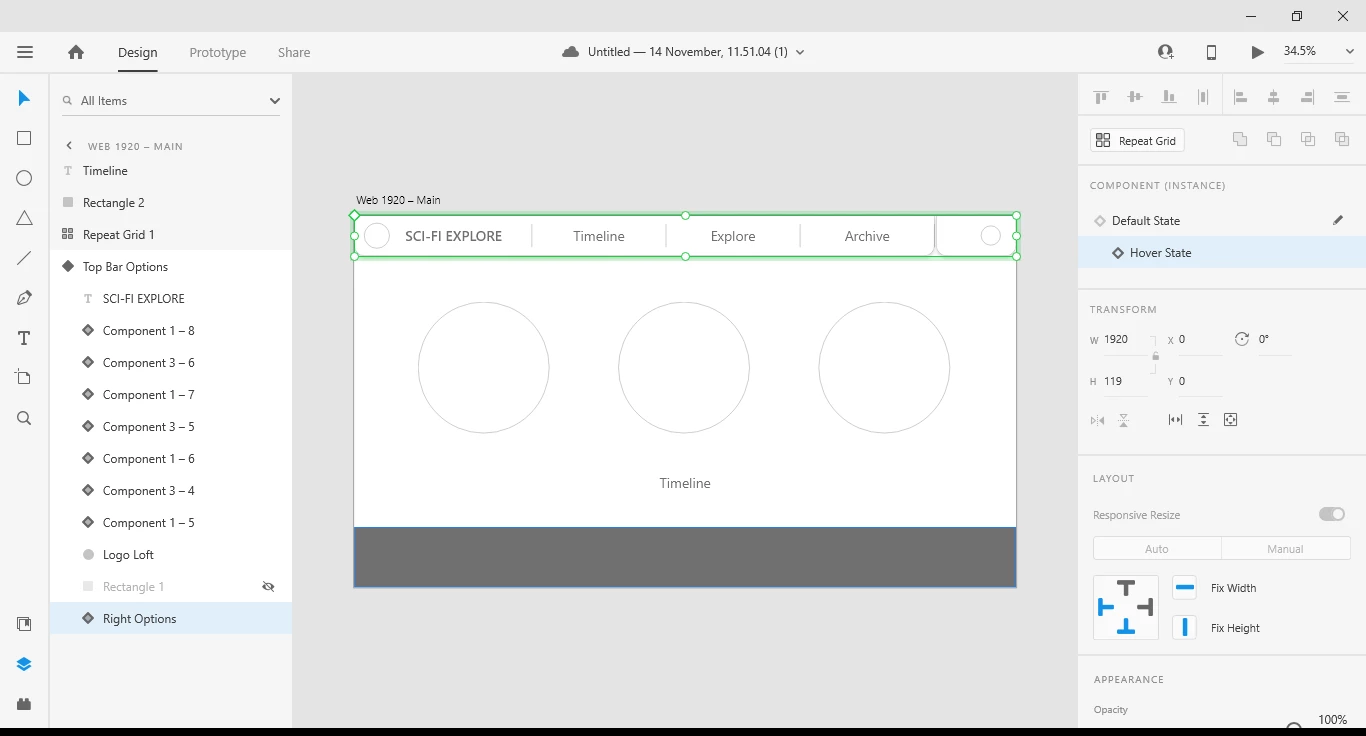

    Here are the layers if it helps:
