Multi-resolution issues with iPad Pro and iPhone 6 plus

I have successfully set up my project to recognize a device and load the appropriate sized assets. I have four resolutions (4 sizes): (4x) 1920 x 1280, (3x) 1440 x 960, (2x) 960 x 640, (1x) 480 x 320. The project launches the correct assets for each device but I have two issues when I test on an actual device. One is on the iPadPro and the other is on iPhone 6plus.

My development environment: Windows10, FlashDevelop, Starling 2.0.1, Air 21.0, iOS 9.3.4

1. Issue #1 - iPad Pro - There are two white bars that stretches the width of the device about 50 pixels high on the top and bottom. See image:

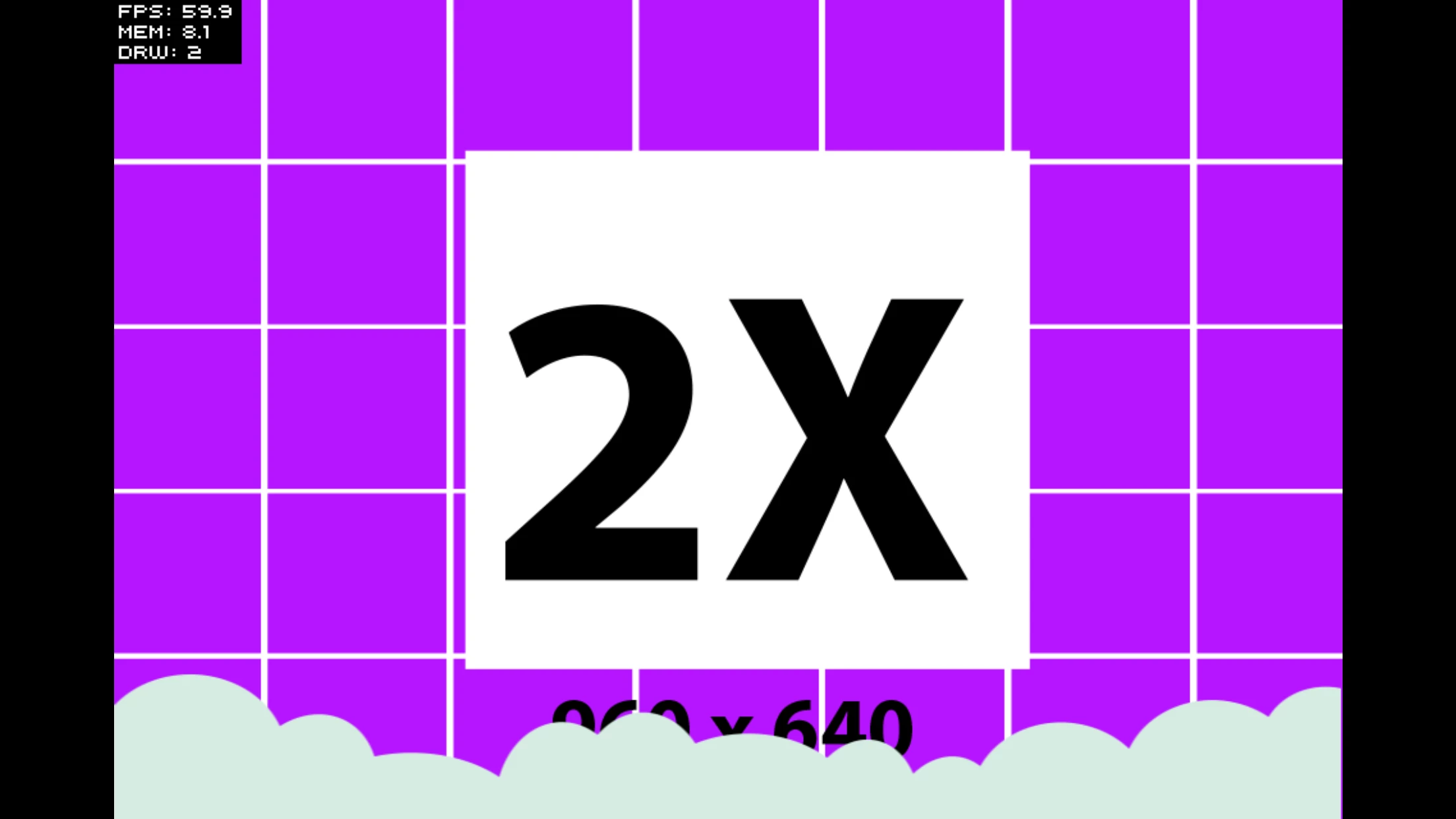

2. Issue #2 - iPhone 6Plus - There are black bars on each side of the project. See image below:

From my research and suggestions in Facebook groups I thought the issue may have been caused by the wrong launch images. I have the following launch images:

• Default-736h@3x.png
• Default-Portrait@2x.png
• Default-Portrait.png
• Default-LandscapeRight@2x.png
• Default-LandscapeLeft@2x~ipad.png
• Default-Landscape@2x~ipad.png
• Default-667h@2x.png
• Default-414w-736h-Landscape@3x.png
• Default-414w-736h@3x.png
• Default-LandscapeRight~ipad.png
• Default-LandscapeRight@2x~ipad.png
• Default-LandscapeRight.png
• Default-LandscapeLeft@2x.png
• Default-Landscape-414w-736h@3x~iphone.png
• Default-Landscape.png
• Default-568h@2x.png
• Default@2x.png
• Default.png
• Default-Portrait-1366@2x.png
• Default-Landscape-1366@2x.png

Questions:

1. How can I fix this?
2. Is there a problem putting some many  launch images?

Here is my code:

Main.as

package

{

     import flash.desktop.NativeApplication;

    import flash.display.Sprite;

    import flash.display.StageAlign;

    import flash.display.StageScaleMode;

    import flash.events.Event;

    import flash.geom.Rectangle;

    import starling.core.Starling;

    import starling.utils.RectangleUtil;

    import starling.utils.ScaleMode;

    //import com.demonsters.debugger.MonsterDebugger;

    [SWF (frameRate = "60" , backgroundColor = "#ff4434")]

    public class Main extends Sprite

    {

        private static const STAGE_WIDTH:int = 480;

        private static const STAGE_HEIGHT:int = 320;

        private var _starling:Starling;

        public function Main()

        {

        // Tell Flash not to scale, that will be done by Starling instead

            stage.scaleMode = StageScaleMode.NO_SCALE;

            stage.align = StageAlign.TOP_LEFT;

            // Trigger an event handler when application looses focus (see note in handler).

            stage.addEventListener(Event.DEACTIVATE, deactivate);

            setupStarling();

        }

         private function setupStarling():void {

            // Get the preferred stage size based on our smallest target resolution

            var stageArea:Rectangle = new Rectangle(0, 0, STAGE_WIDTH, STAGE_HEIGHT);

            // Get the fullscreen size available

            var fullscreenArea:Rectangle = new Rectangle(0, 0, stage.fullScreenWidth, stage.fullScreenHeight);

            // Fit the stage to the full screen. ScaleMode.SHOW_ALL ensures that everything will be visible (not croping will occur).

            var viewport:Rectangle = RectangleUtil.fit(stageArea, fullscreenArea, ScaleMode.SHOW_ALL);

            // Create a new instance and pass our class, the stage and the wished viewport

            _starling = new Starling(Test, stage, viewport);

            // Show debug stats

            _starling.showStats = true;

            // Define level of antialiasing,

            _starling.antiAliasing = 1;

            // Set to our preferred stage size

            _starling.stage.stageWidth = STAGE_WIDTH;

            _starling.stage.stageHeight = STAGE_HEIGHT;

            _starling.start();

        }

        private function deactivate(e:Event):void {

            // Auto-close the application when it looses focus. This is what you want

            // to do if you don't want that your application continues to run in the

            // background if the user switch program, answer a call or anything else

            // that would cause your application to lose focus.

            //

            // If you want to keep it running you should at least pause it until the

            // user returns. That's achieved by calling _starling.stop(). You should

            // also add an event listener for the Event.ACTIVATE event that will

            // trigger _starling.start() once the application get's focus again.

            //

            NativeApplication.nativeApplication.exit();

        }

    //************************ END OF CLASS *****************************

    }

//************************ END OF PACKAGE *****************************

}

Test.as

package

{

    //Use this to test

    import flash.filesystem.File;

    import starling.core.Starling;

    import starling.display.Image;

    import starling.display.Sprite;

    import starling.events.Event;

    import starling.textures.Texture;

    import starling.utils.AssetManager;

    import starling.utils.StringUtil;

    //This is the splash screen

    public class Test extends Sprite

    {

        private var scaleFactor:int = Math.round(Starling.contentScaleFactor);

        private var appDir:File = File.applicationDirectory;

        private var assets:AssetManager = new AssetManager(scaleFactor);

        private var purpleBackground:Image;

        private var bubble:Image;

        //Contructor

        public function Test()

        {

            this.addEventListener(Event.ADDED_TO_STAGE, onAddedToStage);

        }

        private function onAddedToStage(e:Event):void

        {

            removeEventListener(Event.ADDED_TO_STAGE, onAddedToStage);

            trace("Test screen Initialized");

        trace ("--------------------------------------");

        trace ("(int)scaleFactor is: " + scaleFactor);

        trace ("Starling Stage Width is: " + Starling.current.stage.stageWidth);

        trace ("Starling Stage Height is: " + Starling.current.stage.stageHeight);

        trace (" ");

        trace ("Starling Content Scale Factor is: " + Starling.contentScaleFactor);

        trace ("Starling Native Stage Width is: " + Starling.current.nativeStage.stageWidth);

        trace ("Starling Native Stage Height is: " + Starling.current.nativeStage.stageHeight);

        trace ("--------------------------------------");

            assets.enqueue(

            //appDir.resolvePath("audio"),

            appDir.resolvePath(StringUtil.format("assets/{0}x",    scaleFactor))

            );

            assets.loadQueue(function(ratio:Number):void

            {

                trace("Loading assets, progress:", ratio);

                // -> When the ratio equals '1', we are finished.

                if (ratio == 1.0)

                    drawSplashScreen();

            });

        }

        //Creates the first splash scene with Starling movie clips coming from the sprite sheet.

        private function drawSplashScreen():void

        {

            //Purple background

            var texture:Texture = assets.getTexture("backgroundPurple");

            purpleBackground = new Image(texture);

            this.addChild(purpleBackground);

            var textureBubble:Texture = assets.getTexture("bubble");

            bubble = new Image(textureBubble);

            bubble.pivotX = bubble.width / 2;

            bubble.pivotY = bubble.height;

            bubble.x = stage.stageWidth / 2;

            bubble.y = stage.stageHeight +10;

            this.addChild(bubble);

        }

        //************************ END OF CLASS *****************************

    }

    //************************ END OF PACKAGE *****************************

}

XML file

<?xml version="1.0" encoding="utf-8"?>

<application xmlns="http://ns.adobe.com/air/application/21.0">

  <id>com.test.testproject</id>

  <versionNumber>1.0</versionNumber>

  <supportedProfiles>mobileDevice</supportedProfiles>

  <filename>TestProject</filename>

  <name>

   <text xml:lang="en">TestProject</text>

  </name>

  <copyright>Me</copyright>

  <android>

   <manifestAdditions><![CDATA[<manifest android:installLocation="auto">

<uses-sdk android:minSdkVersion="8" />

<uses-permission android:name="android.permission.INTERNET" />

<uses-feature android:required="true" android:name="android.hardware.touchscreen.multitouch" />

</manifest>]]></manifestAdditions>

  </android>

  <iPhone>

   <InfoAdditions><![CDATA[<key>UIStatusBarStyle</key>

<string>UIStatusBarStyleBlackOpaque</string>

<key>UIRequiresPersistentWiFi</key>

<string>NO</string>

<key>UIApplicationExitsOnSuspend</key>

<true />

<key>UIDeviceFamily</key>

<array>

<string>1</string>

<string>2</string>

</array>]]></InfoAdditions>

   <requestedDisplayResolution>high</requestedDisplayResolution>

  </iPhone>

  <initialWindow>

   <title>TestProject</title>

   <content>TestProject.swf</content>

   <visible>true</visible>

   <fullScreen>true</fullScreen>

   <autoOrients>true</autoOrients>

   <aspectRatio>landscape</aspectRatio>

   <renderMode>direct</renderMode>

   <!--<depthAndStencil>true</depthAndStencil>-->

   <!-- required for 3D -->

   <systemChrome>standard</systemChrome>

   <requestedDisplayResolution>high</requestedDisplayResolution>

  </initialWindow>

  <icon>

   <image29x29>icons/29.png</image29x29>

   <image57x57>icons/57.png</image57x57>

   <image114x114>icons/114.png</image114x114>

   <image512x512>icons/512.png</image512x512>

   <image48x48>icons/48.png</image48x48>

   <image72x72>icons/72.png</image72x72>

   <image50x50>icons/50.png</image50x50>

   <image58x58>icons/58.png</image58x58>

   <image100x100>icons/100.png</image100x100>

   <image144x144>icons/144.png</image144x144>

   <image1024x1024>icons/1024.png</image1024x1024>

   <image76x76>icons/76.png</image76x76>

   <image80x80>icons/80.png</image80x80>

   <image120x120>icons/120.png</image120x120>

   <image152x152>icons/152.png</image152x152>

   <image40x40>icons/40.png</image40x40>

   <image180x180>icons/180.png</image180x180>

   <image60x60>icons/60.png</image60x60>

   <image75x75>icons/75.png</image75x75>

   <image87x87>icons/87.png</image87x87>

   <image167x167>icons/167.png</image167x167>

  </icon>

  <!--

AIR options:

<a href="http://livedocs.adobe.com/flex/3/html/File_formats_1.html#1043413" rel="nofollow">http://livedocs.adobe.com/flex/3/html/File_formats_1.html#1043413</a>

AIR mobile options:

<a href="http://help.adobe.com/en_US/air/build/WSfffb011ac560372f-5d0f4f25128cc9cd0cb-7ffe.html" rel="nofollow">http://help.adobe.com/en_US/air/build/WSfffb011ac560372f-5d0f4f25128cc9cd0cb-7ffe.html</a>

iOS icons guidelines:

<a href="http://developer.apple.com/library/ios/#documentation/userexperience/conceptual/mobilehig/IconsImages/IconsImages.html" rel="nofollow">http://developer.apple.com/library/ios/#documentation/userexperience/conceptual/mobilehig/IconsImages/IconsImages.html</a>

Android manifest documentation:

<a href="http://developer.android.com/guide/topics/manifest/manifest-intro.html" rel="nofollow">http://developer.android.com/guide/topics/manifest/manifest-intro.html</a>

-->

  <supportedLanguages>en</supportedLanguages>

  <description>

   <text xml:lang="en">

   </text>

  </description>

</application>
