No longer able to submit app to iTunes.

  • September 25, 2014
  • 56 replies
  • 89231 views

Today I am trying to submit a new version of an app to iTunes with the application loader but keeps coming up with the following error. The app was submitting fine last Friday. Any help or fixes will be much appreciated.

Package Summary:

1 package(s) were not uploaded because they had problems:

  /var/folders/cc/4b5fjzqn0_n34cll1wzkbk49jhjcnt/T/404743731.itmsp - Error Messages:

  ERROR ITMS-9000: "Invalid Segment Alignment. This app does not have proper segment alignment and should be rebuilt with the latest version of Xcode. Please contact Developer Technical Support if you need further assistance."

This topic has been closed for replies.
Correct answer Pahup

It seems there have been changes in way Apple expects the apps to created. We investigated this deeper, and found that the output of our linker (in our toolchain) is no longer being accepted by Apple.

We are working on this to upgrade our toolchain, including the linker. For the time being,  we would suggest you to try using the ‘linker’ available on the system. We have done tests with a couple of apps and it seems to be fixing the problem. Please give it a try and see if it can unblock you. Please note that this workaround is applicable only for Mac platform.

Steps to make use of system linker -

cd <sdk>/lib/aot/bin/ld64

mv ld64 ld64_orig

ln –s /usr/bin/ld ld64

<Build the IPA now using Flash Pro, Flash Builder or on command line>

Before the submission, we recommend to test the application functionality as well. Please keep us posted with more information in this regard. It will help us fix our toolchain sooner and in a better way.

56 replies

Known Participant
October 9, 2014

hello

i don't know what you mean by "what kind of swc", it's just in simple file grouping a few of personnal functions. exported from flash, without targeting anything special. was working good previsously

and yes i also tried to package with -useLegacyAOT yes', same result (with an additionnal warning)

Pahup
Adobe Employee
Adobe Employee
October 9, 2014

Hello Everyone,

This particular thread was initiated for segment alignment issue which is now resolved. Hence, to avoid digressions from the topic, and to keep the thread useful for other users, we're locking down the thread. We request you to create new posts for any issues you're facing, it'll help everyone track the issues better.

Thanks

-Pahup

Adobe AIR

Known Participant
October 9, 2014

hello

i need help too: i've updated everything with latest air sdk (302)

windows 8, flashbuilder 4.7, flex 4.13 and air 15.302

i still have the error "bundle not working with minimum OS version"

i tried no settings for the OS, i tried 6.0, 6.1, 7.0 etc...my app is still rejected while working perfectly deployed ad hoc

any clue ?

thank you for your help

SirRookie
Inspiring
October 9, 2014

Did you insert the key in the Descriptorfile ?

<InfoAdditions><![CDATA[

  <key>UIDeviceFamily</key>

  <array>

    <string>2</string>

  </array>

<key>MinimumOSVersion</key><string>6.0</string>

]]></InfoAdditions>

kollehel
Participating Frequently
October 9, 2014

Thank you, this was the solution

So, I had to compile it using Flash Pro CC 2014, with the "enable faster packaging" unchecked, and had to add the <key>MinimumOSVersion</key><string>6.1</string> to the app descriptor file, and finally was able to upload the binary.

Thank you guys!

Participant
October 8, 2014

Posting this to help anyone who may be having similar issue with compile after upgrading to AIR 15, especially if you have 3rd part ANE extensions:

We were getting a compiler abc execution error on 3 different machines (both windows and mac) and could not compile with version 15.  After a bit of research, I was able to locate some past issues where swc files included in a project could cause this problem. Our project has 2 swc files, 1 for some sound effects, the other are just a few legacy visual assets that will soon be replaced.  Both of these had been compiled to player version 11.4.

After updating Flash Pro to utilize AIR 15 and recompile, everything worked great.

Here are the steps I took to fix this issue:

Update SWCs compiled from Flash Pro CC

1 - Download the 15.0.0.302 sdk and compiler for AIR

2 - Unzip the package onto your hard drive

3 - Locate your Flash Pro CC application folder.  You should see folders for other AIR sdks (I have AIR 13, and AIR 14)

4 - Create an AIR 15 folder on the same level as the other sdk folders.

5 - Copy contents from unzipped AIR SDK into the AIR 15 folder you created.

6 - Open Flash Pro CC and go to Help --> Manage AIR SDK...

7 - In the SDK window, selet the + and navigate to the new AIR SDK 15 folder.

8 - Accept location and close.  You will now see AIR 15 in the AIR SDK list panel.

9 - Open your fla source files, and click publish settings.

10 - There are new options for targeting output.  Use AIR 15.x.x for iOS as the target.

11 - Check the SWC button on the left and Publish.

Something to note:  Our swc that had visual assets in it required a cert and provisioning file. Use the same one you are using for your Flashbuilder project. The other swc just contained some small mp3 sound effects and it did not ask for cert or provisioning file.  So even though you are compiling a SWC, you need to choose AIR SDK x.x.x for iOS for release compile to work in your main project compiler (In our case, Flashbuilder 4.7).

Below is the stack dump, notice the last bit about 'Compilation failed while executing : compile-abc':

Program arguments: /Applications/Adobe Flash Builder 4.7/eclipse/plugins/com.adobe.flash.compiler_4.7.0.349722/AIRSDK/lib/aot/bin/compile-abc/compile-abc -mtriple=armv7-apple-ios -filetype=obj -sdk /Applications/Adobe Flash Builder 4.7/eclipse/plugins/com.adobe.flash.compiler_4.7.0.349722/AIRSDK/lib/aot/lib/avmglue.abc -fields /Applications/Adobe Flash Builder 4.7/eclipse/plugins/com.adobe.flash.compiler_4.7.0.349722/AIRSDK/lib/aot/lib/air-fields.arm-air.txt -O3 -ane-symbol=MmgRbApiExtInitializer -ane-symbol=MmgRbApiExtFinalizer -ane-symbol=MmgStoreKitApiExtInitializer -ane-symbol=MmgStoreKitApiExtFinalizer -ane-symbol=MmgGoViralApiExtInitializer -ane-symbol=MmgGoViralApiExtFinalizer -ane-symbol=MmgCmApiExtInitializer -ane-symbol=MmgCmApiExtFinalizer -ane-symbol=MmgGcApiExtInitializer -ane-symbol=MmgGcApiExtFinalizer -ane-symbol=MmgPnApiExtInitializer -ane-symbol=MmgPnApiExtFinalizer -ane-symbol=FlurryExtensionInitializer -ane-symbol=FlurryExtensionFinalizer -abc-file-list=/Users/tjones_mbp/Documents/Adobe Flash Builder 4.7/Jewelion/bin-release-temp/AOT/AOTBuildOutput4966758305704883133.tmp/ABCFilesList.txt /var/folders/6x/wdtwjv6j25d_yndb7m5z1pz40000gn/T/cmd4934908115265237502.tmp: line 2:  5555 Bus error: 10           "/Applications/Adobe Flash Builder 4.7/eclipse/plugins/com.adobe.flash.compiler_4.7.0.349722/AIRSDK/lib/aot/bin/compile-abc/compile-abc" "-mtriple=armv7-apple-ios" "-filetype=obj" "-sdk" "/Applications/Adobe Flash Builder 4.7/eclipse/plugins/com.adobe.flash.compiler_4.7.0.349722/AIRSDK/lib/aot/lib/avmglue.abc" "-fields" "/Applications/Adobe Flash Builder 4.7/eclipse/plugins/com.adobe.flash.compiler_4.7.0.349722/AIRSDK/lib/aot/lib/air-fields.arm-air.txt" "-O3" "-ane-symbol=MmgRbApiExtInitializer" "-ane-symbol=MmgRbApiExtFinalizer" "-ane-symbol=MmgStoreKitApiExtInitializer" "-ane-symbol=MmgStoreKitApiExtFinalizer" "-ane-symbol=MmgGoViralApiExtInitializer" "-ane-symbol=MmgGoViralApiExtFinalizer" "-ane-symbol=MmgCmApiExtInitializer" "-ane-symbol=MmgCmApiExtFinalizer" "-ane-symbol=MmgGcApiExtInitializer" "-ane-symbol=MmgGcApiExtFinalizer" "-ane-symbol=MmgPnApiExtInitializer" "-ane-symbol=MmgPnApiExtFinalizer" "-ane-symbol=FlurryExtensionInitializer" "-ane-symbol=FlurryExtensionFinalizer" "-abc-file-list=/Users/tjones_mbp/Documents/Adobe Flash Builder 4.7/Jewelion/bin-release-temp/AOT/AOTBuildOutput4966758305704883133.tmp/ABCFilesList.txt"Compilation failed while executing : compile-abc


Hope this helps someone in the future. :-)

Colin Holgate
Inspiring
October 8, 2014

Steps 3, 4, and 5 shouldn't be needed. You can add the SDK from any location. I just leave mine in the downloads folder.

kollehel
Participating Frequently
October 8, 2014

Is there a way to set -useLegacyAOT yes in Flash Pro CC? I have a project made with Flash Pro, and I would not want to modify it to a flash builder project, but now it crashes at launch after the splash screens.

Inspiring
October 8, 2014

Yep and in CS6?

Colin Holgate
Inspiring
October 8, 2014

I believe that CS6 can't publish apps with the iOS 7 icons that are required, which means you would be building from the command line anyway. If you're building apps that are not meant to be submitted to the App Store, and so you don't need the iOS 7 icons, you also could use an older version of AIR, that doesn't default to using the faster packager.

Participating Frequently
October 5, 2014

Hi everyone,

Actually i have Application loader 2.9.1 and work good, now there is an update to 3.0, do you recommended me update to that version and to be sure that is not problem with it?

very thanks!

SirRookie
Inspiring
October 6, 2014

Hi everyone!

I downloaded AIR SDK 15: 302  I updated the miminumOSversion to 6.0

But I'm still getting the following error:

Invalid Segment Alignment - This app does not have proper segment alignment and should be rebuilt with the latest version of Xcode. Please contact Developer Technical Support if you need further assistance.

I'm using Application loader 2.9.1, Flash professional CC 2014 and AIR SDK 15: 302

please help

SirRookie
Inspiring
October 6, 2014

Hi Additional Info

In Application loader no error its said your app was delievered sucessfully

But then I got an email from Apple Developer with the Invalid segment error

momennemrat
Participant
October 5, 2014

I'am still have the problem

I followed these iinstructions:

cd <sdk>/lib/aot/bin/ld64

mv ld64 ld64_orig

ln –s /usr/bin/ld ld64

<Build the IPA now using Flash Pro, Flash Builder or on command line>

and updated my AIR to the last beta version

but still have the same problem

I'am using Flash CC with some ANE for in-app purchase and adMob and Social

I tried downloading the mac file that uploaded but it gives me : "AccessDenied" !

what should I do ?

dsjijvdsaijosvadijvda
Participant
October 4, 2014

Dear Members, Dear Adobe-Team,

first, yes, it's working also for me now. After struggling 5 hours with Updates and copying lb-files from several folders i am very happy for now.

By the way #1: Cheers from Munich!

The great BUT: We are all happy for a while and we are all happy that ADOBE is offering such a great service and opportunity to build iOS and Android Apps without any knowledge of C++ and/or Swift/Objective-C. Really, Thanks! All these languages we do not need to know/learn cause we can create beautiful and precious mobile apps which we want to throw out to the world for two and even more platforms at once. You are one click away from releasing your app to android/iOS. This is great, this is unique what Adobe is doing here! Respect!

Now the "But": I think this/our's/Camx's Issue was solved within less than a week by Adobe, which means great Support from Adobe. But i have a strange feeling, that Adobe does not know, that they have such great and mighty tools and developers on their side. Anyway I feel left alone by Adobe. When do we have to run the next update, when will the next errors occur and how long does Adobe take it to react and publish a proper Update/Solution? How hard will it be the next time? How many Downtime i have to calculate in my project the next time?

For all SDK Updates you have to read through hundreds of Blog Posts/Communities/Reports from other impatient/frustrated and unhappy Users (Headline: Trial and Error ... ) .

My first frustrating-update-experience was after Apple's Update from iOS 6.x to iOS 7. This was a 3 days Job for me and my Team (Some of them are studied IT-Experts) to get our apps run again.

Today i found a third party PlugIn: Manage Adobe AIR SDK plugin for Flash Builder 4.7 (Win + Mac) | Блог им. TheRabbit to install a SDK-Update with one Click. I guess it's working pretty well.

Please Adobe, built some more tools like that and write your Creative-Cloud Members (By the way #2: We have 4 Creative-Cloud Memberships) an E-Mail like that "Dear CC/Flex/FlashBuilder User, we encountered a problem with ... / we had to release a new (SDK-)Update/Patch, so please run an update with our CreativeCloudMobileAppSupportAllInOnePlugIn. One Click, and you are good to go continue creating georgeous mobile apps. Thanks, Adobe".

I know you can do it, I know that Camx's Problem and of hundreds of other users would have been possible to solve by providing a simple Update-Tool/PlugIn which is easy to install for us all, at least two days after Camx was confronted by this problem. This solution feels - sorry - a bit "unofficial" ;-)

However, Thanks Adobe, really!

Cheers,

Chris

User Unknow
Legend
October 4, 2014

Hi Chris,

That was my plugin for FB I'm currently working with a clients and I'm highly loaded so can't publish MacOS update for it fast. Thanks for mention about it

dsjijvdsaijosvadijvda
Participant
October 4, 2014

Hi Anton

understand! The thing is, that it is possible to create an easy update-helper (like yours) for other and repeating problems with this SDK thing ;-)

Cheers Anton, keep on the good work!

Chris

Tovrick
Participant
October 3, 2014

I finally got past "Invalid Segment Alignment" but now one of my ANE's is causing a 'this bundle does not support minimum OS version" error.  I'm using several ANE's only one is causing the error.  Nothing about this ANE has changed since the last version of my app.  Anyone have any ideas what might be causing the problem?

Participating Frequently
October 3, 2014

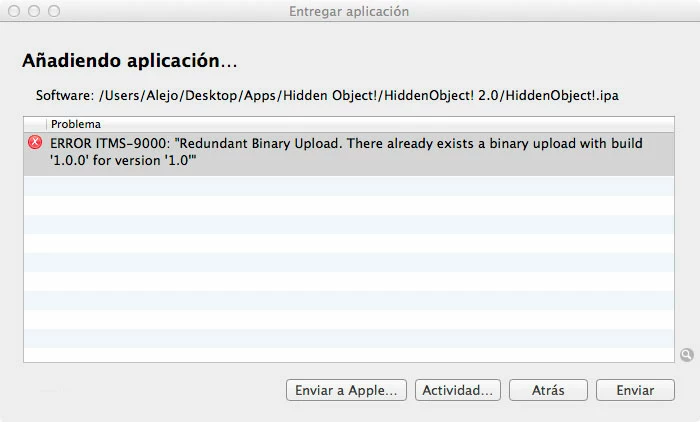

I uploaded the file without the error "invalid segment" with the SDK 15.0.0.302 , but show this error "ERROR ITMS-9000 Redundant Binary Upload.", i am trying uploading with flash professional CC 2014, i put the version 2.0 but when i compile always flash put 1.0 some idea?

Inspiring
October 3, 2014

getting similar error: redundant binary upload. changing binary version and build number . . .

Inspiring
October 3, 2014

nevermind.  that solved it.  new version number.  new build number.

Inspiring
October 2, 2014

Thanks to the Air team and Pahup for all the help.

Just to let you know:

Today three of my apps are READY FOR SALE on the app store using FLASH CC 2014 AIR 15.0.0.249

I´m downloading 15.0.0.302 and will use it for my further submits.

Best regards to everybody
