Text wrapping bug in TextField

  • May 2, 2013
  • 2 replies
  • 634 views

We use textfield control extensively in our app. It has an issue with text wrapping that causes app to go in infinite layout cycle.

This problem occurs because text wrapping algorithm makes textfield height different in each rendering cycle.

This problem is not reproducible in IDE in debug mode. It occurs in installed .air app.

Steps to reproduce:

1) Make adobe air project and paste the code below in main mxml file.

2) Generate .air installer

3) install the app

4) Click in textfield

5) Move mouse outside textfield( but remain within app).

6) Note. Textfield textwrapping goes in to a cycle where it get confused and textfield height is differnt in each rendering cycle.

System configuration

Adobe AIR version 3.7.0.1530

Flash player: 11.5.502.110

Mac OS 10.7.5 (64-bit)

2.2 GHz Core i7

4GB RAM

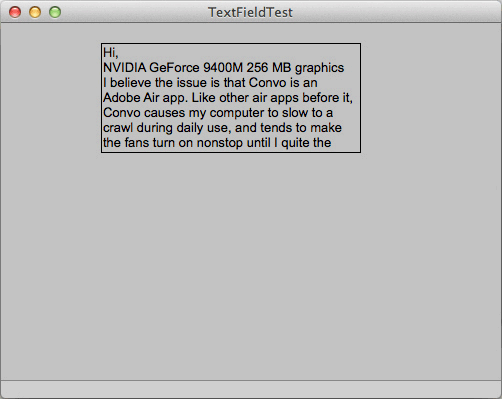

Please click this .gif file to view the issue.

Sample Air App code

<?xml version="1.0" encoding="utf-8"?>

<mx:WindowedApplication xmlns:mx="http://www.adobe.com/2006/mxml" layout="absolute" creationComplete="windowedapplication1_creationCompleteHandler(event)">

<mx:Script>

                    <![CDATA[

                              import mx.core.UIComponent;

                              import mx.core.UITextField;

                              import mx.events.FlexEvent;

                              private var wrapper:UIComponent;

                              private var infoField:TextField;

                              protected function windowedapplication1_creationCompleteHandler(event:FlexEvent):void

                              {

                                        wrapper = new UIComponent();

                                        addChild(wrapper);

                                        infoField= new TextField();

                                        infoField.autoSize=TextFieldAutoSize.LEFT;

                                        infoField.multiline=true;

                                        infoField.wordWrap=true;

                                        infoField.selectable = true;

                                        infoField.border = true;

                                        infoField.x = 100;

                                        infoField.y = 20;

                                        wrapper.addChild( infoField );

                                        infoField.htmlText = '<textformat leading="0"><FONT FACE="Arial" COLOR="#0" SIZE="13"><P ALIGN="LEFT">Hi,</P><P ALIGN="LEFT">NVIDIA GeForce 9400M 256 MB graphics</P><P ALIGN="LEFT">I believe the issue is that Convo is an Adobe Air app. Like other air apps before it, Convo causes my computer to slow to a crawl during daily use, and tends to make the fans turn on nonstop until I quite the app.</P></FONT></textformat>';

                                        infoField.width = 259;

                              }

                    ]]>

</mx:Script>

</mx:WindowedApplication>

This topic has been closed for replies.

2 replies

chris.campbell
Legend
May 3, 2013

Thank you for the heads up.  Could you please copy this over to our bugbase.adobe.com bug database?  If possible, a prebuilt example would help us quickly reproduce the problem.  Once added, please post back with the bug URL so that others effected can add their comments and votes.

Participant
May 3, 2013

bugbase url

https://bugbase.adobe.com/index.cfm?event=bug&id=3553172

I tried to attach .air app installer but this forum doesn't allow files other than images. Anyhow I have attached both code and .air app installer in the bugbase post.
