Animating the camera when user clicks

Hi.

Here is a sample.

Try it:

https://bit.ly/3KV9ZBN

JavaScript / JS / code:

var root = this;
var offset = 10; // amount of pixels the camera will move when the arrows are pressed
var clickZoom = 2; // zoom factor for when the buttons are clicked / tapped
var buttonPrefix = "Button"; // prefix name for the arrow buttons
var spotPrefix = "spot"; // prefix name for the buttons/spots in the contents
var leftButton, rightButton, upButton, downButton, ref, content, content1, resetZoomButton, cam, width, height;

function main()
{
	leftButton = root.leftButton;
	rightButton = root.rightButton;
	upButton = root.upButton;
	downButton = root.downButton;
	// both the ref and content instances must have their registration and transformation points in the origin (0, 0)
	ref = root.ref; // this is the reference area for the camera. The instance can be repositioned and resized
	content = root.content; // the contents here are just suggestions. They can be modified
	content1 = root.content1;
	resetZoomButton = root.resetZoomButton;
	cam = AdobeAn.VirtualCamera.getCamera(root);

	width = lib.properties.width;
	height = lib.properties.height;

	ref.visible = false;

	leftButton.on("mousedown", onMouseDownArrows);
	rightButton.on("mousedown", onMouseDownArrows);
	upButton.on("mousedown", onMouseDownArrows);
	downButton.on("mousedown", onMouseDownArrows);

	leftButton.on("pressup", onPressUpArrows);
	rightButton.on("pressup", onPressUpArrows);
	upButton.on("pressup", onPressUpArrows);
	downButton.on("pressup", onPressUpArrows);

	content.on("click", onClickContent);
	content1.on("click", onClickContent);

	resetZoomButton.on("click", onResetZoom);

	createjs.Ticker.on("tick", onTick);
}

function onMouseDownArrows(e)
{
	root[e.currentTarget.name.replace(buttonPrefix, "")] = true;
}

function onPressUpArrows(e)
{
	delete root[e.currentTarget.name.replace(buttonPrefix, "")];
}

function onClickContent(e)
{
	if (!e.target.name || e.target.name.indexOf(spotPrefix) != 0)
		return;

	var posX, posY, edges;

	cam.setZoom(clickZoom * 100);
	posX = -e.target.x + width * 0.5 - e.currentTarget.x;
	posY = -e.target.y + height * 0.5 - e.currentTarget.y;
	edges = getEdges();
	cam.setPosition(clamp(edges.minX, posX, edges.maxX), clamp(edges.minY, posY, edges.maxY), 0);
}

function onResetZoom()
{
	var pos, edges;

	cam.resetZoom();
	pos = cam.getPosition();
	edges = getEdges();
	cam.setPosition(clamp(edges.minX, pos.x, edges.maxX), clamp(edges.minY, pos.y, edges.maxY), 0);
}

function onTick()
{
	if (root.left)
		move(offset, 0);
	else if (root.right)
		move(-offset, 0);
	else if (root.up)
		move(0, offset);
	else if (root.down)
		move(0, -offset);
}

function move(offsetX, offsetY)
{
	var pos = cam.getPosition();
	var edges = getEdges();

	cam.setPosition(clamp(edges.minX, pos.x + offsetX, edges.maxX), clamp(edges.minY, pos.y + offsetY, edges.maxY), 0);
}

function getEdges()
{
	var bounds = getRefBounds();
	var zoom = getZoom();
	var minX = -ref.x + ((-bounds.width + width) / zoom) + (((width * zoom - width) / zoom)) * 0.5;
	var maxX = -ref.x + ((width / zoom) * 0.5) * (zoom - 1);
	var minY = -ref.y + ((-bounds.height + height) / zoom) + (((height * zoom - height) / zoom)) * 0.5;
	var maxY = -ref.y + ((height / zoom) * 0.5) * (zoom - 1);

	return { minX: minX, maxX: maxX, minY: minY, maxY: maxY };
}

function getRefBounds()
{
	var bounds = ref.nominalBounds;
	var zoom = getZoom();

	return { width: bounds.width * ref.scaleX * zoom, height: bounds.height * ref.scaleY * zoom };
}

function getZoom()
{
	return cam.getZoom() * 0.01;
}

function clamp(min, value, max)
{
	if (value < min)
		return min;

	if (value > max)
		return max;

	return value;
}

main();

Download / source / files / FLA:

https://bit.ly/3pYLbjU

Please notice it that the code won't take into account camera rotation.

I hope it helps.

Regards,

JC

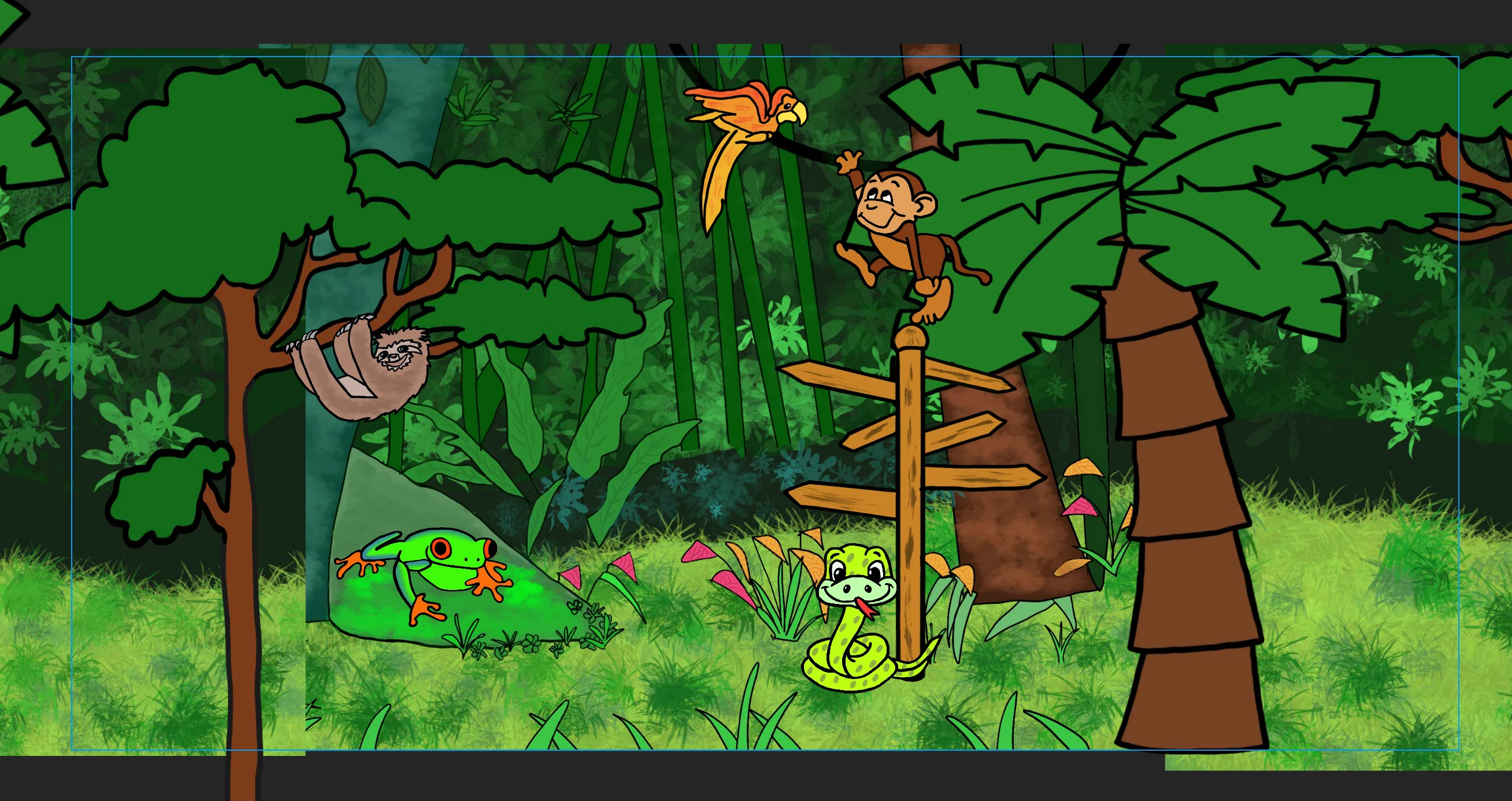

I hope I can make this make sense: this is my scene (for a university project) so I would like to add in buttons on the left and right of the scene, which when clicked on would make the camera pan to the left or right, is this possible? Or when you click on one of the animals, the camera zooms into them. tHANKS

Yes, just use TweenJS to animate the camera object.

https://helpx.adobe.com/animate/using/working-with-camera-in-animate.html

Hi.

Can you provide some screenshots or a video of how you intend to animate the camera?

Regards,

JC
