Can anyone point me in the direction of a tutorial on creating a user controlled playhead slider in an HTML5 canvas document?

Forum|Forum|8 years ago
February 4, 2018
4 replies
1203 views

I am creating a linear animation that I would like the user to be able to control with a slider (i.e. a control that allows them to advance (or rewind) frames by sliding a symbol back and forth along a horizontal line). Thank you

This topic has been closed for replies.

Correct answer JoãoCésar17023019

If it's not too late and if you don't mind, I'd like to leave a suggestion.

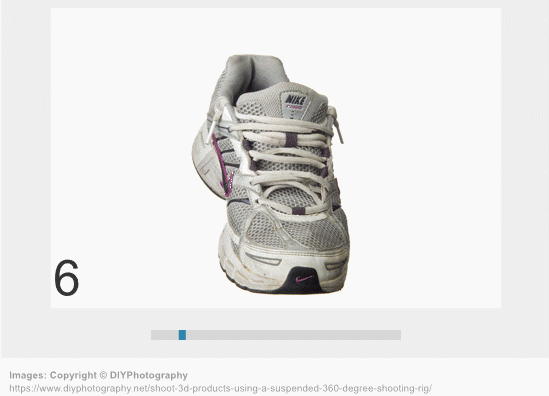

Preview:

FLA download:

animate_cc_html5_frame_slider.zip - Google Drive

Code:

var that = this;
this.button = this.slider.button;
this.bar = this.slider.bar;
this.buttonWidth = this.button.nominalBounds.width;
this.barWidth = this.bar.nominalBounds.width;
this.speedX = 0;
this.friction = 0.95;
this.isDragging = false;
this.bar.on("mousedown", function(evt)
{
    that.anim.stop();

    that.clickedX = stage.mouseX - that.slider.x;
    that.button.x = that.clickedX;
    that.isDragging = true;
});
stage.on("stagemouseup", function(e)
{
    that.isDragging = false;
    that.anim.play();
});
createjs.Ticker.on("tick", function(e)
{
    if (that.isDragging)
    {
        that.speedX = (stage.mouseX - that.slider.x) - that.clickedX;
        that.dragSlide();
    }
    else
        that.autoSlide();

    that.speedX *= that.friction;
    that.button.x += that.speedX;

    that.button.x = that.clamp(that.button.x, that.bar.x + that.buttonWidth * 0.5, that.barWidth - that.buttonWidth * 0.5);

    that.clickedX = stage.mouseX - that.slider.x;

});
this.dragSlide = function()
{
    that.anim.gotoAndStop(Math.floor(that.anim.timeline.duration * that.button.x / that.barWidth));
};
this.autoSlide = function()
{
    that.button.x = (that.barWidth * that.anim.timeline.position) / that.anim.timeline.duration;
};
this.clamp = function(value, min, max)
{
    if (value < min)
        return min;
    else if (value > max)
        return max;
    else
        return value;
};

I hope it helps.

Regards,

JC

photogyulai

Inspiring

Okay here is my slider version... it is just a few line... a commented the script to help re use

https://drive.google.com/file/d/1U5VJaSvZvM6L_U6xdeudMYCHffCMCd2M/view?usp=sharinghttp://

JoãoCésar17023019

Community Expert

Thank you!

Please keep it up!

photogyulai

Inspiring

some months ago i had the same need!

so i created one slider >> please visit:

http://www.fotobetyar.hu/fejlesztesek-2017-proba/ http://www.fotobetyar.hu/fejlesztesek-2017-proba/?et_fb=1

here you can see a vertical slider!

i can send fla any time if any one wish

Advantages:

it is simple and you can move the slider in the canvas (in the fla file) and dont have to recalibrate the numbers/positions

Disadvantages:

didnt work on android (iphone?!)

if you go to full screen, and the canvas is responsive >> the slider size changes and start to behave weird!

I have to test JoãoCésar solution (thanks btw)

keep goin! JoaoCesar

photogyulai

Inspiring

okay i tested Joao sample fla

i have some problems >> if i dont put "this.stop();" script on every frame of the animation >> after i drag the slider it wont stop after i let go the mouse button... it plays.

i did not test on android yet

but this version have the same problem as mine: if you go to full screen it going nuts!

hold on i upload my version, it is more simple, more easy to re use!

JoãoCésar17023019

Community Expert

Hi, photogyulai!

You got some pretty cool graphics in your app. Congrats!

The code is intentionally set to play when the mouse is up. The idea is to get the slider behaving like a video player would.

And, yeah, this is just a simple demonstration to give the OP some direction. I didn't consider responsive scaling and anything else more advanced.

JoãoCésar17023019

Correct answer

Community Expert

If it's not too late and if you don't mind, I'd like to leave a suggestion.

Preview:

FLA download:

animate_cc_html5_frame_slider.zip - Google Drive

Code:

var that = this;
this.button = this.slider.button;
this.bar = this.slider.bar;
this.buttonWidth = this.button.nominalBounds.width;
this.barWidth = this.bar.nominalBounds.width;
this.speedX = 0;
this.friction = 0.95;
this.isDragging = false;
this.bar.on("mousedown", function(evt)
{
    that.anim.stop();

    that.clickedX = stage.mouseX - that.slider.x;
    that.button.x = that.clickedX;
    that.isDragging = true;
});
stage.on("stagemouseup", function(e)
{
    that.isDragging = false;
    that.anim.play();
});
createjs.Ticker.on("tick", function(e)
{
    if (that.isDragging)
    {
        that.speedX = (stage.mouseX - that.slider.x) - that.clickedX;
        that.dragSlide();
    }
    else
        that.autoSlide();

    that.speedX *= that.friction;
    that.button.x += that.speedX;

    that.button.x = that.clamp(that.button.x, that.bar.x + that.buttonWidth * 0.5, that.barWidth - that.buttonWidth * 0.5);

    that.clickedX = stage.mouseX - that.slider.x;

});
this.dragSlide = function()
{
    that.anim.gotoAndStop(Math.floor(that.anim.timeline.duration * that.button.x / that.barWidth));
};
this.autoSlide = function()
{
    that.button.x = (that.barWidth * that.anim.timeline.position) / that.anim.timeline.duration;
};
this.clamp = function(value, min, max)
{
    if (value < min)
        return min;
    else if (value > max)
        return max;
    else
        return value;
};

I hope it helps.

Regards,

JC

G

Grim_1Author

Known Participant

Hey man thanks - this sample is exactly what I'm looking for! I'm going to take a look at the file and the code, but with my limited skill set it's going to take me a bit to digest. I really appreciate it. Going to mark this as correct based on the sample and assuming the code is correct. Thank you!!!
