Drag and rotate several movieclips at once

Question

Hi there,I’ve been trying everything I can think of and looking everywhere for a solution but I can’t get my head around this basic problem.I have several “Masters” and several “Slaves” movieclips. Both Masters and Slaves can be dragged and rotated (keyboard event) individually inside a MouseDown event, and then dropped inside a MouseUp event.What I’d like to do is when one or several Slaves clips are touching one Master clip, dragging and rotating the Master will also drag and rotate the Slaves; the Master basically acting as a container.I got that part working but there is something wrong with the MouseUp event once the Master clip has been rotated and dropped: the Slaves keep changing position with each rotation; while clicking back (MouseDown) on the Master clip put all the Slaves back to their right position.Here is a sample code with one master and one slave:----------------------------Slave.addEventListener(MouseEvent.MOUSE_DOWN, fl_Drag_Slave);Master.addEventListener(MouseEvent.MOUSE_DOWN, fl_Drag_Master);// Drag Slavefunction fl_Drag_Slave(event:MouseEvent):void{                Slave.startDrag(); // Drag    stage.addEventListener(KeyboardEvent.KEY_DOWN, fl_Slave_Rotation); // Rotation event listener    stage.addEventListener(MouseEvent.MOUSE_UP, fl_Drop_Slave); // MouseUp event listener        }// Drop Slavefunction fl_Drop_Slave(event:MouseEvent):void{        Slave.stopDrag();    stage.removeEventListener(KeyboardEvent.KEY_DOWN, fl_Slave_Rotation);    stage.removeEventListener(MouseEvent.MOUSE_UP, fl_Drop_Slave);            }            // Rotate Slavefunction fl_Slave_Rotation(event:KeyboardEvent):void{                    if (event.keyCode == 82) // Keycode for the letter "r"    {        Slave.rotation += 45;    }                }            // Drag Master (and Slaves)function fl_Drag_Master(event:MouseEvent):void{    if (Slave.hitTestObject(Master))    {        Master.addChild(Slave); // Add the Slave to the Master        Slave.x -= Master.x; // Adjust the Slave's position and rotation        Slave.y -= Master.y;        Slave.rotation -= Master.rotation;    }    Master.startDrag();    stage.addEventListener(KeyboardEvent.KEY_DOWN, fl_Master_Rotation); // Rotation event listener    stage.addEventListener(MouseEvent.MOUSE_UP, fl_Drop_Master); // MouseUp event listener            }// Drop Master (and Slaves)function fl_Drop_Master(event:MouseEvent):void{                    if (Slave.hitTestObject(Master))    {        addChild(Slave); // Add the Slave back to the stage        Slave.x += Master.x; // Adjust the Slave's position and rotation        Slave.y += Master.y;        Slave.rotation += Master.rotation;    }    Master.stopDrag();        stage.removeEventListener(KeyboardEvent.KEY_DOWN, fl_Master_Rotation);    stage.removeEventListener(MouseEvent.MOUSE_UP, fl_Drop_Master);}            // Rotate Master (and Slaves)function fl_Master_Rotation(event:KeyboardEvent):void{    if (event.keyCode == 82) // keycode for the letter "r"    {        Master.rotation += 45;    }                }----------------------------I think the problem resides in the way I adjust the Slaves clips’ positions when they are added back to the stage during the MouseUp event but I can’t get it to work.Thanks a lot for your help!

JoãoCésar17023019 · Answer

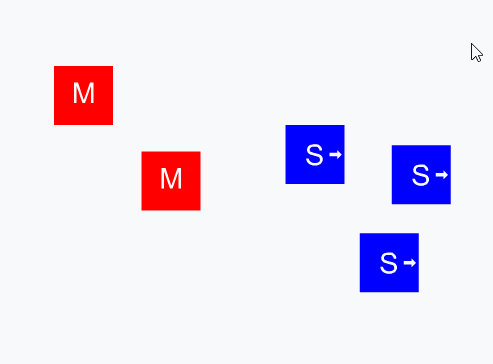

Hi.Here is a suggestion of how you can achieve this. It's not a direct solution to your code, but I hope something may be useful.One big advantage is that you can have as many masters and slaves as you wish.Preview:AS3 code:import flash.events.MouseEvent;import flash.display.MovieClip;import flash.events.KeyboardEvent;import flash.ui.Keyboard;import flash.geom.Point;var currentChild:MovieClip;var masters:Vector. = new Vector.();var slaves:Vector. = new Vector.();function start():void{ var mastersCount:uint = 0; var slavesCount:uint = 0; for (var i:int = 0, total:int = numChildren; i < total; i++) { if (getChildAt(i).name.indexOf("master") == 0) masters[mastersCount++] = getChildAt(i) as MovieClip; else if (getChildAt(i).name.indexOf("slave") == 0) slaves[slavesCount++] = getChildAt(i) as MovieClip; } addEventListener(MouseEvent.MOUSE_DOWN, mouseHandler); addEventListener(MouseEvent.MOUSE_UP, mouseHandler); stage.addEventListener(KeyboardEvent.KEY_DOWN, keyHandler);}function mouseHandler(e:MouseEvent):void{ if (e.type == MouseEvent.MOUSE_DOWN) { if (e.target) { currentChild = e.target as MovieClip; currentChild.startDrag(); } } else if (e.type == MouseEvent.MOUSE_UP) { currentChild.stopDrag(); currentChild.parent.setChildIndex(currentChild, currentChild.parent.numChildren - 1); if (currentChild.name.indexOf("master") == 0) { currentChild = null; return; } for (var i:int= 0, total:int = masters.length; i < total; i++) { if (currentChild.hitTestObject(masters) && currentChild.parent.name.indexOf("master") < 0) { var point:Point = new Point(currentChild.x - masters.x, currentChild.y - masters.y); masters.addChild(currentChild); currentChild.x = point.x; currentChild.y = point.y; currentChild = null; return; } } currentChild = null; }}function keyHandler(e:KeyboardEvent):void{ if (e.type == KeyboardEvent.KEY_DOWN) if (currentChild && e.keyCode == Keyboard.R) currentChild.rotation += 45;}start();;FLA download:animate_cc_as3_master_slave.zip - Google DriveRegards,JC
