Hi.

Thanks for the private message.

If I understood correctly, you are looking for a scratch interactivity. Alternatively to kglad’s answer, I have a sample here.

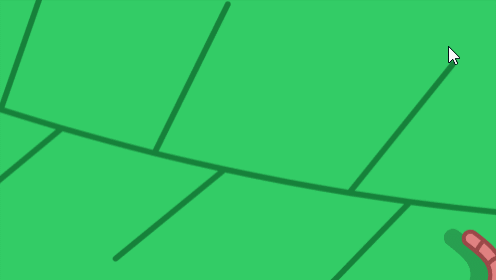

Preview:

Play:

https://bit.ly/2X6xHV1

JS code:

var root = this;
var minProgressToReveal = 0.9; // minimum mask area that needs to be cleared to reveal what is behind
var cursorType = "default";
var strokeTickness = 48;
var strokeCaps = "round";
var strokeJoints = "round";
var strokeColor = "rgba(0,0,0,1)"; // change the 4th argument for the stroke density
var mkContainer = root.scratchable; // mask container instance
var cursor = root.cursor; // cursor instance
var friction = 0.8; // cursor friction
var scratchable, mkBounds, grid, isDrawing, oldPt, oldMidPt, maskFilter;

root.start = function()
{
	createjs.Touch.enable(stage);
	stage.enableMouseOver();
	stage.mouseMoveOutside = true;
	document.body.style.backgroundColor = "black";
	grid = {};
	scratchable = mkContainer.children[0];
	mkBounds = root.scratchable.nominalBounds;
	scratchable.cache(-mkBounds.width * 0.5, -mkBounds.height * 0.5, mkBounds.width, mkBounds.height);
	maskFilter = new createjs.AlphaMaskFilter(scratchable.cacheCanvas);
	scratchable.cursor = cursorType;
	root.stop();
	root.mouseDown = stage.on("stagemousedown", root.mouseDownHandler);
	root.mouseUp = stage.on("stagemouseup", root.mouseUpHandler);
	root.tick = createjs.Ticker.on("tick", root.tickHandler);
}

root.mouseDownHandler = function(event)
{
	var stageX = ((stage.mouseX / stage.scaleX) - mkBounds.width * 0.5);
	var stageY = ((stage.mouseY / stage.scaleY) - mkBounds.height * 0.5);

	oldPt = new createjs.Point(stageX, stageY);
	oldMidPt = oldPt;
	isDrawing = true;
}

root.tickHandler = function(event)
{
	var stageX = stage.mouseX / stage.scaleX;
	var stageY = stage.mouseY / stage.scaleY;

	cursor.rotation = root.rotateToCursor(stageY - cursor.y, stageX - cursor.x);
	cursor.x = root.lerp(cursor.x, stageX, friction);
	cursor.y = root.lerp(cursor.y, stageY, friction);

	if (!isDrawing)
		return;

	var midPoint;

	stageX -= mkBounds.width * 0.5;
	stageY -= mkBounds.height * 0.5;
	midPoint = new createjs.Point(oldPt.x + stageX >> 1, oldPt.y + stageY >> 1);
	root.trackProgress(midPoint);

	scratchable.graphics.clear()
		.setStrokeStyle(strokeTickness, strokeCaps, strokeJoints)
		.beginStroke(strokeColor)
		.moveTo(midPoint.x, midPoint.y)
		.curveTo(oldPt.x, oldPt.y, oldMidPt.x, oldMidPt.y);

	oldPt.x = stageX;
	oldPt.y = stageY;

	oldMidPt.x = midPoint.x;
	oldMidPt.y = midPoint.y;

	scratchable.updateCache("destination-out");
}

root.mouseUpHandler = function(event)
{
	isDrawing = false;
}

root.trackProgress = function(point)
{
	var columns = Math.round(mkBounds.width / strokeTickness) + 1;
	var rows = Math.round(mkBounds.height / strokeTickness) + 1;
	var total = columns * rows;
	var gridX = Math.round((point.x + mkBounds.width * 0.5) / strokeTickness);
	var gridY = Math.round((point.y + mkBounds.height * 0.5) / strokeTickness);

	grid[gridX + "_" + gridY] = true;

	if (Object.keys(grid).length >= Math.round(total * minProgressToReveal))
		root.revealCallback();
}

root.revealCallback = function()
{
	createjs.Tween.get(scratchable).to({ alpha: 0 }, 500).call(function()
	{
		scratchable.visible = false;
	});

	createjs.Tween.get(cursor).to({ alpha: 0 }, 500).call(function()
	{
		cursor.visible = false;
	});

	stage.off("stagemousedown", root.mouseDown);
	stage.off("stagemouseup", root.mouseUp);
	createjs.Ticker.off("tick", root.tick);
}

root.lerp = function(v1, v2, f)
{
	 return f * v1 + (1 - f) * v2;
};

root.rotateToCursor = function(distY, distX)
{
	return Math.atan2(distY, distX) * 180 / Math.PI;
};

root.start();

FLA / source / files:

https://github.com/joao-cesar/adobe/tree/master/animate%20cc/html5_canvas/scratch

I hope this helps.

Regards,

JC

you can pretty much just copy and paste js into the actions panel.  on stage objects are referenced by their instance name (in the properties panel) preceded by "this".  eg, to ease movieclip mc to the cursor when the mouse is down:

stage.addEventListener("stagemousedown", startEaseToMouseF.bind(this));
stage.addEventListener("stagemouseup", stopEaseToMouseF.bind(this));

var F = easeToMouseF.bind(this);
var speed = .1;

function startEaseToMouseF(e) {
createjs.Ticker.addEventListener("tick", F);
}
function stopEaseToMouseF() {
createjs.Ticker.removeEventListener("tick", F);
}

function easeToMouseF() {
this.mc.x = (1-speed)*this.mc.x +speed*stage.mouseX/stage.scaleX;
this.mc.y = (1-speed)*this.mc.y +speed*stage.mouseY/stage.scaleY;
}
