Fluid Brush Not working with Wacom Tablet Pen

  • September 9, 2021
  • 3 replies
  • 3684 views

Can anyone help me? When using animate I tried using the fluid brush tool but it doesn't seem to work when I use my wacom tablet. The tool isn't greyed out so it isn't a GPU issue. I can select the tool and it works when I use the mouse to draw a line. But when I use my Wacom Intuos pro pen it often doesn't work. The cursor is there and moves around but no strokes are made. Or I can make one stroke but nothing after that.

    This topic has been closed for replies.

    3 replies

    Kirbomas1
    Kirbomas1
    Known Participant
    March 15, 2024

    had the same problem, ended up being that my pc wasnt updated, just update your computer and that should fix it.

    M
    MrunmayeeP
    Participant
    September 14, 2021

    I have the SAME problem. Please help.

    The paint mode is set to normal itself. I even tried going back a version of update but it still doesn't work.

    Classic brush is working absolutely fine.

    This is a sudden issue. My fluid brush has worked well before on the same device with the same wacom before for many animations.

    I have a windows laptop and hence I am not able to screen-record on animate. Windows game bar lets me record only on google chrome.

    Awaiting your reply! Thanks

    A
    Adobe Employee
    arvind_bv
    Adobe Employee
    September 16, 2021

    @MrunmayeeP  It is working fine at our end. Please provide the Animate version in which you are facing this issue. What is the last version where Fluid brush worked fine? Also share a screenshot of the system specs.



    Also check below details at your end

    1. Edit-->Preferences-->Edit Preferences-->Drawing-->Tablet Input--> Windows Ink --> Press OK
    2. “Use Windows Ink” option should be turned ON in your Wacom Tablet driver
    3. Can you please connect just one monitor to your CPU and check for the issue(try with both the monitors individually) ?  Also restart Animate every time you swap the monitors. Thanks!




    M
    MrunmayeeP
    Participant
    September 21, 2021

    Hello,



    I am using the latest version (21.0.9) of Animate. The last time I checked, Fluid brush was working fine in this version itself. But to check if it was a new bug, I installed one version older and I still faced the same problem. So today, I updated it back to the newest version again.

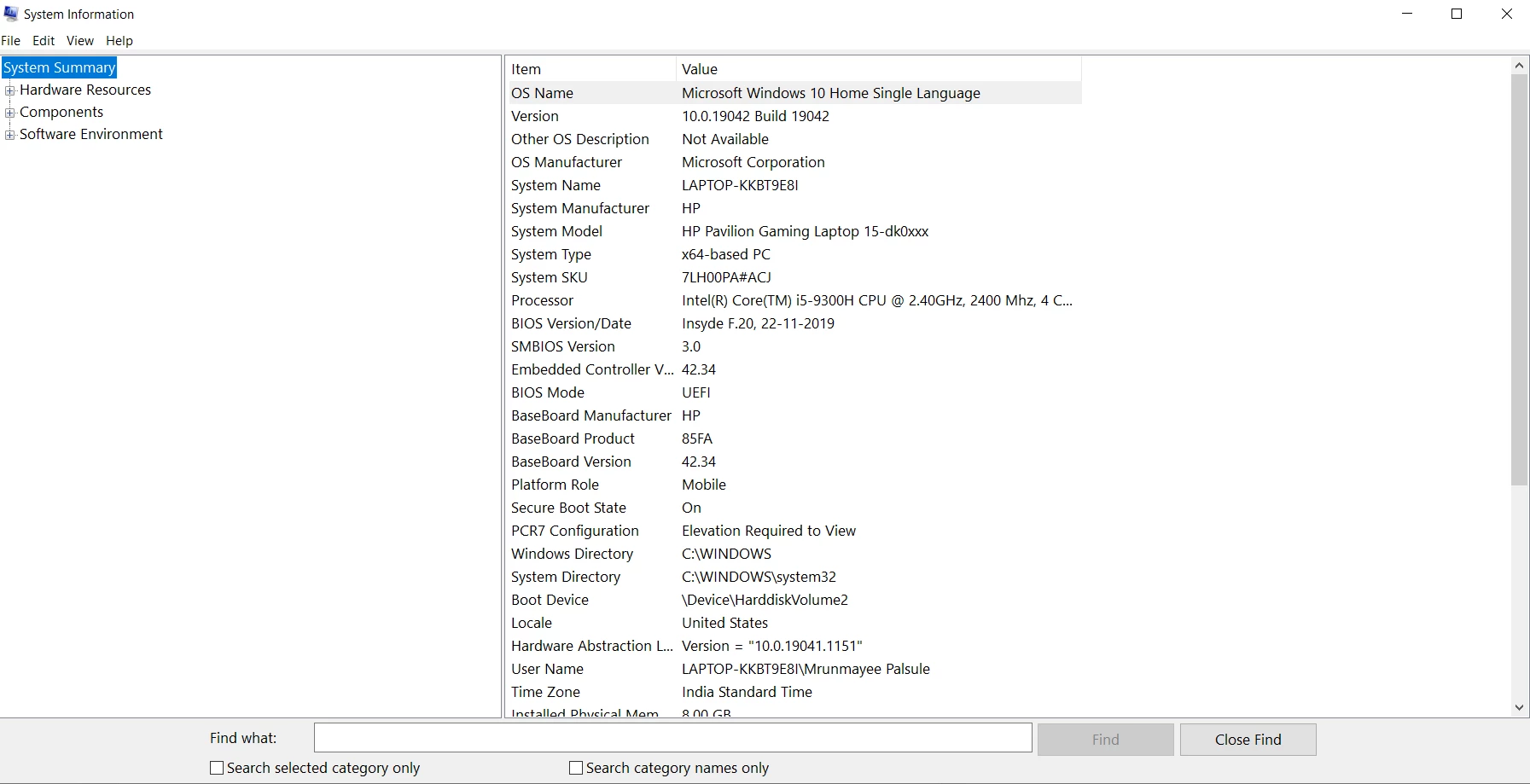

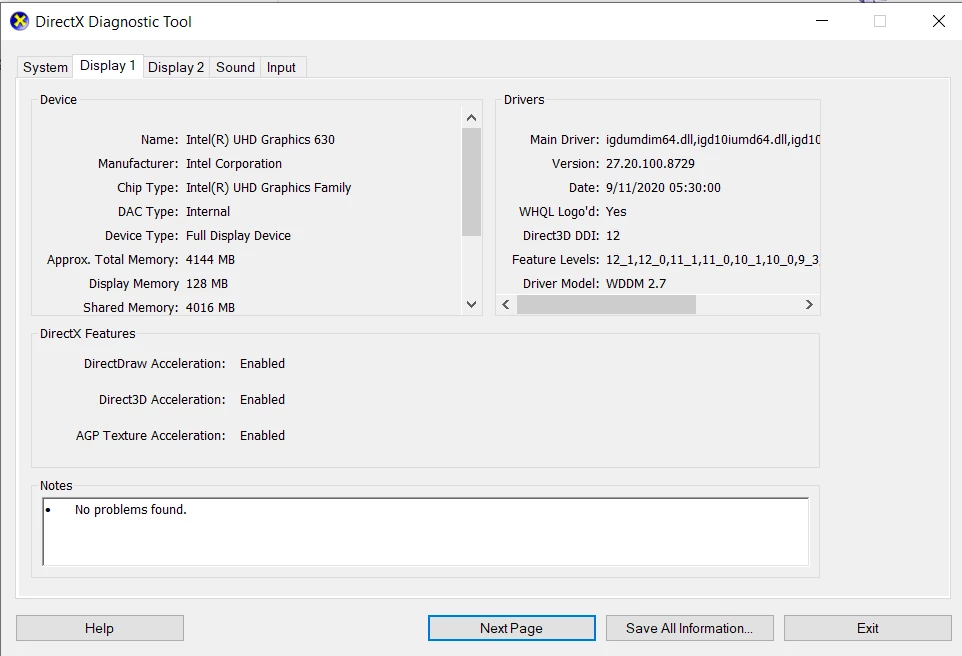

    I have attached the screenshot of system specs.

    Yes I have already checked the windows ink option, It was turned on all throughout.

    I use animate only on my laptop screen. I do not use an external monitor.



    Thanks a lot. Hope to hear soon.



    A
    Adobe Employee
    arvind_bv
    Adobe Employee
    September 9, 2021

    Hello,



    Thanks for reaching out. Issue is not reproducible at our end. Please provide below details for investigstion.



    #1: The following hardware specs are required for the GPU Brush Tool to work.



    Windows : DirectX 12 compliant GPU (with feature level 12_0 support)

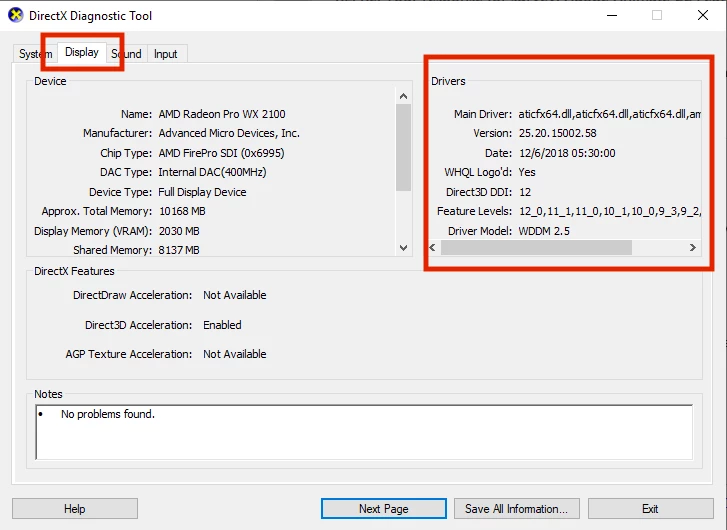

    If you have supported hardware already and if fluid brush is still inactive, can you please share the screenshot of the DirectX driver details as below?



    Windows-->Run-->dxdiag

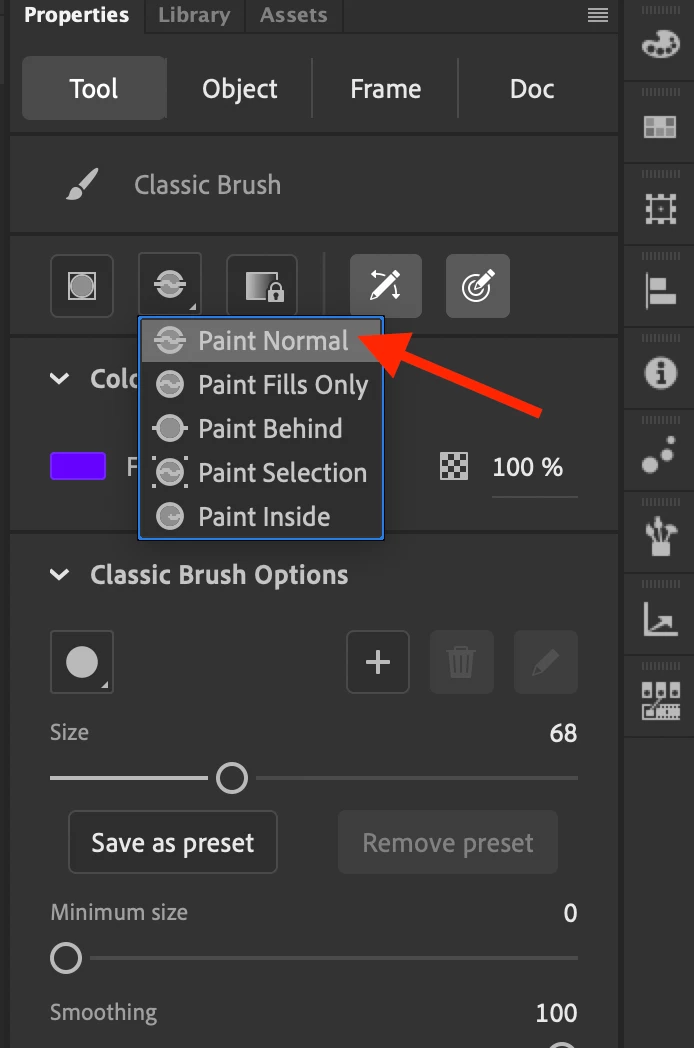

    #2 Please check if Brush Mode is set to "Paint Normal"





    If the issue still exist, please share below details.

    1. Does Classic brush work well in the same setup with Wacom pen?

    2. Please share a short screen recording of the issue



    Thanks!
