How do I detect if a certain object is touching a certain color?

  • November 2, 2017
  • 1 reply
  • 2248 views

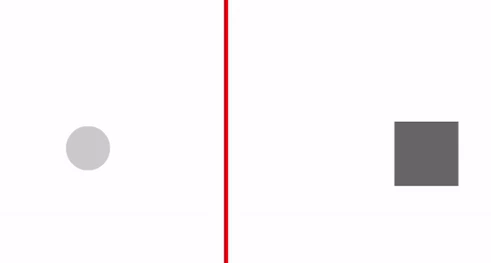

So basically I'm attempting to make a two player game:

One player is the circle the other is a square. I want the square to be the only thing that can go through the color red, but when it covers up the red:

The circle SHOULD be able to go through it. I thought that the easiest way to do this would be through detecting if the circle is touching a certain color (red) but I'm not sure how do that, if it is the best way.

Hopefully that made sense. Any help would be appreciated

This topic has been closed for replies.
Correct answer JoãoCésar17023019

Hi!

I made a working example: https://goo.gl/LhKdeE

Here is the code:

import flash.display.MovieClip;

import flash.events.KeyboardEvent;

import flash.ui.Keyboard;

import flash.events.Event;

import flash.display.DisplayObject;

var friction:Number = 0.85;

var p1:Object =

{

     target:circle,

     upKey:Keyboard.W,

     rightKey:Keyboard.D,

     downKey:Keyboard.S,

     leftKey:Keyboard.A,

     upPressed:false,

     rightPressed:false,

     downPressed:false,

     leftPressed:false,

     keyForce:1,

     speedX:0,

     speedY:0,

     maxSpeedX:10,

     maxSpeedY:10,

     color:"red"

};

var p2:Object =

{

     target:square,

     upKey:Keyboard.UP,

     rightKey:Keyboard.RIGHT,

     downKey:Keyboard.DOWN,

     leftKey:Keyboard.LEFT,

     upPressed:false,

     rightPressed:false,

     downPressed:false,

     leftPressed:false,

     keyForce:1,

     speedX:0,

     speedY:0,

     maxSpeedX:15,

     maxSpeedY:15,

     color:"red"

};

function keyHandler(e:KeyboardEvent):void

{

     if (e.type == KeyboardEvent.KEY_DOWN)

     {

          if (e.keyCode == p1.upKey)

               p1.upPressed = true;

          if (e.keyCode == p1.rightKey)

               p1.rightPressed = true;

          if (e.keyCode == p1.downKey)

               p1.downPressed = true;

          if (e.keyCode == p1.leftKey)

               p1.leftPressed = true;

          if (e.keyCode == p2.upKey)

               p2.upPressed = true;

          if (e.keyCode == p2.rightKey)

               p2.rightPressed = true;

          if (e.keyCode == p2.downKey)

               p2.downPressed = true;

          if (e.keyCode == p2.leftKey)

               p2.leftPressed = true;

     }

if (e.type == KeyboardEvent.KEY_UP)

     {

          if (e.keyCode == p1.upKey)

               p1.upPressed = false;

          if (e.keyCode == p1.rightKey)

               p1.rightPressed = false;

          if (e.keyCode == p1.downKey)

               p1.downPressed = false;

          if (e.keyCode == p1.leftKey)

               p1.leftPressed = false;

          if (e.keyCode == p2.upKey)

               p2.upPressed = false;

          if (e.keyCode == p2.rightKey)

               p2.rightPressed = false;

          if (e.keyCode == p2.downKey)

               p2.downPressed = false;

          if (e.keyCode == p2.leftKey)

               p2.leftPressed = false;

     }

}

function enterFrameHandler(e:Event):void

{

     movePlayer(p1);

     movePlayer(p2);

     checkCollision(p1.target, p2.target);

     checkCollision(p2.target, p1.target);

     if (div.colors.currentLabel != p2.color)

     {

          checkCollision(p1.target, div);

          checkCollision(p2.target, div);

     }

     else

     {

          if (!p2.target.hitTestObject(div))

               checkCollision(p1.target, div);

     }

}

function movePlayer(p:Object):void

{

     if (p.upPressed)

          p.speedY -= p.keyForce;

     if (p.rightPressed)

          p.speedX += p.keyForce;

     if (p.downPressed)

          p.speedY += p.keyForce;

     if (p.leftPressed)

          p.speedX -= p.keyForce;

     p.speedX *= friction;

     p.speedY *= friction;

     if (p.speedX > p.maxSpeedX)

          p.speedX = p.maxSpeedX;

     else if (p.speedX < -p.maxSpeedX)

          p.speedX = -p.maxSpeedX;

     if (p.speedY > p.maxSpeedY)

          p.speedY = p.maxSpeedY;

     else if (p.speedY < -p.maxSpeedY)

          p.speedY = -p.maxSpeedY;

     p.target.x += p.speedX;

     p.target.y += p.speedY;

}

function checkCollision(p:Object, obstacle:Object):void

{

     if (p.hitTestObject(obstacle))

     {

          // horizontal collisions

          if (p.x < obstacle.x - obstacle.width * 0.5 || p.x > obstacle.x + obstacle.width * 0.5)

          {

               if (p.x <= obstacle.x)

                    p.x = obstacle.x - p.width * 0.5 - obstacle.width * 0.5;

               else if (p.x > obstacle.x)

                    p.x = obstacle.x + p.width * 0.5 + obstacle.width * 0.5;

          }

          // vertical collisions

          else if (p.y < obstacle.y - obstacle.height * 0.5 || p.y > obstacle.y + obstacle.height * 0.5)

          {

               if (p.y <= obstacle.y)

                    p.y = obstacle.y - p.height * 0.5 - obstacle.height * 0.5;

               else if (p.y > obstacle.y)

                    p.y = obstacle.y + p.height * 0.5 + obstacle.height * 0.5;

          }

     }

}

stage.addEventListener(KeyboardEvent.KEY_DOWN, keyHandler);

stage.addEventListener(KeyboardEvent.KEY_UP, keyHandler);

stage.addEventListener(Event.ENTER_FRAME, enterFrameHandler);

Notice that I used frames to check for the colors.

I hope it helps!
