Images not showing when convert from Flash to HTML5 Canvas in Animate CC

  • March 25, 2019
  • 3 replies
  • 1350 views

I'm converting Flash animations to HTML5 Canvas in Animate CC. I can't get my .jpg or .png images to show when I test or publish. Any ideas?

    This topic has been closed for replies.

    3 replies

    kdmemory
    Inspiring
    March 25, 2019

    adding on

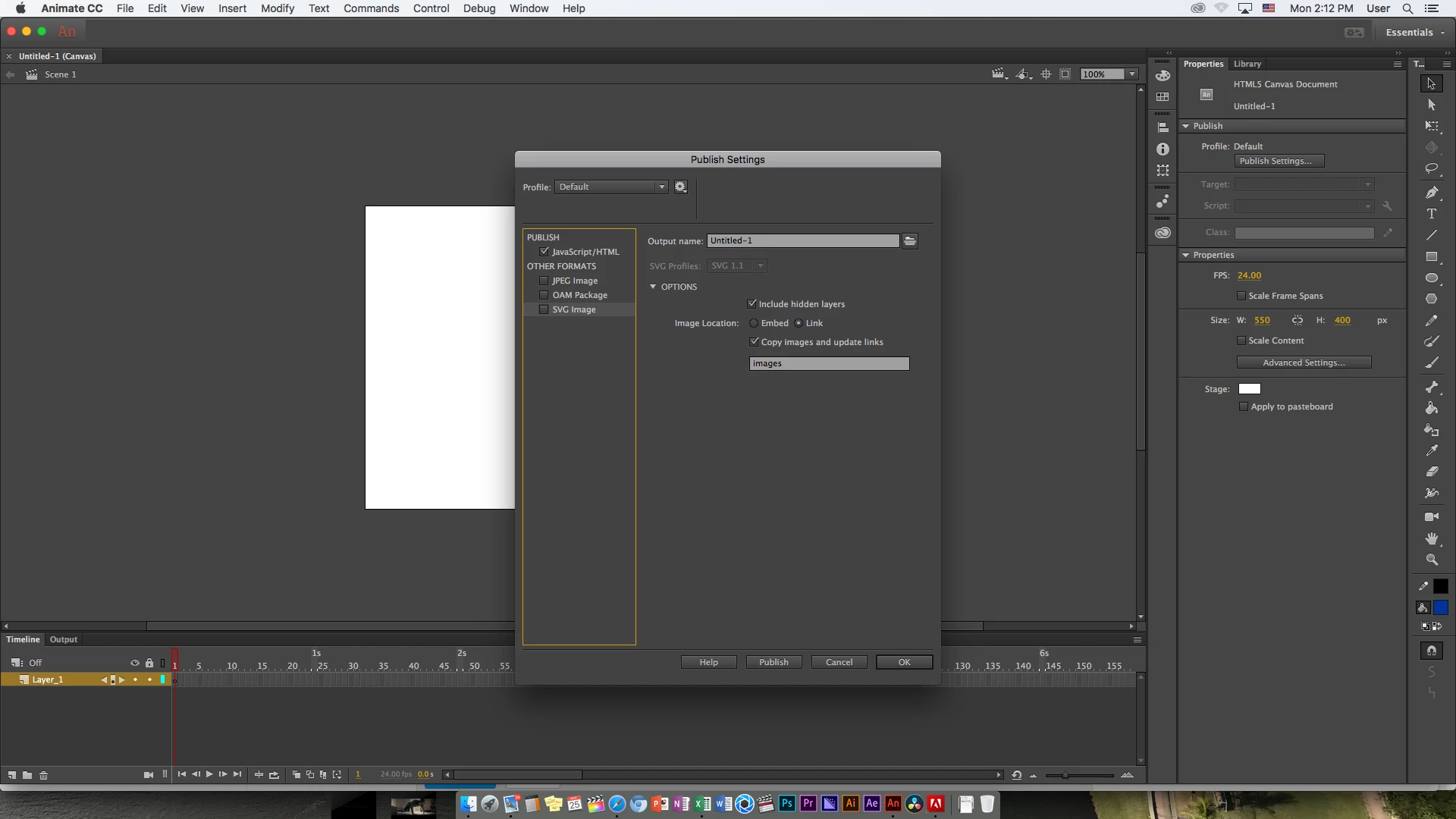

    i just realized that what I said about the screenshot of Dr. Ayman Raafat is not quite correct. Sorry. He is in the specialized SVG Image settings. But I don't think that helps in your issue.

    The rest what I am writing is still relevant

    Klaus

    kdmemory
    Inspiring
    March 25, 2019

    Hi Chemistry Guy

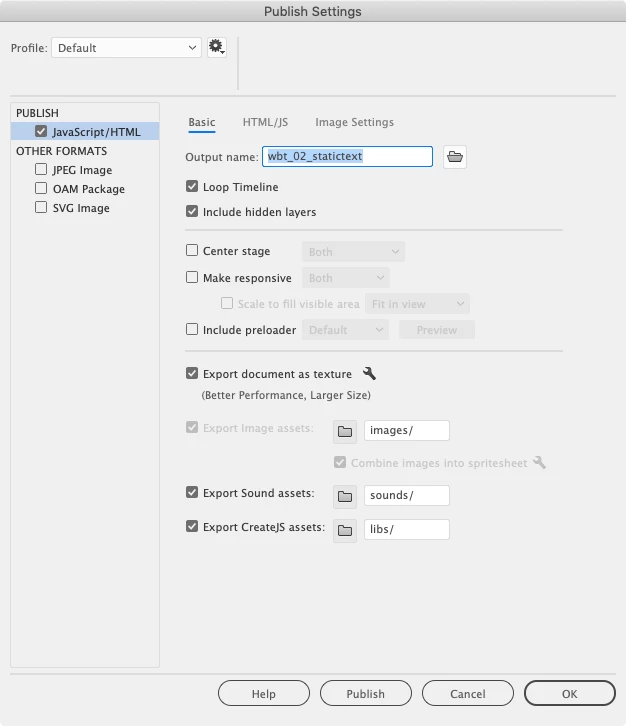

    I don't know which version of Animate CC Dr. Ayman Raafat is using in his screenshot but it must be an older version of Animate. In newer versions the Publish Settings for HTML5/Canvas are looking like this (Ignore the different user interface color choice):

    While *.jpg or *.png images were encapsulated into the *.swf file, this is different under HTML5 conditions.

    Export image assets are by default published into the images/ folder within your project folder.

    Have you looked into your images/ folder if you can see your images or is the folder empty? Or even non-existent?

    You have basically three choices for your graphics export:

    - Export document as texture

    Here all graphic elements including raster images (e.g. png), vectors and static texts are combined into spritesheets always with the name pattern:

    yourfilename_atlas_n.png,

    - or if this texture option is unchecked, only your raster images will be combined into spritesheets, when the additional option Combine images into spritesheet is ticked,

    - if the last option is unchecked your raster images will be published as singles into the images/ folder.

    Which version of Animate CC are you using?

    Klaus

    Dr. Ayman Raafat Ph.D
    Inspiring
    March 25, 2019

    it was not possible to import flash to edge animate but its possible to export flash to html5 canvas but in the latest Animate versions try to check the publish settings embedded and linked also the other formats options
