Participant
September 14, 2017
Answered

need help with masking

  • September 14, 2017
  • 2 replies
  • 492 views

Hi. I got a question on how to attain some effects in Adobe Animate CC:

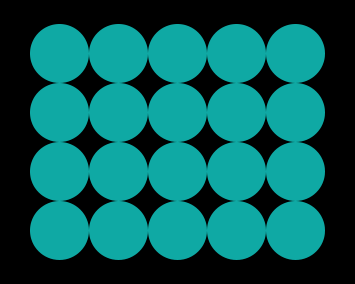

1: How to make a mask like this:

2: How to make a text "50" appears smoothly like this:

I've rummaged all internet in search of answer, but without any success, so need help.

P.S. Sorry for my English 😃

This topic has been closed for replies.
Correct answer Colin Holgate

The mask layer for the first example would just be a bunch of circles, and the animated gradient would be the layer that is being masked.

For the second one the general approach would be to have a mask layer that is exactly like the writing, then make a key frame in the mask layer and delete some of the mask. Make another keyframe and delete more. Keep going until all of the mask layer is erased. Now select the frames in the mask layer, right-click, and choose Reverse Frames. You should then have the handwriting effect you see in the example.

Don't forget that you only see the effect of the mask when doing a Test Movie, or if you lock both layers.

2 replies

Colin Holgate
Colin HolgateCorrect answer
Inspiring
September 14, 2017

The mask layer for the first example would just be a bunch of circles, and the animated gradient would be the layer that is being masked.

For the second one the general approach would be to have a mask layer that is exactly like the writing, then make a key frame in the mask layer and delete some of the mask. Make another keyframe and delete more. Keep going until all of the mask layer is erased. Now select the frames in the mask layer, right-click, and choose Reverse Frames. You should then have the handwriting effect you see in the example.

Don't forget that you only see the effect of the mask when doing a Test Movie, or if you lock both layers.

Fumio Nonaka
Inspiring
September 14, 2017

As for your question #2, see this Flash animation.  While its captions are in Japanese, you may understand from animation.
