Question

Resize event not working properly on android

  • October 5, 2018
  • 0 replies
  • 273 views

I'm currently working on a responsive design for an android app. I wrote a resize event listener and tested it while setting the target to flash player so I could change the window size while testing. It worked properly, it also worked properly when testing it with the target set to AIR for Android. However when I installed the app on my own android device (samsung galaxy s7) several parts are misplaced.

Since it's working while testing I assume that I have written the actual event listener right but I don't understand why some items are misplaced on an actual device.

I have three different if statements in my resize listener, the other two works fine (two different settings for a portrait format) but only the landscape one is not working. It's quite a lot of code for the entire resize event so I'll just add the part of the code that covers the landscape setting. I have added "import flash.display.StageScaleMode;" and "import flash.display.StageAlign;", scaleMode is set to "NO_SCALE" and align is set to "TOP_LEFT"

else if (swfWidth > swfHeight * 1.16) {

Panels2color.visible = true;

Panels2.visible = true;

Background.height = swfHeight;

Background.scaleX = Background.scaleY;

Background.x = Panels2.width + (Background.width * 0.5) + ((stage.stageWidth - Panels2.width - Background.width) * 0.5);

Background.y = stage.stageHeight / 2;

Character.scaleY = Background.scaleY;

Character.scaleX = Character.scaleY;

Character.x = Panels2.width + (Background.width * 0.5) + ((stage.stageWidth - Panels2.width - Background.width) * 0.5);

Character.y = stage.stageHeight / 2;

Panels2color.scaleX = Background.scaleX;

Panels2color.scaleY = Panels2color.scaleX;

Panels2color.x = (Panels2color.width * 0.5) + ((stage.stageWidth - Panels2.width - Background.width) * 0.5);

Panels2color.y = (stage.stageHeight * 0.22) + Panels2color.height;

Panels2.scaleX = Background.scaleX;

Panels2.scaleY = Panels2.scaleX;

Panels2.x = (Panels2color.width * 0.5) + ((stage.stageWidth - Panels2.width - Background.width) * 0.5);

Panels2.y = (stage.stageHeight * 0.22);

Landscapemenu.scaleX = Background.scaleX;

Landscapemenu.scaleY = Landscapemenu.scaleX;

Landscapemenu.x = (Panels2color.width * 0.5) + ((stage.stageWidth - Panels2.width - Background.width) * 0.5);

Landscapemenu.y = 0;

Landscapemenu.visible = true;

Panels3landscape.visible = true;

Panels1landscape.visible = true;

Panels3.visible = false;

Panels1.visible = false;

Panels2.Gotocolors.visible = false;

Panels2color.Gotoitems.visible = false;

Panels3landscape.scaleY = Background.scaleY;

Panels3landscape.scaleX = Panels3landscape.scaleY;

Panels3landscape.x = (Panels2color.width * 0.5) + ((stage.stageWidth - Panels2.width - Background.width) * 0.5) - (Panels2color.width * 0.42);

Panels3landscape.y = Landscapemenu.height * 0.845;

Panels1landscape.scaleY = Background.scaleY;

Panels1landscape.scaleX = Panels1landscape.scaleY;

Panels1landscape.x = (Panels2color.width * 0.5) + ((stage.stageWidth - Panels2.width - Background.width) * 0.5) - (Panels2color.width * 0.485);

Panels1landscape.y = Landscapemenu.height * 0.065;

}

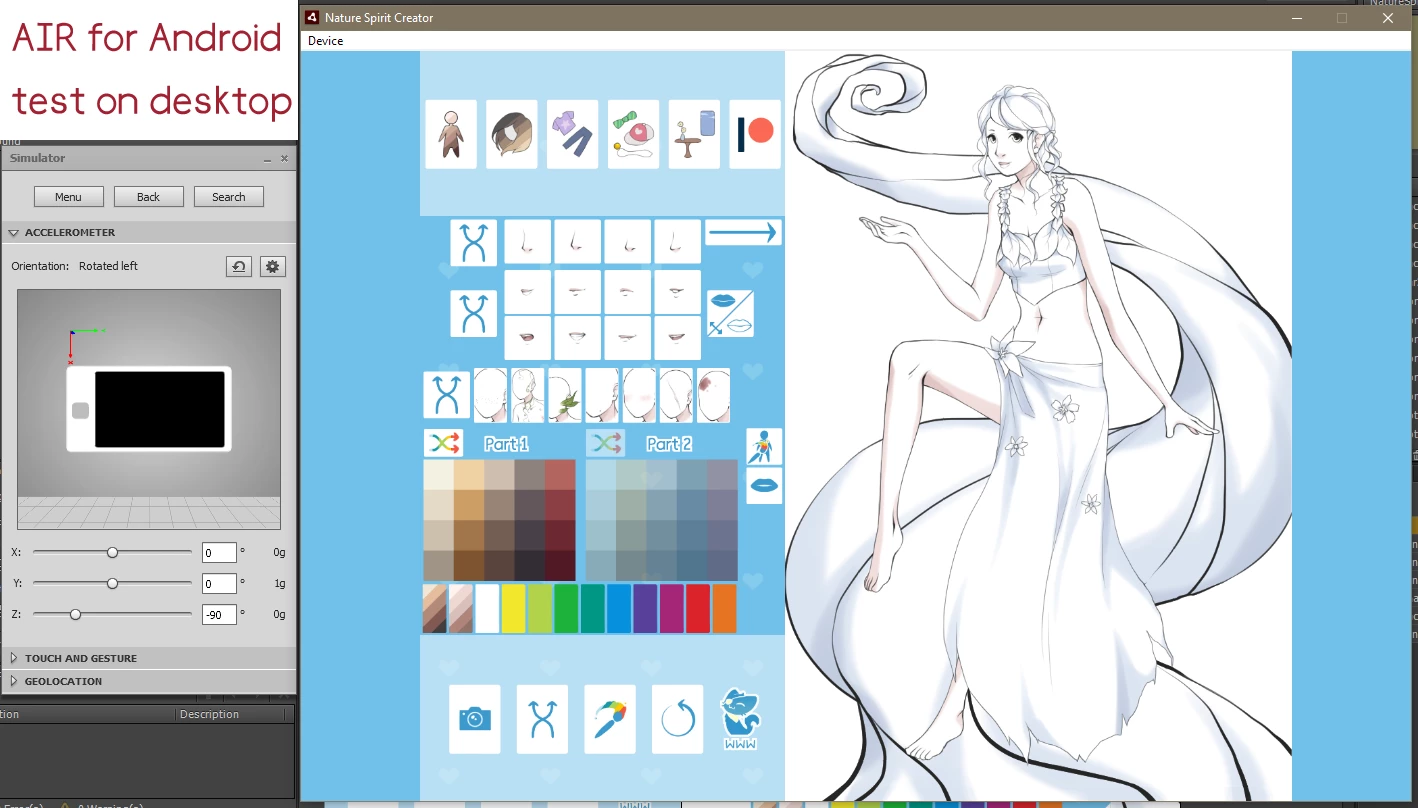

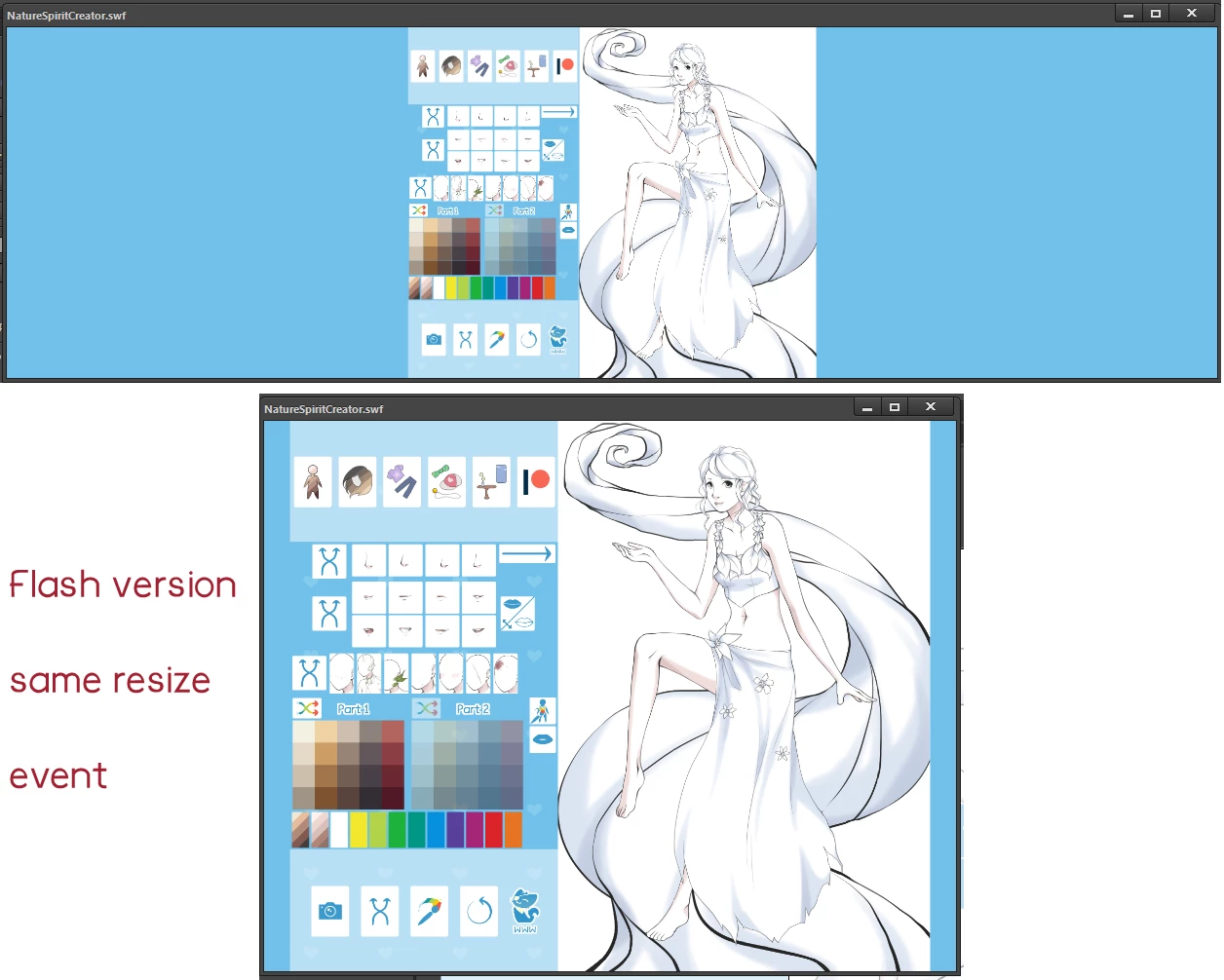

Does anyone know what's wrong? I'll add photos that shows what I'm writing about and to make sense of the code I pointed out what parts have what instance name as well as where the registration point is, although since it's working properly when testing I have a hard time seeing that the actual resize event code is what's wrong...


This topic has been closed for replies.
