Vector graphics quality when exporting to MP4

Hi All

I've got some issues when exporting my animation into MP4.

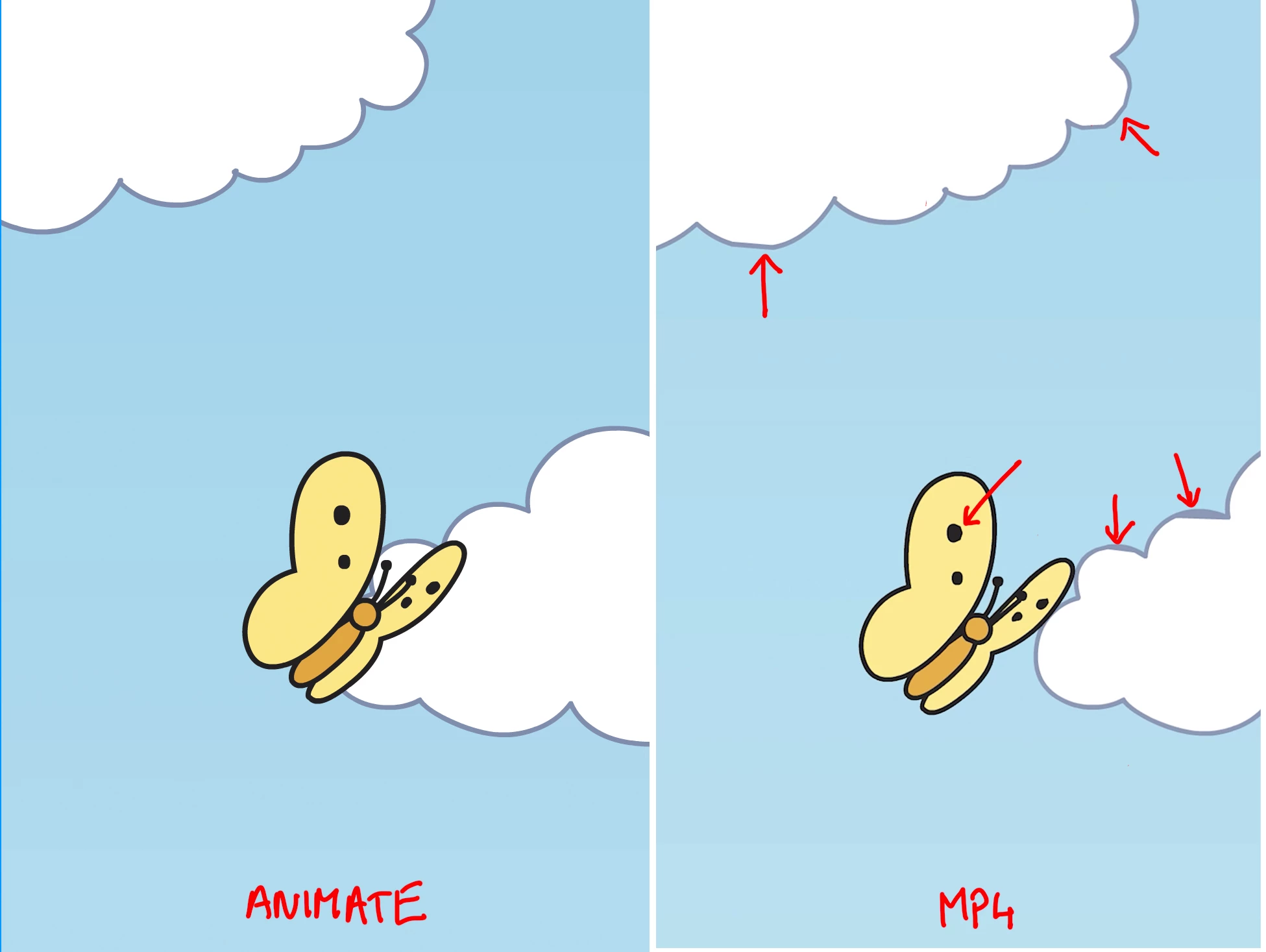

I'm using vectors graphics and they appear ok in my workspace but when exporting the outlines are all choppy.

I tried to increase my canvas size and tweak the settings but nothing seems to work. The only option would be to convert the symbols into bitmap but I would like to avoid this if possible.

I'm running out of ideas and hope someone could help me solve this problem



Thanks a lot !

    This topic is closed to new replies. Start a new post to keep the conversation going.
    laurent23821898h5g1Correct answer
    Participant
    Mar 31, 2022 2:42 PM UTC

    Thanks a lot for the replies!!

    I actually I solve the problem by increasing the size in illustrator first and then importing again into animate. When I increase the size in animate first it doesn't work for some reason ...



    Now the quality is great.

    I'm a newby with this program and I've been learning stuff everyday



    Thanks again

    View reply

    4 replies

    laurent23821898h5g1AuthorCorrect answer
    Participant
    Mar 31, 2022 2:42 PM UTC

    Thanks a lot for the replies!!

    I actually I solve the problem by increasing the size in illustrator first and then importing again into animate. When I increase the size in animate first it doesn't work for some reason ...



    Now the quality is great.

    I'm a newby with this program and I've been learning stuff everyday



    Thanks again

    Translate
      n. tilcheff
      n. tilcheff
      Legend
      Mar 31, 2022 10:41 PM UTC

      I'm coming to the party too late to help, but here is an explanation, if someone comes across the thread in the future:



      This problem (shapes not rendering well is Flash Player) occurs when resolution is too low at raw shape level.

      That is why increasing the size of the symbols in Animate did not help.

      It should be done either on the inside of the symbol to the raw vector shape, or after scaling up the symbols the matrices have to be reset with Zero Transform.



      In this case with imported artwork, obviously scaling up within Illustrator achieved the same result - increasing the pixel dimensions of the raw vectors.



      Translate
      Nick - Character Designer and Animator, Flash user since 1998 | Member of the Flanimate Power Tools team - extensions for character animation
      _keyframer
      Community Expert
      _keyframerCommunity Expert
      Community Expert
      Mar 31, 2022 2:15 PM UTC

      What is the stage/document size (width & height) and what size are you exporting to? I've never seen this personally. Are you using the new advanced rigging asset warp tool by anychance? I ask because by default it converts your vector art to bitmap which could cause problems.

      Translate
      Animator and content creator for Animate CC
      Community Expert
      Nick GioiaCommunity Expert
      Community Expert
      Mar 31, 2022 11:20 AM UTC

       export of animate as a .mov first then take it into media encoder an expert MP4 should look better.
