Canon lens 10-18 [No lens correction profile available]

  • October 29, 2018
  • 2 replies
  • 2495 views

I want to correct for lens distortion in photos taken with a Canon lens 10-18.

It is not in the list of lenses in the menu.

I am currently using the free-trial Lightroom on my MacBook. Is it possible to include other lens profiles to the software?

I tried correcting with the 10-22 profile, but it is not giving the desired result. Best is the correction when the slider is at zero. I would expect the optimal result in 100% correction?

    This topic has been closed for replies.
    Correct answer ssprengel

    The small set of Canon lens profiles in your screenshot means you're viewing a JPG.  Most lens profiles only work for RAW (.CRW or .CR2 for Canon) format files.  Select a .CR2 (instead of a JPG, PSD or TIF) and you should see many Canon profiles, more like this partial list that includes the profile you're looking for:

    2 replies

    ssprengel
    ssprengel
    Inspiring
    October 30, 2018

    As Gary-SC shows, if you are using a recent LR version > 5.6 and I would add, shooting raw images, then the correction should be there and automatically detected, assuming your lens is the Canon EF-S 10-18mm f/4.5-5.6 IS STM.

    If you are not sure what you’re doing please upload a raw image taken with your camera and that lens to somewhere like dropbox or googledrive or onedrive (or some other large-file-hosting site) and post a public share link to that raw imgae, here, and others can try it and tell you it is working for them or what it is different and won’t work.

    gary_sc
    Community Expert
    gary_scCommunity Expert
    Community Expert
    October 29, 2018

    HI Bosman,

    Hmm, maybe not. These profiles are made all the time but since there are thousands of lenses out there, those that are not as popular may be late in the game. I have the 10-22 lens (love it) and there (as you noted) a profile for that.

    I just looked here (Supported lenses  ) and I did find the

    Canon EF-S 10-18mm f/4.5-5.6 IS STMCanon5.6/8.6

    which shows that it needs LR 5.6 or ACR v. 8.6, Or, something that was released a long time ago.

    So, I'm not fully sure why your lens isn't coming up, it should.

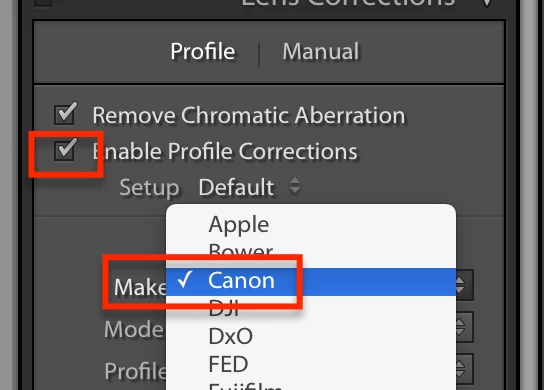

    I know for myself, sometimes when I go into Lens Corrections and select Enable Profile Corrections, it doesn't snap into my lens. However, if I select Canon from the "Make" dropdown, it fill in appropriately from there. I'm assuming you've done that?

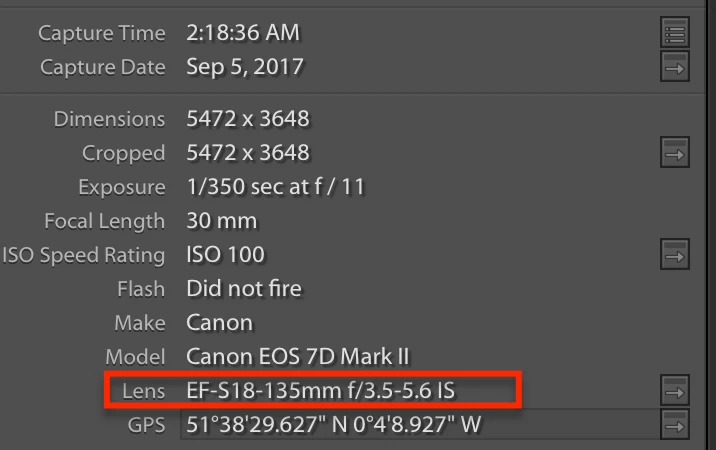

    And just out of curiosity, when you look at your metadata (from the Library tab, bottom right), what does it show for Lens information? Here's what mine is showing.

    I'm going to guess that if your metadata is not showing the lens, there may be a different issue going on here. But we'll see.

    Good luck on this. I have the 10-22 and love it. Let me know what you find.

    frans bosman
    frans bosmanAuthor
    Participant
    October 30, 2018

    Thanks for your reply, good to see it should work.

    My photo contains the lens info.

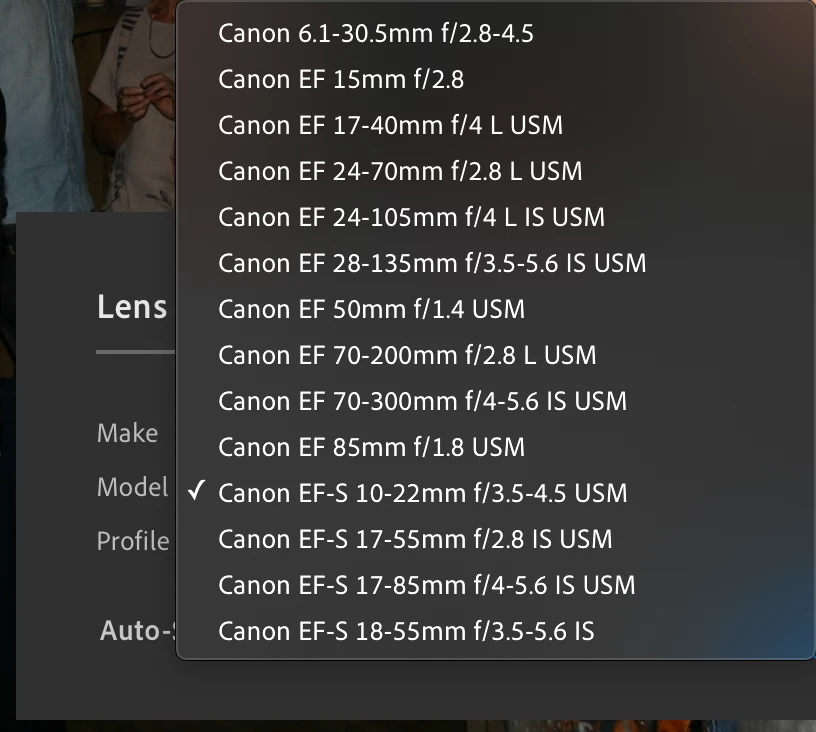

    Below the selection I get when pressing the make Canon

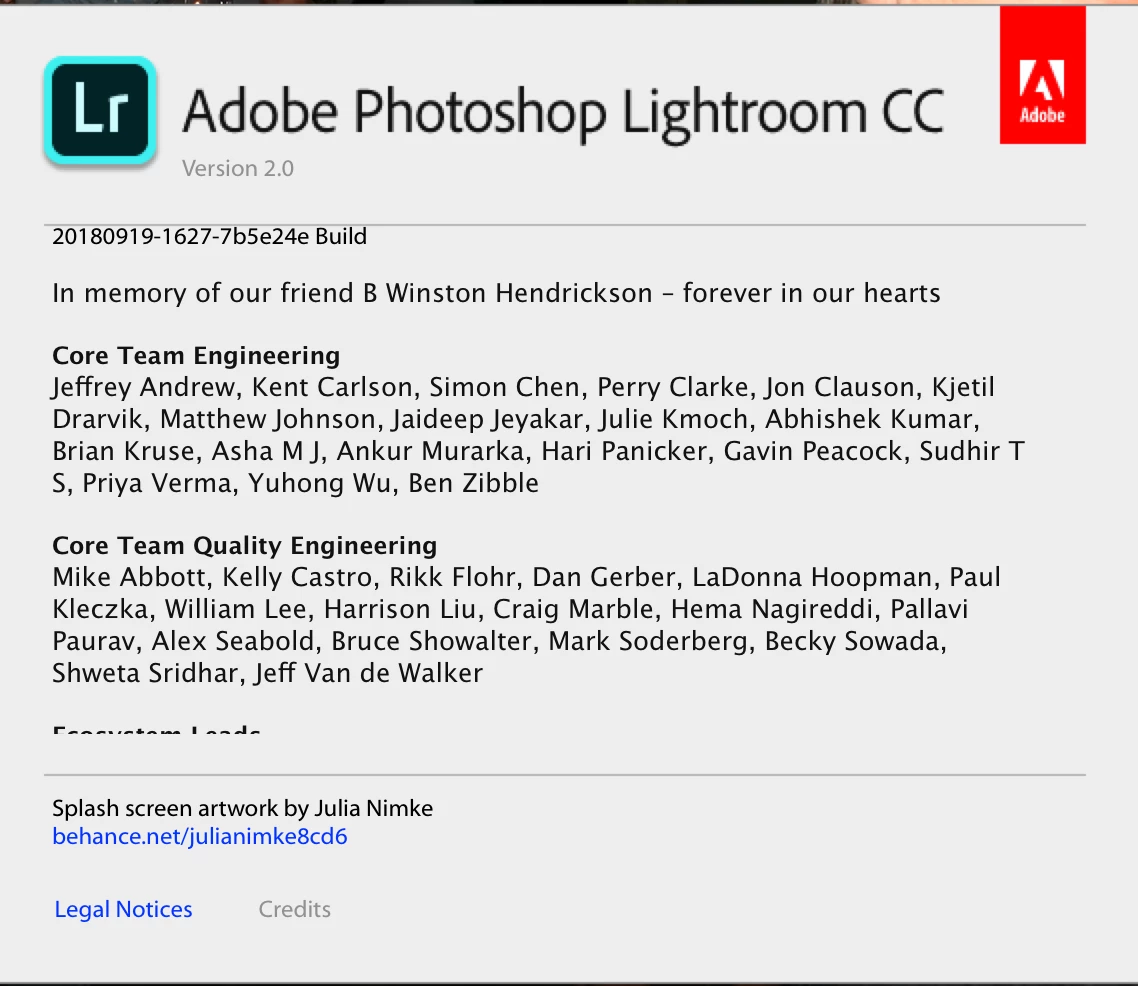

    I mentioned in my question that I have a trial version, this is the about screen.

    You mentioned other versions, this is what I got when choosing lightroom as trial version.

    ssprengel
    ssprengelCorrect answer
    Inspiring
    November 1, 2018

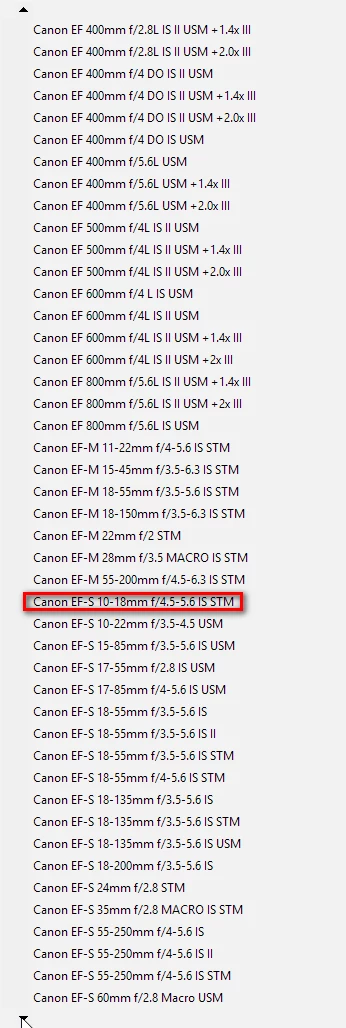

    The small set of Canon lens profiles in your screenshot means you're viewing a JPG.  Most lens profiles only work for RAW (.CRW or .CR2 for Canon) format files.  Select a .CR2 (instead of a JPG, PSD or TIF) and you should see many Canon profiles, more like this partial list that includes the profile you're looking for:
