CF Chart - Using WebChart Dial Style?

  • July 25, 2011
  • 1 reply
  • 4152 views

Using ColdFusion 7 on Windows Server 2003.

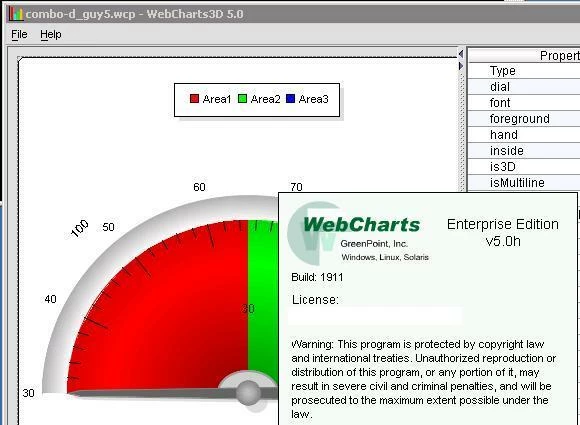

Is there a way to implement Webchart 5.0 Dial chart (template ..\charting\gallery\a-combo-3D\combo-d.wcp) through ColdFusion?

There is no ColdFusion chart type="Dial".  But can Webchart style sheet (in XML Style tab) along with JSP coding (in Code View tab) be embedded to drive a dial chart graphic output in Coldfusion page?

    This topic has been closed for replies.
    Correct answer -__cfSearching__-

    >    <dialChart dial="Dial180"

    Was your WCP file generated with the MX7 version of webcharts?

    Did you try it with the default settings first? Those worked fine for me. Start with the vanilla chart. If it is successful, add in one customization at a time until it breaks.

    Message was edited by: -==cfSearching==-


    Page now displays the border and legend, but still shows no dial graphic.

    You are going to laugh.  I think it is because the width/height are too small. Increase it to 500x500 and it shows.

    Just set the axis minimum to 0, to adjust the needle position and you are all set.

            ie <axis scaleMin="0">

    1 reply

    -
    -__cfSearching__-
    Inspiring
    July 25, 2011

    You need to tap into the webcharts engine. Here is a CF8 example

    http://www.coldfusionjedi.com/index.cfm/2008/1/18/Coolest-CFCHART-Trick-Ever

    G
    GuyMcMickleAuthor
    Inspiring
    July 26, 2011

    Webcharts 5.0 has <dialChart> rather than <gauge> object in its wcp XML file structure.  Does the referenced ColdFusionJedi design work with <dialChart>?

    There is a gauge documented in version 5.2.  Or is a <gauge> object in 5.0 release that I am not seeing?

    -
    -__cfSearching__-
    Inspiring
    July 26, 2011

    No "gauge" chart in 5.0 that I can see. I was referring to the two styles of dialCharts. One is similar in appearance to "gauge". I think that is the best you can do with 5.0.

    Does the referenced ColdFusionJedi design work with

    <dialChart>?

    The overall code should work. But give it a whirl and see.
