CFB2 unable to access Services Browser (unable to get metadata for CFC)

  • June 25, 2011
  • 1 reply
  • 1895 views

Hello --

I'm a novice with CF9.

== Scenario

- Mac OS X v10.6.8

- ColdFusion v9 [updated to latest 9.0.1]

- JRun with integrated WebServer [listen on 8500 port]

- Developer mode

- ColdFusion Builder v2.0.0 Build 277745 [standalone installation]

- Created a simple local CF9 server [localhost, local, 8500, ServerHome /Applications/ColdFusion9, ServerRoot /Applications/ColdFusion9/wwwroot]

- Enabled Debugger Mode in ColdFusion Administrator, test debugger ok, no problem

- RDS Viewer ok

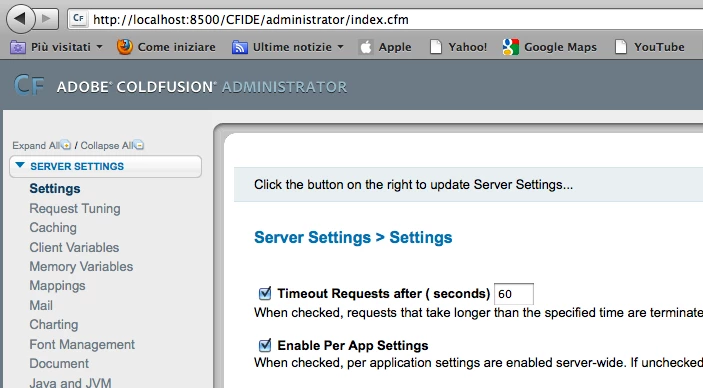

- I'm able to open localhost:8500/CFIDE/administration without any problem

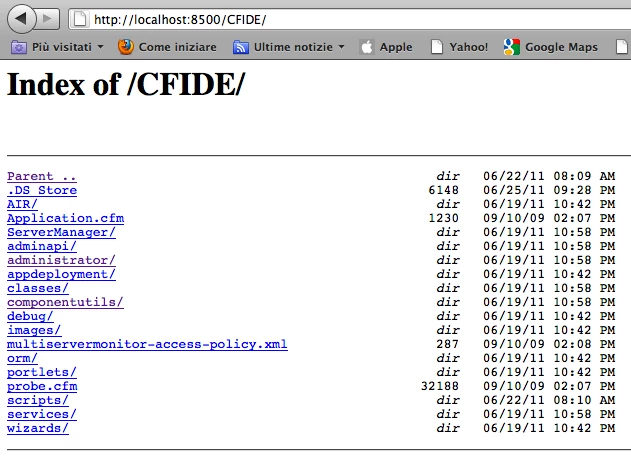

- I'm able to browsing CFIDE WebServer

== Problem

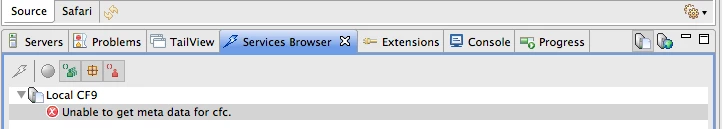

Within CFB2, when I try to open my local CF9 server to inspect RDS Server, I'm unable to view/introspect CFC Components.

I receive an error message "Unable to get meta data for cfc".

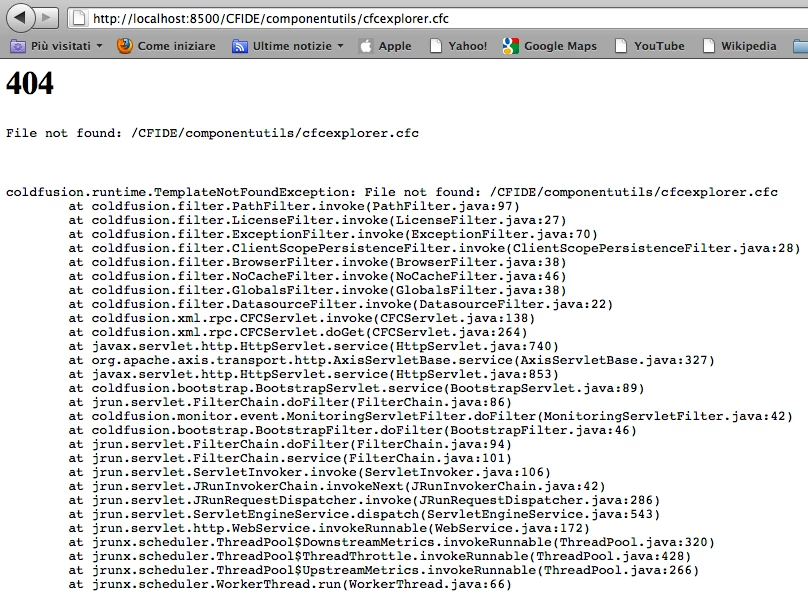

- In effect, trying to open cfcexplorer.cfc in componenutils path, I receive a 404 error

== Server Details

Server Details
Server ProductColdFusion
Version9,0,1,274733
EditionDeveloper
Serial NumberDeveloper
Operating SystemMac OS X
OS Version10.6.8
Adobe Driver Version4.0 (Build 0005)
JVM Details
Java Version1.6.0_24
Java VendorApple Inc.
Java Vendor URLhttp://www.apple.com/
Java Home/System/Library/Java/JavaVirtualMachines/1.6.0.jdk/Contents/Home
Java File EncodingMacRoman
Java Default Localeit_IT
File Separator/
Path Separator:
Line SeparatorChr(10)
User Namegobbo67
User Home/Users/gobbo67
User Dir/Applications/Adobe ColdFusion Builder 2/CFBuilder.app/Contents/MacOS
Java VM Specification Version1.0
Java VM Specification VendorSun Microsystems Inc.
Java VM Specification NameJava Virtual Machine Specification
Java VM Version19.1-b02-334
Java VM VendorApple Inc.
Java VM NameJava HotSpot(TM) 64-Bit Server VM
Java Specification Version1.6
Java Specification VendorSun Microsystems Inc.
Java Specification NameJava Platform API Specification
Java Class Version50.0

== Extract from application.log

25-giu-201122.21Errorweb-29
File not found: /CFIDE/componentutils/cfcexplorer.cfc The specific  sequence of files included or processed is:  /Applications/ColdFusion9/wwwroot/CFIDE/componentutils/cfcexplorer.cfc''
25-giu-201122.21Errorweb-29
Exception thrown by error-handling template:
25-giu-201122.21Errorweb-29
File not found:  /Applications/ColdFusion9/wwwroot/WEB-INF/exception/coldfusion/runtime/TemplateNotFoundException.cfm  The specific sequence of files included or processed is:  /Applications/ColdFusion9/wwwroot/WEB-INF/exception/coldfusion/runtime/TemplateNotFoundException.cfm''

== Extract from exception.log

"Error","web-29","06/25/11","22:21:10",,"File not found: /Applications/ColdFusion9/wwwroot/WEB-INF/exception/coldfusion/runtime/TemplateNotFoundException.cfm The specific sequence of files included or processed is: /Applications/ColdFusion9/wwwroot/WEB-INF/exception/coldfusion/runtime/TemplateNotFoundException.cfm'' "

coldfusion.runtime.TemplateNotFoundException: File not found: /Applications/ColdFusion9/wwwroot/WEB-INF/exception/coldfusion/runtime/TemplateNotFoundException.cfm

[...]

My problem is probably similar to http://forums.adobe.com/thread/503319

Any suggest is appreciate.

Alex/

This topic has been closed for replies.

1 reply

G
gobbo67Author
Participant
June 27, 2011

Hello --

after spending many hours I'm believe that probably my concern arent related to CFBuilder [or not only] but also with CF9 installation on Mac OS X.

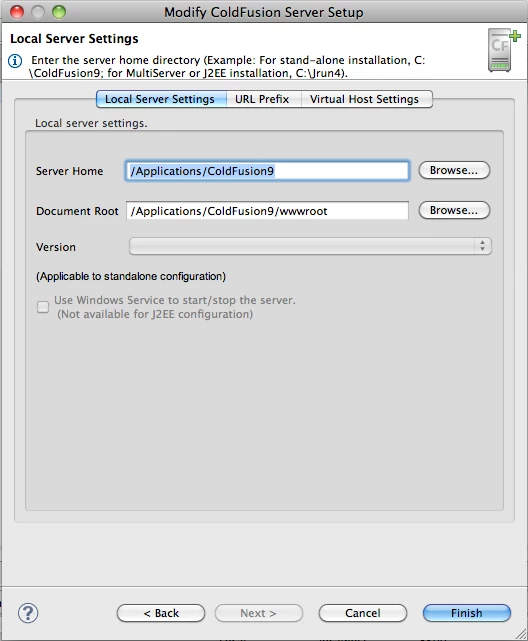

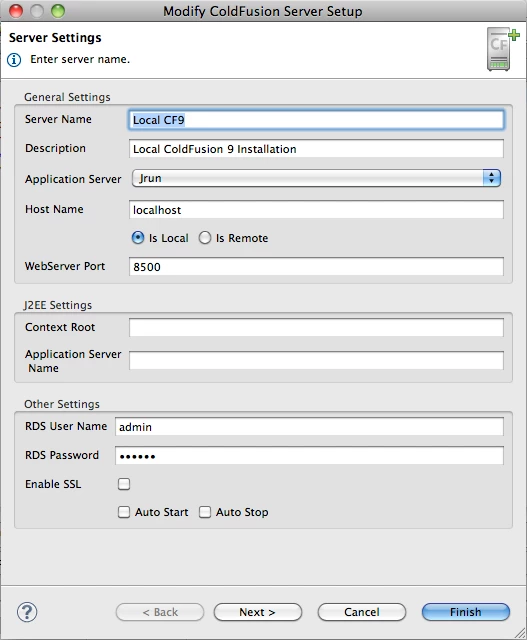

Attached you can find  screen-shot about second page of Server Setup. Please note that I have  configured a *local* server (not remote) with a developer environment.



Additional  info; after checking in detail, I have noted that integrated WebServer  (that I'm believe is JRun based) listen on 8500 is unable to open any  .cfm page.

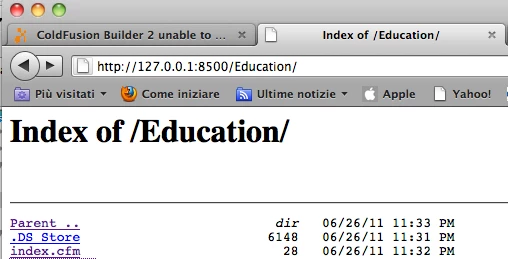

Under a directory created in WebRoot [Applications\ColdFusion9\wwwroot\Education] I have created a dumb index.cfm page, but that isnt executed.
But whem I go in CFIDE\administration all is working nicely.

Where can I check about integrated WebServer configuration, handler, etc?

== Error from Local CF9 server.log
27/06 09:02:01 error Requested resource 'File not found: /Education/index.cfm' (File%20not%20found%3a%20%2fEducation%2findex.cfm) not found
java.lang.IllegalStateException
      at jrun.servlet.JRunResponse.getWriter(JRunResponse.java:205)
      at jrun.servlet.JRunResponse.sendError(JRunResponse.java:597)
      at jrun.servlet.JRunRequestDispatcher.invoke(JRunRequestDispatcher.java:316)
      at jrun.servlet.ServletEngineService.dispatch(ServletEngineService.java:543)
      at jrun.servlet.http.WebService.invokeRunnable(WebService.java:172)
      at jrunx.scheduler.ThreadPool$DownstreamMetrics.invokeRunnable(ThreadPool.java:320)
      at jrunx.scheduler.ThreadPool$ThreadThrottle.invokeRunnable(ThreadPool.java:428)
      at jrunx.scheduler.ThreadPool$UpstreamMetrics.invokeRunnable(ThreadPool.java:266)
      at jrunx.scheduler.WorkerThread.run(WorkerThread.java:66)

== About starting server.log
"Information","main","06/27/11","08:49:04",,"Starting logging..."
"Information","main","06/27/11","08:49:04",,"Starting license..."
"Information","main","06/27/11","08:49:04",,"Invalid ColdFusion 9 license."
"Information","main","06/27/11","08:49:04",,"Invalid ColdFusion 9 license."
"Information","main","06/27/11","08:49:04",,"Developer Edition enabled"
"Information","main","06/27/11","08:49:04",,"Starting crypto..."
"Information","main","06/27/11","08:49:04",,"Installed  JSafe JCE provider: Version 3.6 RSA Security Inc. Crypto-J JCE Security  Provider (implements RSA, DSA, Diffie-Hellman, AES, DES, Triple DES,  DESX, RC2, RC4, RC5, PBE, MD2, MD5, RIPEMD160, SHA1, SHA224, SHA256,  SHA384, SHA512, HMAC-MD5, HMAC-RIPEMD160, HMAC-SHA1, HMAC-SHA224,  HMAC-SHA256, HMAC-SHA384, HMAC-SHA512)"
"Information","main","06/27/11","08:49:04",,"Starting security..."
"Information","main","06/27/11","08:49:04",,"Starting scheduler..."
"Information","main","06/27/11","08:49:04",,"Starting WatchService..."
"Information","main","06/27/11","08:49:04",,"Starting debugging..."
"Information","main","06/27/11","08:49:04",,"Starting sql..."
"Information","main","06/27/11","08:49:05",,"Pool Manager Started"
"Information","main","06/27/11","08:49:05",,"Starting mail..."
"Information","main","06/27/11","08:49:05",,"Starting runtime..."
"Information","main","06/27/11","08:49:05",,"CORBA Configuration not enabled"
"Information","main","06/27/11","08:49:05",,"Starting cron..."
"Information","main","06/27/11","08:49:05",,"Starting registry..."
"Information","main","06/27/11","08:49:05",,"Starting client..."
"Information","main","06/27/11","08:49:06",,"Starting xmlrpc..."
"Information","main","06/27/11","08:49:06",,"Starting graphing..."
"Information","main","06/27/11","08:49:07",,"Starting verity..."
"Information","main","06/27/11","08:49:07",,"Starting solr..."
"Information","main","06/27/11","08:49:07",,"Starting archive..."
"Information","main","06/27/11","08:49:07",,"Starting document..."
"Information","main","06/27/11","08:49:07",,"Starting eventgateway..."
"Information","main","06/27/11","08:49:07",,"Starting FlexAssembler..."
"Information","main","06/27/11","08:49:07",,"Starting .NET..."
"Information","main","06/27/11","08:49:07",,"Starting Monitoring..."
"Information","main","06/27/11","08:49:07",,"ColdFusion started"
27/06 08:49:07 user ColdFusionStartUpServlet: ColdFusion: application services are now available
27/06 08:49:07 user CFMxmlServlet: init
27/06 08:49:07 user CFMxmlServlet: Macromedia Flex Build: 87315.134646
27/06 08:49:07 INFO Macromedia Flex Build: 87315.134646
27/06 08:49:08 user CFSwfServlet: init
27/06 08:49:08 user CFCServlet: init
27/06 08:49:09 user FlashGateway: init
27/06 08:49:09 user MessageBrokerServlet: init
27/06 08:49:09 user CFFormGateway: init
27/06 08:49:09 user CFInternalServlet: init
27/06 08:49:09 user WSRPProducer: init
27/06 08:49:10 user ServerCFCServlet: init
Server coldfusion ready (startup time: 10 seconds)
06/27 08:49:20 [Thread-15] WARN  PDFM_W19004: The system font "/Library/Fonts/Baskerville.ttc" could not be loaded.
com.adobe.fontengine.font.InvalidFontException: Data could not be copied
      at com.adobe.fontengine.font.opentype.FontFactory$TableToLoad.load(Unknown Source)
      at com.adobe.fontengine.font.opentype.FontFactory$FontToLoad.load(Unknown Source)
      at com.adobe.fontengine.font.opentype.FontFactory$TTCToLoad.load(Unknown Source)
      at com.adobe.fontengine.font.opentype.FontFactory.load(Unknown Source)
      at com.adobe.fontengine.font.opentype.FontFactory.load(Unknown Source)
      at com.adobe.fontengine.fontmanagement.FontLoader.loadFont(Unknown Source)
      at com.adobe.fontengine.fontmanagement.FontLoader.load(Unknown Source)
      at com.adobe.internal.pdfm.util.FontSetBuilder.loadFontsPath(FontSetBuilder.java:385)
      at com.adobe.internal.pdfm.util.FontSetBuilder.loadFontsPath(FontSetBuilder.java:472)
      at com.adobe.internal.pdfm.util.FontSetBuilder.initFonts(FontSetBuilder.java:175)
      at com.adobe.internal.ddxm.Executive.initFonts(Executive.java:573)
      at coldfusion.document.DocumentServiceImpl.callAssemblerInitFonts(DocumentServiceImpl.java:1249)
      at coldfusion.document.DocumentServiceImpl.initializeDocumentService(DocumentServiceImpl.java:230)
      at coldfusion.document.DocumentServiceImpl.access$000(DocumentServiceImpl.java:52)
      at coldfusion.document.DocumentServiceImpl$1.run(DocumentServiceImpl.java:180)
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 08:53:14 user RDSServlet: init
27/06 09:00:52 user FileServlet: init

G
gobbo67Author
Participant
June 28, 2011

After many hours, I'm unable to solve problem with JRun Web Server embedded. I have uninstalled CF9 and re-installed from scratch, in Developer *but* with Apache Web Server, that obviously I have enabled (and configured with vhosts support).

Configuration Directory: /private/etc/apache2

Directory and file name of server binary: /usr/sbin/httpd

Directory and file name of server control script: /usr/sbin/apachectl

After that I'm able to access CFIDE/administration/index.cfm to complete setup.

After that I'm able to access CF9 server from CFBuilder2 (installed on same hardware), but only configuring local CF server like *remote* server.

After that I'm able to access Services Browser

So, now I'm using native Apache v2.x (64bit) instead of JRun Embedded WebServer; remains a mystery to see why JWS has not worked.
