Low cost Mac utility to detect embedded icc profiles?

  • January 2, 2019
  • 4 replies
  • 2943 views

Hi all,

and Happy new Year

Bit of background first:

I was helping out a lady yesterday with a Mac (Sierra) and Photoshop CS 2018 loaded. I have of course advised she update to the latest PS version.

She'd processed a load of images and placed them into an InDesign file and it turned out some had no embedded icc profile.

[and she's no idea how she managed to make that error]

- the lack of profiles was causing printing issues on here Epson [colour washed out on untagged files] probably as she had Adobe RGB images placed into an sRGB InDesign file .

Yeah, the InDesign colour settings were still on default, sRGB.

Not any more.

but even now there's no missing iCC profile detection in the "place" process so placed images [with no embedded profile] pick up "document RGB". Ideal for some workflows I guess, but a warning would be a nice option to have

I was trying to provide a simple tip so she could fully ensure that there WAS an embedded profile in each file before placing.

Open in Photoshop - yeah that should work, as long as missing profiles - ask when opening is checked

but please read on!

In Photoshop's color settings missing profiles - ask when opening is checked. So that’s test 1.

I realise that at bottom left of an open image the info panel can be set to icc profile and that SHOULD show the profile tag ONLY if it has an embedded profile -

so thats Test 2 - but I wanted to be totally she couldn't make the error again of saving and placing files without embedded profiles.

So, that’s the background

Here's where it gets strange

This is something that always (usefully) worked OK in the past - - open "assign profile" as a way of checking for the presence of an assigned profile

- and SURPRISINGLY - whatever the file status [embedded icc profile or not] "do not color manage this document" was always selected by default.

I've not seen Photoshop show the "do not color manage this document" option checked by default in the past (unless, of course, the file had been intentionally saved with no embedded profile)

strange?

SO, just to give the lady full peace and save placing every image into InDesign to check the embedded profile status I wondered if anyone knows of an available (simple and low cost) utility that can check for the embedded profile? There was a great one back in the Mac OS9 days that could even extract profiles ;~}  I know the colour management "Swiss Army Knife" Colorthink can do it, but at $149 its an expensive option for just that small amount of functionality.

thanks

and have a great 2019 all

With my regards, Neil Barstow

    This topic has been closed for replies.

    4 replies

    rob day
    Community Expert
    Community Expert
    January 4, 2019

    but even now there's no missing iCC profile detection in the "place" process so placed images [with no embedded profile] pick up "document RGB". Ideal for some workflows I guess, but a warning would be a nice option to have

    Actually there is a warning of sorts for image files—if you have the Link Info dialog open, the ICC Profile always gets listed as Document RGB when there's no embedded profile. The image’s profile property is "None", so an alert would be easy to script.

    You could assign the Place key command to this AppleScript:

    tell application "Adobe InDesign CC 2018"

        set myFile to (choose file with prompt "Please select a file to place") as alias

        if selection is {} then

            set i to place myFile on active page of layout window 1

        else

            set i to place myFile on selection

        end if

        if profile of item 1 of i is "None" then

            display dialog "The Image You just Placed Has No Embedded Profile"

        end if

    end tell

    For PDFs, ID, and AI files there's no way of knowing the embedded profiles, because there could be any number of profiled objects inside of those files.

    NB, colourmanagement
    Community Expert
    Community Expert
    January 4, 2019

    Hi Rob

    nice idea

    many thanks

    I'll keep that scripting idea up my sleeve.

    In this instance Bridge with a filter is working well.

    have a great 2019

    neil barstow

    Gusgsm
    Inspiring
    January 16, 2019

    Hi,

    I'd not comment the Photoshop and/or system ICC profile detection and embedding utility. But I'd like to remember that InDesign has a pair of options that save a lot of work and mistakes:

    The InDesign Info palette informs which profile is assigned to an image. In InDesign that does not mean which profile is embedded in the image, but which profile InDesign takes for granted for that image. So, it could be the embedded profile or an assumed one (either because it is the RGB working space inside InDesign or because the profile has been assigned manually or in mass with InDesign (relinking them).

    So, if you check an image with the info palette in InDesign which ICC profile it has (assigned or embbeded, it's irrelevant), you'd see it.

    And if you know that the profile is mistaken (because it has been assumed badly or whatever is the case), you can select the image object and go to "Object - Image color configuration" (I am translating from an Spanish InDesign, so the wording may be a bit different). There, you have the abilty of selecting a diffferent ICC profile for that image and the rendering intent of your choice.

    If she knews by sure which is the profile that should have been in place, she can check and solve the images right away in InDesign if the issue is just that she forgot to tag or embed the profile in the image.

    Bye.

    rob day
    Community Expert
    Community Expert
    January 4, 2019

    Also, OSX ships with AppleScripts, which include some sample colorsync droplets. They should be installed in /Library/Scripts/ColorSync. If you can't find them here is a zip archive:

    http://www.zenodesign.com/forum/ColorSyncScripts.zip

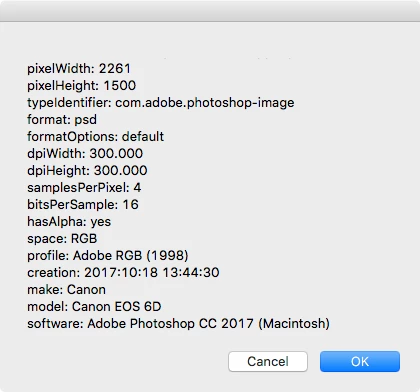

    The Show Info droplet returns this when you drop an image:

    But, if your friend finds an untagged image what would she do with that image? Open it in Photoshop and assign a random profile?

    With InDesign placed RGB image links with no embedded profile get assigned the Document's RGB profile, so it should be just a matter of choosing the desired profile via Edit>Assign Profiles... (not Color Settings>Working RGB), rather than going to the trouble of opening each file in Photoshop and resaving with a profile.

    If you are exporting to PDF for printing, be careful not to strip the RGB profiles during the export. The [High Quality Print] preset would do that, so make sure to Export using the PDF/X-4 preset, which leaves RGB color unchanged and always includes a profile.

    For CMYK links, InDesign has the Preserve Numbers (Ignore Linked Profiles) policy, which is useful in workflows where you want to prevent CMYK-to-CMYK conversions. But if you need CMYK profiles to be honored for inkjet printing, the CMYK policy has to be changed to Preserve Embedded. For existing documents you will have to check Ask When Opening to make the policy change.

    NB, colourmanagement
    Community Expert
    Community Expert
    January 4, 2019

    Rob

    thanks, that droplet will be useful.

    With my regards, Neil Barstow

    Stephen Marsh
    Community Expert
    Community Expert
    January 3, 2019

    Hi Neil,

    So many options to choose from:

    Adobe Bridge (free/cross platform):

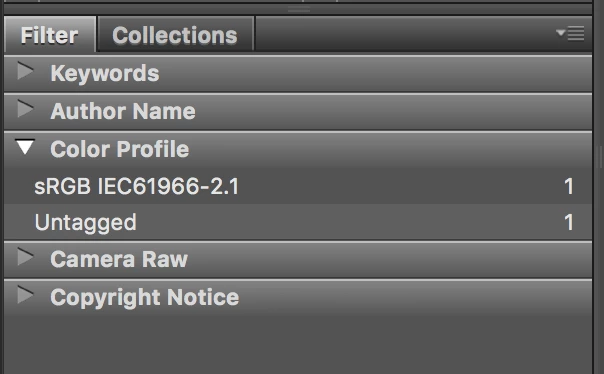

    Use the Filter panel to isolate untagged files by checking/ticking the “Untagged” filter.

    Adobe InDesign:

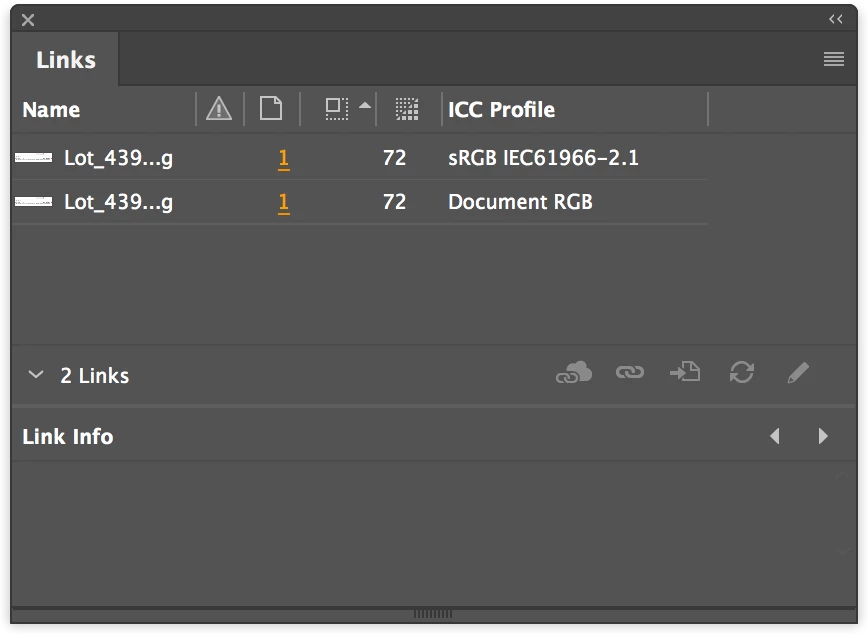

    The Links panel can be configured to show if an image has an ICC profile or not:

    ExifTool (free/cross platform):

    One can also use ExifTool to conditionally check files for the absence of an ICC profile (or presence), then do one of many different actions such as apply metadata such as an ICC profile or a label or rating or keyword, create a report file, move the file to another folder etc.

    On the Mac OS, the CLI code to create a .csv log file would be similar to:

    exiftool -csv -sourcefile -if 'not defined $ICC_Profile' -r 'Path/to/Input Folder or File' > 'Path/to/Output To/log_file.csv'

    Although CLI based, one can make simple drag-n-drop processing on Windows OS or use Apple Automator on the Mac OS to create a hot/watched folder, drag-n-drop app, contextual right click command, run from an OS script or batch file etc.

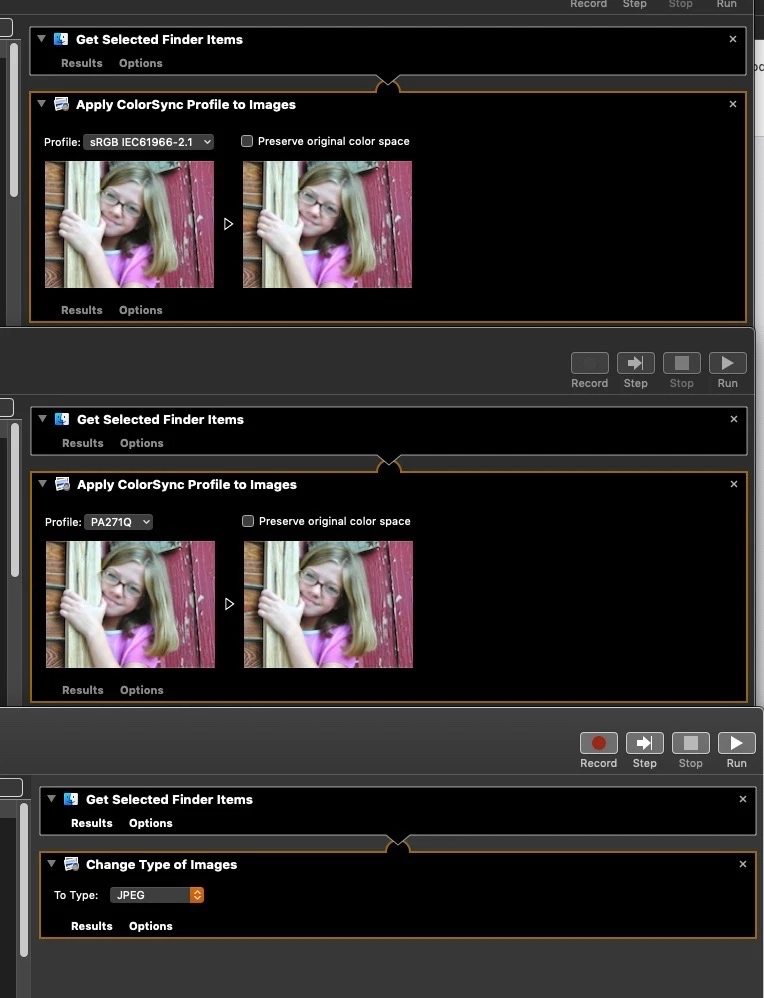

    Prepression: Apple Automator

    NB, colourmanagement
    Community Expert
    Community Expert
    January 3, 2019

    Hi Stephen,

    Happy 2019

    thanks

    that’s really useful information

    the ExifTool route may be a little complex for a working photographer, but certainly the filter in Bridge would work, and its free!

    great

    thanks lots

    neil barstow, colourmanagement

    D Fosse
    Community Expert
    Community Expert
    January 3, 2019

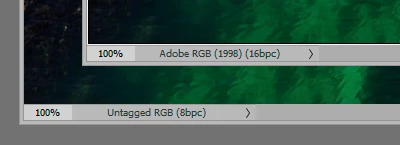

    I may be missing something here - but is there any particular reason this won't work?

    TheDigitalDog
    Inspiring
    January 2, 2019

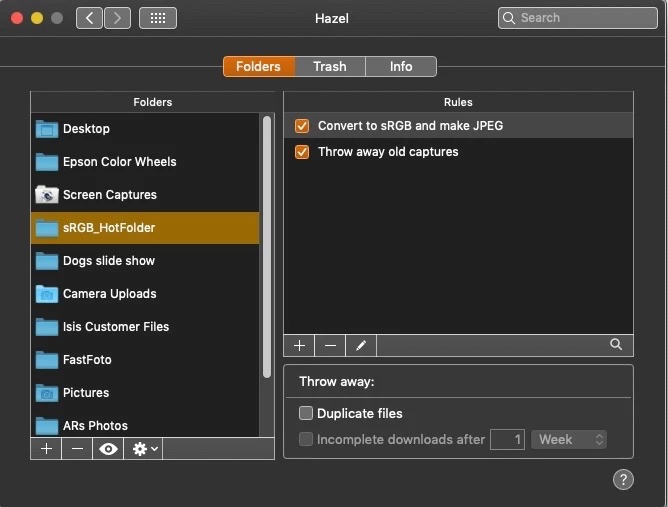

    I use an inexpensive Mac utility called Hazel. $32, can watch any folders you desire. It can find untagged documents and Assign or Convert (using Apple Script workflows). I use to also tag the images with the color space. It's invaluable for screen captures which all products appear to produce untagged. I have a Screen Capture folder, Hazel assigns the display profile. Then copies the TIFF to another folder and that watched folder is setup to convert to sRGB and JPEG. This is just a tiny amount of functionality it has.

    Noodlesoft – Noodlesoft – Simply Useful Software

    Author “Color Management for Photographers" & "Photoshop CC Color Management/pluralsight"
    NB, colourmanagement
    Community Expert
    Community Expert
    January 3, 2019

    Hi Andrew,

    Happy 2019 to you

    thanks that’s a really useful little utility

    I'll take a look for sure

    thanks lots

    neil barstow, colourmanagement
