First attempt at building a responsive site. Can't get text to flow right.

  • July 24, 2017
  • 1 reply
  • 1111 views

Hello forum peeps!

I am in desperate need of someones help. I've created a page and can't seem to get the text to reposition correctly when device browser drops past 600px. I would like it to fill the width of the window and drop below the previous div. Also some of the text seems to be going behind an image when window is resized.

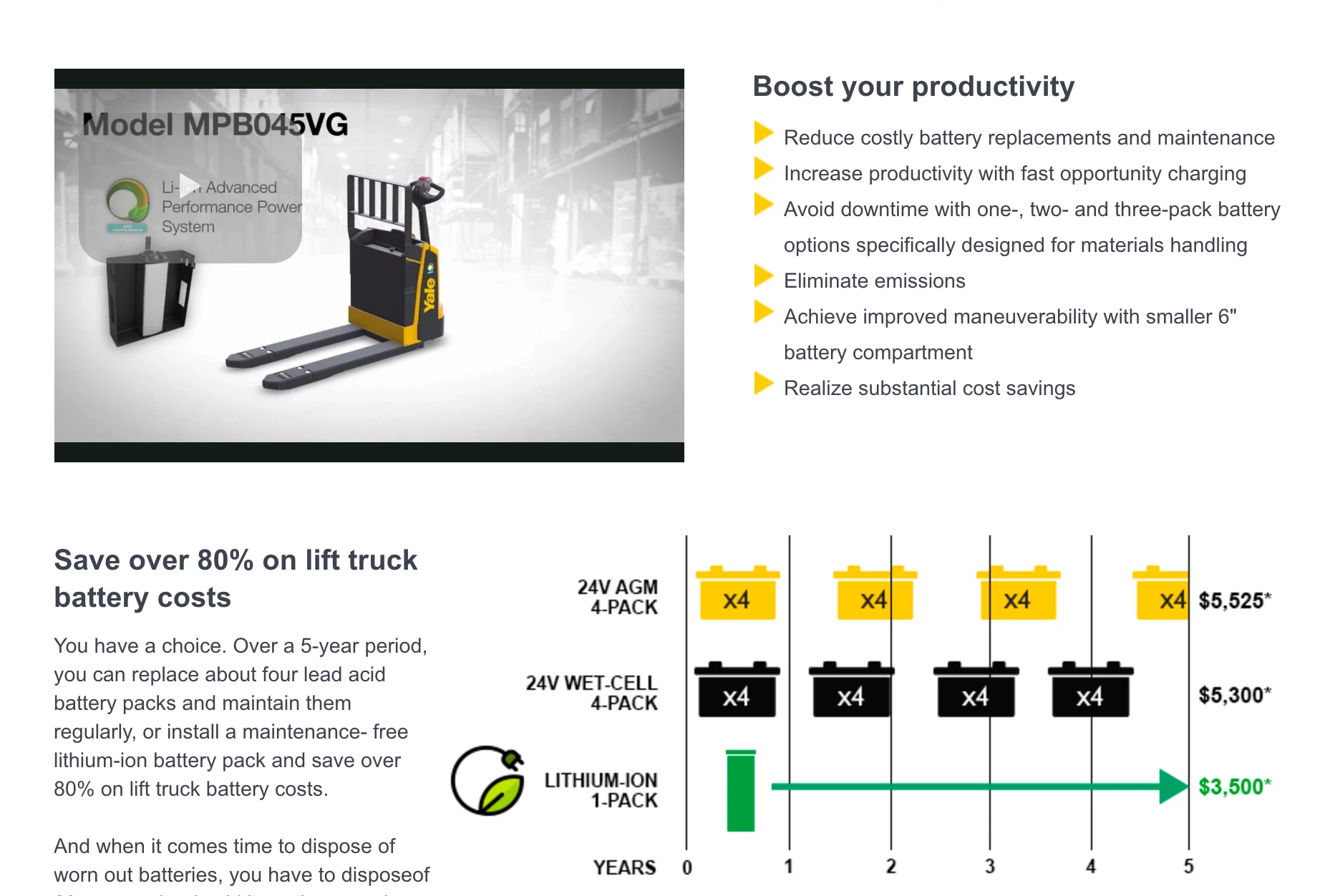

Here is a link to the working page I'm working on.

http://wswdesign.com/liftone/lithium.html

Here is a link to the css file.

http://wswdesign.com/liftone/fuel.css

Please help!!

This topic has been closed for replies.
Correct answer osgood_

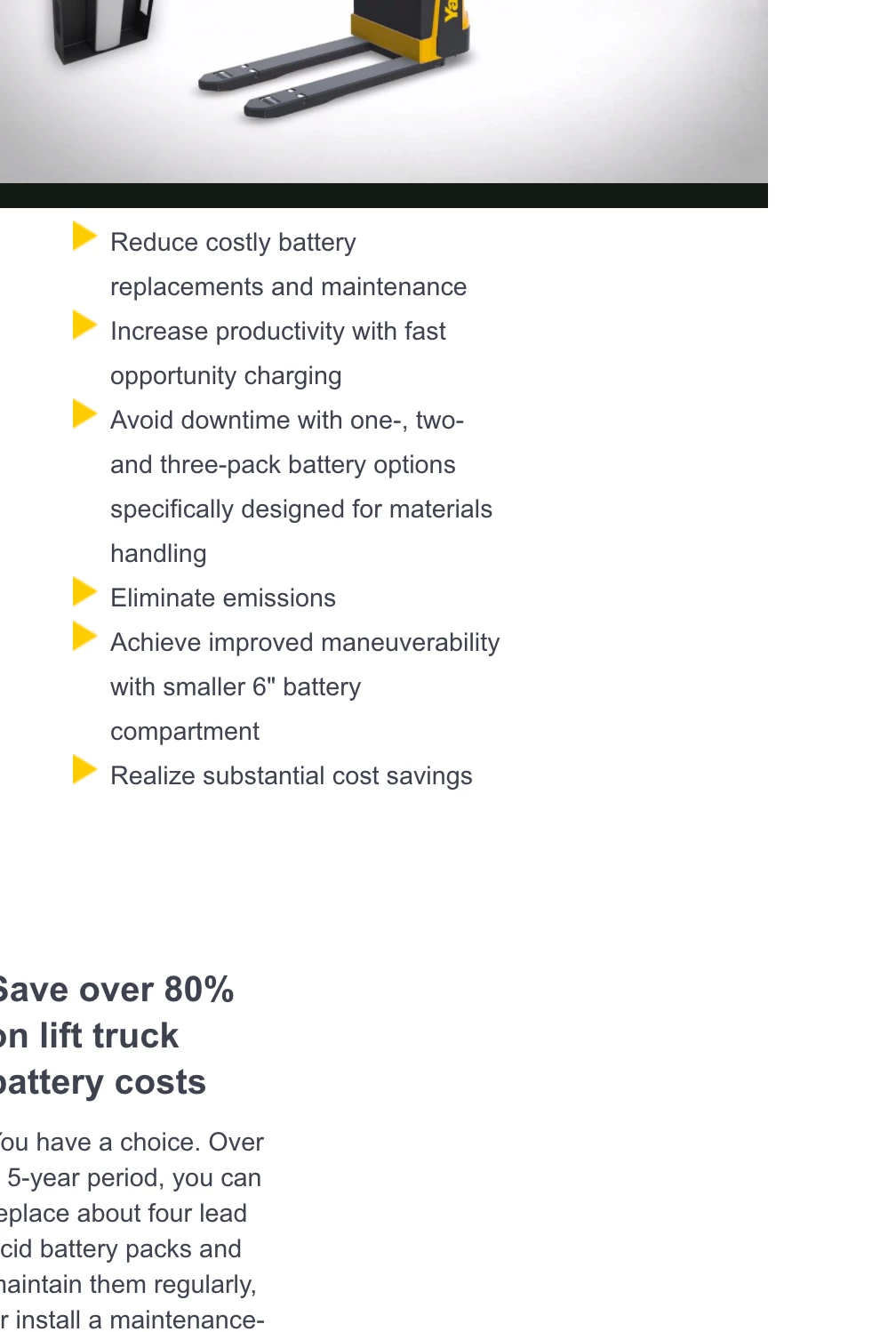

Right now its doing this.


Copy and paste the below into a new Dreamweaver document, save and view the  file, reduce screen to 600px. (see if you can do the last couple of items by following the code example)

<!DOCTYPE html>

<html>

<head>

<meta charset="UTF-8" />

<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1">

<title>Lithium-Ion Power</title>

<style>

body {

font-family: helvetica, arail, sans-serif;

font-size: 14px;

line-height: 20px;

}

* {

box-sizing: border-box;

}

img {

max-width: 100%;

height: auto;

}

.page-wrapper {

width: 880px;

margin: 0 auto;

}

@media screen and (max-width: 600px) {

.page-wrapper {

width: 90%;

}

}

header {

margin: 0 0 40px 0;

}

@media screen and (max-width: 600px) {

header {

margin: 0 0 30px 0;

}

}

.video-productivity {

overflow: hidden;

}

.video {

float: left;

width: 50%;

}

@media screen and (max-width: 600px) {

.video {

float: none;

width: 100%;

}

}

.productivity {

float: left;

width: 50%;

}

@media screen and (max-width: 600px) {

.productivity {

float: none;

width: 100%;

}

}

iframe {

width: 100%;

height: 275px;

}

.productivity {

padding: 0 0 0 35px;

}

@media screen and (max-width: 600px) {

.productivity {

padding: 30px 0 0 0;

}

}

.productivity h4 {

font-size: 20px;

margin: 0;

padding: 0 0 15px 0;

line-height: 27px;

}

.productivity ul {

margin: 0;

padding: 0;

}

.productivity li {

position: relative;

margin: 0;

padding: 0 0 10px 15px;

list-style: none;

color: #FFCC32;

}

.productivity span {

color: #000;

}

.productivity i {

position: absolute;

top: -7px;

left: 0;

font-size: 30px;

}

.save-battery-costs {

margin: 50px 0;

overflow: hidden;

}

@media screen and (max-width: 600px) {

.save-battery-costs {

margin: 30px 0;

}

}

.efficiency  {

float: left;

width: 40%;

padding: 0 25px 0 0;

}

@media screen and (max-width: 600px) {

.efficiency  {

float: none;

width: 100%;

padding: 0 25px 25px 0;

}

}

.efficiency p  {

margin: 0;

padding: 0 0 10px 0;

}

.efficiency h4 {

font-size: 20px;

margin: 0;

padding: 0 0 15px 0;

line-height: 27px;

}

.efficiency-diagram {

float: left;

width: 60%;

}

@media screen and (max-width: 600px) {

.efficiency-diagram {

float: none;

width: 100%;

}

}

</style>

<link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/font-awesome/4.7.0/css/font-awesome.min.css"/>

</head>

<body>

<div class="page-wrapper">

<header>

<img src="http://wswdesign.com/liftone/images/lithium_header.jpg" alt="">

</header>

<!-- end header -->

<section class="video-productivity">

<div class="video">

<iframe src="http://players.brightcove.net/1053415270001/aab1e8c6-a75c-43bd-b7d4-f96b6dc7a74c_default/index.html?videoId=4628173768001" allowfullscreen frameborder=0></iframe>

</div>

<!-- end video -->

<div class="productivity">

<h4>Boost your productivity</h4>

<ul class="triangle">

<li><i class="fa fa-caret-right" aria-hidden="true"></i><span>Reduce costly battery replacements and maintenance</span></li>

<li><i class="fa fa-caret-right" aria-hidden="true"></i><span>Increase productivity with fast opportunity charging</span></li>

<li><i class="fa fa-caret-right" aria-hidden="true"></i><span>Avoid downtime with one-, two- and three-pack battery

options specifically designed for materials handling</span></li>

<li><i class="fa fa-caret-right" aria-hidden="true"></i><span>Eliminate emissions</span></li>

<li><i class="fa fa-caret-right" aria-hidden="true"></i><span>Achieve improved maneuverability with smaller 6" battery

compartment</span></li>

<li><i class="fa fa-caret-right" aria-hidden="true"></i><span>Realize substantial cost savings</span></li>

    </ul>

</div>

<!-- end productivity -->

</section>

<!-- end video-productivity -->

<section class="save-battery-costs">

<div class="efficiency">

<h4>Save over 80% on lift truck battery costs</h4>

<p>You have a choice. Over a 5-year period, you can replace about four lead acid battery packs and maintain them regularly, or install a maintenance- free lithium-ion battery pack and save over 80% on lift truck battery costs.</p>

<p>And when it comes time to dispose of worn out batteries, you have to disposeof 20 or more lead acid batteries over the life of just one lithium-ion battery pack, that's a lot less recycling waste. </p>

</div>

<!-- end efficiency -->

<div class="efficiency-diagram">

<img src="http://wswdesign.com/liftone/images/battery.png" alt="">

</div>

<!-- end efficiency diagram -->

</section>

<!-- end save-battery-costs -->

<img src="http://wswdesign.com/liftone/images/time.png"  alt=""/>

</div>

<!-- end page-wrapper -->

</body>

</html>

1 reply

BenPleysier
Community Expert
Community Expert
July 24, 2017

You are using the Foundation framework and I doubt that there are many Foundation savvy users on this forum. I for one used Foundation about 3 years ago and it was a completely different framework back then.

May I suggest that you go to Foundation Forum from ZURB and ask their assistance.

Wappler is the DMXzone-made Dreamweaver replacement and includes the best of their powerful extensions, as well as much more!
paulk7737514
Inspiring
July 24, 2017

On their website at http://foundation.zurb.com   they list Adobe as one of the companies using their framework!

kineticcreative123
Inspiring
July 24, 2017

Thanks I've posted this thread on foundation as well. Haven't had any replies.
