strange unwanated color zone in transparent zone of .png image background

Forum|Forum|7 years ago
April 14, 2018
3 replies
1160 views

I have a .png image on the page of my dreamweaver page created from a DW starter template.

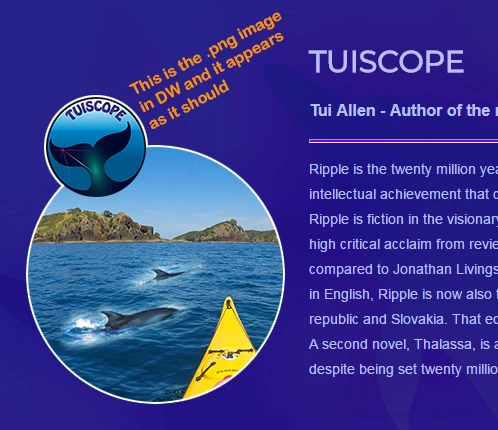

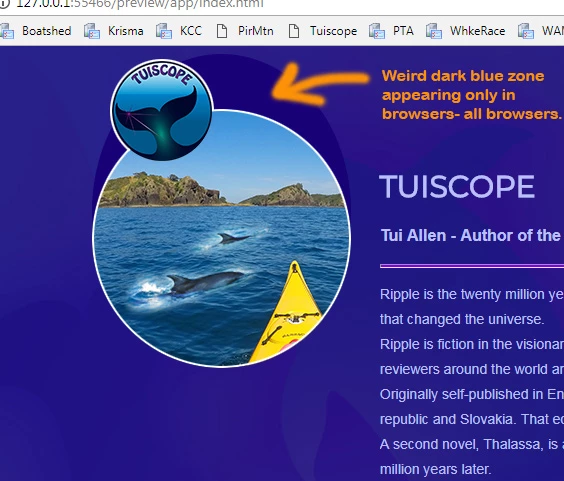

The image is all transparent outside of the double circle area. In the DW preview it shows as it should but when shown in any browser it has this weird dark blue zone. The page background is an image in gradients of dark-blues but they are screened out by this dark-blue shadow on the .png. See orange text on two images below:

.png image

This topic has been closed for replies.

Correct answer tuilorraine

I just noticed in one of your other posts that there is a good reason for the blob of different colour. Please see

Guess what! I solved the issue. It frustrated me all day yesterday almost to the point of tears at times. And in the end it was so simple I can't understand why it took me so long to work it out, but it's because I'm so new to responsive design.

I'm working, as I said, with a starter template which has created the media queries for me as part of the template. That image with the two circles (shown above) was replacing a simpler circular image in the template and of course if I'd stuck to the same circular shape as the template I would probably have had no problem.

I used css to put a transparent background on that image but the transparency did not seem to be working and I kept getting that solid colour where there should have been none.
My error was not realising I would need to make the change across all the media queries - not just in one place in the css file.

With no live page to show you, I guess I should have copied my css into this discussion and one of you would probably have picked it up straight away.

And it works fine with my lovely dark-blue background dolphin image too so I can use it after all.

Nancy OShea

Community Expert

It looks like it might be an image artifact. Until you put your problem page online though, we are just guessing.

Nancy O'Shea— Product User & Community Expert

tuilorraineAuthor

Inspiring

Here's an interesting thing. Originally this page had a plain dark blue background. The problem surfaced when I changed the background to the dark blue image with the gradients and barely-visible dolphin shapes. It looks very similar to the original plain background, but just a little more interesting.
So this morning I removed the background image and went back to the plain dark-blue background color. The "artifact" (or whatever it is) was gone. That's all very well but I really do prefer it with the background image. I tried the background image again. The artifact came back. So it must be something to do with the interaction between the .png and that background image.
Still hoping to find a work-round.

magical_Skyline0D4A

Inspiring

Sometimes when adding changes to an element using the CSS Designer panel it can happen inadvertently the same class is added to a selected item in the live preview.

Let me explain, you click on the + in the CSS Designer panel and write the class "foo" for a div , at the same time your mouse cursor is on the menu and the "foo" class is also added to the menu.

Try to check if this is the case

tuilorraineAuthor

Inspiring

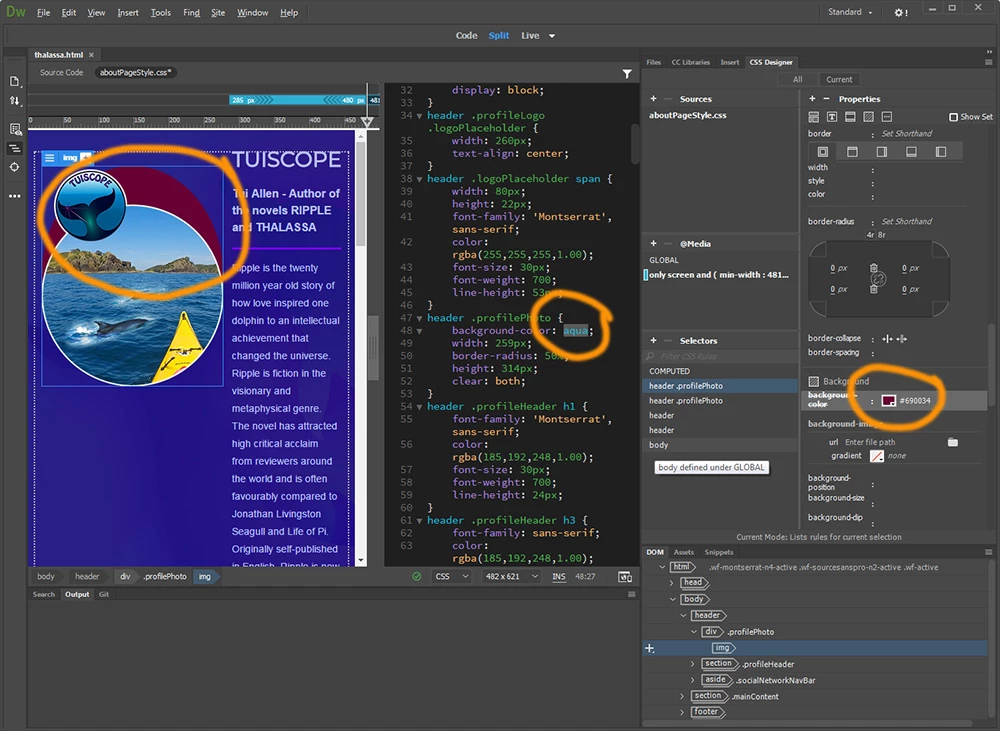

Okay, I'm narrowing it down I think. There was a border-radius property in the Css for the "header .profilePhoto" selector. When I removed that - the artifact is still there but now it is a plain rectangle surrounding the image. Then when I included a background red color property, the artifact became a bright red rectangle around the .png image. At this point the solution seems obvious. Just change the background color to transparent. I did that. But it is not transparent - it is black.i can't get the transparency to work there in a way the browsers understand.
