Does CSInterface.evalScript() Work Asynchronously in Any Host Application?

  • January 23, 2018
  • 1 reply
  • 5836 views

Earlier today I was surprised to learn that CSInterface.evalScript is a blocking (synchronous) function, even though it looks like an asynchronous call.

It is possible that some host applications actually do process CSInterface.evalScript() in an asynchronous fashion. My personal experience with CEP development is limited to Premiere Pro. Has anyone encountered an application wherein evalScript is verifiably handled asynchronously?

If CSInterface.evalScript() does indeed block across all host applications, then it may be a good idea for Adobe to update its documentation. (That said, it should be updated regardless, at the very least to point out that some host applications may handle it in a synchronous fashion...)

    This topic has been closed for replies.
    Correct answer sberic

    Here's for some surprises.

    1) Does CSInterface.evalScript() Work Asynchronously in Any Host Application? Yes on all of them (On Windows not on Mac).

    2) Does Extendscript block the app and it's sub processes? No, just the apps UI

    You probably want a bit of proof?

    I was under the misunderstanding that ES blocks the app / sub-processes from everything but the script it's running, i.e. everything is put in a que and dealt with synchronously. If that would be the case then the $.sleep test would not be a proof. But it's not the case.

    Here's a couple of screen shots

    This is the code I used on the CSTK

    pt = function pt(time) {
        var h, m, s, ms;
        if (time === undefined) return '';
        if (time.constructor === Date) {
            h = time.getHours();m = time.getMinutes();s = time.getSeconds();ms = time.getMilliseconds();
        } else {
            h = Math.floor(time / 3600000);m = Math.floor((time % 3600000) / 60000);s = Math.floor((time % 60000) / 1000);ms = time % 1000;
        }
        return (!time) ? '<1ms' : h + ':' + m + ':' + s + ((ms && (h || m || s)) ? ' & ' : '') + ((ms) ? ms + 'ms' : '');
    };
    var jsxScript = pt + `
    var t1, t2;
    t1 = new Date();
    $.sleep(1500);
    t2 = new Date();
    __log('[JSX]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1)  + ' [csInterface.evalScript()]','background:#AFA');
    `;
    csInterface.evalScript(jsxScript);
    var t1, t2;
    t1 = t2 = new Date();
    while ((t2 - t1) < 1500) { t2 = new Date(); }
    __log('[JS]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1), 'background:#AAF');

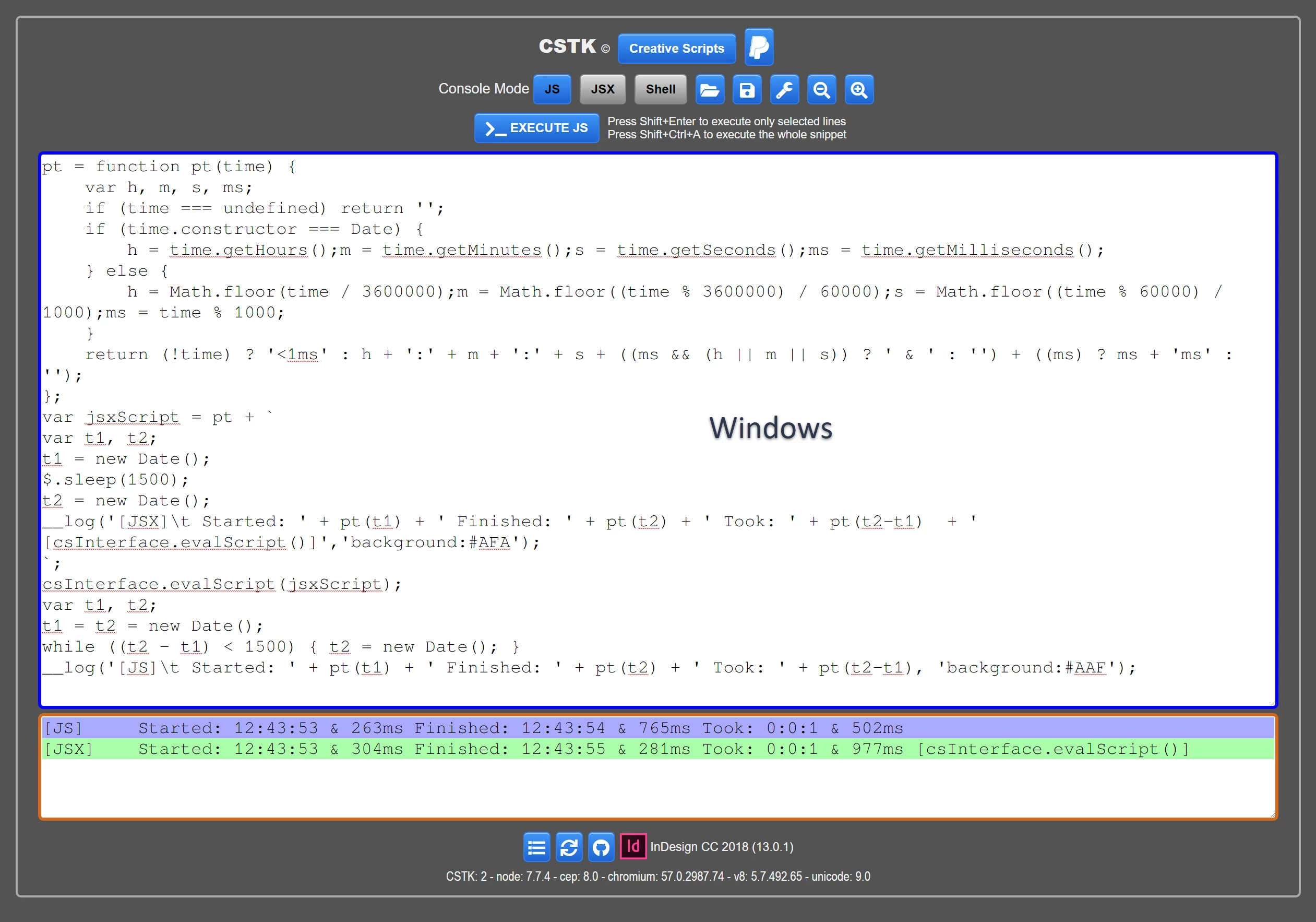

    If you look at the Windows screenshot you can see that the JS execution is not halted by the JSX execution (Asynchronously).

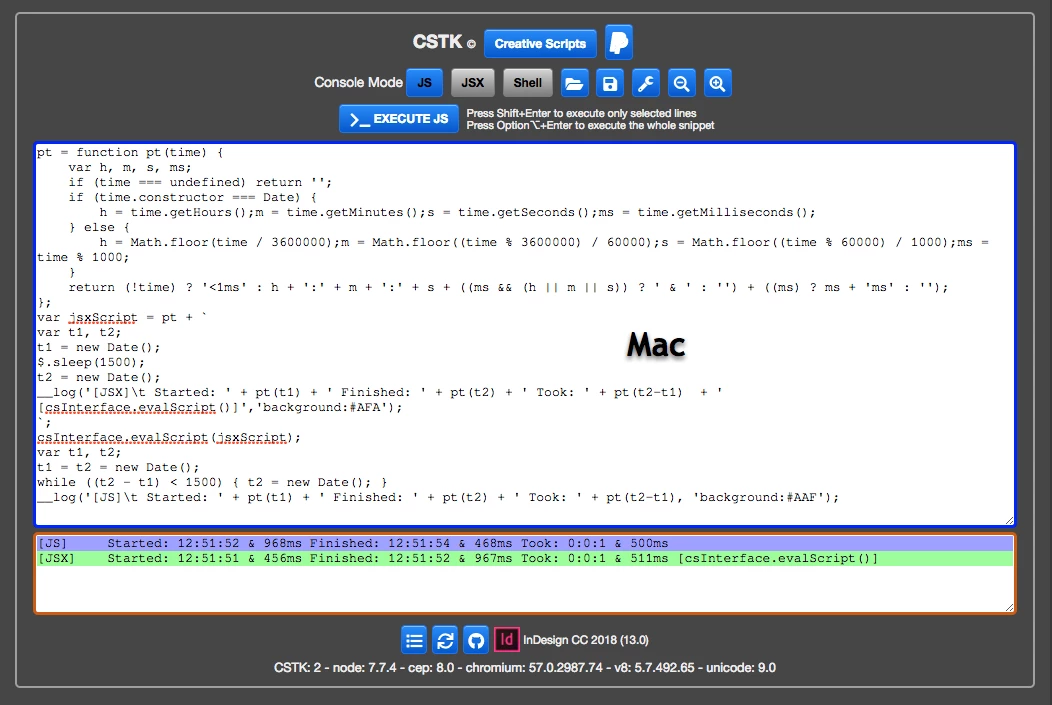

    On the Mac you can see that the JS execution is halted by the JSX execution (Synchronously).

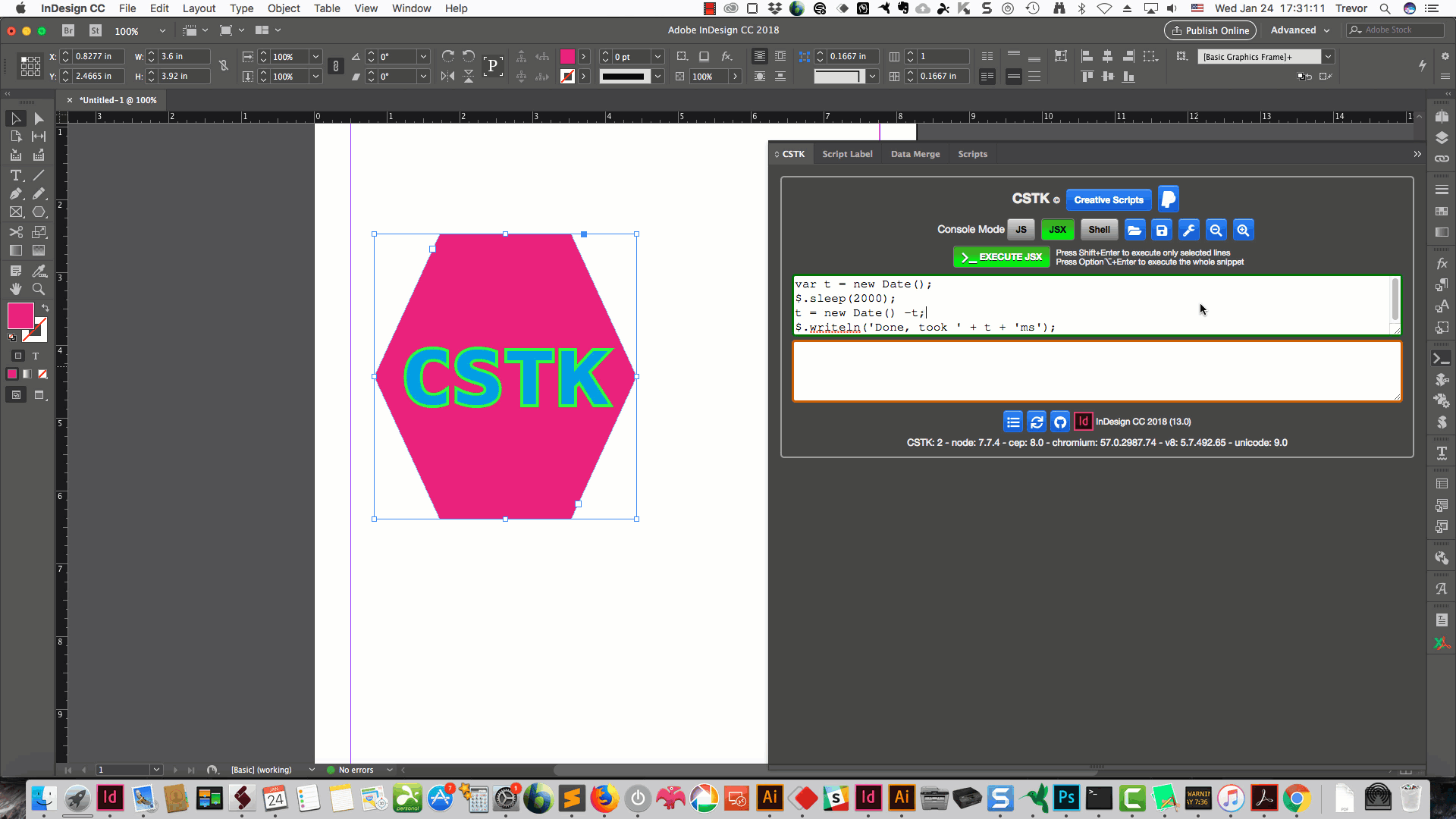

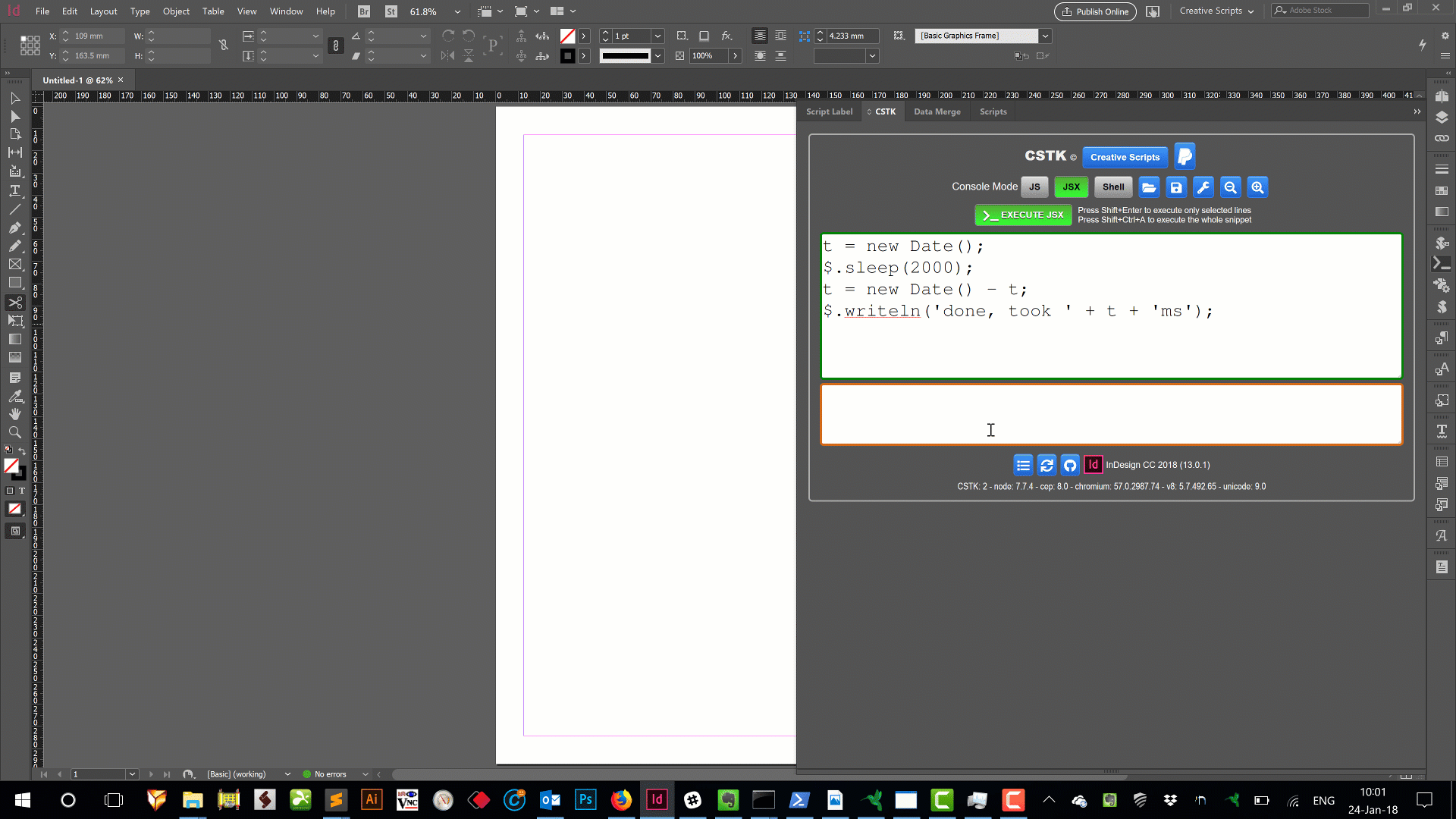

    You can see this with the following 2 gifs

    When one executes some code on the CSTK on executing the code the keyboard shortcut next to the execute button highlights.

    After the codes been processed the bottom console changes color.

    On Windows you can see the sleep time on the Mac you can't as the highlight that should happen before the sleep is blocked by the csInterface.evalScript

    Now if you try this out on InDesign you can access the CSTK target engine. You can hard code it or use the ESTK for that.

    Then you can run the JS while loop (make it a bit longer to make testing easier) on the CSTK

    pt = function pt(time) {
        var h, m, s, ms;
        if (time === undefined) return '';
        if (time.constructor === Date) {
            h = time.getHours();m = time.getMinutes();s = time.getSeconds();ms = time.getMilliseconds();
        } else {
            h = Math.floor(time / 3600000);m = Math.floor((time % 3600000) / 60000);s = Math.floor((time % 60000) / 1000);ms = time % 1000;
        }
        return (!time) ? '<1ms' : h + ':' + m + ':' + s + ((ms && (h || m || s)) ? ' & ' : '') + ((ms) ? ms + 'ms' : '');
    };
    var t1, t2;
    t1 = t2 = new Date();
    while ((t2 - t1) < 8500) { t2 = new Date(); }
    __log('[JS]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1), 'background:#AAF');

    And while that is going run from the ESTK

    #targetengine CSTK
    function pt(time) {
        var h, m, s, ms;
        if (time === undefined) return '';
        if (time.constructor === Date) {
            h = time.getHours();m = time.getMinutes();s = time.getSeconds();ms = time.getMilliseconds();
        } else {
            h = Math.floor(time / 3600000);m = Math.floor((time % 3600000) / 60000);s = Math.floor((time % 60000) / 1000);ms = time % 1000;
        }
        return (!time) ? '<1ms' : h + ':' + m + ':' + s + ((ms && (h || m || s)) ? ' & ' : '') + ((ms) ? ms + 'ms' : '');
    }
    var t1, t2;
    t1 = new Date();
    $.sleep(7500);
    t2 = new Date();
    __log('[JSX]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1)  + ' [csInterface.evalScript()]','background:#AFA');

    You can see that the JSX does not block the apps sub-processes even on the Mac.

    QED

    All this points that it's a BUG in the evalScripts implementation on the Max

    Regarding what I was referring to by current version of JS

    8th Edition - ECMAScript 2017 makes the Synchronously functioning needed when dealing with DOM objects much easier to deal with than previous versions.

    (Await, async, yeild, promise and all that stuff)

    HTH

    Trevor


    Trevorׅ​ wrote

    1) Does CSInterface.evalScript() Work Asynchronously in Any Host Application? Yes on all of them (On Windows not on Mac).

    That is super helpful, Trevorׅ​! Thanks so much for checking this out! It makes a lot more sense that this would be a bug on macOS CEP implementations, rather than an intentional design decision.

    The code that you provided is helpful, but there's a lot of extra printing/logging related functionality that distracts from the meat of it. It took me a little while to understand what you were referring to when you said:

    Trevorׅ  wrote

    If you look at the Windows screenshot you can see that the JS execution is not halted by the JSX execution (Asynchronously).

    On the Mac you can see that the JS execution is halted by the JSX execution (Synchronously).

    What I took away from that is that the timestamps were in an order that suggested either synchrony or asynchrony. To make it more clear (and more easily testable without your custom CSTK panel), I've created a "simplified" test case:

    // Gets the current time in "M:S.ms" format.
    var GetTime = function GetTime()
    {
        var t = new Date();
        return t.getMinutes() + ":" + t.getSeconds() + "." + t.getMilliseconds();
    }
    // Run the sleep test.
    var RunJSXTest = function RunJSXTest(testTime)
    {
        var msg = "JSX Start: " + GetTime() + "\n";
        $.sleep(testTime);
        msg += "JSX End: " + GetTime();
        return msg;
    }
    function RunTest(jsxSleep)
    {
        // Prepare the JSX to eval.
        var jsxScript = GetTime + RunJSXTest + `
                        RunJSXTest(${jsxSleep});`
        console.log("Panel Start: " + GetTime());
        new CSInterface().evalScript(jsxScript, console.log);
        console.log("Panel End: " + GetTime());
    }

    You can copy that entire block of code (comments included) and paste it into a Chrome Debugger console to evaluate. You can then run it by simply typing something like this:

    RunTest(3000);

    Which will cause the JSX thread to sleep for 3 seconds in between a bunch of print statements. This is simply an expansion of the testing code I provided here. In addition to a noticeable pause during execution, this version will show you timestamps of each call.

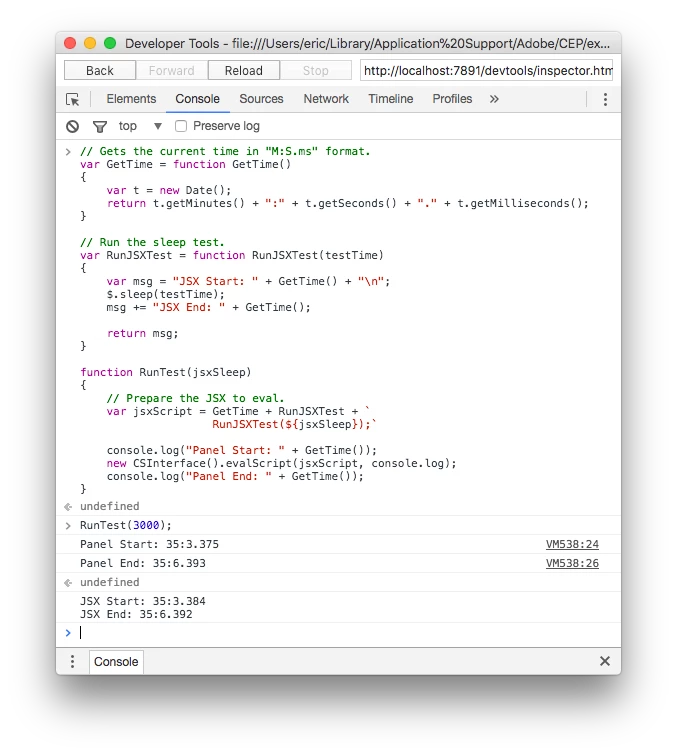

    Here is an example of a run on macOS:

    Note: When run from an external application (e.g. Chrome browser or cefclient), it appears that the target Adobe application needs to be the focused application (e.g. Premiere Pro) when running on macOS. Simply switch to the application to allow the code to process.

    For clarity, the output (minus the "undefined") is:

    Panel Start: 35:3.375

    Panel End: 35:6.393

    JSX Start: 35:3.384

    JSX End: 35:6.392

    If you reorder based on actual timing, it looks like the following:

    Panel Start: 35:3.375

    JSX Start: 35:3.384

    JSX End: 35:6.392

    Panel End: 35:6.393

    On macOS, the Panel doesn't get to finish its work until the JSX is done.

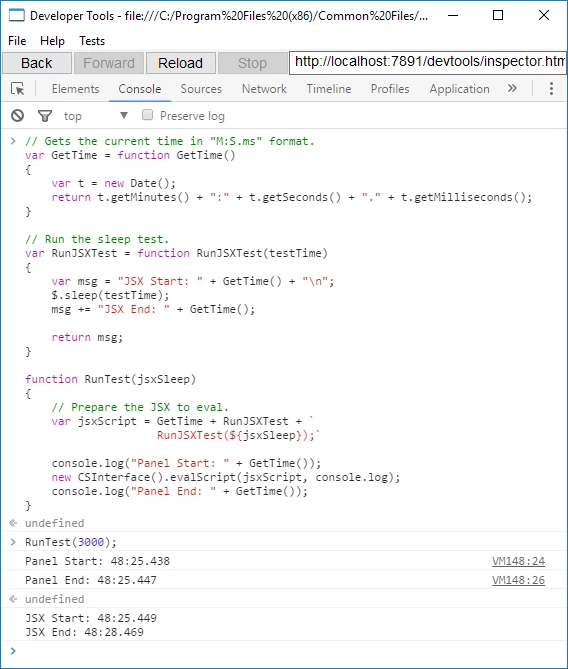

    On Windows, however, the image is rather different:

    For readability, the output is:

    Panel Start: 44:10.111

    Panel End: 44:10.119

    JSX Start: 44:10.199

    JSX End: 44:13.233

    No reordering is necessary whatsoever. The times are already in order. This is the expected output. On Windows, the Panel appears to send a request to run the JSX, rather than starting up the ExtendScript engine and waiting for it to complete.

    Trevorׅ  wrote

    2) Does Extendscript block the app and it's sub processes? No, just the apps UI

    Yup. You're on-point about sub-processes. According to Bruce Bullis, ExtendScript will block an application's Main Thread, which is also where UI updates occur. Blocking that thread of execution will stop the UI from updating (the app will become unresponsive), but it will not interfere with other application background processes.

    Trevorׅ  wrote

    Regarding what I was referring to by current version of JS

    8th Edition - ECMAScript 2017 makes the Synchronously functioning needed when dealing with DOM objects much easier to deal with than previous versions.

    (Await, async, yeild, promise and all that stuff)

    Ahh, gotcha. Yes, it is far, far easier to handle asynchronous coding with recent ECMAScript features. I should point out that there are ways to make use of those features with ExtendScript today. Polyfills exist for most of those features and many modern tools (e.g. TypeScript​*) support transpiling to ECMAScript 3-compatible code (ExtendScript is ECMAScript 3 based).

    * There are some cases where ExtendScript blows up on transpiled code (probably due to very old bugs with ternary operator handling) so your mileage may vary...

    In your previous post you said "it would have been very ill advised to have scripts run asynchronously". I think the choice of "ill advised" here is a little unfortunate. Asynchronous code may be more difficult to write, but it is certainly necessary in many, many cases to keep user experience from being absolute garbage. Downloading a 100MB file from a server? Please do not do that synchronously, even if you're left with the simplistic callback-based approach that ECMAScript 3 languages (e.g. ExtendScript) leave you with

    That all aside, excellent work identifying the culprit as being specific to the implementation on macOS! Damn.

    1 reply

    Trevor:
    Trevor:
    Legend
    January 23, 2018

    It's an interesting and detailed thread you reference there.

    It's quite tough to test out as AFAIK all ExtendScript will block the app (currently).

    On InDesign you can have event listeners idle and non-idle but when the event triggers an action DOM or otherwise it will block.

    I would say that until now it would have been very ill advised to have scripts run asynchronously. With the latest JS version in theory it could be workable. One would have to make sure that you don't have multiple scripts changing a document simultaneously.

    If the script blocks the whole app then it's not that relevant whether evalScript is blocking or not.

    For ideas of experimenting you could try exec to a command line to run some script through COM or doScript you can use AppleScript VBS, python or whatever to communicate more directly with the app and see if all the options block.

    There are background tasks so presumably with SDK you can do things without blocking.

    sberic
    sbericAuthor
    Legend
    January 23, 2018

    Trevorׅ  wrote

    It's quite tough to test out as AFAIK all ExtendScript will block the app (currently).

    Huh? Testing out whether the HTML-side CSInterface.evalScript() function blocks while the ExtendScript-side logic [that evalScript triggers] processes is extremely easy. Run this from your panel JavaScript (HTML-side):

    let cs = new CSInterface();
    cs.evalScript("$.sleep(3000); 'done';", console.log);

    This works as a test because the $.sleep function blocks the current thread for the specified number of milliseconds. If the HTML-side JavaScript console does not schedule the script to be processed and, instead, wakes the ExtendScript context directly to handle the processing, then the call to $.sleep will cause the JavaScript context to also pause execution for those three seconds.

    The easiest way to verify this is to attach the cefclient application or a Chrome debugger to the panel and input the above directly into the Console. What you will see is the command appear to wait for 3 seconds prior to printing "<- undefined" as the result of that statement followed immediately by "done". A more helpful test (when attached to the debugger) would be to run the following commands:

    let cs = new CSInterface();
    cs.evalScript("$.sleep(3000); 'ExtendScript done.';", console.log); "JavaScript done.";

    I ran the above two lines in a cefclient application attached to an Adobe Premiere panel. The command processed for three seconds before printing:

    "JavaScript done."
    ExtendScript done.

    The question, therefore, isn't whether ExtendScript blocks the app or not, but whether the JavaScript [HTML-side] CSInterface.evalScript function waits (blocks) for the ExtendScript [app-side] logic that it triggers to fully complete prior to returning.

    Does that make sense?

    Trevorׅ  wrote

    If the script blocks the whole app then it's not that relevant whether evalScript is blocking or not.

    I agree*.

    * With the caveat that it's not relevant if you already understand that both Panel-side JavaScript and App-side ExtendScript run independently on the host application's Main UI thread. If, however, you are starting out and don't understand the threading model, moving simply by API design, then you will start to build up some incorrect assumptions (as both I and the OP of the other thread I referenced did).

    What's more, the current implementation has unfortunate implications for logic design. If evalScript can't return before the evaluated ExtendScript result is ready, then why not just return it directly to the caller? The callback creates an extra, effectively needless hoop that you have to jump through with no added benefit.

    That the evalScript API takes a callback is a signal that it's going to kick off some asynchronous work. This is not how it works in Premiere Pro, but there are enough differences in the various host apps that I figured I'd ask and see if it actually does work asynchronously in some applications

    Trevorׅ  wrote

    On InDesign you can have event listeners idle and non-idle but when the event triggers an action DOM or otherwise it will block.

    I would say that until now it would have been very ill advised to have scripts run asynchronously. With the latest JS version in theory it could be workable. One would have to make sure that you don't have multiple scripts changing a document simultaneously.

    I don't follow. What do you mean when you say "the latest JS version"?

      Trevor:
      Trevor:
      Legend
      January 28, 2018

      Here's for some surprises.

      1) Does CSInterface.evalScript() Work Asynchronously in Any Host Application? Yes on all of them (On Windows not on Mac).

      2) Does Extendscript block the app and it's sub processes? No, just the apps UI

      You probably want a bit of proof?

      I was under the misunderstanding that ES blocks the app / sub-processes from everything but the script it's running, i.e. everything is put in a que and dealt with synchronously. If that would be the case then the $.sleep test would not be a proof. But it's not the case.

      Here's a couple of screen shots

      This is the code I used on the CSTK

      pt = function pt(time) {
          var h, m, s, ms;
          if (time === undefined) return '';
          if (time.constructor === Date) {
              h = time.getHours();m = time.getMinutes();s = time.getSeconds();ms = time.getMilliseconds();
          } else {
              h = Math.floor(time / 3600000);m = Math.floor((time % 3600000) / 60000);s = Math.floor((time % 60000) / 1000);ms = time % 1000;
          }
          return (!time) ? '<1ms' : h + ':' + m + ':' + s + ((ms && (h || m || s)) ? ' & ' : '') + ((ms) ? ms + 'ms' : '');
      };
      var jsxScript = pt + `
      var t1, t2;
      t1 = new Date();
      $.sleep(1500);
      t2 = new Date();
      __log('[JSX]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1)  + ' [csInterface.evalScript()]','background:#AFA');
      `;
      csInterface.evalScript(jsxScript);
      var t1, t2;
      t1 = t2 = new Date();
      while ((t2 - t1) < 1500) { t2 = new Date(); }
      __log('[JS]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1), 'background:#AAF');

      If you look at the Windows screenshot you can see that the JS execution is not halted by the JSX execution (Asynchronously).

      On the Mac you can see that the JS execution is halted by the JSX execution (Synchronously).

      You can see this with the following 2 gifs

      When one executes some code on the CSTK on executing the code the keyboard shortcut next to the execute button highlights.

      After the codes been processed the bottom console changes color.

      On Windows you can see the sleep time on the Mac you can't as the highlight that should happen before the sleep is blocked by the csInterface.evalScript

      Now if you try this out on InDesign you can access the CSTK target engine. You can hard code it or use the ESTK for that.

      Then you can run the JS while loop (make it a bit longer to make testing easier) on the CSTK

      pt = function pt(time) {
          var h, m, s, ms;
          if (time === undefined) return '';
          if (time.constructor === Date) {
              h = time.getHours();m = time.getMinutes();s = time.getSeconds();ms = time.getMilliseconds();
          } else {
              h = Math.floor(time / 3600000);m = Math.floor((time % 3600000) / 60000);s = Math.floor((time % 60000) / 1000);ms = time % 1000;
          }
          return (!time) ? '<1ms' : h + ':' + m + ':' + s + ((ms && (h || m || s)) ? ' & ' : '') + ((ms) ? ms + 'ms' : '');
      };
      var t1, t2;
      t1 = t2 = new Date();
      while ((t2 - t1) < 8500) { t2 = new Date(); }
      __log('[JS]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1), 'background:#AAF');

      And while that is going run from the ESTK

      #targetengine CSTK
      function pt(time) {
          var h, m, s, ms;
          if (time === undefined) return '';
          if (time.constructor === Date) {
              h = time.getHours();m = time.getMinutes();s = time.getSeconds();ms = time.getMilliseconds();
          } else {
              h = Math.floor(time / 3600000);m = Math.floor((time % 3600000) / 60000);s = Math.floor((time % 60000) / 1000);ms = time % 1000;
          }
          return (!time) ? '<1ms' : h + ':' + m + ':' + s + ((ms && (h || m || s)) ? ' & ' : '') + ((ms) ? ms + 'ms' : '');
      }
      var t1, t2;
      t1 = new Date();
      $.sleep(7500);
      t2 = new Date();
      __log('[JSX]\t Started: ' + pt(t1) + ' Finished: ' + pt(t2) + ' Took: ' + pt(t2-t1)  + ' [csInterface.evalScript()]','background:#AFA');

      You can see that the JSX does not block the apps sub-processes even on the Mac.

      QED

      All this points that it's a BUG in the evalScripts implementation on the Max

      Regarding what I was referring to by current version of JS

      8th Edition - ECMAScript 2017 makes the Synchronously functioning needed when dealing with DOM objects much easier to deal with than previous versions.

      (Await, async, yeild, promise and all that stuff)

      HTH

      Trevor
