Known Participant

Question

Textflow link element doesn't work after append to an existed textflow

Forum|Forum|15 years ago
November 10, 2010
2 replies
6468 views

It's a strange problem

I have two textflow container : RichEditableText

the first one I new the textflow2 everytime I clicked the button,and append a link returned by getElement

the second one I initially new a textflow and reused it to append new link returned by the same function getElement

but the strange thing is , the first one works just fine ,but the second one 's link seems invalid with no hand cursor nor function

thanks a lot for any clue or comment

<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
 xmlns:s="library://ns.adobe.com/flex/spark"
 xmlns:mx="library://ns.adobe.com/flex/mx" minWidth="400" minHeight="300">
 <s:layout>
 <s:BasicLayout/>
 </s:layout>
 <fx:Script>
 <![CDATA[
 import flashx.textLayout.elements.LinkElement;
 import flashx.textLayout.elements.ParagraphElement;
 import flashx.textLayout.elements.SpanElement;
 import flashx.textLayout.elements.TextFlow;

 [Bindable] public var textFlow:TextFlow = new TextFlow();

 [Bindable] public var textFlow2:TextFlow = new TextFlow();


 protected function button1_clickHandler(event:MouseEvent):void
 {
 textFlow2 = new TextFlow();
 textFlow2.addChild(getElement());


 textFlow.addChild(getElement());
 }



 private function getElement():ParagraphElement{
 var linkSpan:SpanElement = new SpanElement();
 linkSpan.text = "link";
 var link:LinkElement = new LinkElement();
 link.addChild(linkSpan);
 link.href = "event:ok"
 var p:ParagraphElement = new ParagraphElement();
 p.addChild(link);
 return p;
 }

]]>
 </fx:Script>
 <fx:Declarations>

 </fx:Declarations>
 <s:RichEditableText editable="false" text="RichText" width="180" height="165" textFlow="{textFlow2}" />
 <s:RichEditableText editable="false" x="196" text="RichText" width="180" height="165" textFlow="{textFlow}" />
 <s:Button x="116" y="217" label="button" click="button1_clickHandler(event)"/>
</s:Application>

Text layout framework

This topic has been closed for replies.

K

kanukukreja

Known Participant

I'm facing the same issue and i'm using 4.5 SDk.

Here's my code. Works fine if textFlow value is not bindable, else shows nothing(Blank).

<?xml version="1.0" encoding="utf-8"?>

<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"

xmlns:mx="library://ns.adobe.com/flex/mx"

xmlns:s="library://ns.adobe.com/flex/spark"

creationComplete="init()">

<s:layout>

<s:VerticalLayout/>

</s:layout>

<fx:Script>

<![CDATA[

import flash.text.engine.FontWeight;

import flashx.textLayout.conversion.TextConverter;

import flashx.textLayout.elements.ParagraphElement;

import flashx.textLayout.elements.TextFlow;

import spark.utils.TextFlowUtil;

private var hi:String="my code"

private var cnt:int=10;

var markup:String="hello";

private var text:TextFlow;

private var levelName:String = "family"

public function init()

{

trace("here");

markup += "world";

if(levelName == "family"){

markup +=""+ hi + " ("+cnt+") > ";

trace("string::"+markup)

}

text=TextFlowUtil.importFromString(markup,TextConverter.TEXT_FIELD_HTML_FORMAT);

}

private function clickBtn(event:MouseEvent):void{

markup += "world";

if(levelName == "family"){

markup +=""+ hi + " ("+cnt+") > ";

trace("string::"+markup)

}

rTxt1.textFlow =TextFlowUtil.importFromString(markup,TextConverter.TEXT_FIELD_HTML_FORMAT);

}

]]>

</fx:Script>

<s:RichText>

Hello

<s:span fontSize='16'>BIG NEW</s:span>

World!

</s:RichText>

<s:RichText id="rTxt" textFlow="{text}"/>

<s:RichText id="rTxt1" />

<s:Button click="clickBtn(event)" label="Click"/>

</s:Application>

J

Jin-Huang

Adobe Employee

Replace the line

rTxt1.textFlow =TextFlowUtil.importFromString(markup,TextConverter.TEXT_FIELD_HTML_F ORMAT);

with

var imp:ITextImporter = TextConverter.getImporter(TextConverter.TEXT_FIELD_HTML_FORMAT);
rTxt1.textFlow = imp.importToFlow(markup);

Then your code will work.

flashx.textLayout.convertion.TextConverter is the converter in TLF, which work well. TextFlowUtil is not under our control.

K

kanukukreja

Known Participant

Is the result OK for you after you run the code as follows?

<?xml version="1.0" encoding="utf-8"?>

<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
 xmlns:mx="library://ns.adobe.com/flex/mx"
 xmlns:s="library://ns.adobe.com/flex/spark"
 creationComplete="init()">
 <s:layout>
 <s:VerticalLayout/>
 </s:layout>
 <fx:Script>

<![CDATA[
 import flash.text.engine.FontWeight;
 import flashx.textLayout.conversion.*;
 import flashx.textLayout.elements.ParagraphElement;
 import flashx.textLayout.elements.TextFlow;
 import spark.utils.TextFlowUtil;
 private var hi:String="my code"
 private var cnt:int=10;
 var markup:String="hello";
 [Bindable]
 private var text:TextFlow;
 private var levelName:String = "family"
 public function init()
 {
 trace("here");
 markup += "world";
 if(levelName == "family"){
 markup +=""+ hi + " ("+cnt+") > ";
 trace("string::"+markup)
 }
 text = TextFlowUtil.importFromString(markup,TextConverter.TEXT_FIELD_HTML_FORMAT);
 }

 private function clickBtn(event:MouseEvent):void{
 markup += "world";
 if(levelName == "family"){
 markup +=""+ hi + " ("+cnt+") > ";
 trace("string::"+markup)
 }
 rTxt1.textFlow =TextFlowUtil.importFromString(markup,TextConverter.TEXT_FIELD_HTML_FORMAT);
 }
 ]]>

 </fx:Script>
 <s:RichText>
 Hello
 <s:span fontSize="16">BIG NEW</s:span>
 World!
 </s:RichText>

 <s:RichText id="rTxt" textFlow="{text}"/>
 <s:RichEditableText id="rTxt1"/>
 <s:Button label="Click" click="clickBtn(event)"/>
</s:Application>

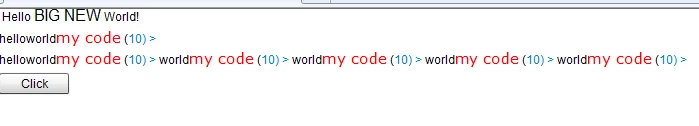

Thanks a Jin, its working fine now.

I found one more way of doing the same, please have a look below:

<?xml version="1.0" encoding="utf-8"?>

<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"

xmlns:mx="library://ns.adobe.com/flex/mx"

xmlns:s="library://ns.adobe.com/flex/spark"

creationComplete="init()">

<s:layout>

<s:VerticalLayout/>

</s:layout>

<fx:Script>

<![CDATA[

import flashx.textLayout.conversion.ITextImporter;

import flashx.textLayout.conversion.TextConverter;

import flashx.textLayout.elements.TextFlow;

import spark.utils.TextFlowUtil;

[Bindable]

private var textFlowTxt:TextFlow;

private var hi:String="my code"

private var cnt:int=10;

private var markup:String="hello";

private var levelName:String = "family";

private function createTextFlow():TextFlow {

var htmlText:String = ""+ hi + " ("+cnt+") > ";

var textFlow:TextFlow = TextFlowUtil.importFromString(htmlText, TextConverter.TEXT_FIELD_HTML_FORMAT );

return textFlow;

}

]]>

</fx:Script>

<s:RichText>

Hello

<s:span fontSize='16'>BIG NEW</s:span>

World!

</s:RichText>

<s:RichText id="rTxt" textFlow="{createTextFlow()}"/>

</s:Application>

R

rdermer

Adobe Employee

I can reproduce this in TLF 2.0 and filed a bug. I did observe that if I click on textFlow2 the link begins to work. What version of TLF are you using?

Thanks,

Richard

D

davy zhangAuthor

Known Participant

Thanks for the reply

I am using flex sdk 4.1 bundled version.I don't know which version exactly, is that 1.1?

is there a way to workaround ? If I switch to tlf2.0 or newer version the problem might gone?

R

rdermer

Adobe Employee

Yes - Flex 4.1 is using TLF 1.1. Thanks.

I have fixed this in 2.0. For a 1.1 workaround you can do this:

<?xml version="1.0" encoding="utf-8"?>

<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
 xmlns:s="library://ns.adobe.com/flex/spark"
 xmlns:mx="library://ns.adobe.com/flex/mx" minWidth="400" minHeight="300">
 <s:layout>
 <s:BasicLayout/>
 </s:layout>
 <fx:Script>
 <![CDATA[
 import flashx.textLayout.compose.StandardFlowComposer;
 import flashx.textLayout.elements.LinkElement;
 import flashx.textLayout.elements.ParagraphElement;
 import flashx.textLayout.elements.SpanElement;
 import flashx.textLayout.elements.TextFlow;
 import mx.core.mx_internal;
 import flashx.textLayout.tlf_internal;

                        [Bindable] public var textFlow:TextFlow = new TextFlow();

                        [Bindable] public var textFlow2:TextFlow = new TextFlow();


                        protected function button1_clickHandler(event:MouseEvent):void
                        {
                                ret2.mx_internal::textContainerManager.tlf_internal::convertToTextFlowWithComposer();
                                textFlow2.addChild(getElement());


                                ret.mx_internal::textContainerManager.tlf_internal::convertToTextFlowWithComposer();
                                textFlow.addChild(getElement());
                         }

private function getElement():ParagraphElement{
 var linkSpan:SpanElement = new SpanElement();
 linkSpan.text = "link";
 var link:LinkElement = new LinkElement();
 link.addChild(linkSpan);
 link.href = "http://www.adobe.com"
 var p:ParagraphElement = new ParagraphElement();
 p.addChild(link);
 return p;
 }
 ]]>
 </fx:Script>
 <fx:Declarations>

 </fx:Declarations>
 <s:RichEditableText id="ret2" editable="false" text="RichText" width="180" height="165" textFlow="{textFlow2}" />
 <s:RichEditableText id="ret" editable="false" x="196" text="RichText" width="180" height="165" textFlow="{textFlow}" />
 <s:Button x="116" y="217" label="button" click="button1_clickHandler(event)"/>
</s:Application>
