FMS proxying HTTP does not close sockets correctly?

Question

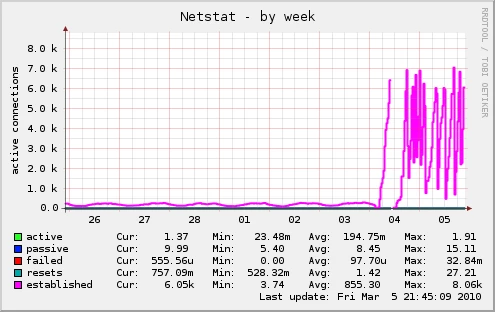

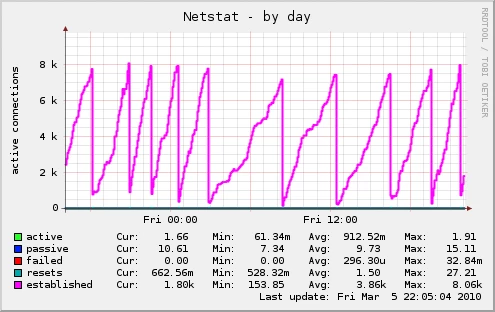

Hi,So, after waiting for a while, we decided to upgrade our streamers to FMS 3.5.3 and set them up to proxy HTTP requests to a lighttpd server instead of the "built in" Apache. With the previous version 3.5 of FMS, we had problems of FMS hanging up after a while and stopping relaying requests, generally a few hours, even when it did not serve a lot of requests. With version 3.5.3, we had great hopes that this problem had disappeared as we had FMS running for more than a month on a test server. So we did the upgrade and we encounter another problem:After less that one day of activity, our servers crashed for an unknown reason, almost at the same time. Analysing the logs, I saw out of memory messages, but how could two linux servers stop working in the same 5 minutes interval. I supposed there was a power failure of some sort. And I kept analysing because the sysadmins in the server room swore that they saw out of memory kernel panic on the consoles. After a bit of investigation, I found the reasons: the TCP connexions between FMS and the lighttpd server are stacking up and fill the OS network memory! Now, I don't know who is the culprit:FMS code does not manage correctly HTTP proxy sessions?lighttpd does not handle correctly HTTP proxying from FMS and does not close correctly the sessions?Our Ubuntu linux network stack is not correctly configured to manage so many connexions?Here are the details, any assistance is welcome!The servers: linux Ubuntu 8.04 with 8 GB RAM.FMS 3.5.3 proxying to lighttpd 1.4.19 listening on port 81. FMS and lighttpd are set up on the same server.The streamer receives many (> 10/s) HTTP requests from iPhones which are proxied to lighttpd. iPhones request partial content and lighttpd is well suited for these type of requests.Locking at the state of the TCP stack:# netstat -stIcmpMsg: InType3: 6 InType8: 5501 OutType0: 5501 OutType3: 6Tcp: 101662 active connections openings 1192680 passive connection openings 33 failed connection attempts 177391 connection resets received 1653 connections established 73559682 segments received 70196072 segments send out 165137 segments retransmited 0 bad segments received. 37219 resets sentUdpLite:TcpExt: 22 resets received for embryonic SYN_RECV sockets 141884 packets pruned from receive queue because of socket buffer overrun 2052 packets pruned from receive queue 40293 TCP sockets finished time wait in fast timer 801 time wait sockets recycled by time stamp 711318 delayed acks sent 2401 delayed acks further delayed because of locked socket Quick ack mode was activated 535 times 68554 packets directly queued to recvmsg prequeue. 11705 bytes directly in process context from backlog 341070 bytes directly received in process context from prequeue 5114830 packet headers predicted 22083 packets header predicted and directly queued to user 32542120 acknowledgments not containing data payload received 25289961 predicted acknowledgments 9191 times recovered from packet loss due to fast retransmit 6222 times recovered from packet loss by selective acknowledgements Detected reordering 7 times using FACK Detected reordering 1 times using SACK Detected reordering 7 times using reno fast retransmit Detected reordering 9 times using time stamp 15 congestion windows fully recovered without slow start 42 congestion windows partially recovered using Hoe heuristic 17 congestion windows recovered without slow start by DSACK 16517 congestion windows recovered without slow start after partial ack 51 TCP data loss events 3916 timeouts after reno fast retransmit 3372 timeouts after SACK recovery 10048 timeouts in loss state 9157 fast retransmits 6 forward retransmits 28990 retransmits in slow start 30176 other TCP timeouts 7656 classic Reno fast retransmits failed 95 SACK retransmits failed 2738020 packets collapsed in receive queue due to low socket buffer 52 DSACKs sent for old packets 52 DSACKs received 3 connections reset due to unexpected data 74950 connections reset due to early user close 2846 connections aborted due to timeout TCP ran low on memory 10 times TCPDSACKIgnoredOld: 41IpExt:The last red line can be visualised below; sometimes the server crashes in out of memory kernel panic...And if you compare with previous behavior, you can tell when we did the upgrade to FMS 3.5.3...A few words on our previous configuration with FMS 3.5. To be able to accept HTTP requests, we have a front load balancer which is able to route HTTP requests to lighttpd and RTMP requests to FMS. But with this configuration, we don't benefit from the ability of FMS to fallback to RTMPT for clients behind a proxy or proxy ol' HTTP requests... With the previous configuration, we never had so many connections active simultaneously: we change from 200 max to more than 7000 with FMS 3.5.3 in proxy!Some figures on what exactly happens:# netstat -tn | grep :81 | awk '{print $6}' | sort | uniq -c 20 CLOSE_WAIT 2245 ESTABLISHED 1236 FIN_WAIT1 5 TIME_WAIT# netstat -tnActive Internet connections (w/o servers)Proto Recv-Q Send-Q Local Address Foreign Address Statetcp 0 275841 127.0.0.1:81 127.0.0.1:45088 FIN_WAIT1tcp 562347 0 127.0.0.1:55150 127.0.0.1:81 ESTABLISHEDtcp 0 225152 127.0.0.1:81 127.0.0.1:34856 ESTABLISHEDtcp 0 238081 127.0.0.1:81 127.0.0.1:54310 FIN_WAIT1tcp 0 114433 127.0.0.1:81 127.0.0.1:51810 FIN_WAIT1tcp 670800 0 127.0.0.1:40746 127.0.0.1:81 ESTABLISHEDtcp 597444 0 127.0.0.1:40654 127.0.0.1:81 ESTABLISHEDtcp 592810 0 127.0.0.1:40669 127.0.0.1:81 ESTABLISHEDtcp 0 103168 127.0.0.1:81 127.0.0.1:54544 ESTABLISHEDtcp 0 201344 127.0.0.1:81 127.0.0.1:40567 ESTABLISHEDtcp 0 0 10.1.74.30:1935 10.1.74.2:60372 ESTABLISHEDtcp 665360 0 127.0.0.1:45282 127.0.0.1:81 ESTABLISHEDtcp 0 210432 127.0.0.1:81 127.0.0.1:40662 ESTABLISHEDtcp 0 207361 127.0.0.1:81 127.0.0.1:44895 FIN_WAIT1tcp 0 109825 127.0.0.1:81 127.0.0.1:52144 FIN_WAIT1tcp 0 221825 127.0.0.1:81 127.0.0.1:54844 FIN_WAIT1tcp 0 103168 127.0.0.1:81 127.0.0.1:40791 ESTABLISHEDtcp 782301 0 127.0.0.1:55074 127.0.0.1:81 ESTABLISHEDtcp 0 219137 127.0.0.1:81 127.0.0.1:45040 FIN_WAIT1tcp 0 209921 127.0.0.1:81 127.0.0.1:44837 FIN_WAIT1tcp 574170 0 127.0.0.1:45275 127.0.0.1:81 ESTABLISHEDtcp 0 252033 127.0.0.1:81 127.0.0.1:54907 FIN_WAIT1tcp 0 254977 127.0.0.1:81 127.0.0.1:54515 FIN_WAIT1tcp 0 142977 127.0.0.1:81 127.0.0.1:52129 FIN_WAIT1In case this is needed, FMS configuration is almost out of the box:_defaultRoot_/Adaptor.xml: true 512 512 60 application/x-fcs 16 true :8080 :8443 ${HTTPPROXY.HOST} true 20 12 1024I've tried changing lighttpd configuration to handle KeepAlive session or not, it has no influence on the behaviour.If you spot a configuration mistake or have any idea, I'm ready to test it as soon as possible... Asa?Thanks

dgianetti · Answer

Has this been fixed? What was done?We have been having the same issue. We worked on it with Adobe support and thought it might have been fixed with a "patched" version of FMS that was created to solve the problem. However, we still see the issue (recently we had a huge increase in load due to an annual event).Over time, when we run netstat, we see Apache connections (127.0.0.1:88134) stuck in a FIN_WAIT_1 state while the corresponding FMS processes (127.0.0.1:1025 to 5000) are in an ESTABLISHED state. It appears as though the connection is closed from the http proxy side while FMS doesn't acknowledge the close.We notice this behavior seems related to load. High load = connections getting hung more frequently. The only fix seems to be restarting the FMS service which restarts the embedded apache as well.I'm curious if you found a fix or even a workaround to help you cope with these connections. Even something to close them periodically would be a huge help. So far, we're resorting to an automatic restart of the server ever 2 days which is hardly a proper production solution.I would really appreciate any information you could provide with regards to your particular problem and whether or not it's been solved.An example (just a snippet) of the netstat monitor we have running each hour on the half-hour: Proto Local Address Foreign Address State TCP 127.0.0.1:2847 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2848 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2849 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2850 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2851 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2853 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2854 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2855 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2856 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2857 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2858 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2859 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2860 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2861 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2862 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2863 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2864 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2865 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2866 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2867 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:2868 127.0.0.1:8134 ESTABLISHED TCP 127.0.0.1:8134 127.0.0.1:2847 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2848 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2849 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2850 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2851 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2853 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2854 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2855 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2856 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2857 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2858 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2859 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2860 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2861 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2862 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2863 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2864 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2865 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2866 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2867 FIN_WAIT_1 TCP 127.0.0.1:8134 127.0.0.1:2868 FIN_WAIT_1 This particular log shows all ports between 1024 and 5000 in the same state as above. A restart resets all the connections and the process starts over. From my investigation, Apache seems to be acting properly. It tries to be a 'good citizen' and issue a graceful close that goes unacknowledged by FMS. Unfortunately, Apache doesn't go back to check a connection it considers closed, so they connection remains half-closed.Please, please let me know if you found anything out. Information on the web is scarce and I'm at my wit's end!
