Simulate a polar array

New Here ,
Jun 06, 2012 Jun 06, 2012

Copy link to clipboard

Copied

Hey guys,

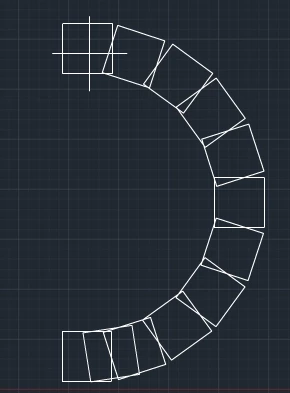

So the issue im having is hard to describe in words but i am going to do my best.  In my flash project I am attempting to simulate the polar array tool used in AutoCAD.  Basically I have a square object, that you click, and then there are 12 other squares that spawn in the same place as the original and as you move your mouse around the work area (in a counter-clockwise circle fashion) the squares follow your mouse and space themselves out accordingly. See the included pictures please.

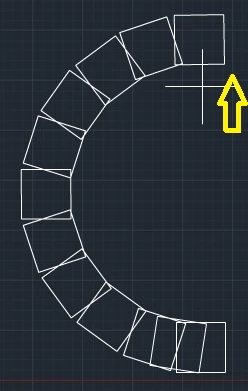

Now my issue you can see in the last image.  I want the rectangles to follow and space accordingly as my mouse moves counter clockwise 360 degrees, but instead the break point is where the yellow arrow is pointing. (I would like the break point to be at the bottom where the original first rectangle is)  I assume this has to do with the fact that flash goes from 0 to 180 and -180 to 0?

Anyways I hope this makes some sense of what I am asking. please take a look at the code that I am using.

This first code should find the correct degree from my mouse cursor...

  var a2 = mouseY - ID2335Rect11.y;

                    var b2 = mouseX - ID2335Rect11.x;

                    var radians2 = Math.atan2(a2, b2);

                    var degrees2 = radians2 * 180 / Math.PI;

Here I am attempting to align the 11th rectangle with my mouse and have the rest follow behind it and be spaced out accordingly.

I subtracted 90 from degrees because otherwise "Rect11" does not follow my mouse exactly. Maybe this is the issue.

                    ID2335Rect11.rotation = (degrees2 - 90);

                    ID2335Rect10.rotation = ID2335Rect11.rotation * .90;

                    ID2335Rect9.rotation = ID2335Rect11.rotation * .80;

                    ID2335Rect8.rotation = ID2335Rect11.rotation * .70;

                    ID2335Rect7.rotation = ID2335Rect11.rotation * .60;

                    ID2335Rect6.rotation = ID2335Rect11.rotation * .50;

                    ID2335Rect5.rotation = ID2335Rect11.rotation * .40;

                    ID2335Rect4.rotation = ID2335Rect11.rotation * .30;

                    ID2335Rect3.rotation = ID2335Rect11.rotation * .20;

                    ID2335Rect2.rotation = ID2335Rect11.rotation * .10;

                    ID2335Rect1.rotation = ID2335Rect11.rotation * .05;

Any thoughts or comments would be appreciated, I'm not sure how to make this work. Thanks so much
