How do you automatically number the table of contents?

Explorer ,
Nov 24, 2016 Nov 24, 2016

I want to automatically number the table of contents in the skin editor. Is it possible to do this? This is so that when I add a new slide, I don't have to manually re-number everything. I want the slide numbers to be visible in the table of contents so that the user can navigate back easily to particular slides when prompted.

Thanks!

1.3K
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 24, 2016 Nov 24, 2016

Bit confused by your question. If you keep the automatic numbering of slides, and refresh the TOC you'll have it there as well. Maybe you missed the Refresh TOC button?


Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Nov 24, 2016 Nov 24, 2016

Ah yes. I realise this is possible but I want to retain the titles I have given to each slide in the table of contents, but also for them all to have an automatic number.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 24, 2016 Nov 24, 2016

Same solution. Slide labels do not change when you insert or move slides, only the automatic number is adapted to the new sequence.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Nov 24, 2016 Nov 24, 2016

But when I press reset, my slide titles are replaced with 'slide 1' etc. I want them to be '1.slide title'. Only, I want the slide titles I give them to stay the same, but the number at the beginning to change. Here is my TOC at the moment: Screen Shot 2016-11-24 at 18.25.31.png

I simply want each title to be preceded with its slide number.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 24, 2016 Nov 24, 2016

Did you perhaps change the names IN the TOC, instead of in the Filmstrip? If you name (and even group) slides in the Properties panel, names show up in the Filmstrip and will automatically appear in the TOC when you reset it.


Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Nov 24, 2016 Nov 24, 2016

But even after going through the slides and labelling them all, it doesn't give automatic numbers. So now, if I rearrange the slides, I will still need to alter the numbering of the slide, right?

I want to know if there is some way that when you move slides around, you can automatically add a number to the beginning of the slide title.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Nov 24, 2016 Nov 24, 2016

No, there is no automatic numbering of the slides in the TOC. However, whatever text you enter into the slide name in the properties panel will end up in your TOC (you may need to refresh it as Lilybiri suggests). If you label your slides to include a number, it will not be automatic but will accomplish the same thing. For example:

2016-11-24 5-24-35 PM

Paul Wilson, CTDP
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Nov 25, 2016 Nov 25, 2016

OK, thanks for clarifying. So I'd still have to go through and change the name on a slide I rearrange. Oh well!

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
People's Champ ,
Nov 26, 2016 Nov 26, 2016

This code will number the TOC for you automatically for HTML5, you will need to put it in the head section of the index.html. Find <script> and put the code on the next line:

<script>

window.addEventListener( 'moduleReadyEvent', function ( e )
{
var myText = document.getElementsByClassName('tocText');

for ( var i = 0; i < myText.length; i++ )
{
  var getText = myText[ i ].childNodes;
  var str = ( i + 1 ) + ' ' + getText[ 0 ].innerHTML;
  getText[ 0 ].innerHTML = str;
}
});

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Mar 20, 2017 Mar 20, 2017

I gave this a shot and it worked as advertised. I noticed, however, that it numbers every entry in the TOC, including topic headings that are either added in the skin editor or pulled in from group names. Both of these items show up in the published TOC but do not correspond to an actual slide. The yellow highlighted item in the screengrab below was generated from a slide group name.

Is there a way to modify your script to skip these?

Capture

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
People's Champ ,
Mar 20, 2017 Mar 20, 2017

I'm sure that the script could be modified if the headings are labeled differently than the actual entries. I don't have a menu currently that has a structure like that to check it and my Captivate is currently down due to some security restriction placed on it from our computer support so I can't test it from my current location.

I'll see if I can figure something out in a few days.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
People's Champ ,
Mar 21, 2017 Mar 21, 2017

This script will take the sub heading into account.

window.addEventListener( 'moduleReadyEvent', function ( e )
{
//internal objects and methods supplied by Captivate
interfaceObj = e.Data;
eventEmitterObj = interfaceObj.getEventEmitter();

var myText = document.getElementsByClassName( 'tocText' );
var checkLeft = parseInt( myText[ 0 ].style.left );
var breaks = 0;

if ( myText != null )
{
  for ( var i = 0; i < myText.length; i++ )
  {
   if ( parseInt(myText[ i ].style.left) > checkLeft + 10 )
   {
    breaks++;
   }
   else
   {
    var getText = myText[ i ].childNodes;
    var str = ( ( i + 1 ) - breaks ) + '  ' + getText[ 0 ].innerHTML;
    getText[ 0 ].innerHTML = str;
   }
  }
}
});

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Mar 21, 2017 Mar 21, 2017

Seems to me the easiest solution would still be to just label each slide in the slide properties exactly how you want it to display in the table of contents.

Paul Wilson, CTDP
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
People's Champ ,
Mar 21, 2017 Mar 21, 2017

Or with the script, you can create it once and then never have to touch it again.

My scripts attached to my files are over 1200 lines. I may have to add to it depending on functionality, but for the most part everything is done with an external JS file.

Our TOC open on the right side, but appears from the bottom up. I wrote it once and the scripts are dynamic enough to handle every project.

If you add or delete slides, the numbering accommodates, manually you need to go in a renumber every slide past the change.

We rarely if ever use any advanced actions, just actions to execute JavaScript functions and our developers love it. Most things you just name things correctly and you don't even need to execute JavaScript as we check if certain variable and button names exist and then the scripts know how to handle those situations.

I think that since JavaScript is the tool to manipulate the DOM, and it's written dynamically, you can't go wrong.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Mar 21, 2017 Mar 21, 2017

Not in this case. I've got just over 200 slides.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Community Expert ,
Mar 22, 2017 Mar 22, 2017

For sure, in this case, yes it makes sense.

Paul Wilson, CTDP
Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Mar 21, 2017 Mar 21, 2017

That's awesome. Thanks again!

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Mar 22, 2017 Mar 22, 2017

That last script numbered only the subheads, but not the pages.

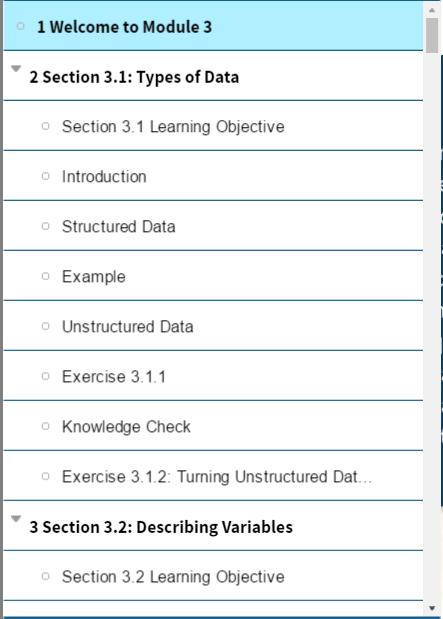

toc Capture.PNG

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
People's Champ ,
Mar 22, 2017 Mar 22, 2017

I thought that is what you wanted. You want it the other way around, with the headings not numbered?

You should just be able to reverse the if/else statement:

window.addEventListener( 'moduleReadyEvent', function ( e )
{
//internal objects and methods supplied by Captivate
interfaceObj = e.Data;
eventEmitterObj = interfaceObj.getEventEmitter();

var myText = document.getElementsByClassName( 'tocText' );
var checkLeft = parseInt( myText[ 0 ].style.left );
var breaks = 0;

if ( myText != null )
{
  for ( var i = 0; i < myText.length; i++ )
  {
   if ( parseInt(myText[ i ].style.left) > checkLeft + 10 )
   {

         var getText = myText[ i ].childNodes;

         var str = ( ( i + 1 ) - breaks ) + '  ' + getText[ 0 ].innerHTML;

         getText[ 0 ].innerHTML = str;

   }
   else
   {

     breaks++;
   }
  }
}
});

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
New Here ,
Mar 22, 2017 Mar 22, 2017

I suppose I could've been a bit clearer there.

Anyhow, that last script nails it.

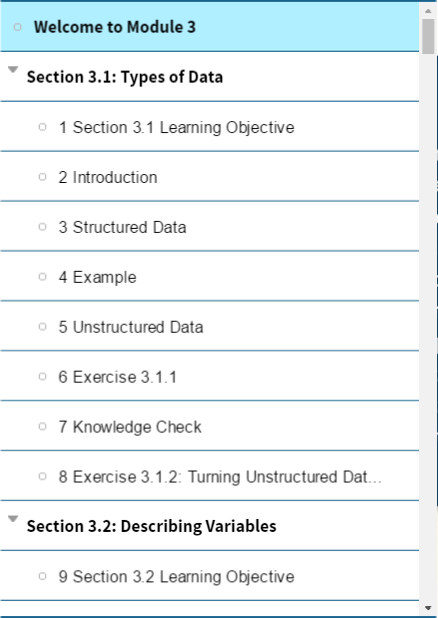

TOC capture 2.PNG

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
People's Champ ,
Mar 22, 2017 Mar 22, 2017
LATEST

Not a problem, I guess intuitively I should have realized my first script would have been backward.

Happy to help.

Translate
Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
community guidelines
Explorer ,
Nov 27, 2016 Nov 27, 2016

Thanks Paul, this is interesting. However, I don't know how to get to the place where I would insert that code. I always just publish mine and then upload them as Scorms to my LMS.

Does it still apply if I am working with Scorms?

Apologies for the lack of knowledge around this!

Ruth
