Color gradient halftone

  • September 11, 2020
  • 返信数 3.
  • 973 ビュー

Does anybody know how to do a color gradient halftone in Illustrator? I can do a B/W halftone and I know how to color it with a solid color, but I want to color it with a gradient with 2 or 3 colors. Is that possible or am I just wasting my time?

このトピックへの返信は締め切られました。
解決に役立った回答 Ton Frederiks

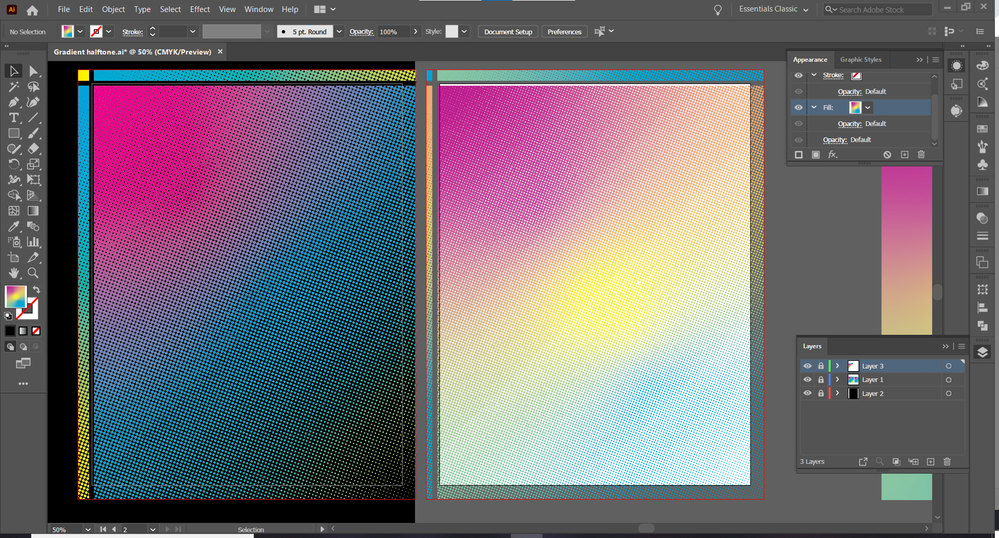

If this is the effect you are after, I would create the halftone first, group the result and apply the gradient to the group with a lighten mode. The shape can be modified afterwards, all the effects are live. You can also apply it to text.



返信数 3

Ton Frederiks
Community Expert
Community Expert
September 14, 2020

The method I gave only works with RGB documents.

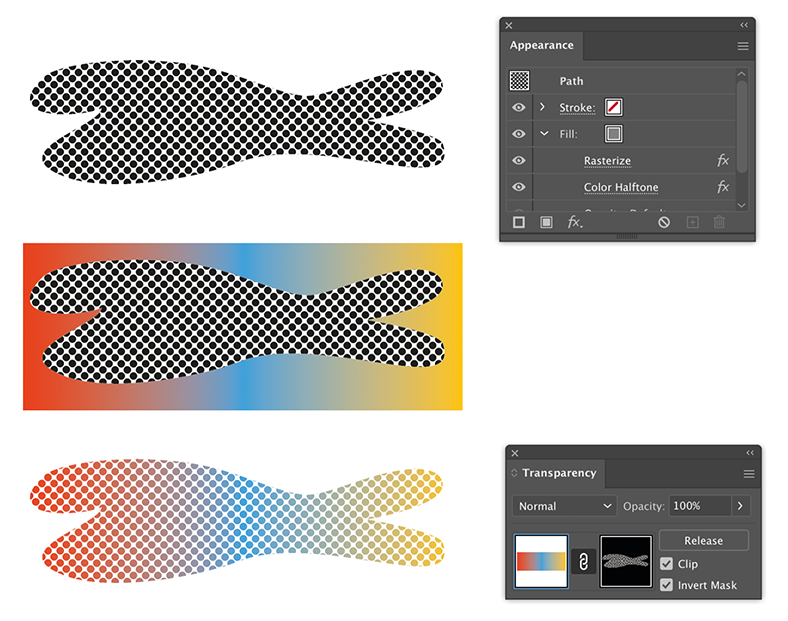

A simpler method would be to work with an Opacity mask, that works in both RGB and CMYK.

After creating the halftone, put a rectangle filled with a gradient behind it and click Make Mask in the Transparency panel. Check both Clip and Invert mask.

Ton Frederiks
Community Expert
Ton FrederiksCommunity Expert解決!
Community Expert
September 11, 2020

If this is the effect you are after, I would create the halftone first, group the result and apply the gradient to the group with a lighten mode. The shape can be modified afterwards, all the effects are live. You can also apply it to text.



Kendall5C62作成者
Participant
September 12, 2020

This really helped thank you! There's still this transparent line around the top and left edge though. Any way I can fix that? It stays in the same spot when I scale and move the halftone.

Ton Frederiks
Community Expert
Community Expert
September 12, 2020

Good to hear that helped!

When I created the example, I saw a little line, I got rid of it by giving the rectangle effect a -1 px width. Maybe experimenting with the extra width option helps.

ceyhun_akgun
Legend
September 11, 2020

You can still create the TINT value of a color marked globally in the swatches panel. You can add them to the Gradient panel. I guess you want to do that.

Graphic Designer Educator / PrePress Consultant
