• How to divide a circle intio three equal segments

# How to divide a circle intio three equal segments

New Here ,
Aug 30, 2008 Aug 30, 2008

Copied

I would very much appreciate any advice on the best way to divide a circle into three equal segments, such as the one that can be seen here: http://www.visualfractions.com/EnterCircle.html. I need to divide the circle with Object > Path > Divide objects below.

Thanks!

Views

73.9K

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
35 Replies 35
Community Expert ,
Aug 30, 2008 Aug 30, 2008

Copied

Daniel,

You can:

1. Create a straight path at least as long as the radius starting at 0,0;
2. Select (one of) the Reference Point(s) in the Transform Palette yielding 0,0;
3. Ctrl+C and Ctrl+F and select 120 degrees, still in the Tranform Palette;
4. Repeat 2 and 3;
5. Create the circle and move the centre to 0,0;
6. Select all, Pathfinder>Divide, and Control+Shift+G to Ungroup.

This is the Divide a Circle into Thirdendeals Thread.

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Guide ,
Aug 30, 2008 Aug 30, 2008

Copied

Just an alternate method for Jacob's steps 2-4: use Effect | Distort & Transform | Transform. That dialog enables you to select the anchor and the two copies needed in one swell foop.

You do need to expand appearance before proceeding to step 5.

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
New Here ,
Aug 30, 2008 Aug 30, 2008

Copied

Jacob,

Thank you very much for your answer, but I'm afraid I can't follow it. Could you be a bit more specific? Let's say I want to create a circle with a radius of 30 mm.

Ok... so I...

1. Create a straight path (using the pen tool?) of 30 mm starting at 0,0 (from 0,0 to 0,30).
2. Select the 0,0 (with the direct selection tool?) extreme of the straight path (only one of the two extremes of the line is 0,0)
3. Then I'm lost

Daniel

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
New Here ,
Aug 30, 2008 Aug 30, 2008

Copied

Harron and Jacob,

I'm afraid you're both asuming I have a good command of Illustrator. But that's not the case (I come from the PhotoShop realm, and am not very used to working with vectors). And I just need to make a circle divided into three identical segments, each of them with a different color, such as you would see in a pie chart with 33,33% for each of the three segments.

I would very much appreciate a little more detailed step by step explanation from any of you.

Thanks a lot!

Daniel

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Community Expert ,
Aug 30, 2008 Aug 30, 2008

Copied

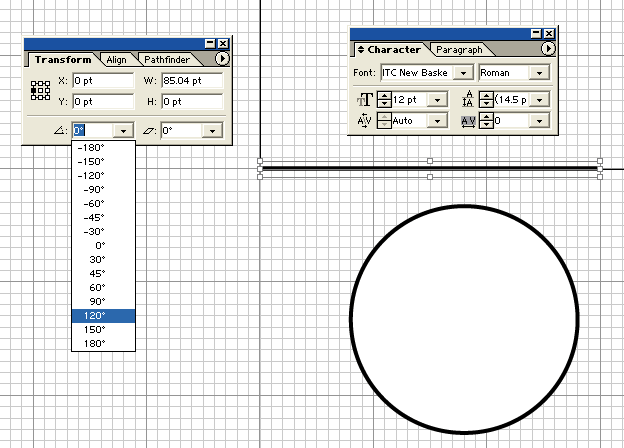

I switched to points to get the GIF nice (85.04 pt corresponds to 30 mm).

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
New Here ,
Aug 30, 2008 Aug 30, 2008

Copied

I cannot believe it. I followed Jacob's instructions over and over until I finally achieved it (had to figure out a couple of things that were not that clear to me at the beginning).

Thanks a lot to both of you!!!

BTW... What does Ctrl*F do exactly?

Daniel

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Guide ,
Aug 30, 2008 Aug 30, 2008

Copied

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Explorer ,
Aug 30, 2008 Aug 30, 2008

Copied

Daniel:

Another simpler method-

Select the Polar Grid Tool (mouse down on the line tool and pick the right most button.

Click the artboard and enter equal W and H, 0 Concentric Dividers, 3 radial dividers, OK, and then either--

A- Use the Live Paint Tool to fill the segments

B- Use Pathfinder Palette Divide to break the circle up into separate pieces.

steve

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Explorer ,
Aug 22, 2024 Aug 22, 2024

Copied

LATEST

Here it is 2024 and your solution is still helping people. Thanks!

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Guide ,
Aug 30, 2008 Aug 30, 2008

Copied

Much better!

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Community Beginner ,
Aug 30, 2008 Aug 30, 2008

Copied

I May have done something wrong, but it looks like divide will not work unless you ungroup more than once.

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Community Expert ,
Aug 31, 2008 Aug 31, 2008

Copied

It will in 10, Silk.

I was in a hurry with the screenshot, last night before closing down; I would have moved the Layers Palette into the frame to show that there were an unselected path beneath the selected one, but the Charcter Palette slipped in.

Nice Harron and Steve, and you are welcome Daniel.

But as I said: this is the is the Divide a Circle into Thirdendeals Thread. There must be more ways.

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
LEGEND ,
Aug 31, 2008 Aug 31, 2008

Copied

> There must be more ways.

Personally, I'd use the Polar Grid tool. Clickdrag, but don't mouseup. Press and hold the down arrow key until you have only one circle. Tap the left arrow key until you have only three radii. Press and hold shift to constrain the circular proportion, then mouseup.

But then I would be annoyed that the three pie slices have four points each. So...how do you make three 120 degree pie slices with only three tidy points each?

1. Polygon Tool: Mousedown at some pre-existing snap location. It could be the intersection of two guides, an anchorpoint of a path, etc. Drag, but don't mouse up. Tap the down arrow keys until the polygon has only three sides (an equilateral triangle).

2. WhitePointer: Select two of the triangle's anchorPoints. Click the Convert To Smooth button. Select the other anchorPoint. Click the Convert To Smoot button. (Why two operations? Because in Illustrator's lame Control Panel, the Convert / Cut Selected Points buttons disappear if all the points of a path are selected--more evidence that Illustrator doesn't know the difference between a path being selected as an object and merely having all its points selected.)

3. Select>Path>DirectionHandles.

4. ScaleTool: AltClick the snap-to location that was used in step 1. In the resulting dialog, enter 128.4%.

5. Ctrl-X (Cut to clipboard). Delete. Paste In Front.

6. White Pointer: ShiftClick one of the three pasted paths to deselect it. Delete (the other two are deleted.)

7. Pen Tool: Click one of the endpoints. Click the snap-to location. Click the other endpoint.

8. White Pointer: AltClick the path to select all of it. Scale Tool: AltClick the snap-to location. In the resulting dialog, enter 120 degrees, click Copy. Ctrl-D (Transform Again).

JET

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Enthusiast ,
Aug 31, 2008 Aug 31, 2008

Copied

Jet,

Fantastic. (That would be Rotate Tool in step 8?)

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Community Expert ,
Aug 31, 2008 Aug 31, 2008

Copied

Mass execution:

http://illustrator.hilfdirselbst.ch/Sonstiges/Sample_AI_Files/mass_execution_001.zip (AI 10 format, ca. 70 kb)

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
LEGEND ,
Aug 31, 2008 Aug 31, 2008

Copied

> That would be Rotate Tool in step 8?

Oops. Yep.

JET

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
New Here ,
Sep 02, 2008 Sep 02, 2008

Copied

Here's an idea...
2. Activate your star tool. Draw a 3 point star.
3. Place your 3 point star exactly inside your circle, where the points touch the circle.
4. Get out your scissors tool. Clip each segment at the point.
5. Delete the star. Voila! 3 perfect segments.

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Community Expert ,
Sep 03, 2008 Sep 03, 2008

Copied

There must be other ways.

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Explorer ,
Sep 03, 2008 Sep 03, 2008

Copied

OK Jacob:

With the Ellipse tool make a circle (e.g. W- 50pt, H- 50 pt).

With the Polygon Tool make a larger 6 sided polygon (e.g. radius 50pt).

With View> Smart Guides on (Ctrl + u) and the polygon selected, use the Direct Select Tool (white arrow) to click drag the polygon by one of its anchors to the center of the circle. Smart Guides will say center when you are on.

Select both the circle and the polygon and alt + click Intersect shape areas (top row, three from left) in the Pathfinder Palette. Now you have one piece.

Select the piece, select the Rotate Tool and alt + click the center anchor point. Enter 120 deg and click copy. Repeat this by Ctrl + D to get the third piece.

steve

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
New Here ,
Sep 03, 2008 Sep 03, 2008

Copied

By the way...

I'm creating some simple icons to distinguish different type of sites from a client on the map of Europe. These icons, as well as the map of Europe, will be used in Word and Excel.

Now that the icons are ready (in Illustrator), when I convert them to .png or .bmp (to be used in Word and Excel), they look completely pixelated. Is there any other format that I can use to preserve the vector images and the transparencies? Or is there something I should do in Illustrator before converting them into .png or .bmp?

Thanks!

Daniel

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
LEGEND ,
Sep 04, 2008 Sep 04, 2008

Copied

Office productivity programs like Office apps do not natively support vector formats beyond the OS meta formats like WMF and EMF. Office cannot use PDF as spot vector graphics. Nor does it import .ai files and translate their contents into native vector artwork.

Office apps support the now rather dated EPS as an embedded or linked graphic object. But EPS assumes a PostScript printer, and is represented on screen and in non-PostScript print as the low-res raster preview it contains.

So you can try exporting the vector artwork as EMF. Whether the results are satisfactory will depend upon the specific content involved. If you do not find it to be satisfactory, then you are stuck with a raster format, the most versatile of which nowadays is PNG because it includes lossless compression, is not limited to an indexed color depth, and supports alpha channel masking for so-called "transparency".

JET

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Enthusiast ,
Sep 06, 2008 Sep 06, 2008

Copied

RE: Kurt, message #14
File: http://illustrator.hilfdirselbst.ch/Sonstiges/Sample_AI_Files/mass_execution_001.zip

I love your yellow pattern design!
Can you share some of your steps as to how you created that perfect spiral pattern?

Kathryn

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Community Expert ,
Sep 06, 2008 Sep 06, 2008

Copied

I used the Transform effect, Kathryn.

1) Draw a circle, diameter: 3 mm

2) Effect > Distort and Transform > Transform:

- Reference point: Bottom centre
- Copies: 360
- Scale horizontal: 100,4 %
- Scale vertical: 100,4 %
- Move horizontal: 6 mm
- Rotate: 16Â°

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
Enthusiast ,
Sep 06, 2008 Sep 06, 2008

Copied

Thanks Kurt! You are so smart.

I'll give it a go.

I did try Transform first. I just did not come up with the right numbers.

Kathryn

Report

Report
Community guidelines
Be kind and respectful, give credit to the original source of content, and search for duplicates before posting. Learn more
