ひし形のフレームに写真を配置したい

  • August 4, 2018
  • 返信数 2.
  • 780 ビュー

ひし形のフレームに写真を配置したい

    このトピックへの返信は締め切られました。
    解決に役立った回答 barbara_a7746676

    Use the Rectangular Frame tool to draw a square. Hold down Shift as you drag to create that square; that will constrain the proportions so that you get an equal-sided square.

    In the Control panel, rotate to 45 degrees.

    With the frame selected, choose File > Place.

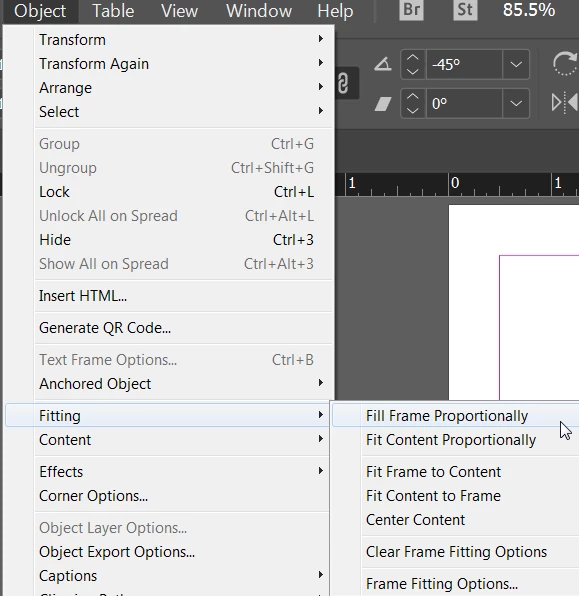

    Use Object > Fitting Options to position the picture within the frame.

    返信数 2

    barbara_a7746676
    Community Expert
    barbara_a7746676Community Expert解決！
    Community Expert
    August 6, 2018

    Use the Rectangular Frame tool to draw a square. Hold down Shift as you drag to create that square; that will constrain the proportions so that you get an equal-sided square.

    In the Control panel, rotate to 45 degrees.

    With the frame selected, choose File > Place.

    Use Object > Fitting Options to position the picture within the frame.

    L
    Community Expert
    LaubenderCommunity Expert
    Community Expert
    August 6, 2018

    One addition to what Barbara said:

    If you select the rectangle (square) with the Direct Selection Tool ( that's the "White Arrow Tool" ) and then rotate by 45° or -45° the placed image will not be rotated as well.

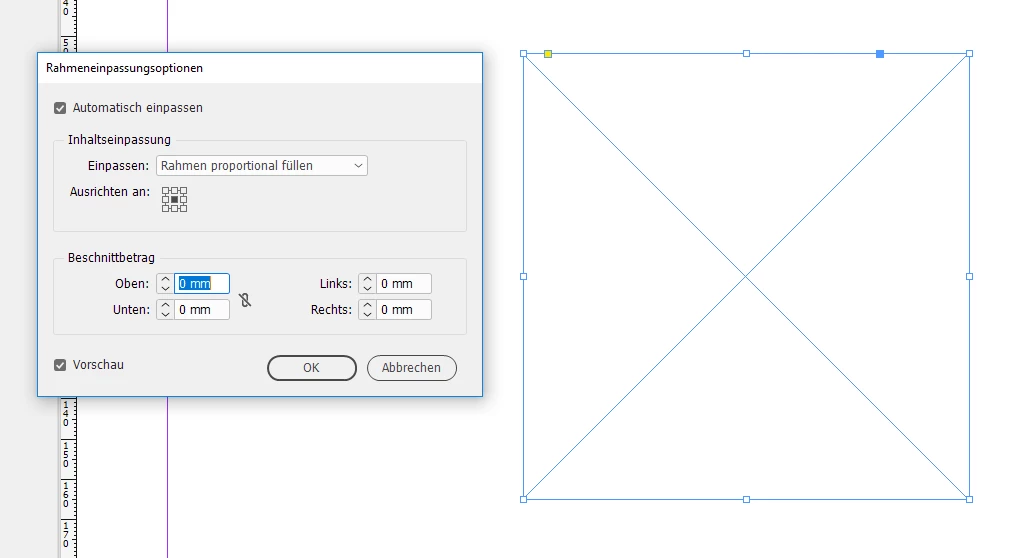

    Preparing the frame with fitting options. Fill frame proportionally:

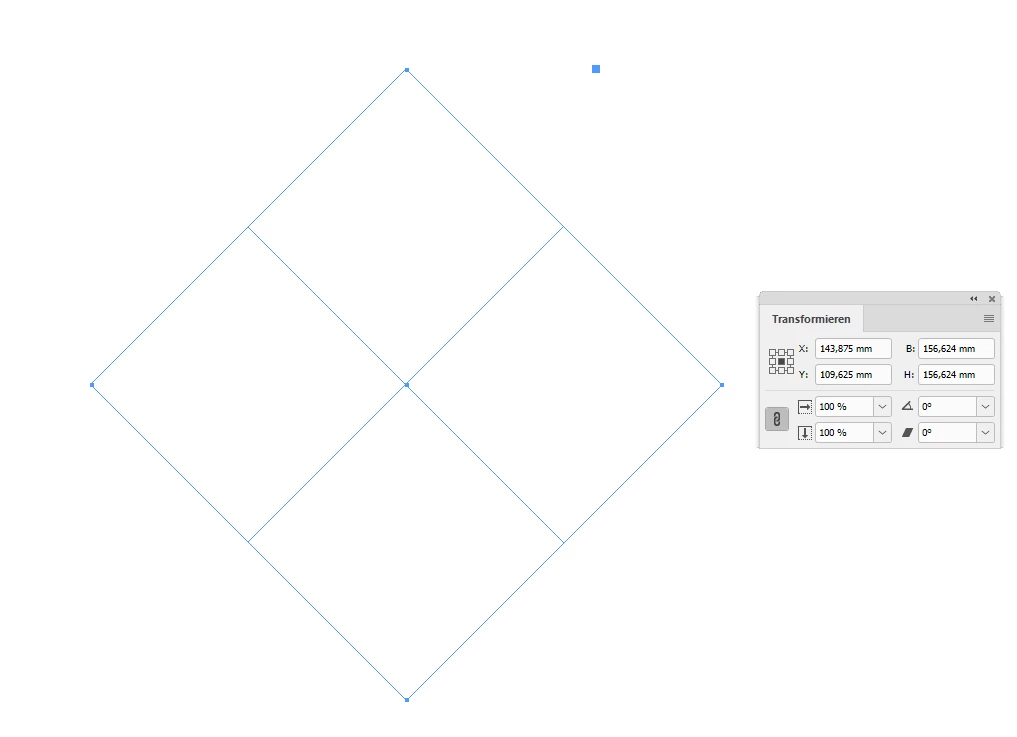

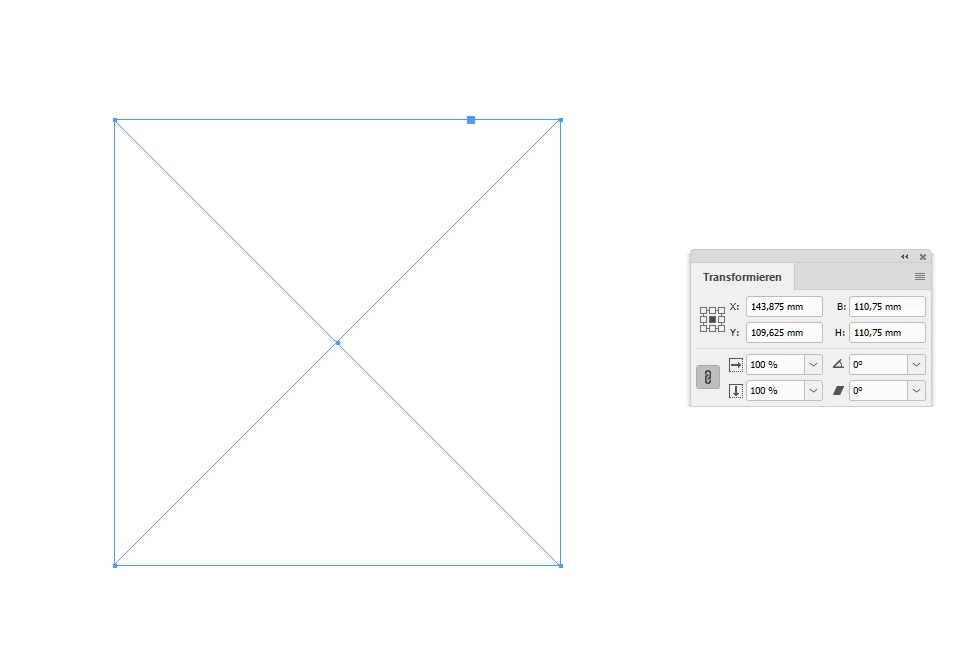

    Select the frame with the Direct Selection Tool. See how the 8 handle widgets are changing to 4. Now the 4 path points of the square are selected:

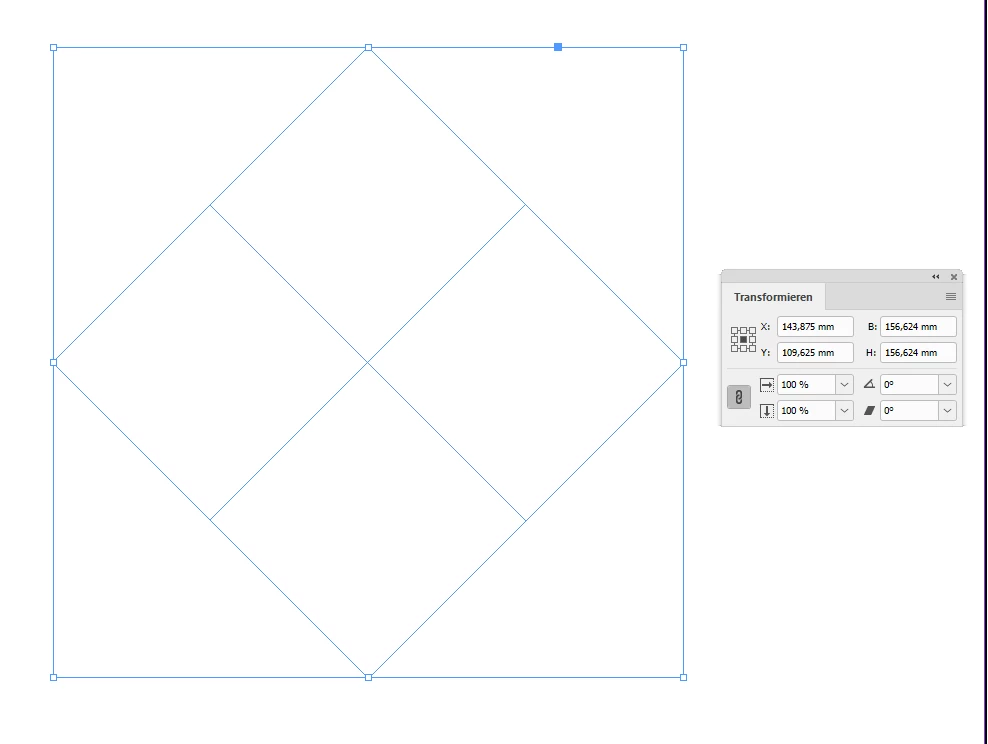

    Now rotate to 45° or -45°  ( it will make no difference ):

    Frame selected with the Selection Tool:

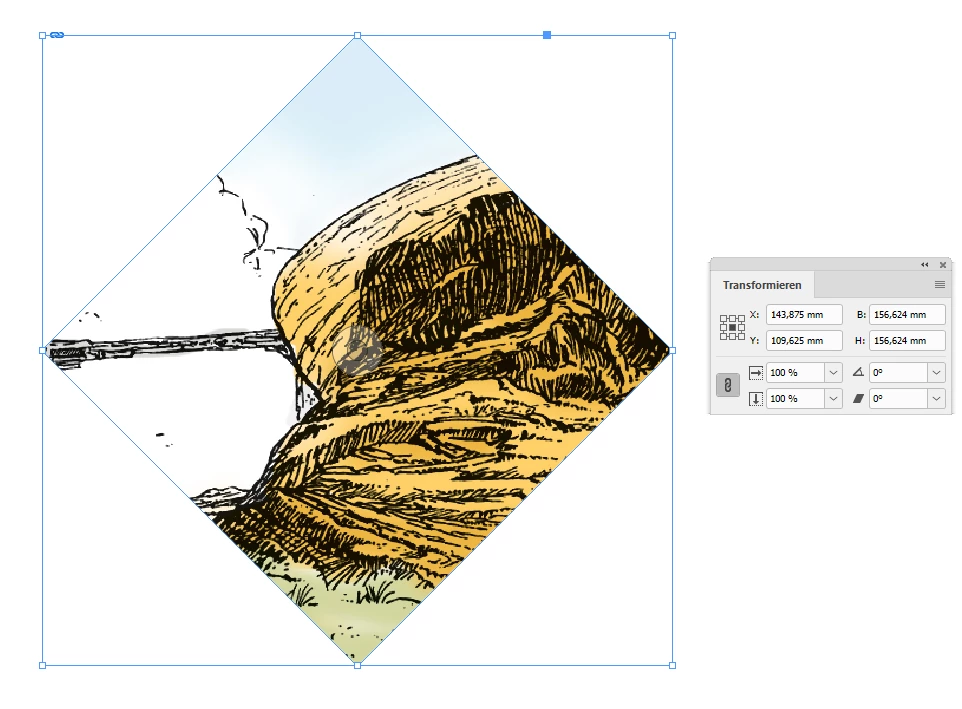

    Image placed to the selected frame:

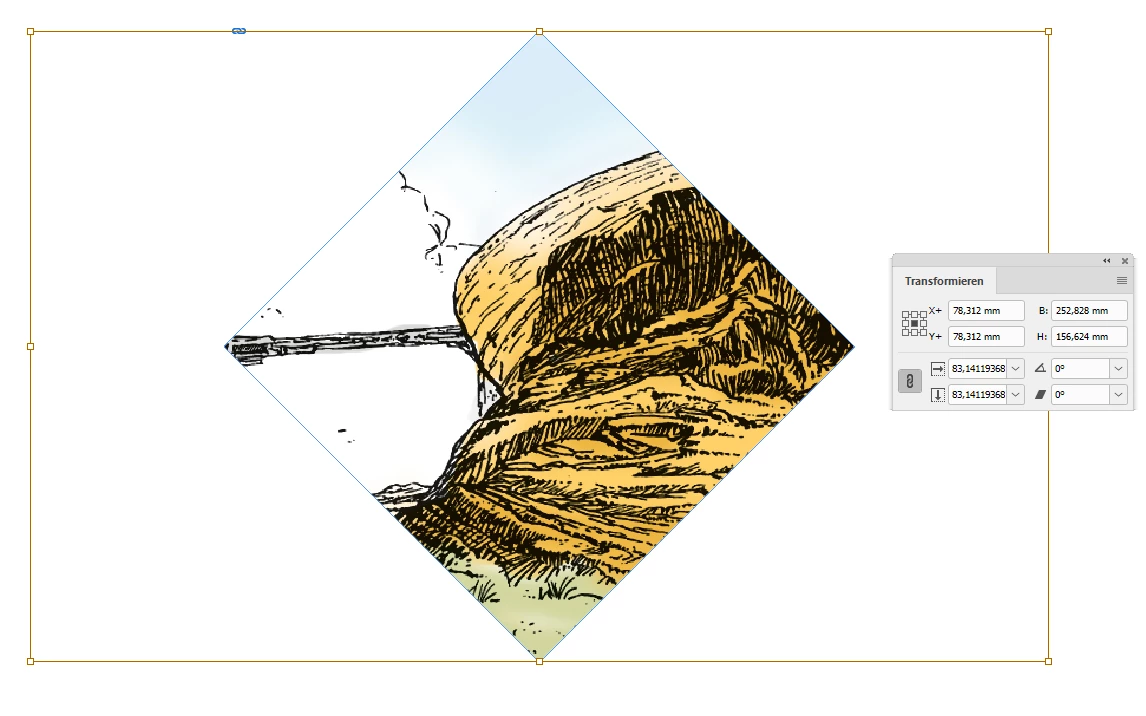

    Image selected:

    Regards,
    Uwe

    manal shanableh
    manal shanableh
    Legend
    August 4, 2018

    You can draw any shape using pen tool or Rectangle Frame tool and rotate it to have the diamond shape, then place an image inside it.
