blending mode not working correctly when using parameter

  • September 29, 2023
  • 返信数 3.
  • 719 ビュー

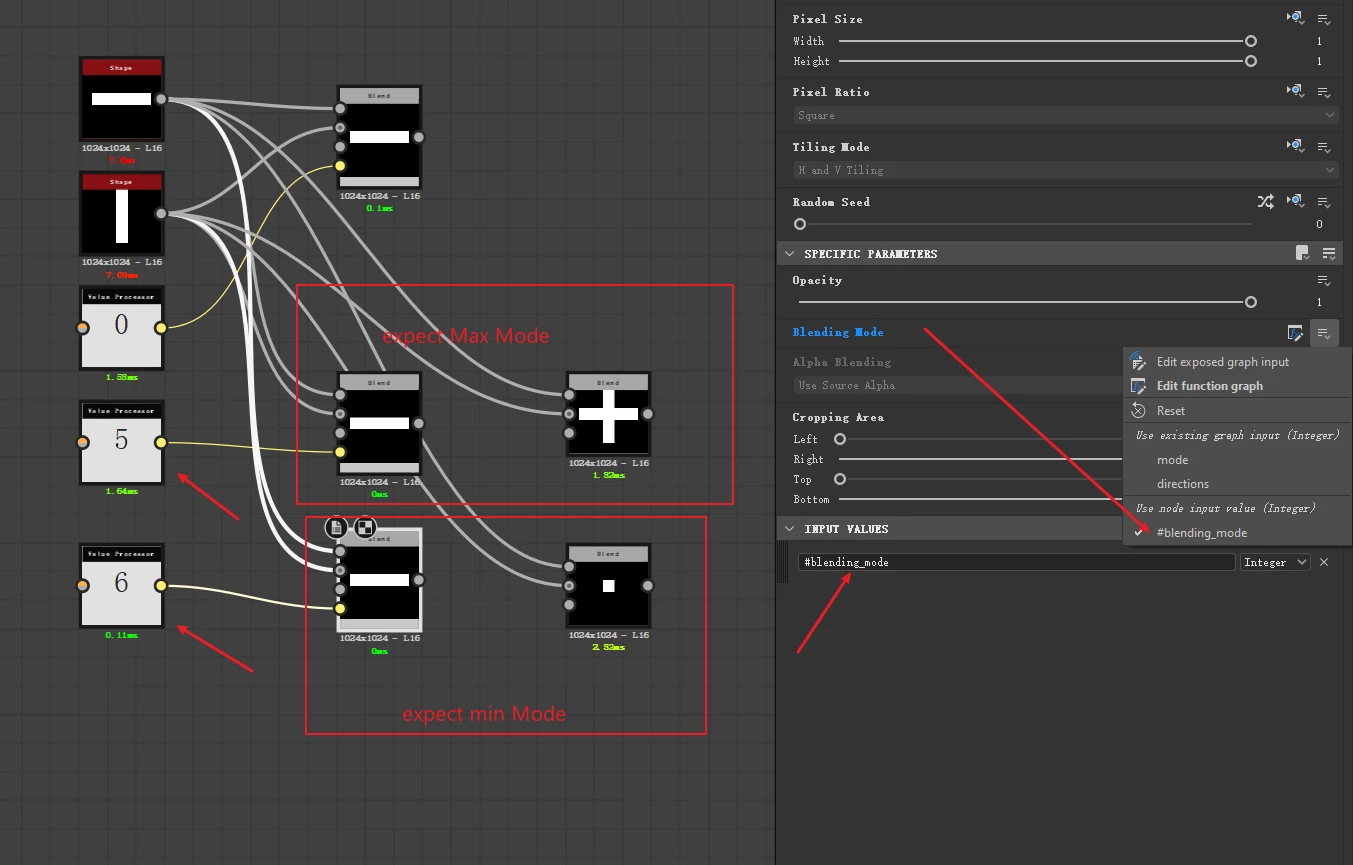

I am trying to leverage graph/node input  paramter to control the blending mode of blend node. Seems it cannot work, looks like all value above 0 is treated as 0, so it's always the defalut "Copy" mode.

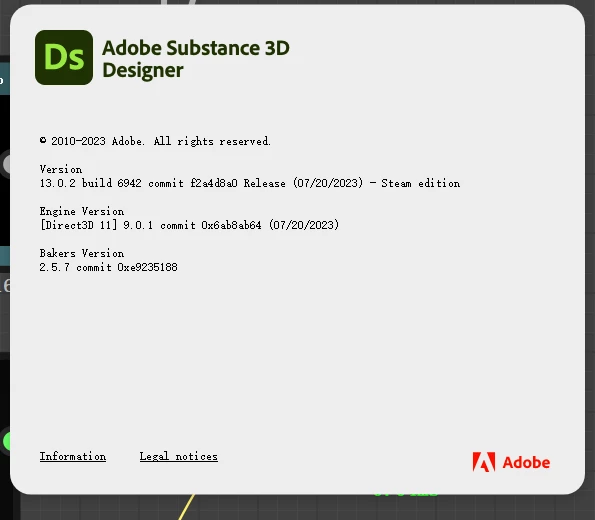

Here's the version information



    返信数 3

    W
    Will30884083c2sx作成者
    Participant
    September 29, 2023

    Thanks for the detailed explanation!

      davescm
      Community Expert
      davescmCommunity Expert
      Community Expert
      September 29, 2023

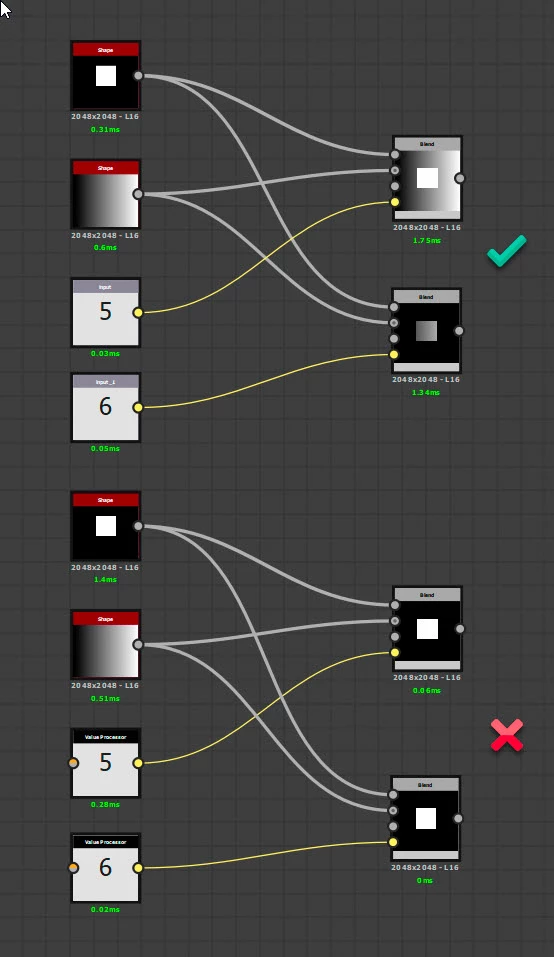

      The issue seems to stem from using the value processor as the input to the blend node. Using a normal 'input' node works as expected.



      Note however, even if you use an input node, when you come to publish the graph the blend mode will not work as an exposed parameter. It is a 'static parameter' which is fixed when the graph is cooked (i.e. when it is edited or published).
      https://helpx.adobe.com/substance-3d-designer/substance-compositing-graphs/exposing-a-parameter.html

      The way around that is to use multiple blend nodes and switch between them using switch/multi switch nodes



      Dave



        W
        Will30884083c2sx作成者
        Participant
        September 29, 2023

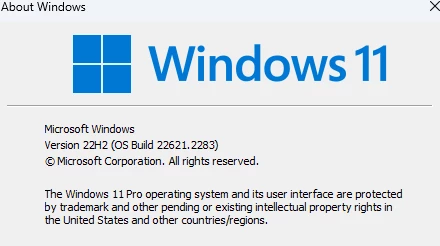

        I am using Windows
