Panorama Rotation Node gives output not equal input even with no changes

  • July 23, 2022
  • 1 reply
  • 209 views

I have Substance Designer 12.1.1 build 5825

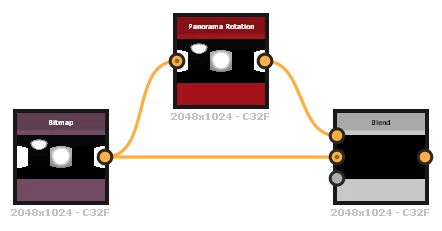

When I use such scheme

input bitmap is in .exr format (32bit float or 16bit half-float)

panorama Rotation (all parameters are at default values)

blend node with subtract option - there are differences, but the images must be the same!



Under differences I mean histogram Used Range values (see below)

They are quite big (maybe with this current image), but this is math: if no changes - there must be no difference.

If I connect input bitmap to both blend node inputs that range is 0;0, and that is correct.

The same error persists in any different resolution and with .hdr format images.



Only one thing I've found so far - when inserting exposure node just after the image and make exposure lowering - the error gets smaller too, but it is not 0 in any way.



1 reply

Luca Giarrizzo
Community Manager
Community Manager
July 27, 2022

Hello,



Thank you for the detailed report!



The differences are caused by the cumulated imprecisions in the way rotation is computed. A big part of these imprecisions are related to the limitations inherent to floating point arithmetic.



We are assessing this internally, I appreciate your patience in the meantime.



Best regards.



Luca Giarrizzo | Quality Engineer - Substance 3D Designer | Adobe
